Vacuum Diagrams




3E (federal and Canada specific model)

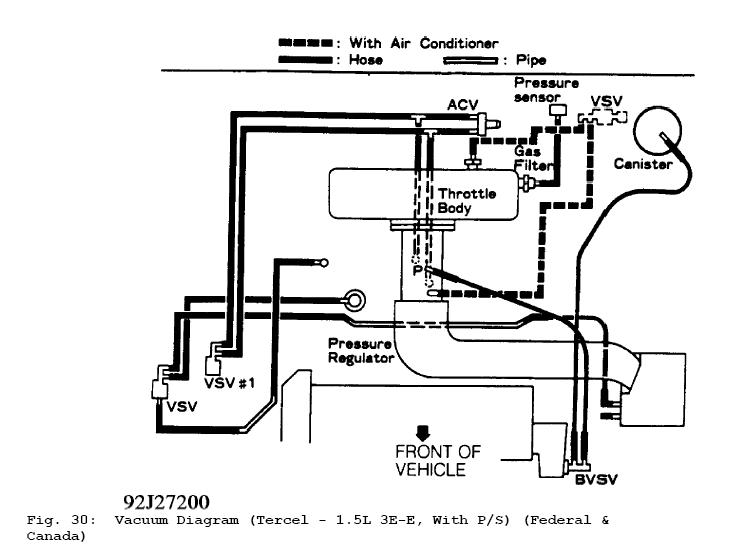

3E-E with power steering (federal and Canada specific model)

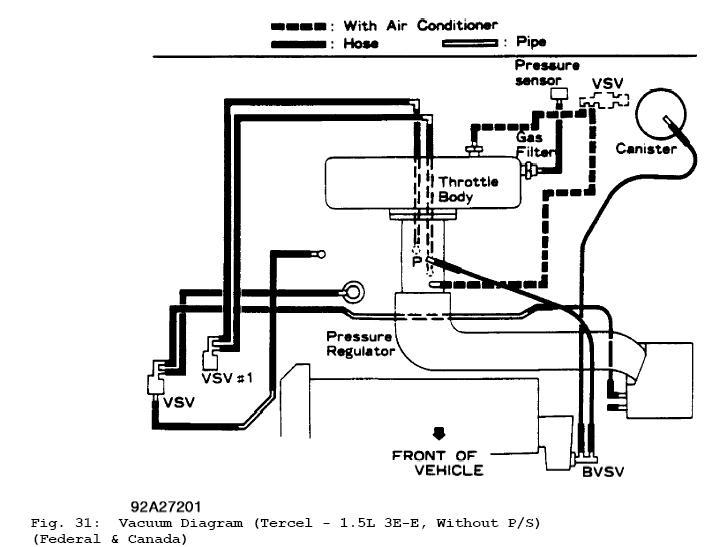

3E-E without power steering (federal and Canada specific model)

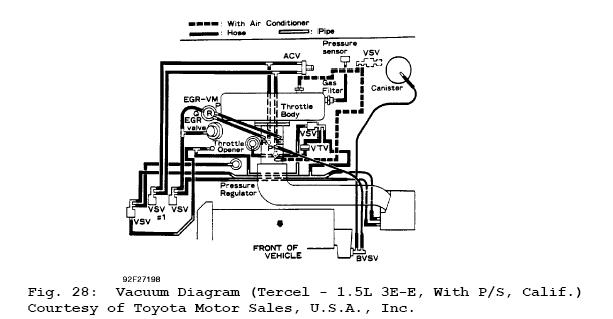

3E-E with power steering (california specific model)

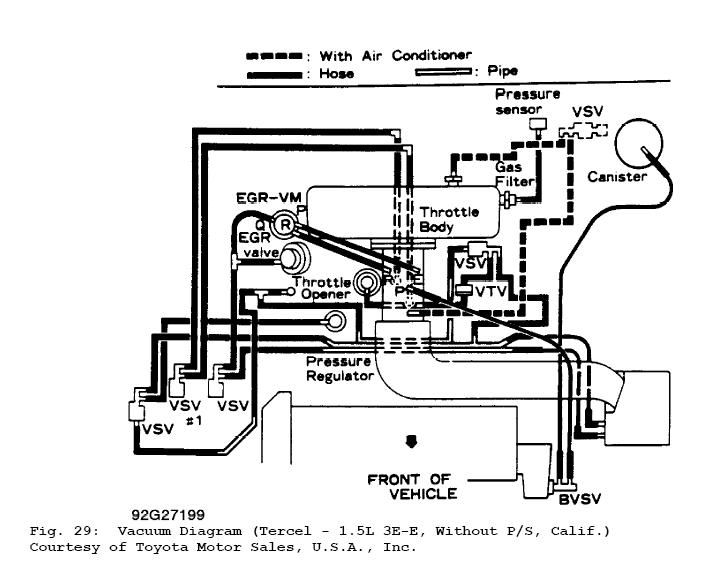

3E-E without power steering (california specific model)

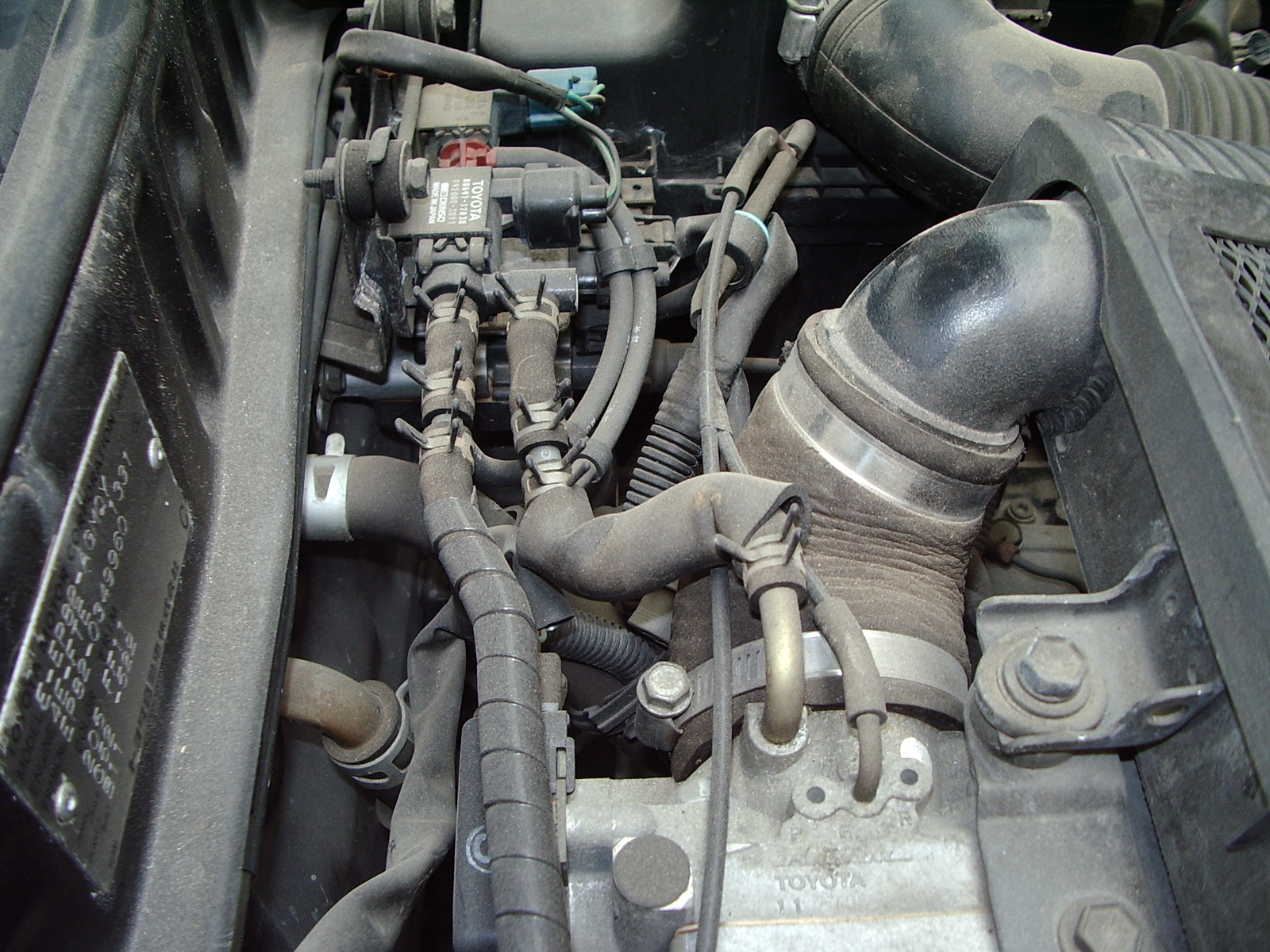

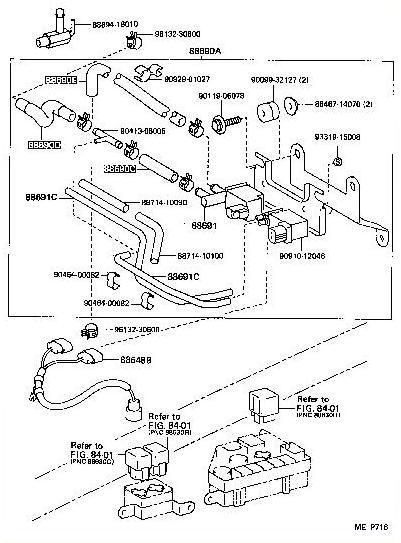

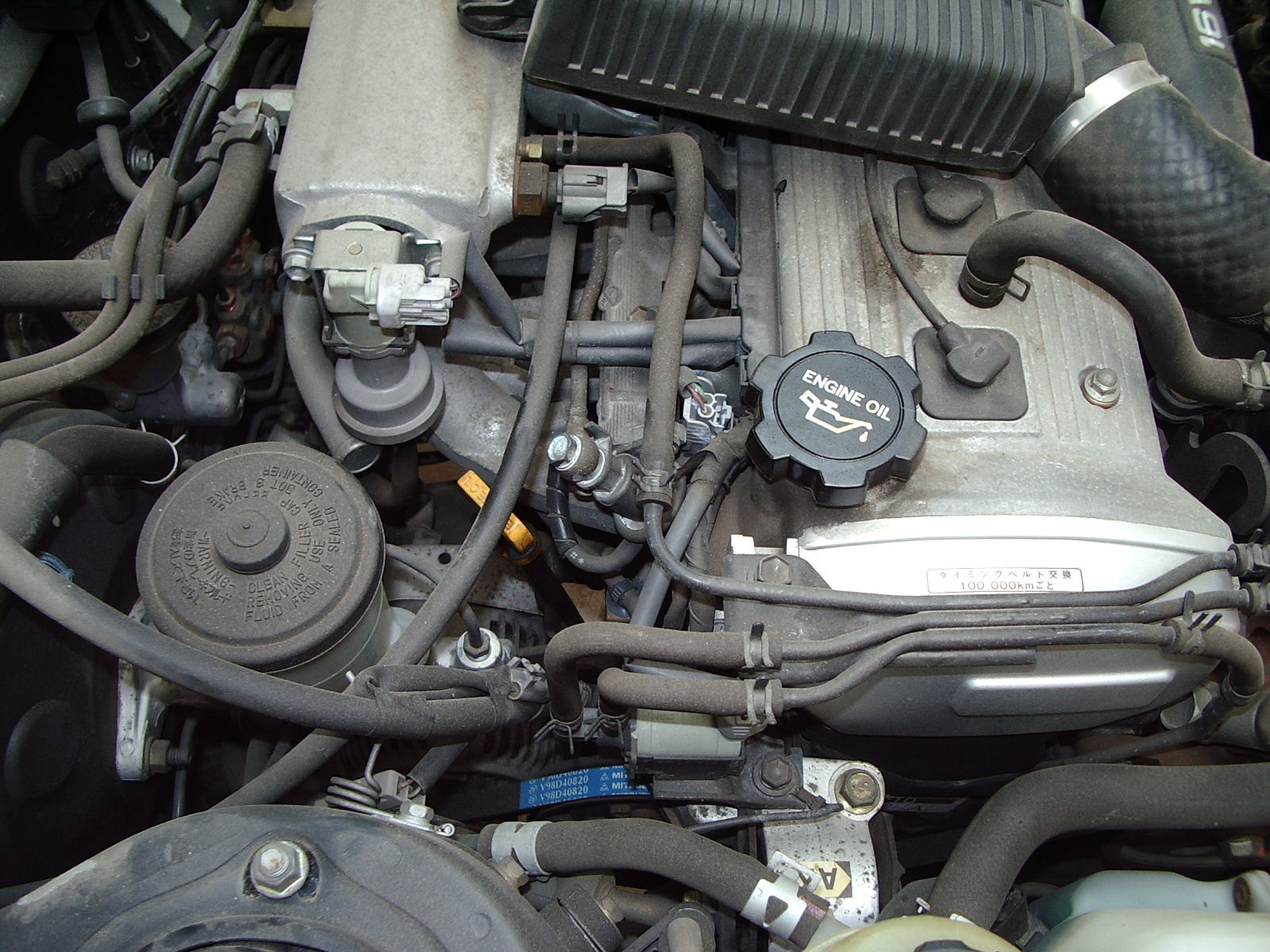

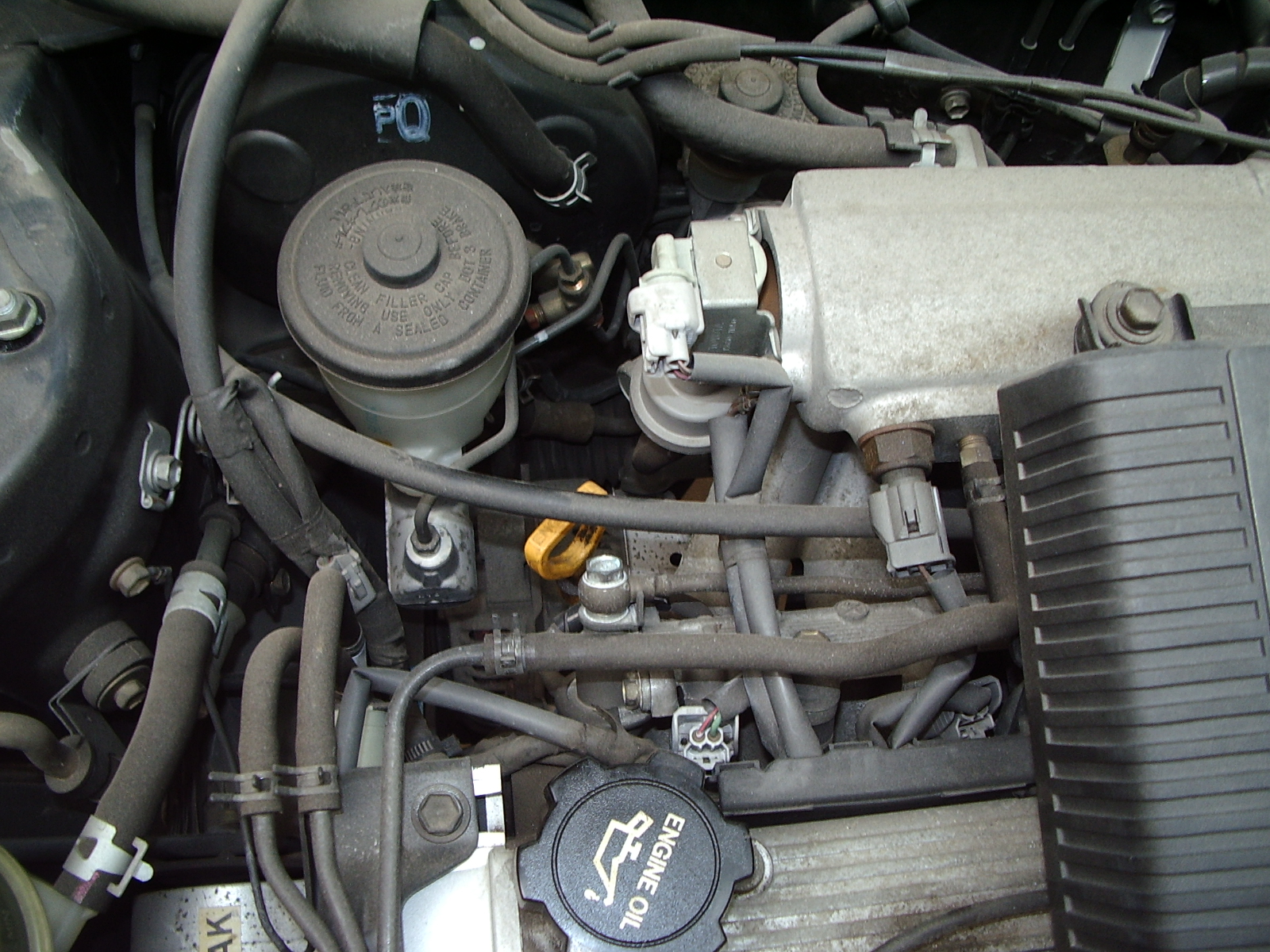

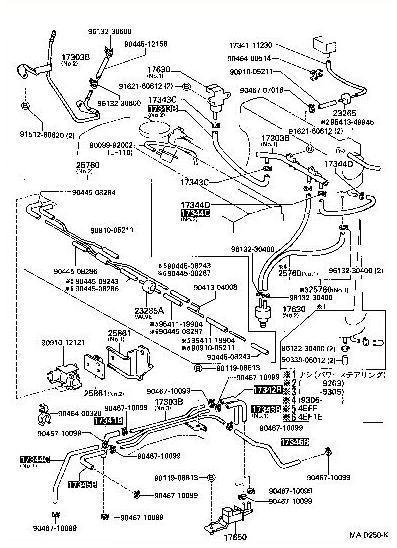

4E-FTE

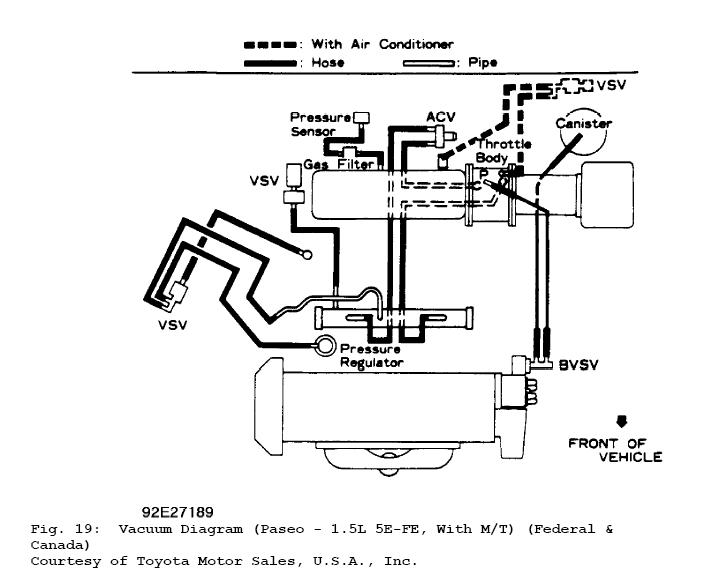

5E-FE (federal and Canada specific model)

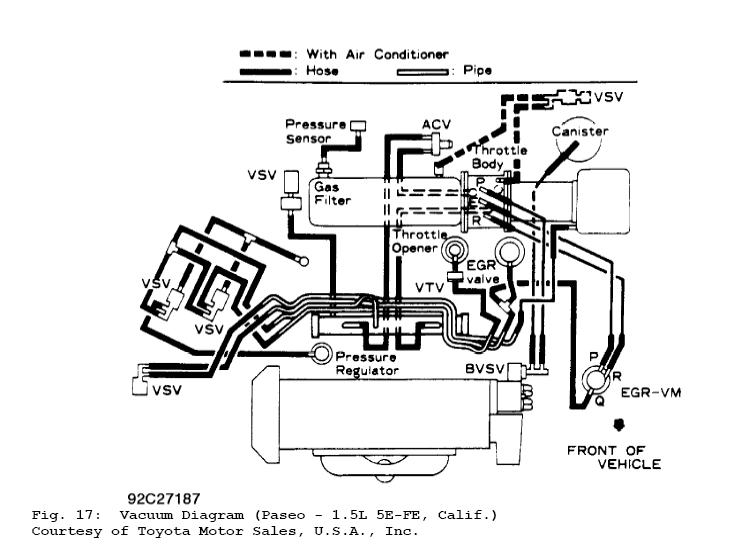

5E-FE (california specific model)

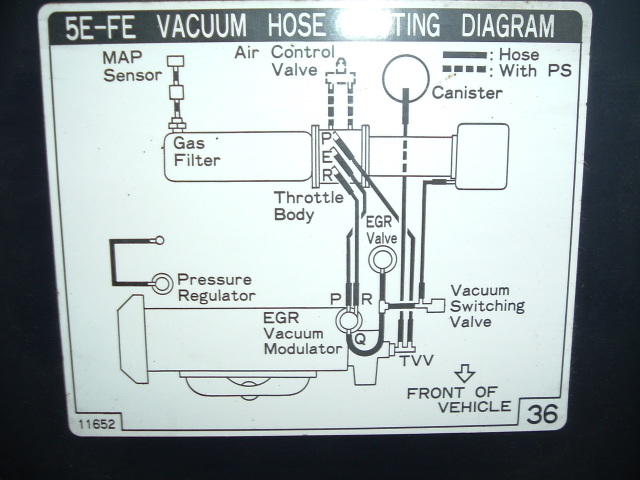

1995-1996 2nd gen 5E-FE with egr system.

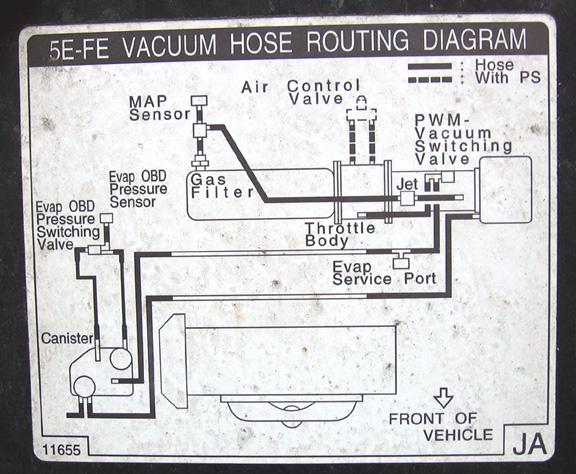

1997+ 2nd gen 5E-FE.
