Engine Component Library





Engine Components

Intake Plumbing
Intercoolers
Throttle Bodies
Intake Manifolds
Fuel Rails
Injectors
Valve Covers
Camshafts
Heads
Head Gaskets
Blocks
Pistons
Connecting Rods
Crankshafts
Crankshaft Pulleys
Oil Pans
Exhaust Manifolds
Engine Mounts
Turbos
Exhaust Systems
Electronics
Cooling System









Intake Plumbing
Top

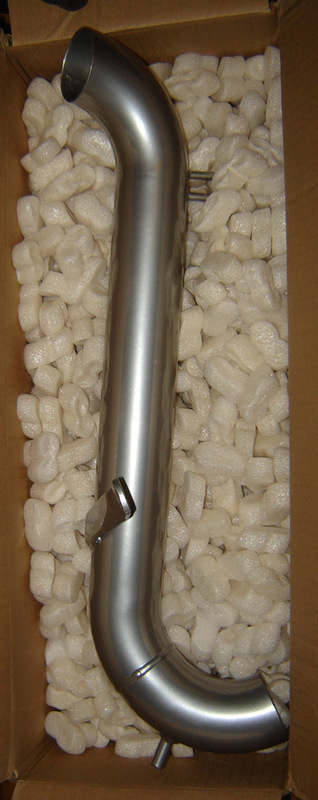

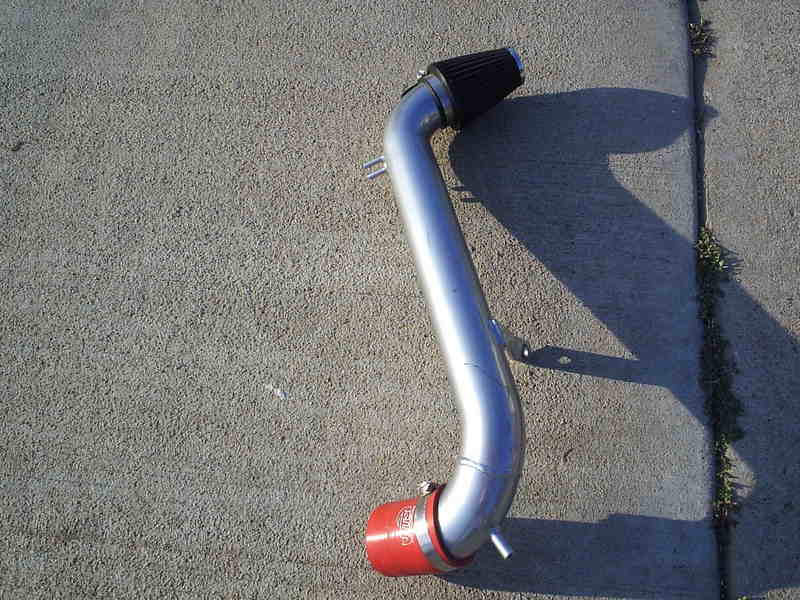

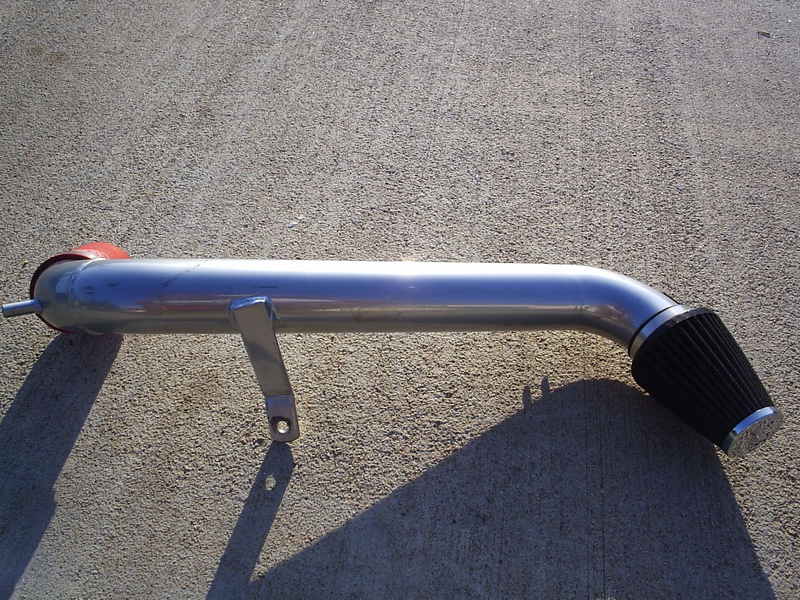

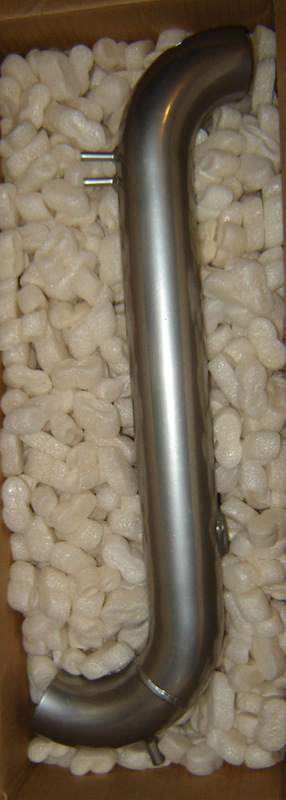

EL Prototypes 3E-E intake.








Intercoolers
Top

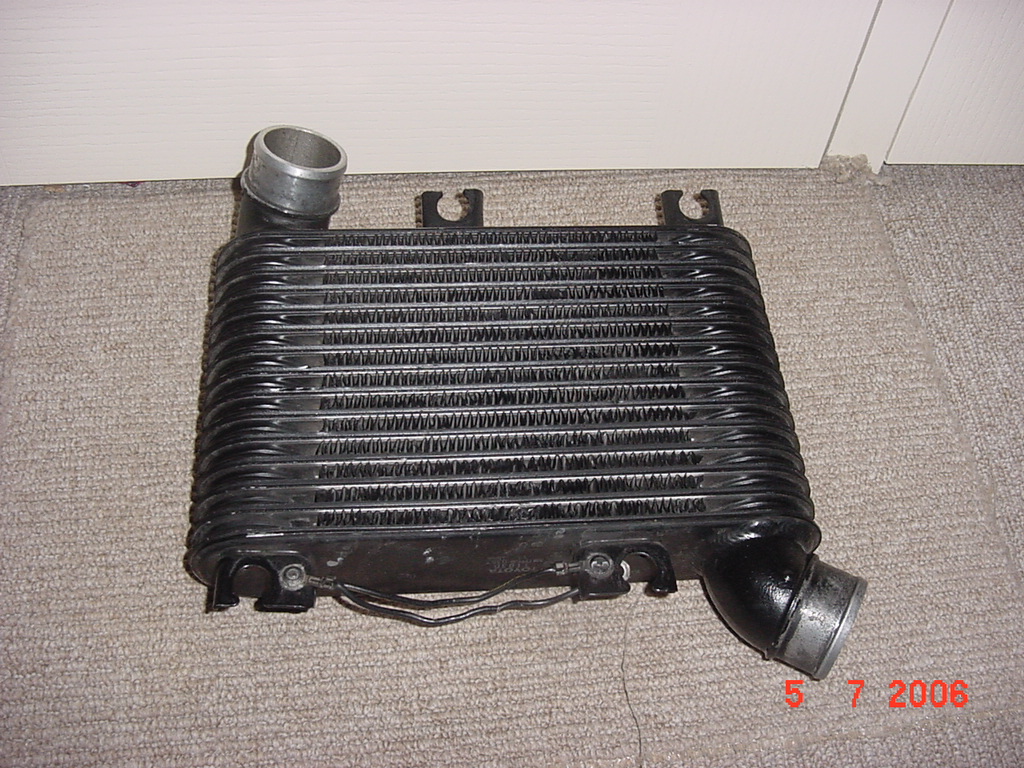

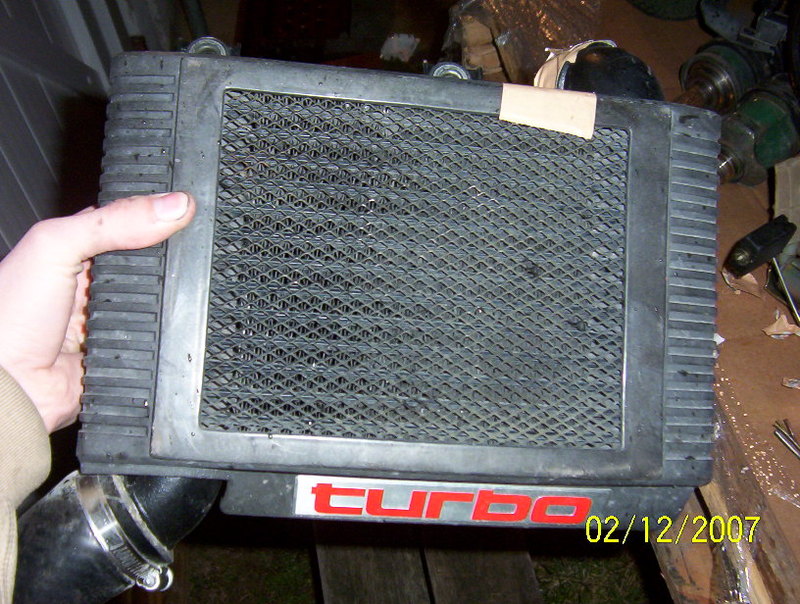

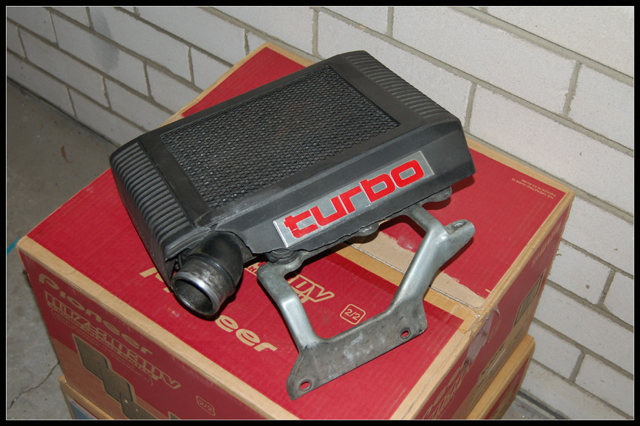

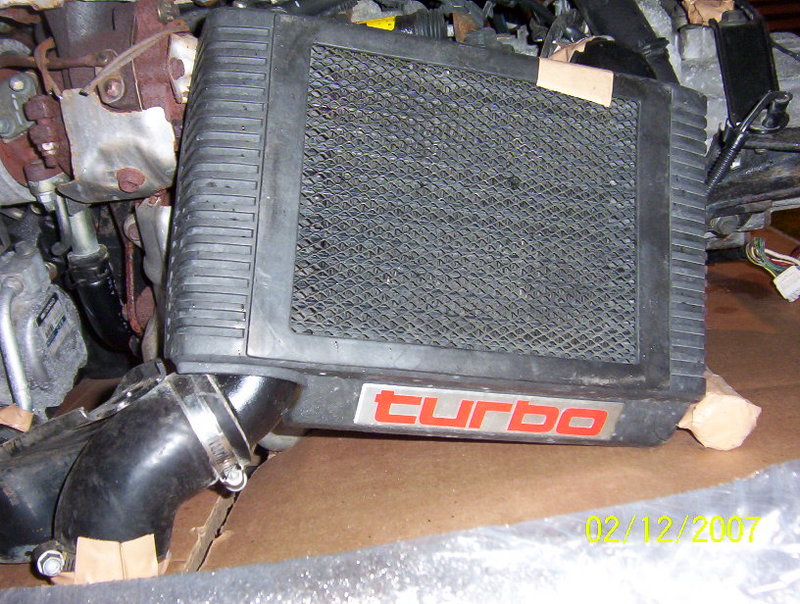

4E-FTE intercooler.








Throttle Bodies
Top

The E series throttle bodies are all quite similar. They all have the same bolt pattern and are similar in bore size. However, only some can be interchanged due to changes in sensors and vaccum systems. If you are looking to upgrade, make sure you get a picture of the one you are going to purchase, and make sure it has the same sensors and vaccum fittings.

Throttle Body Bore Diameters
3E-E 45mm
1st Gen 4E-FE 50mm
2nd Gen 4E-FE 45mm
4E-FTE 50mm
1st Gen 5E-FE 50mm
2nd Gen 5E-FE 45mm
5E-FHE 50mm

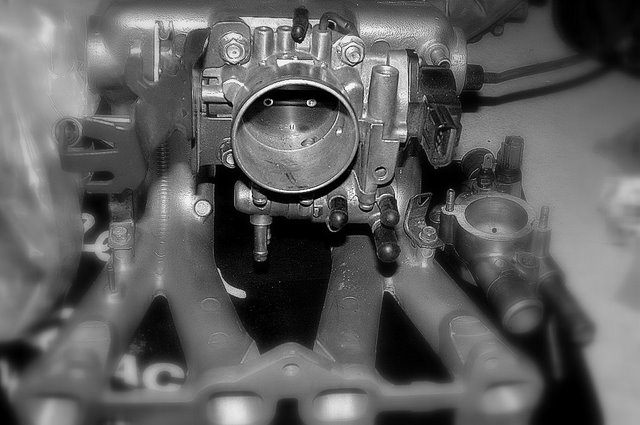

Bored 3E-E throttle body.

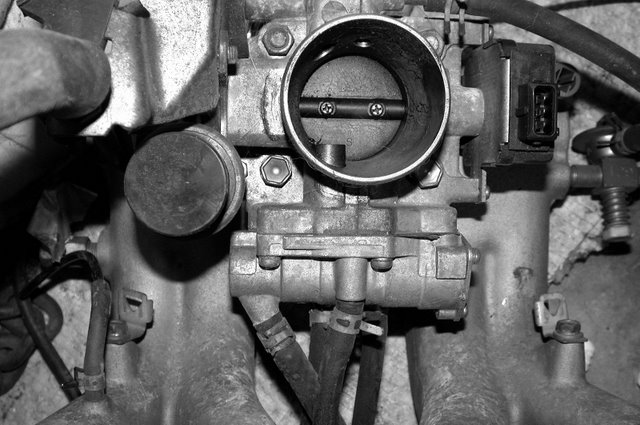

3E-TE throttle body.





4E-FE throttle body.

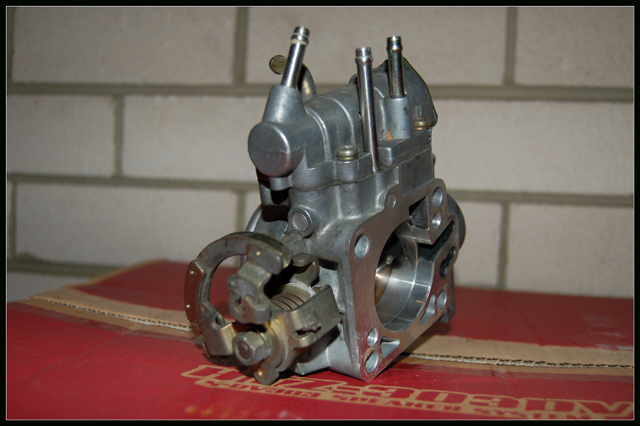

4E-FTE throttle body.

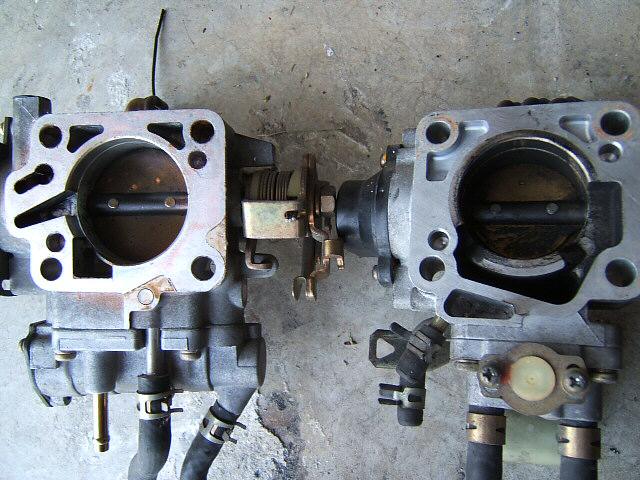

4E-FTE throttle body (left), 2nd gen 5E-FE (95-96) throttle body (right).





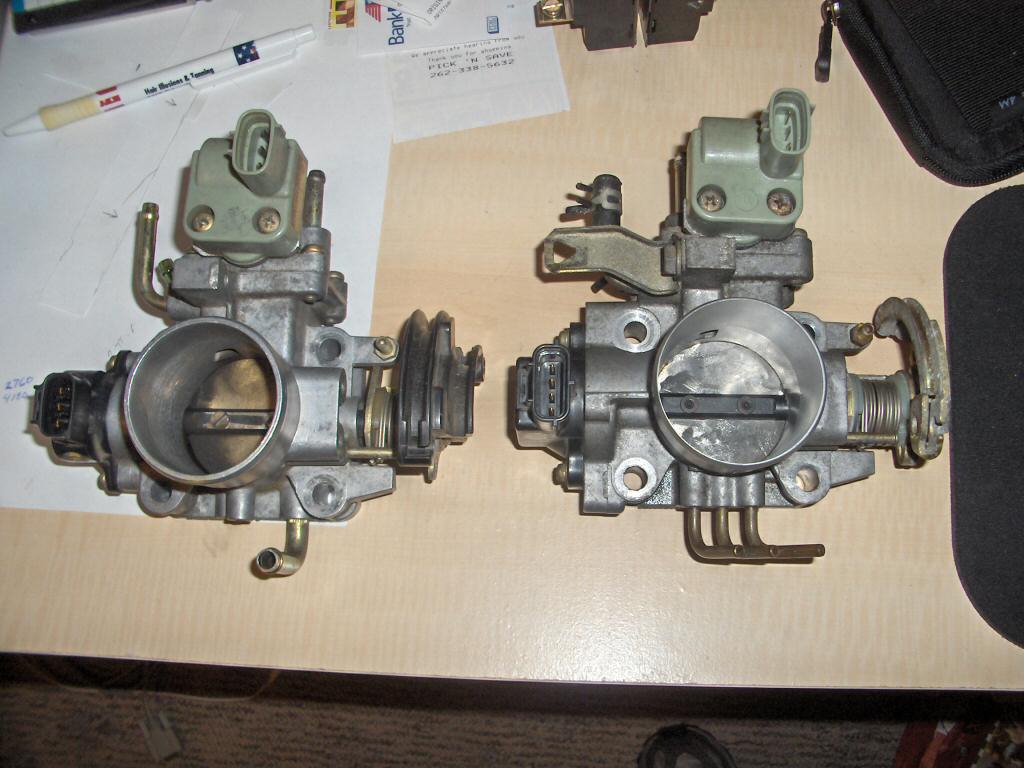

1997+ 2nd gen 5E-FE throttle body (left), 1995 - 1996 2nd gen 5E-FE throttle body (right). Both have been bored out. Note: 3 and 4 pin throttle position sensors. The sensors can not be swapped due to different bolt patterns.

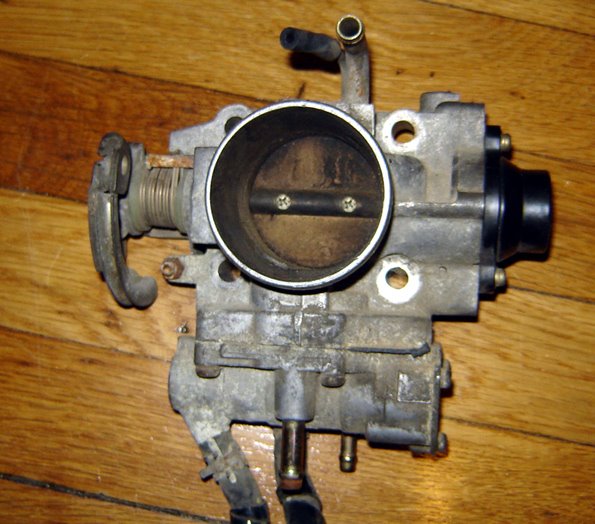

1st gen 5E-FE throttle body.





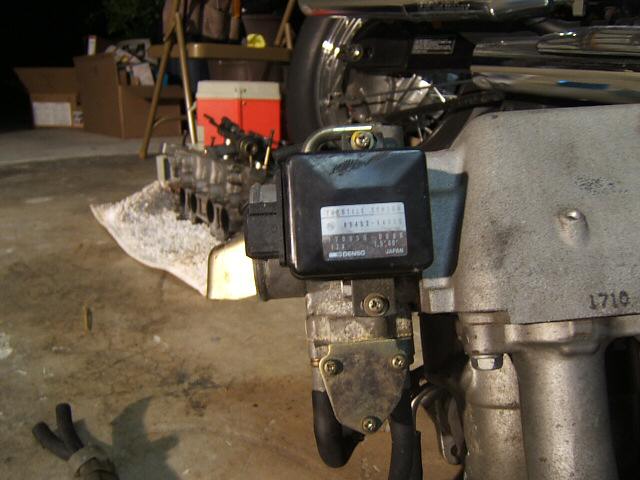

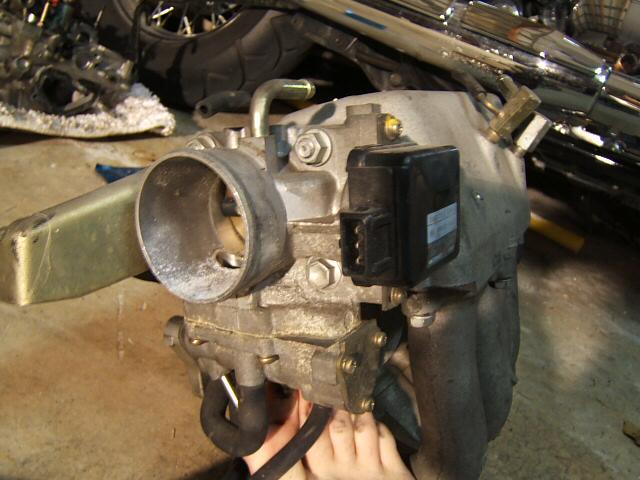

5E-FHE throttle body with a 3 pin throttle position sensor (TPS).

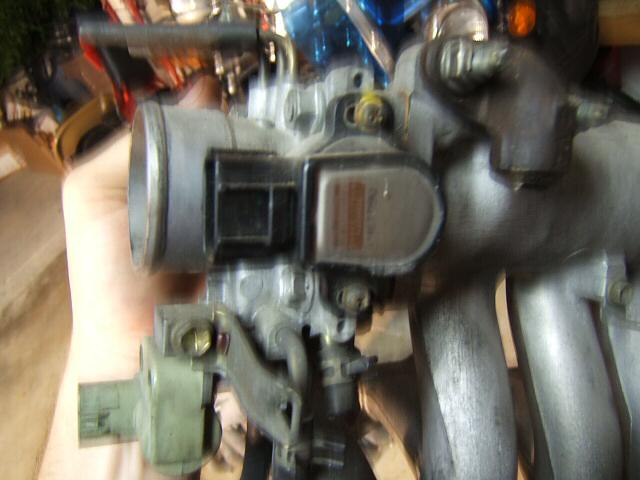

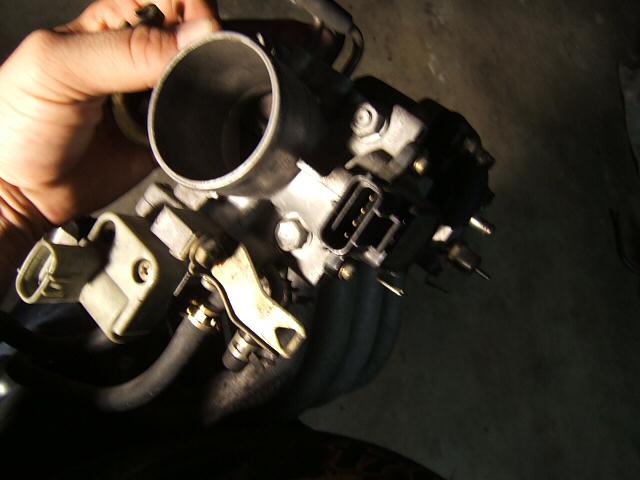

5E-FHE throttle body with 4 pin TPS.

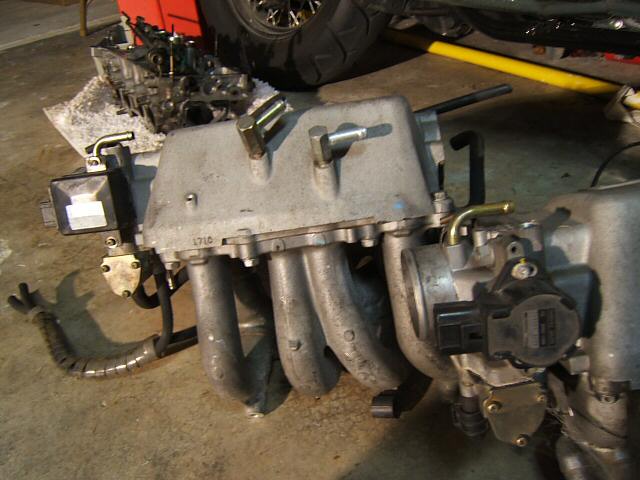

5E-FHE throttle body again. 4 pin TPS (left), 3 pin TPS (right).








Intake Manifolds
Top

Between the E series engines there is a handful of intake manifolds to choose from. Unfortunately, if you have the wrong engine you could be completely left out. The 3E, 3EE, and 2nd gen 5E-FE have only one intake manifold avaliable to them. If you are looking for a differnet manifold you will have to get something custom made. Aside from those engines, all the intake manifolds are interchangable. That is great news if you have a 4E-FTE, 1st Gen 5E-FE, or 5E-FHE.

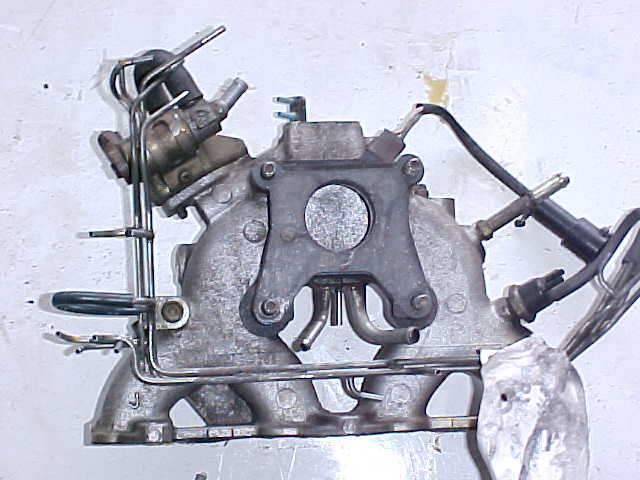

3E intake manifold.

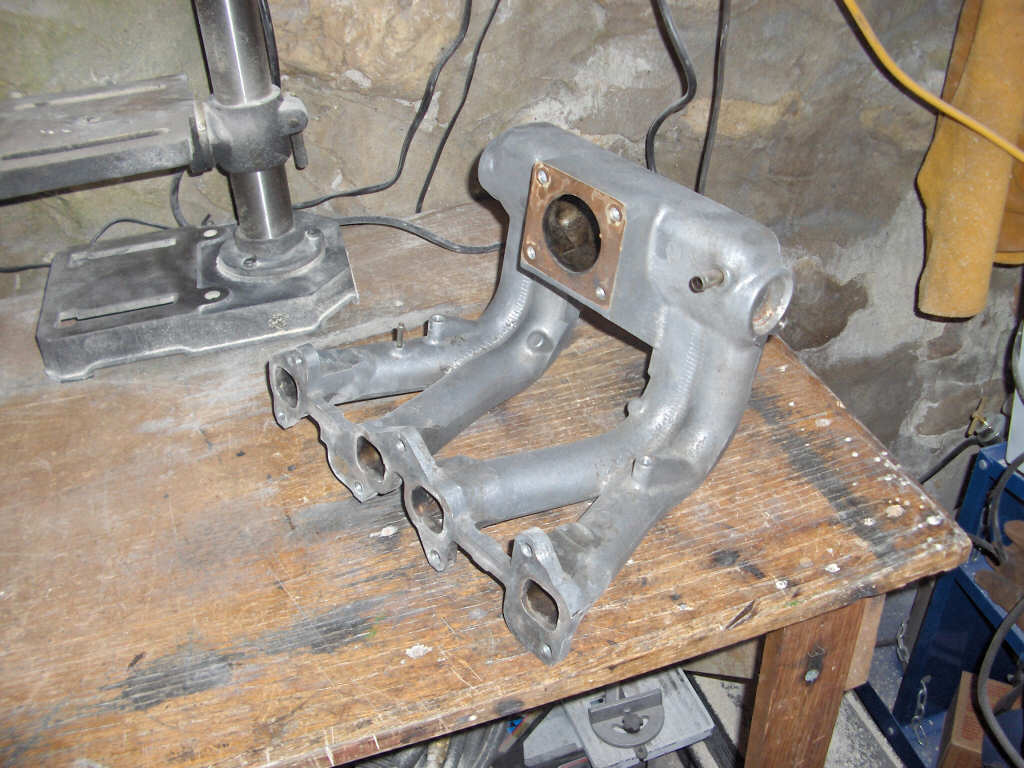

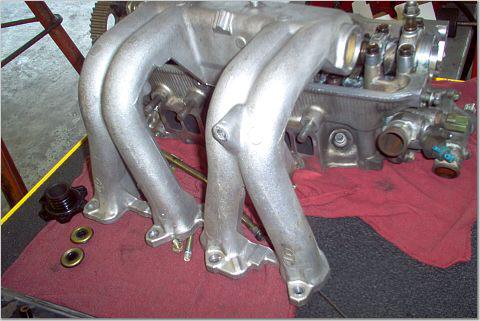

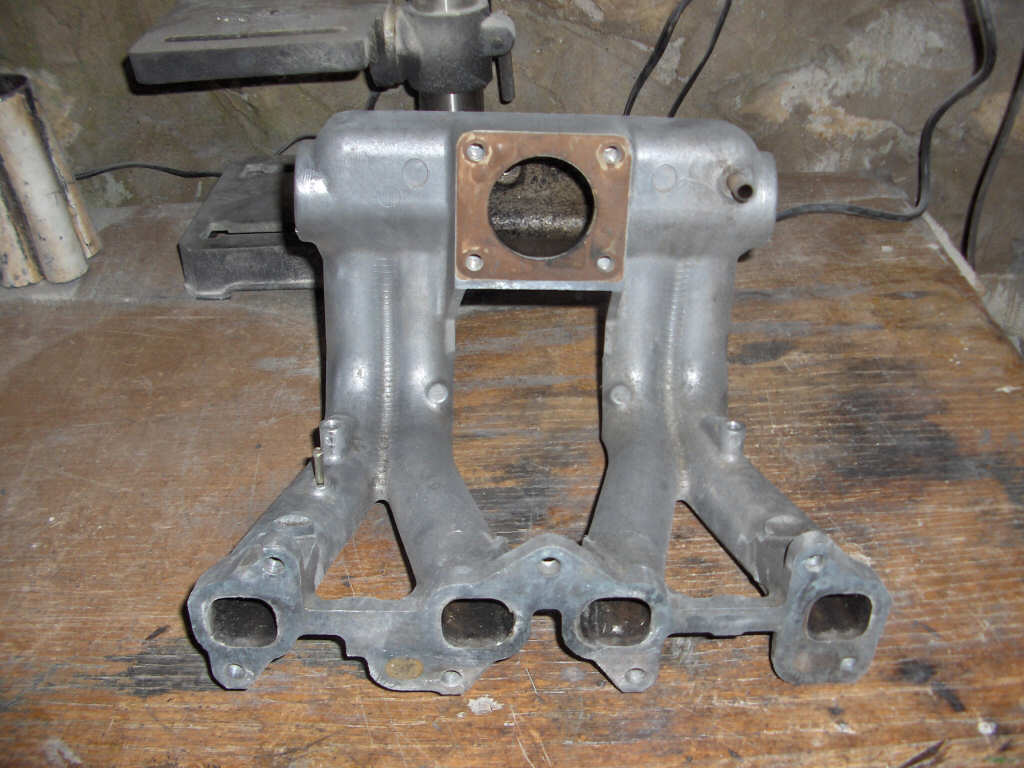

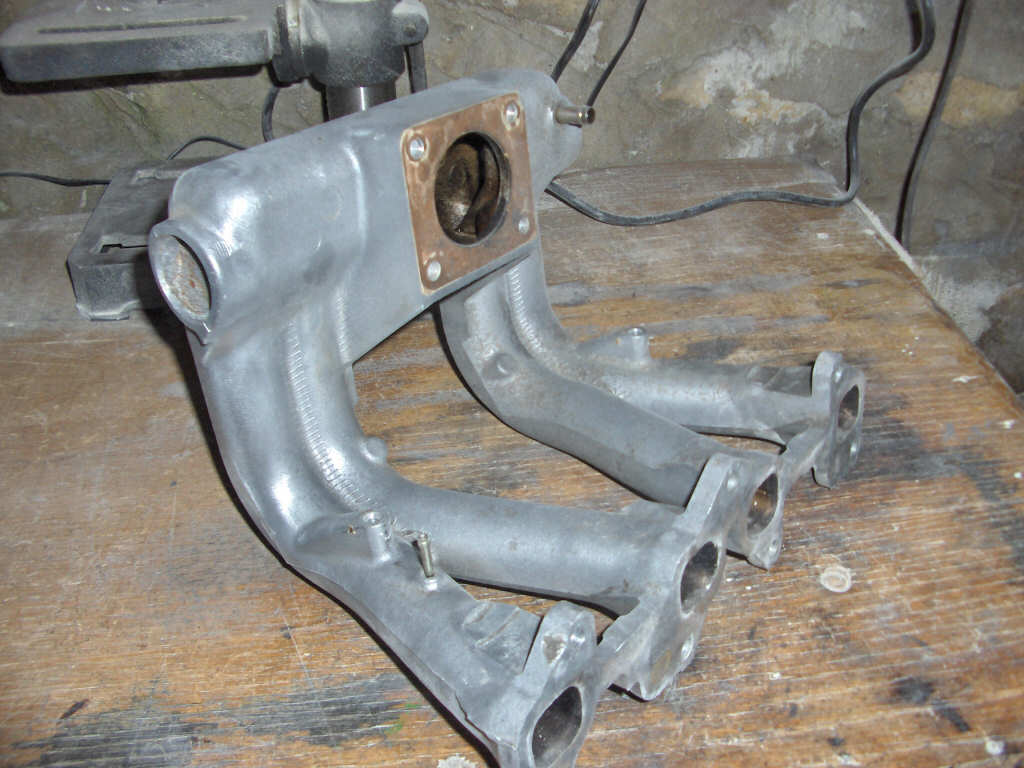

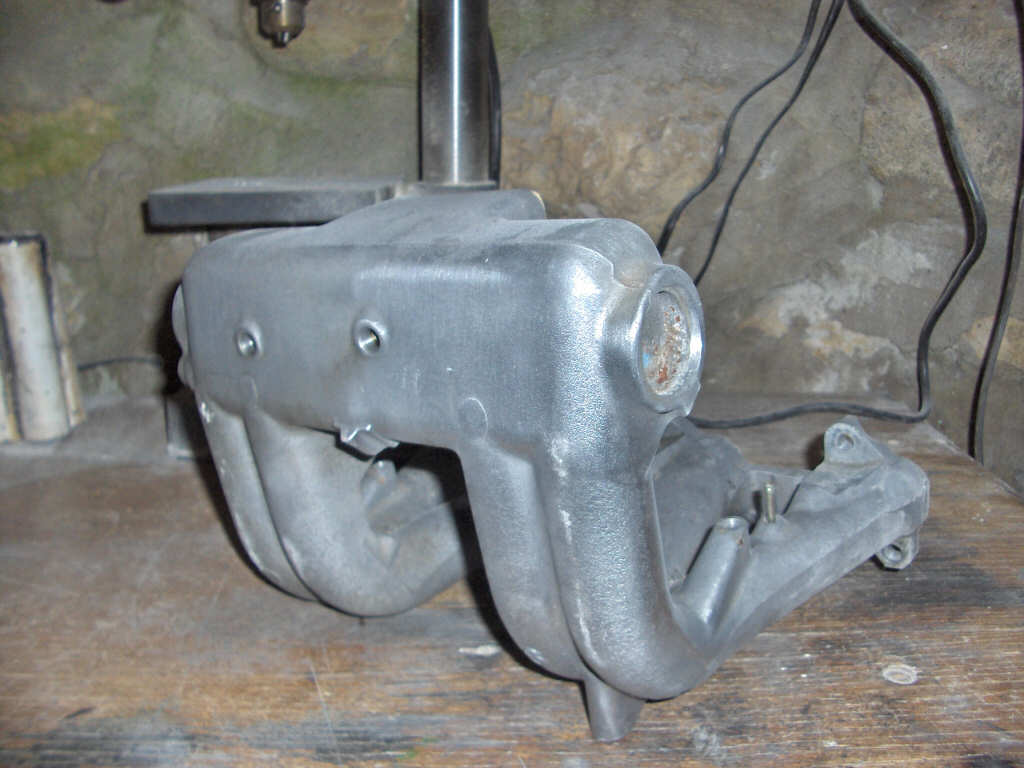

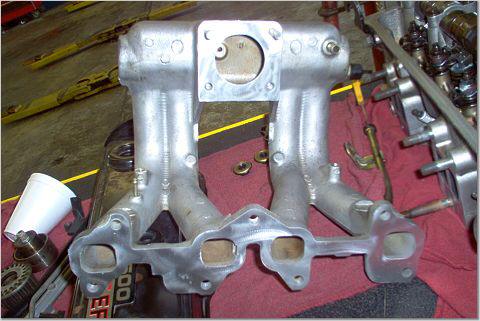

3E-E intake manifold. This manifold does not incorperate an EGR system.

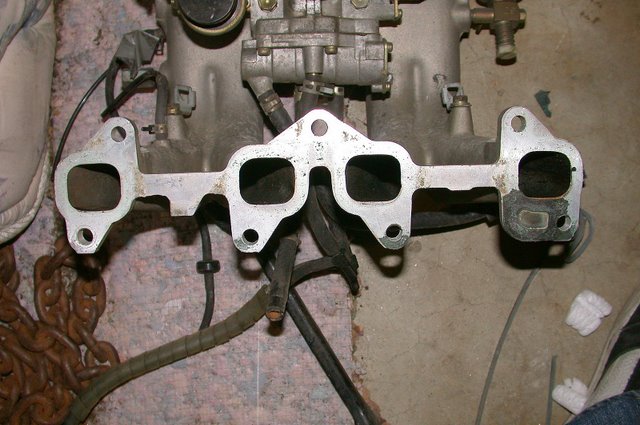

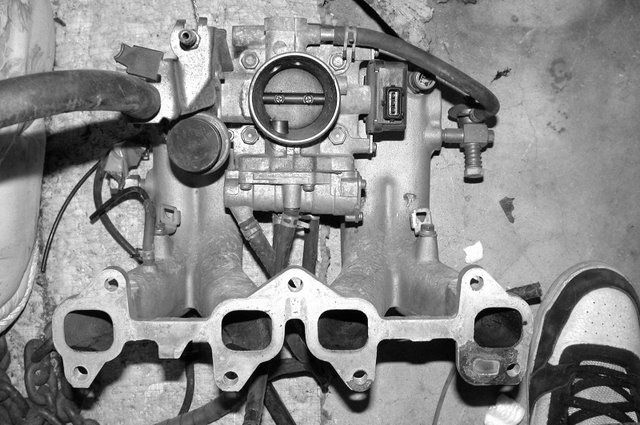

3E-TE intake manifold.

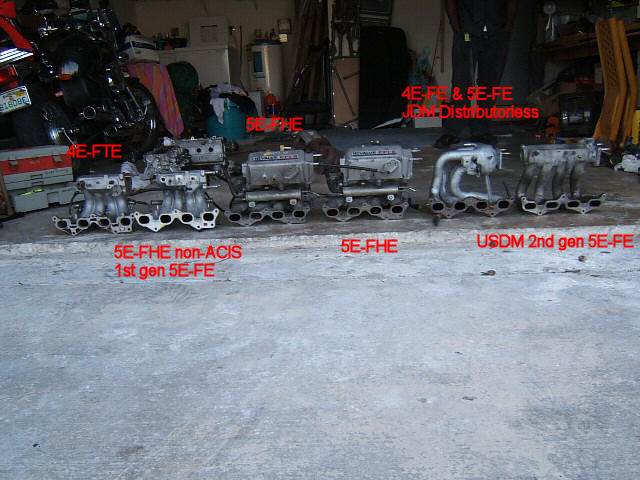

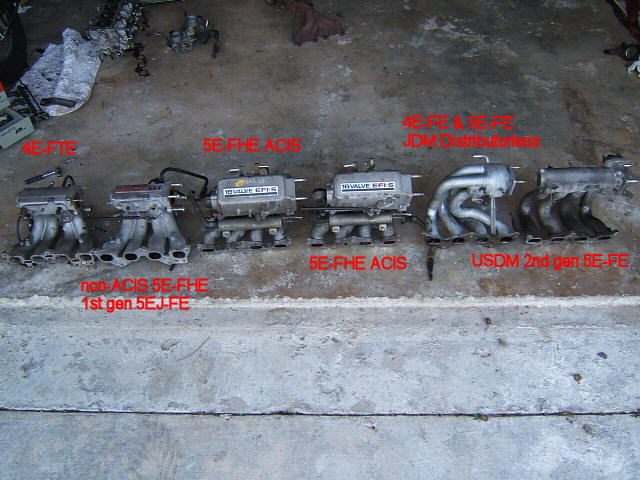

Line up of many intake manifolds.

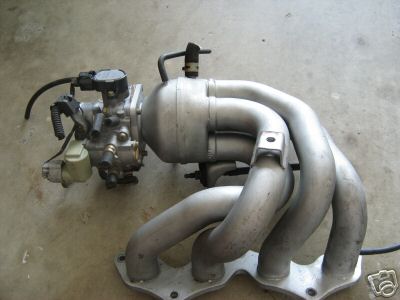

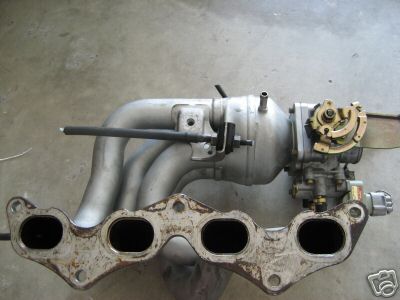

4E-FE tubular intake manifold.

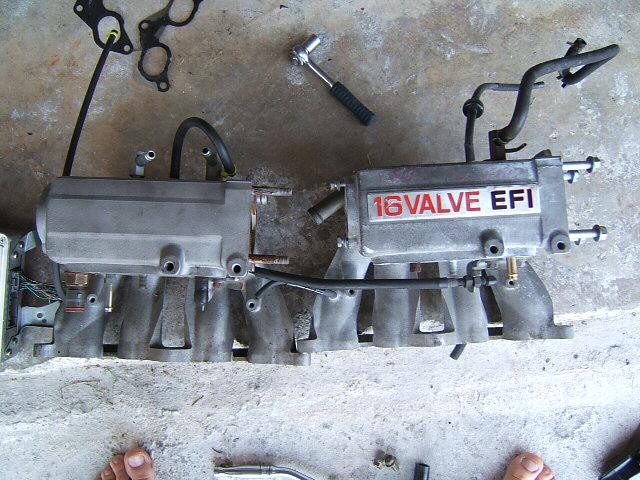

4E-FTE intake manifold (left), 5E-FHE non-acis (right).





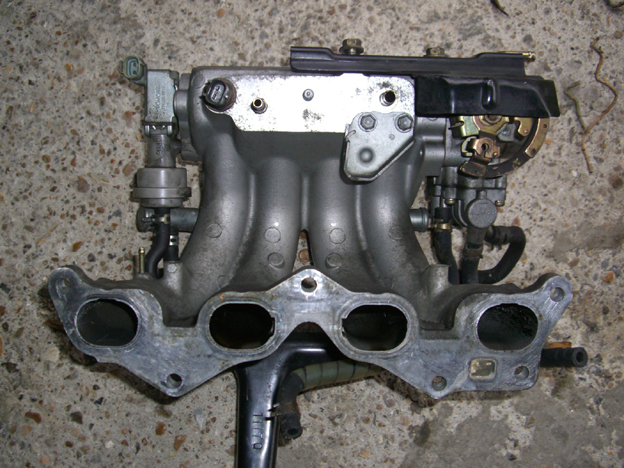

1st gen 5E-FE intake manifold.





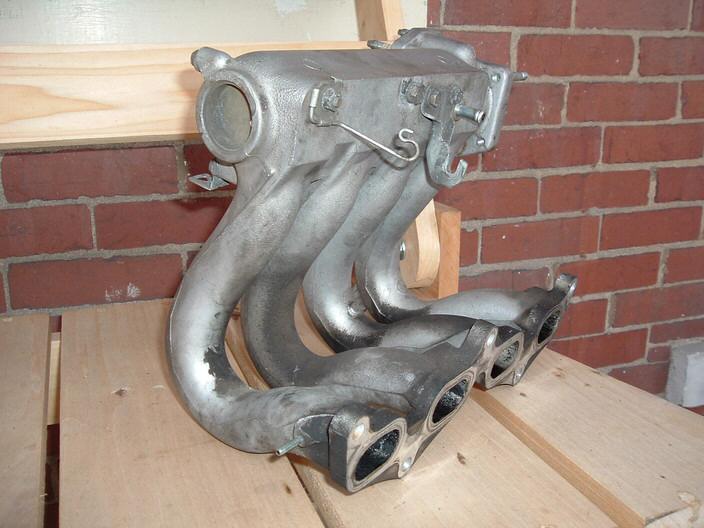

2nd gen 5E-FE intake manifold.

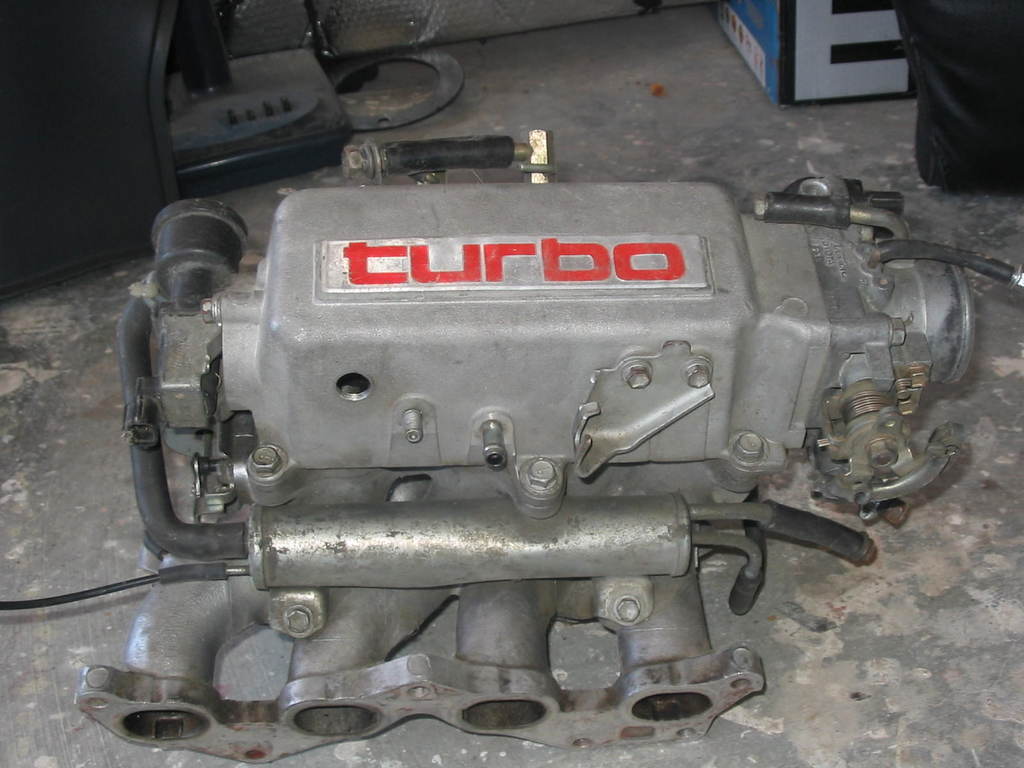

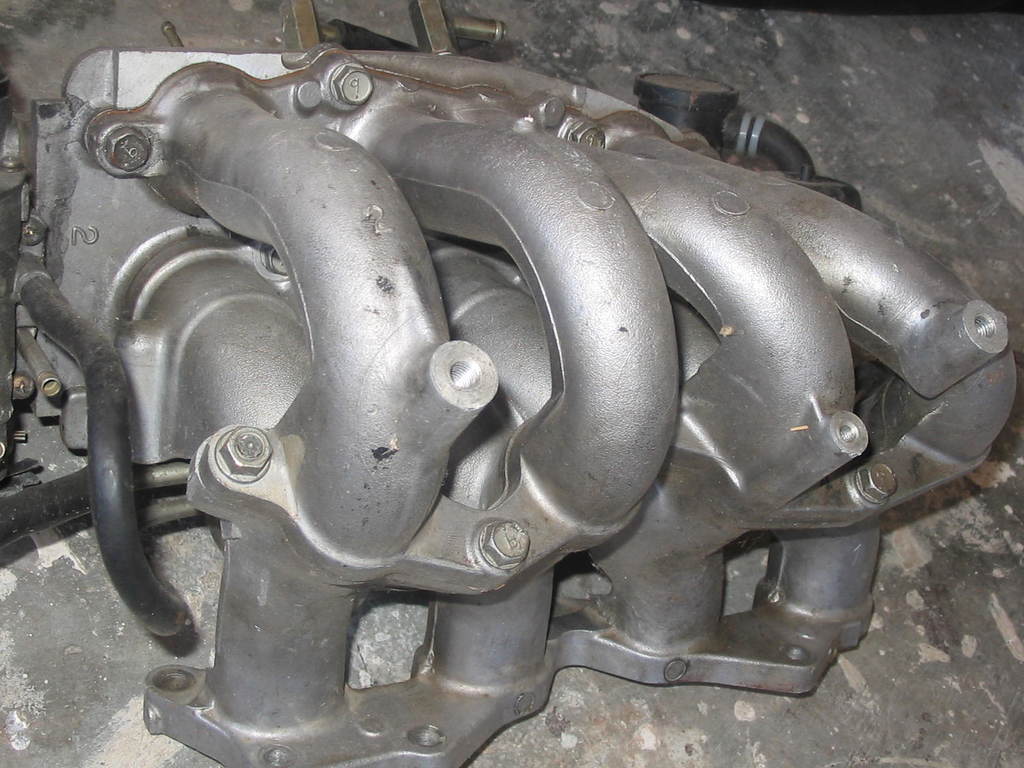

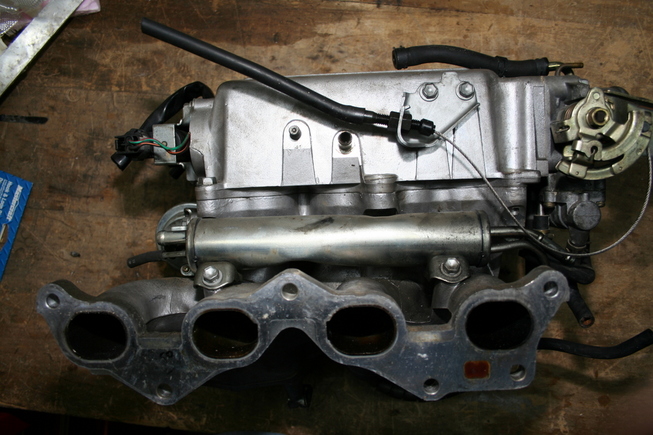

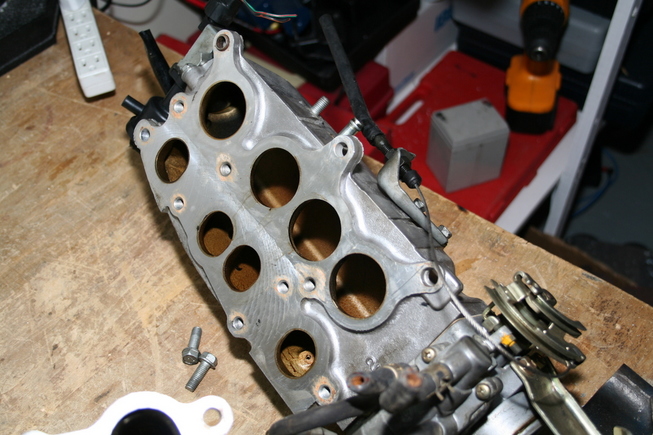

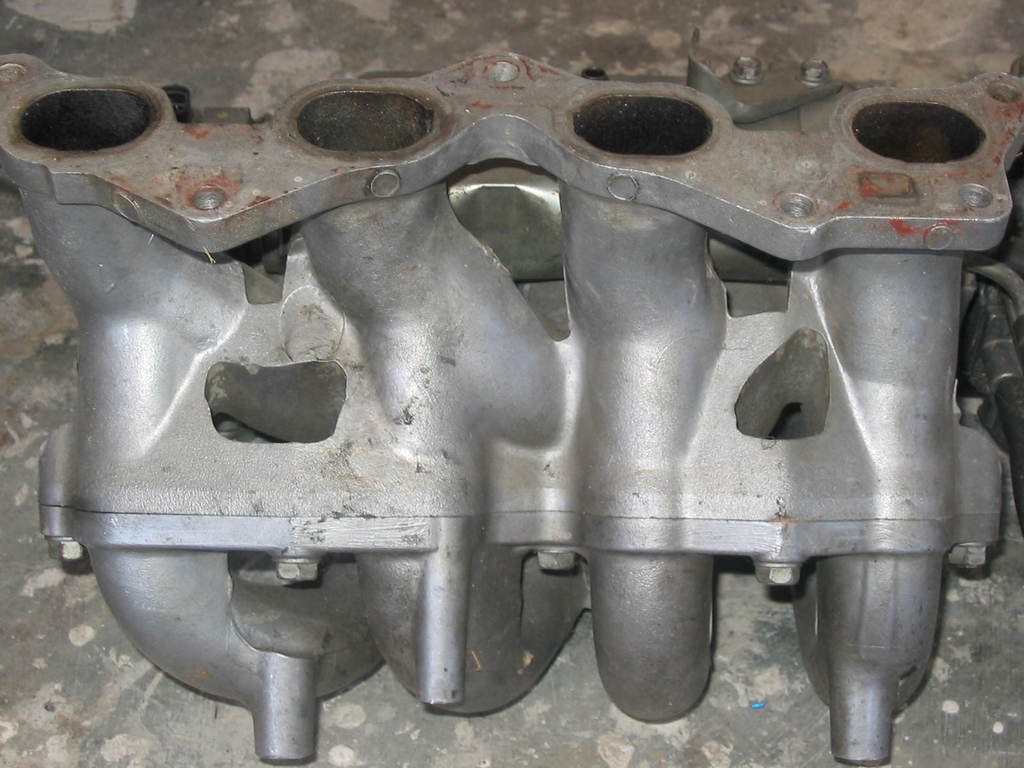

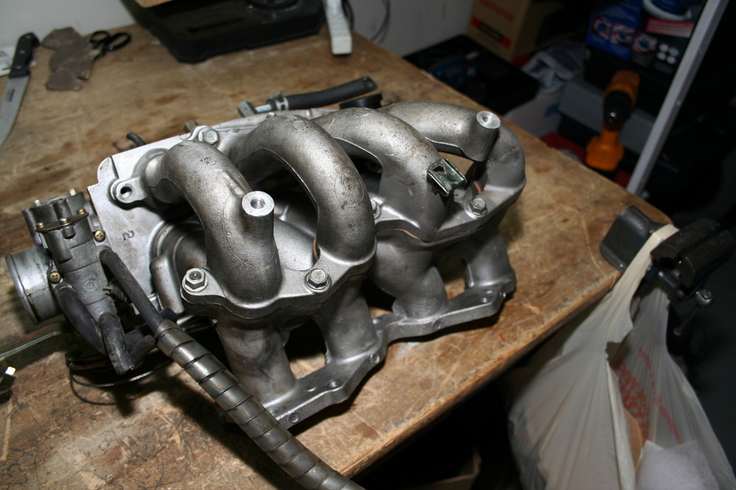

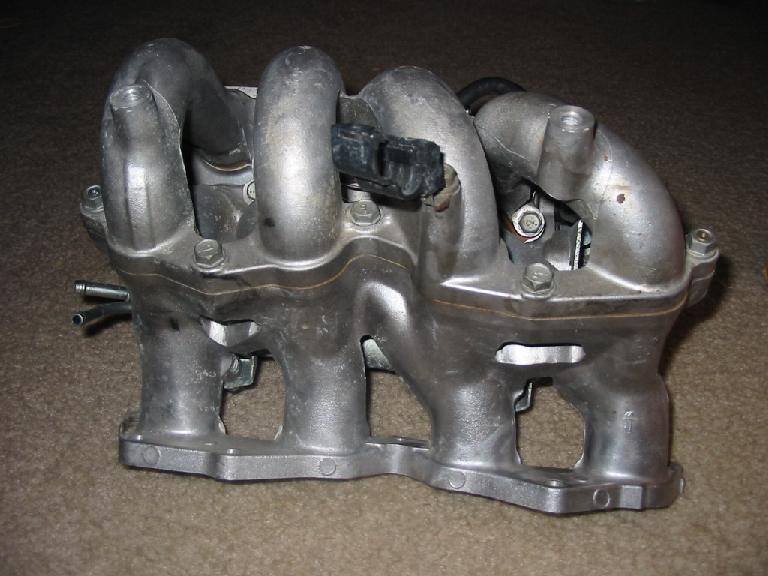

The coveted 5E-FHE acustic controlled intake manifold (ACIS).

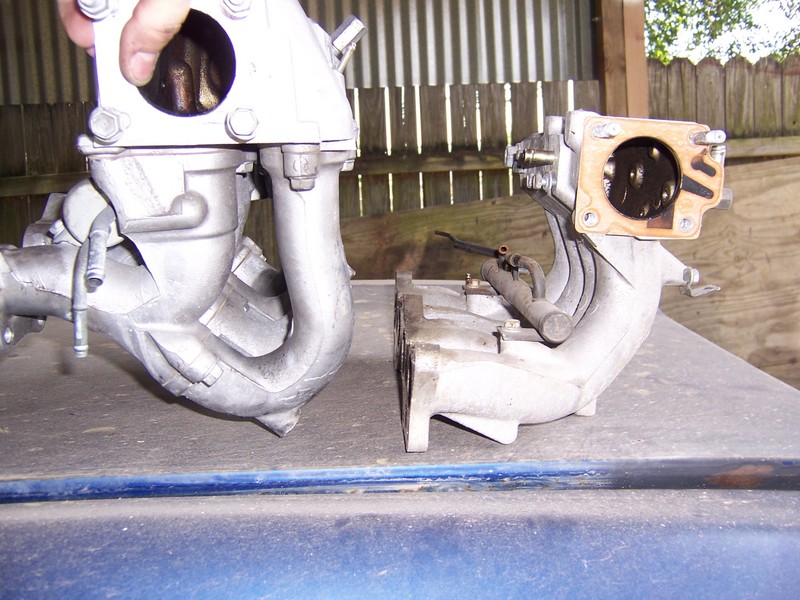

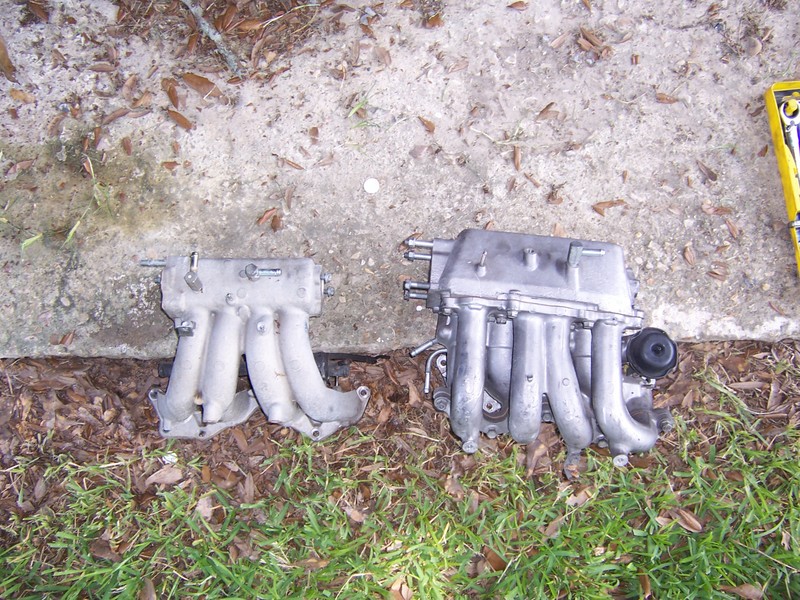

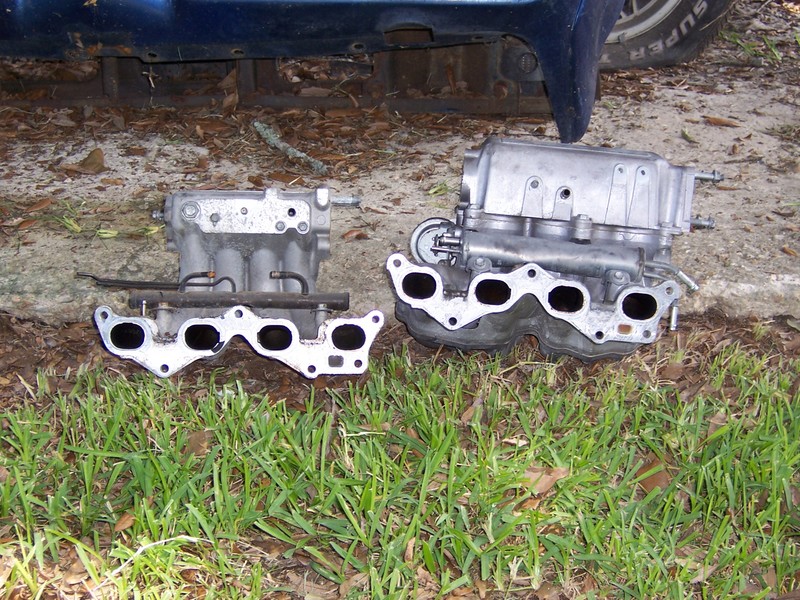

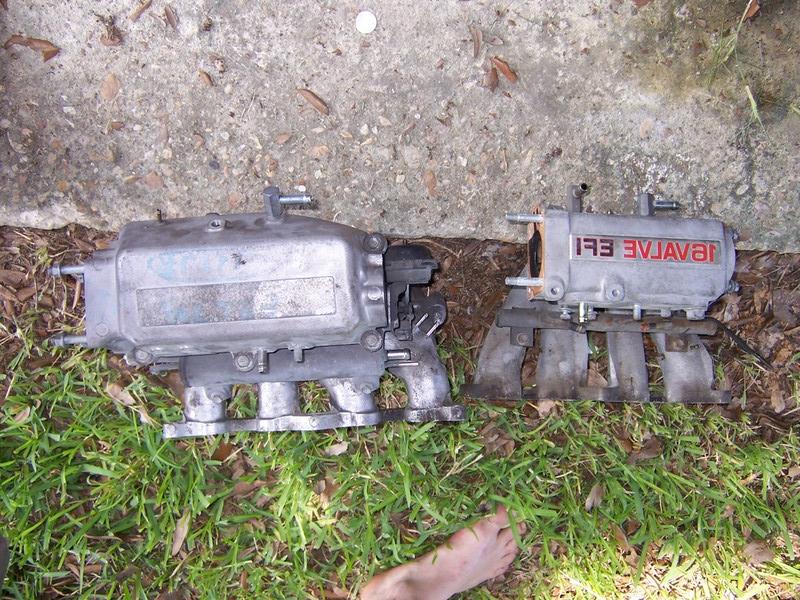

1st gen 5E-FE and 5E-FHE intake manifold comparison.

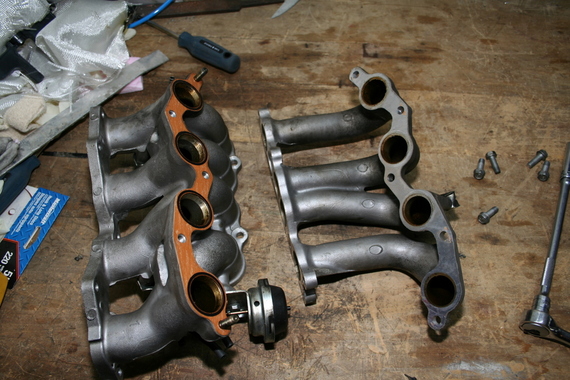

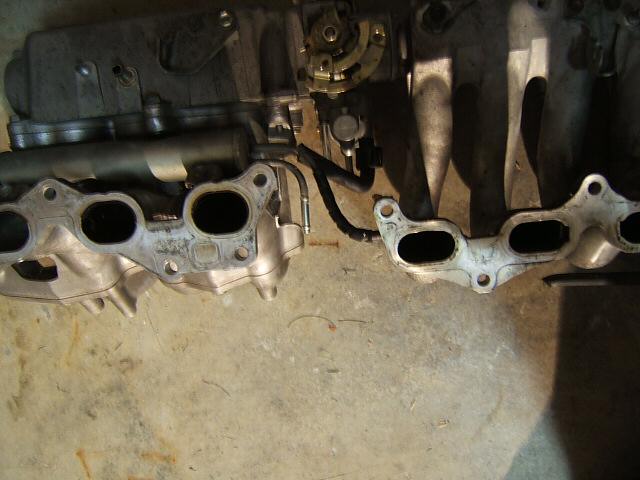

5E-FHE ACIS intake manifold (left), 2nd gen 5E-FE (right). Same bolt pattern, different ports.

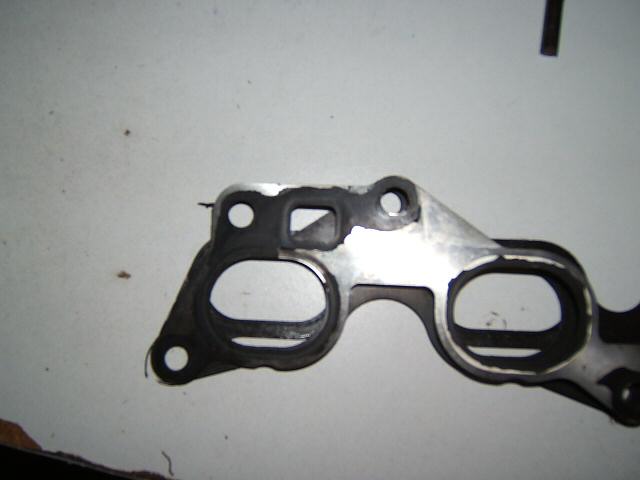

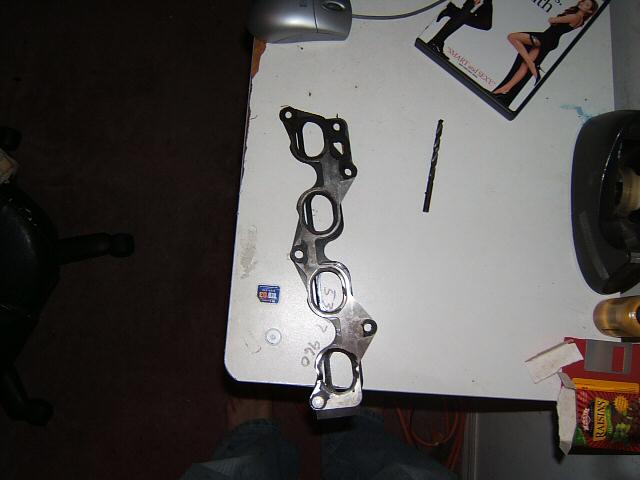

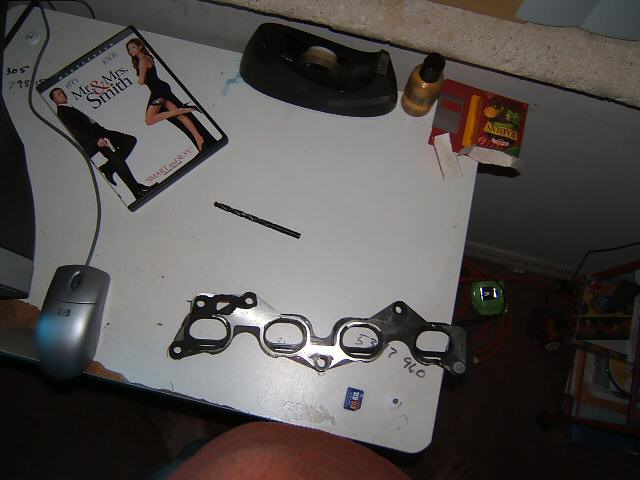

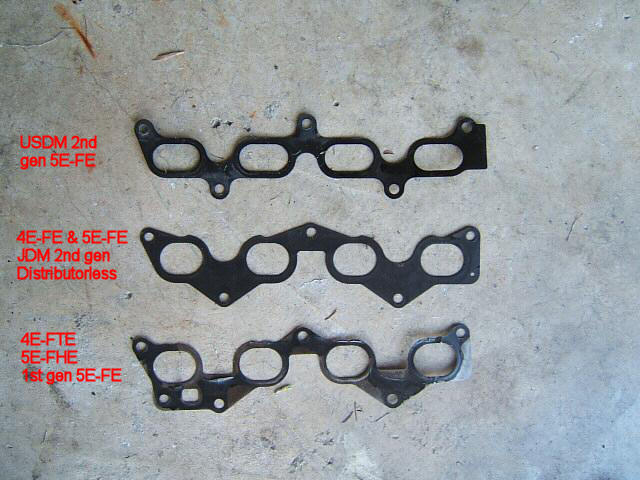

1st gen 5E-FE and 2nd gen 5E-FE gaskets showing why the manifolds won't work on the other engine.








Fuel Rails
Top

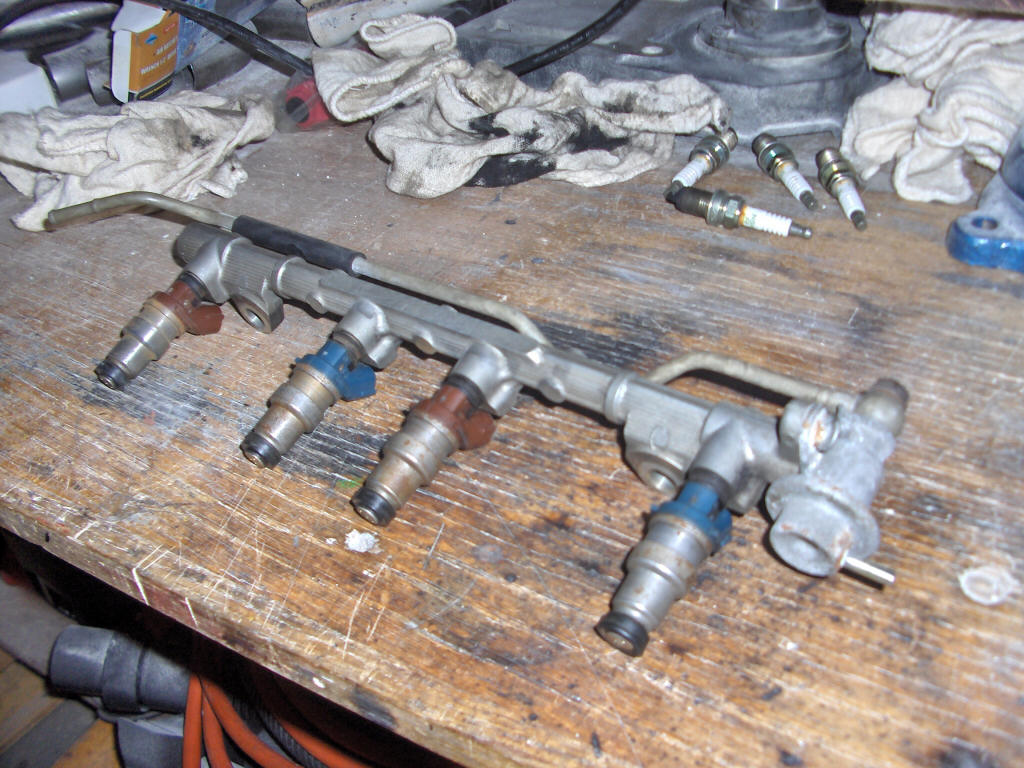

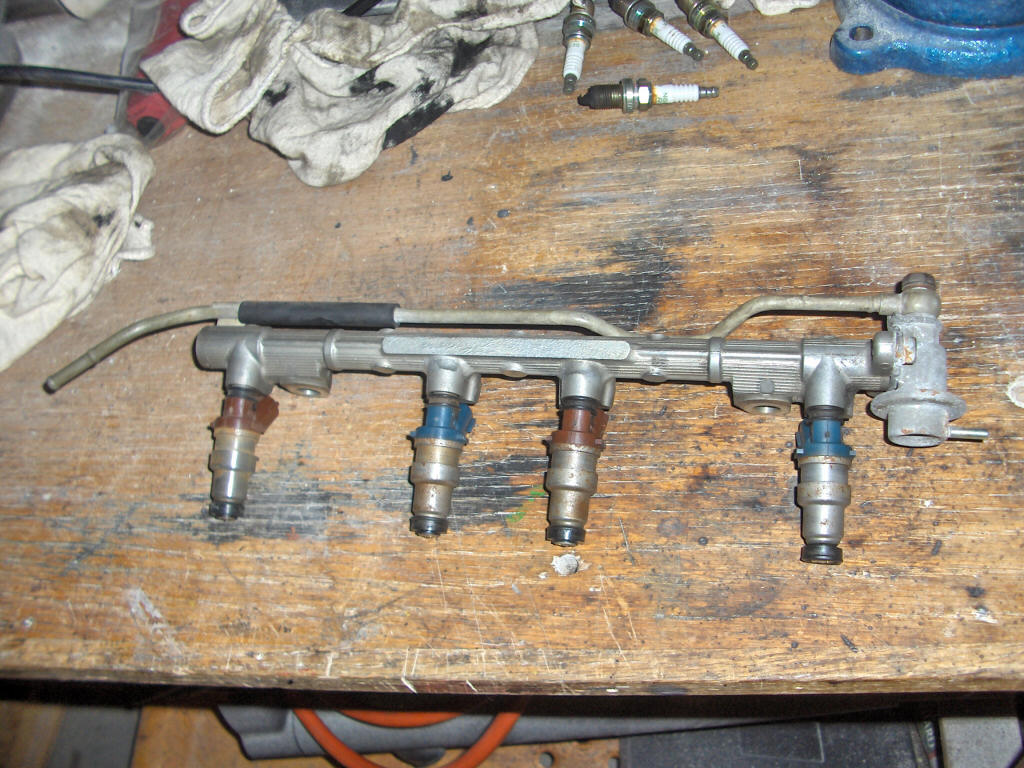

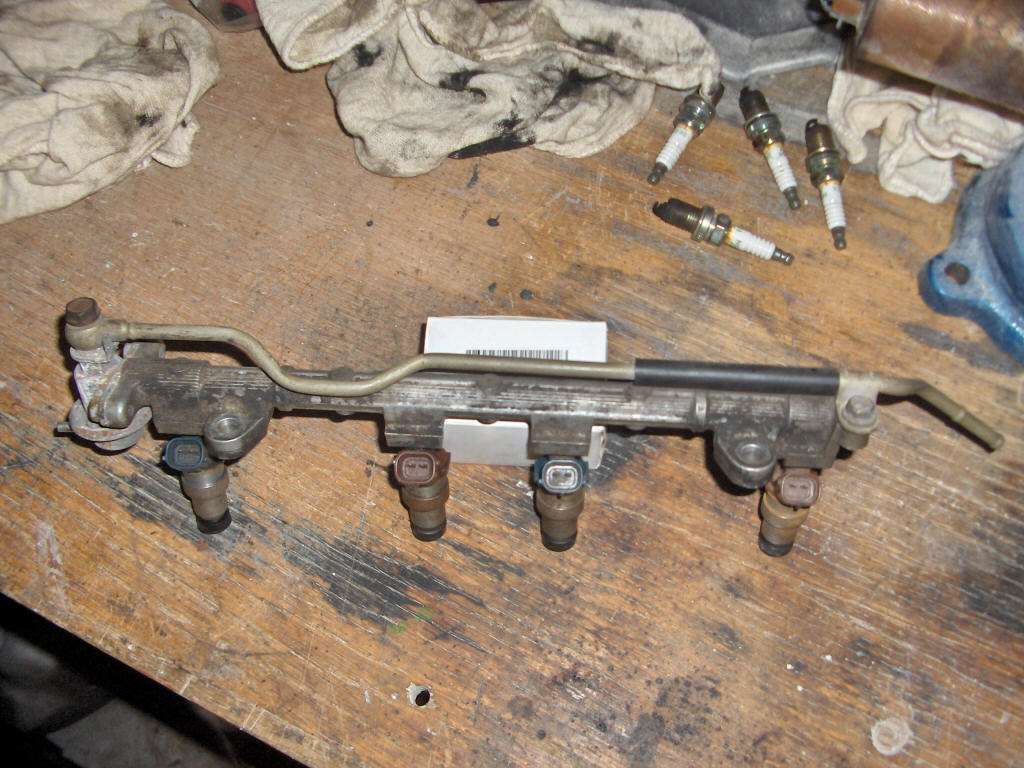

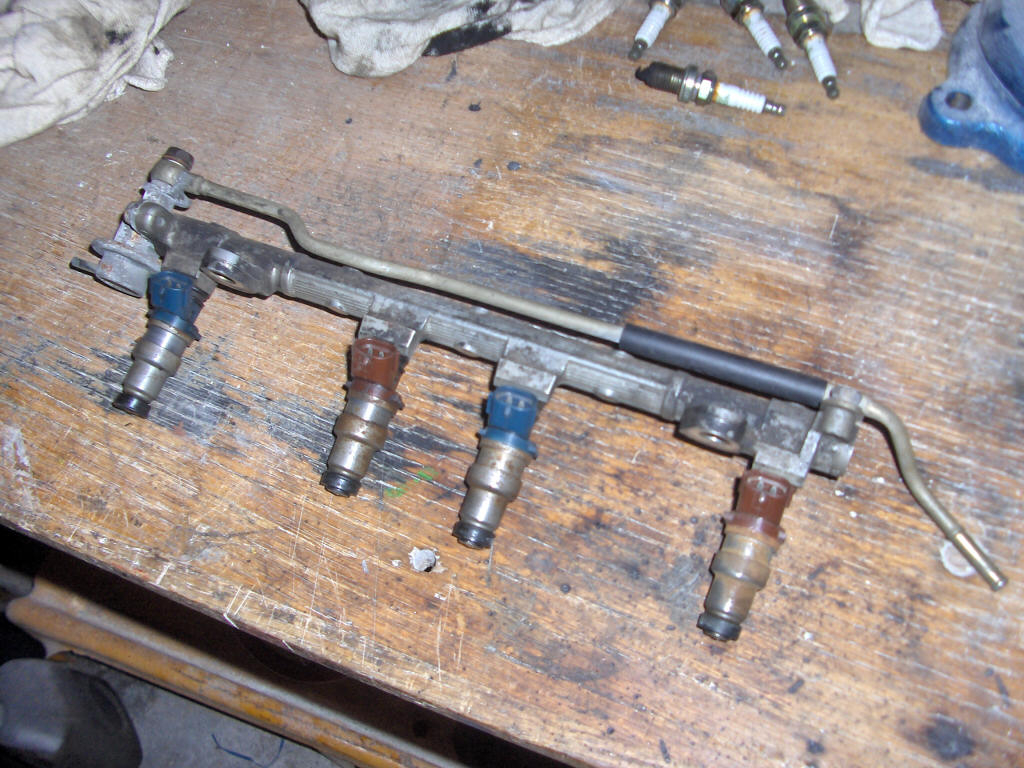

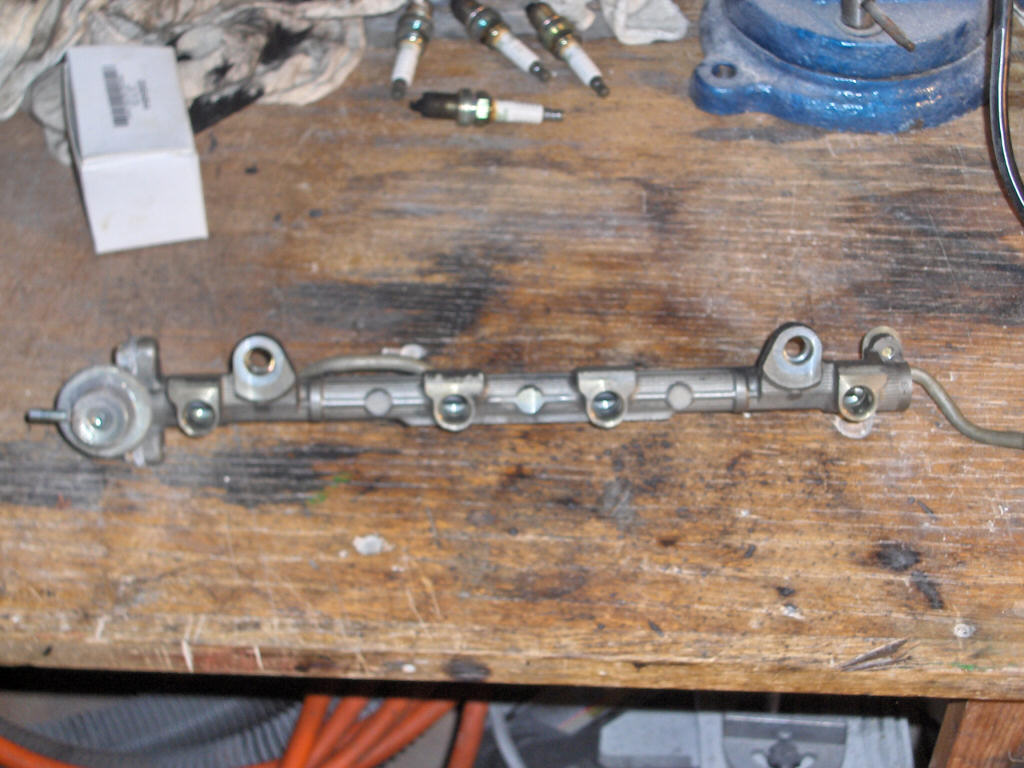

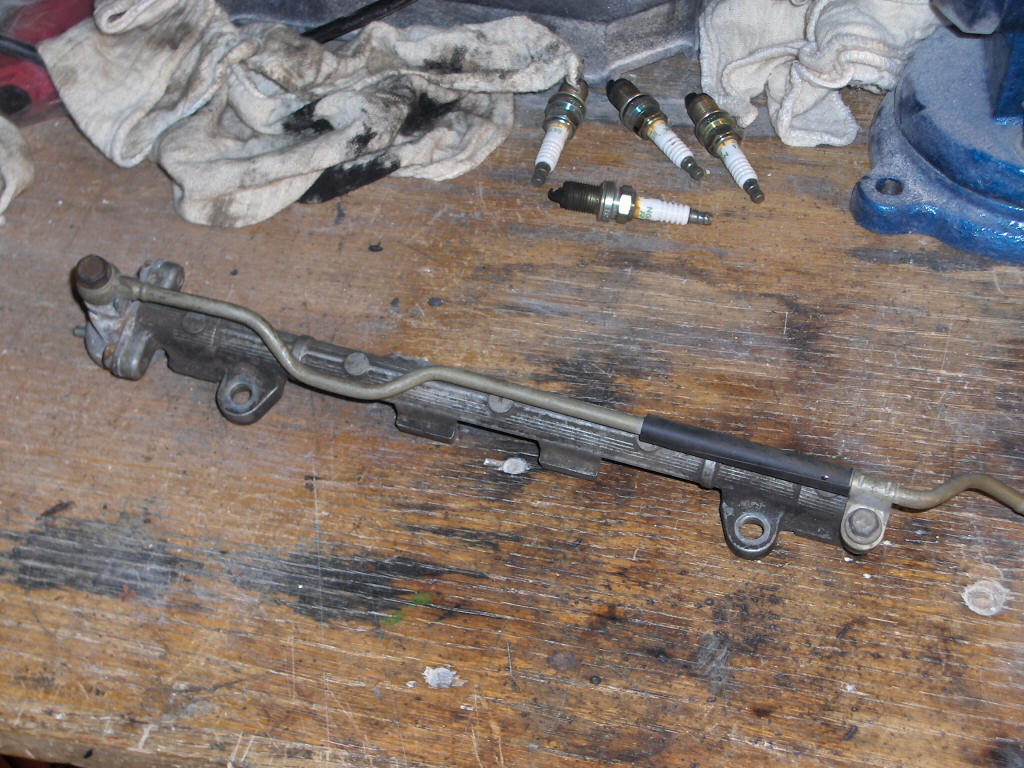

3E-E fuel rail.





3E-TE fuel rail and injectors.





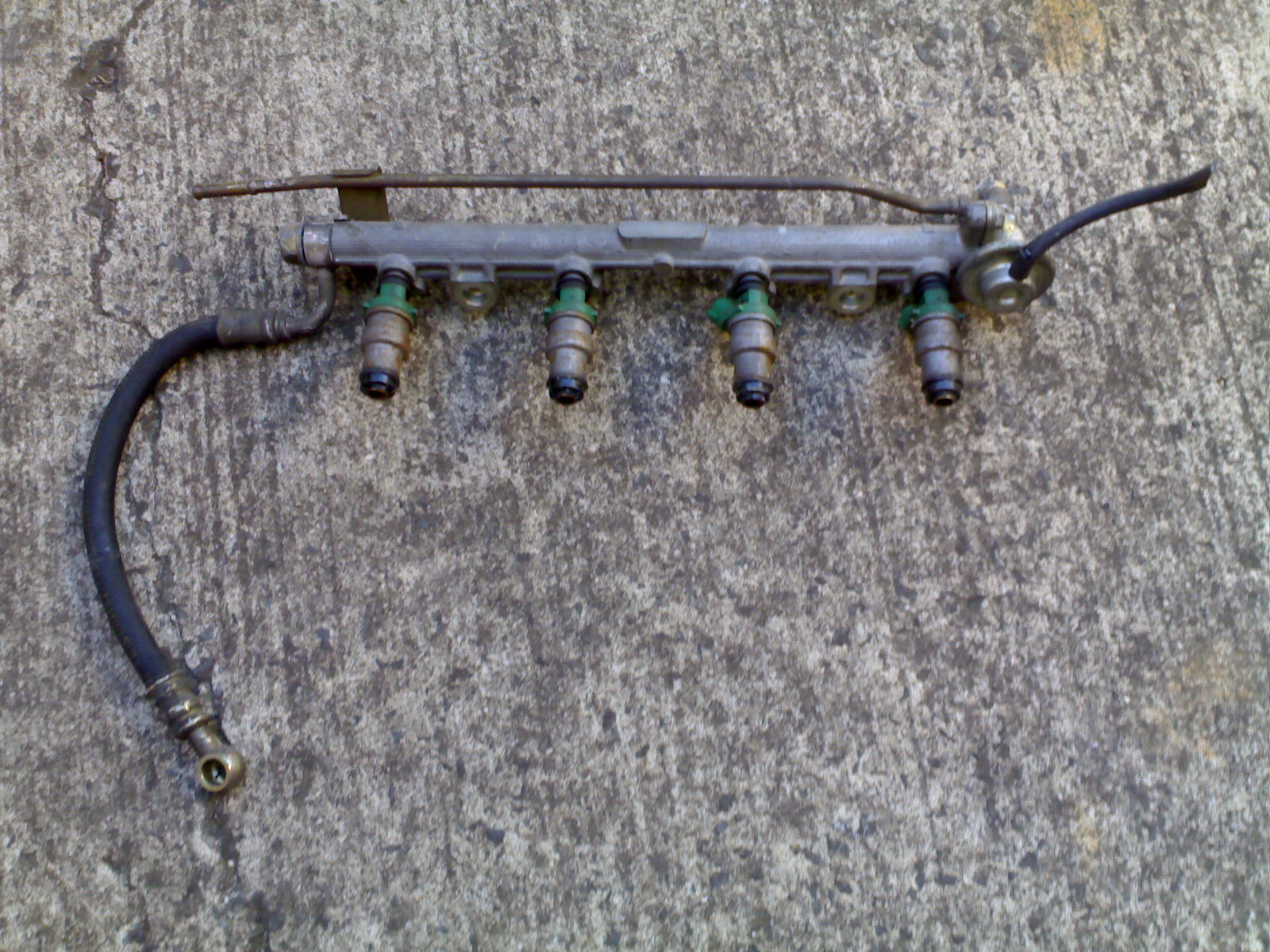

4E-FE fuel rail and injectors.

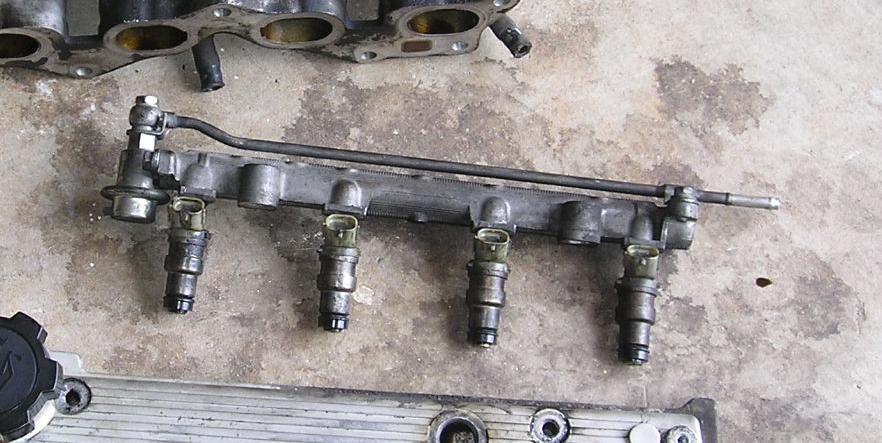

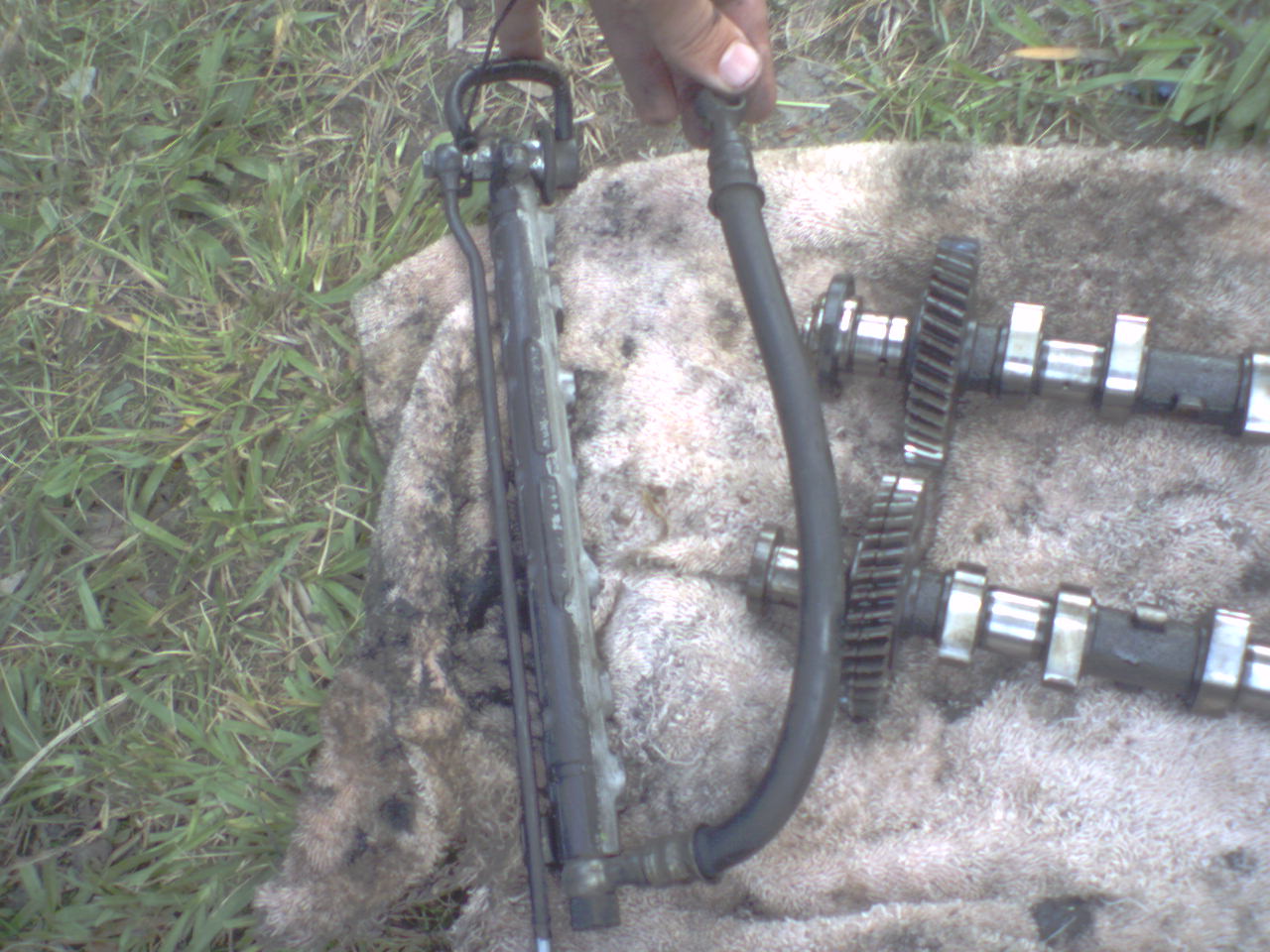

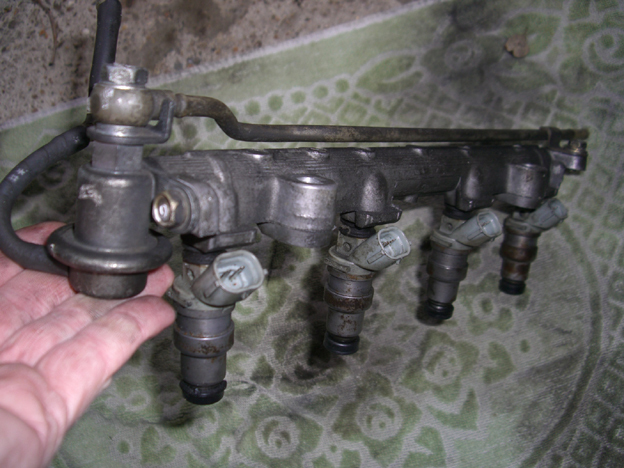

4E-FTE fuel rail and injectors.





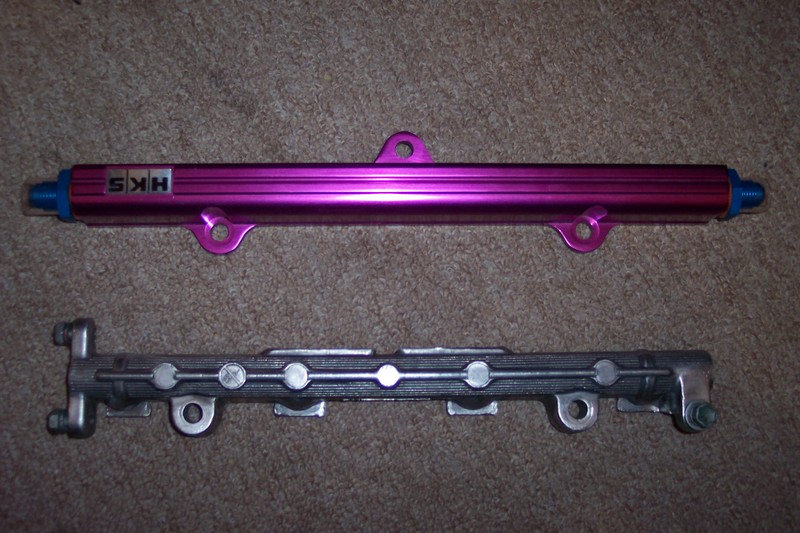

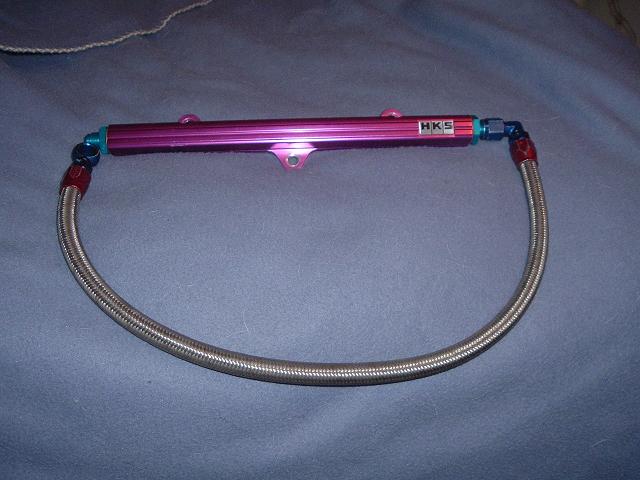

4E-FTE and HKS fuel rail.





4E-FTE, 1st gen 5E-FE, and 5E-FHE HKS fuel rail.

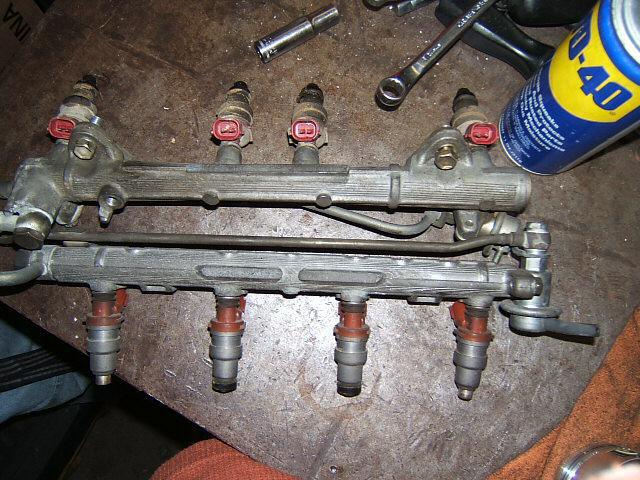

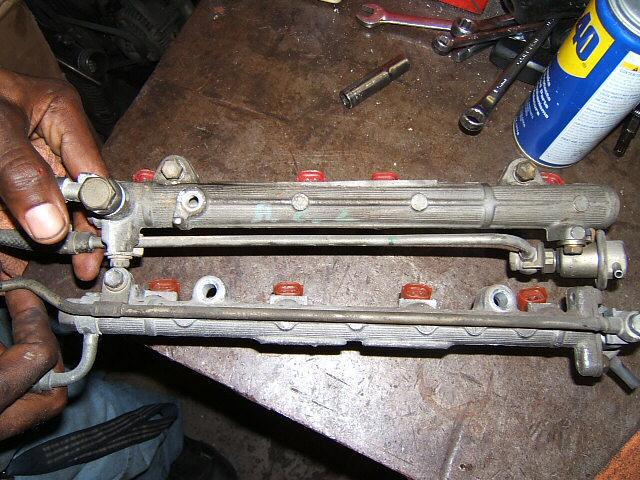

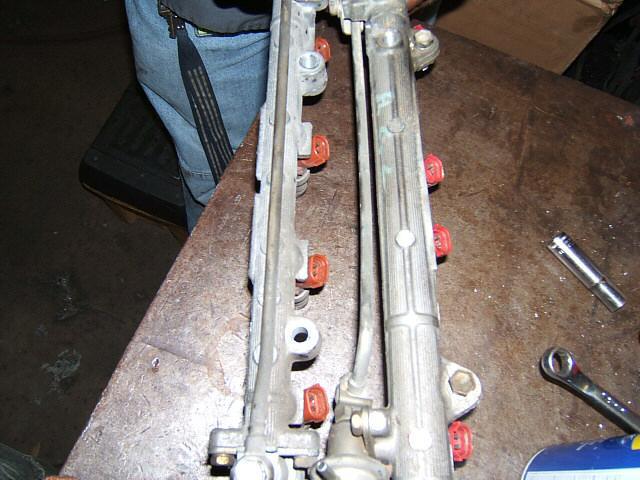

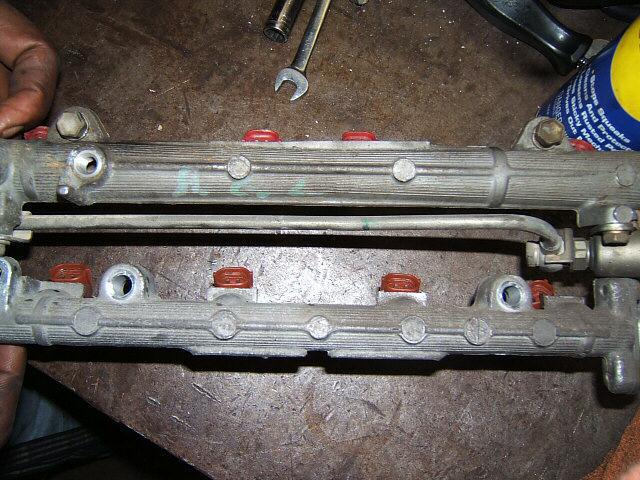

3E-TE and 5E-FHE fuel rails. The 3E-TE has the red injectors, 5E-FHE has brown.

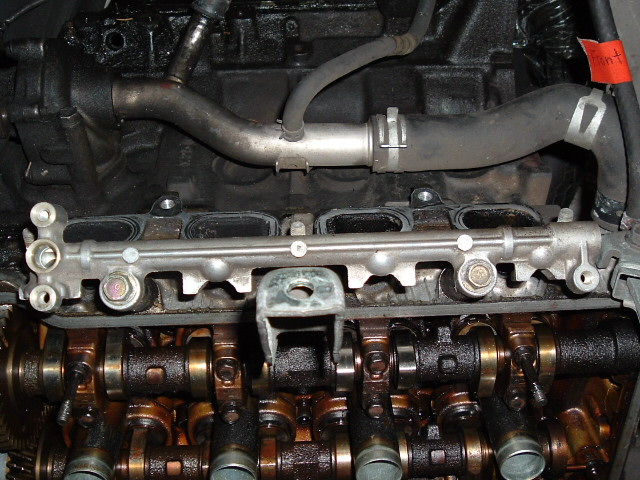

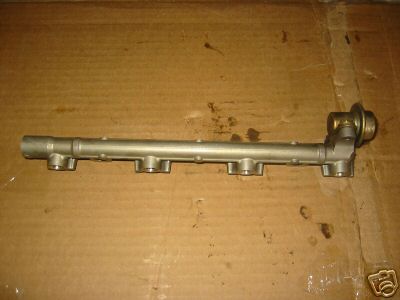

2nd gen 5E-FE fuel rail.








Injectors
Top

Injector info and specs can be found here.


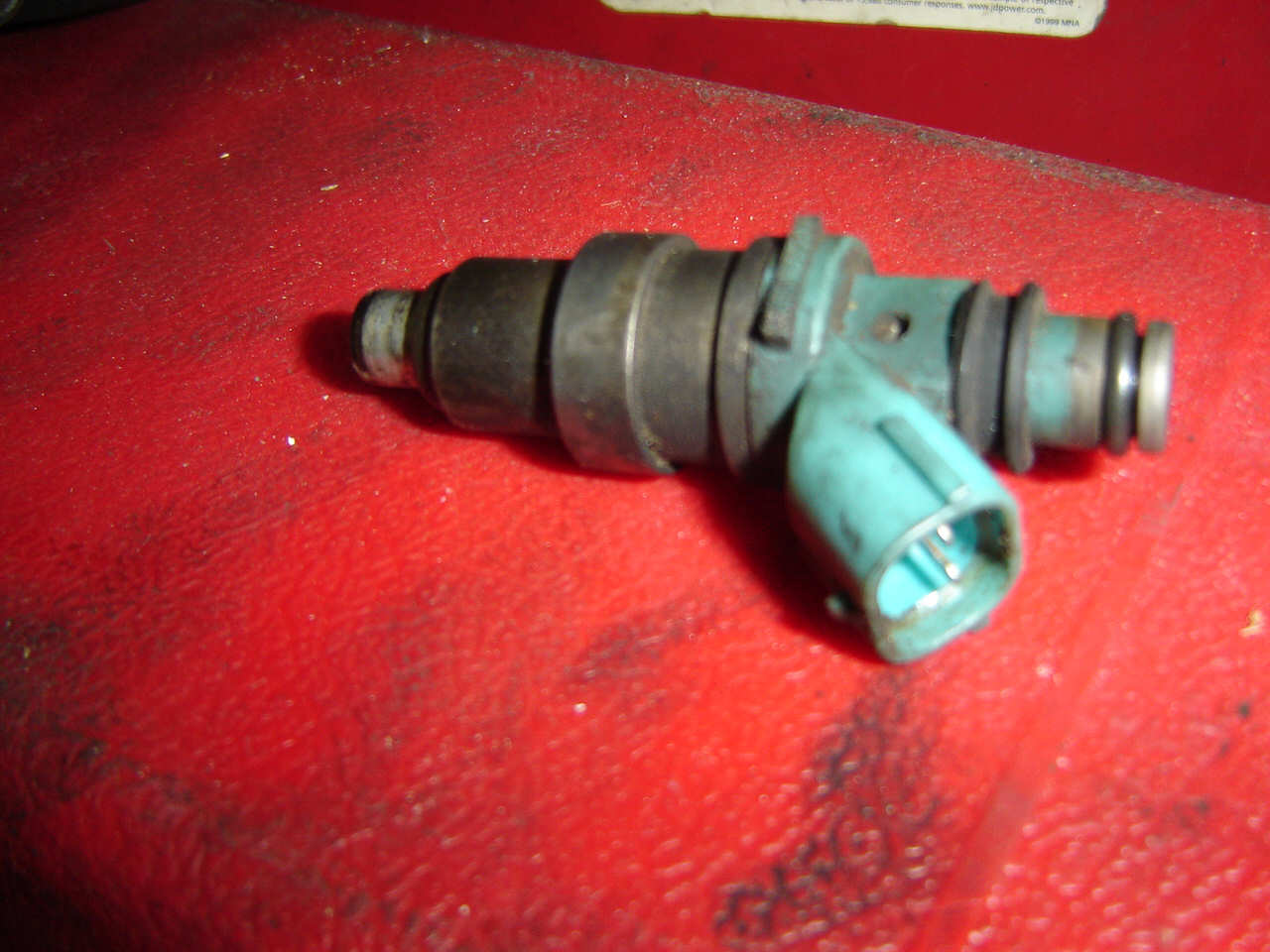

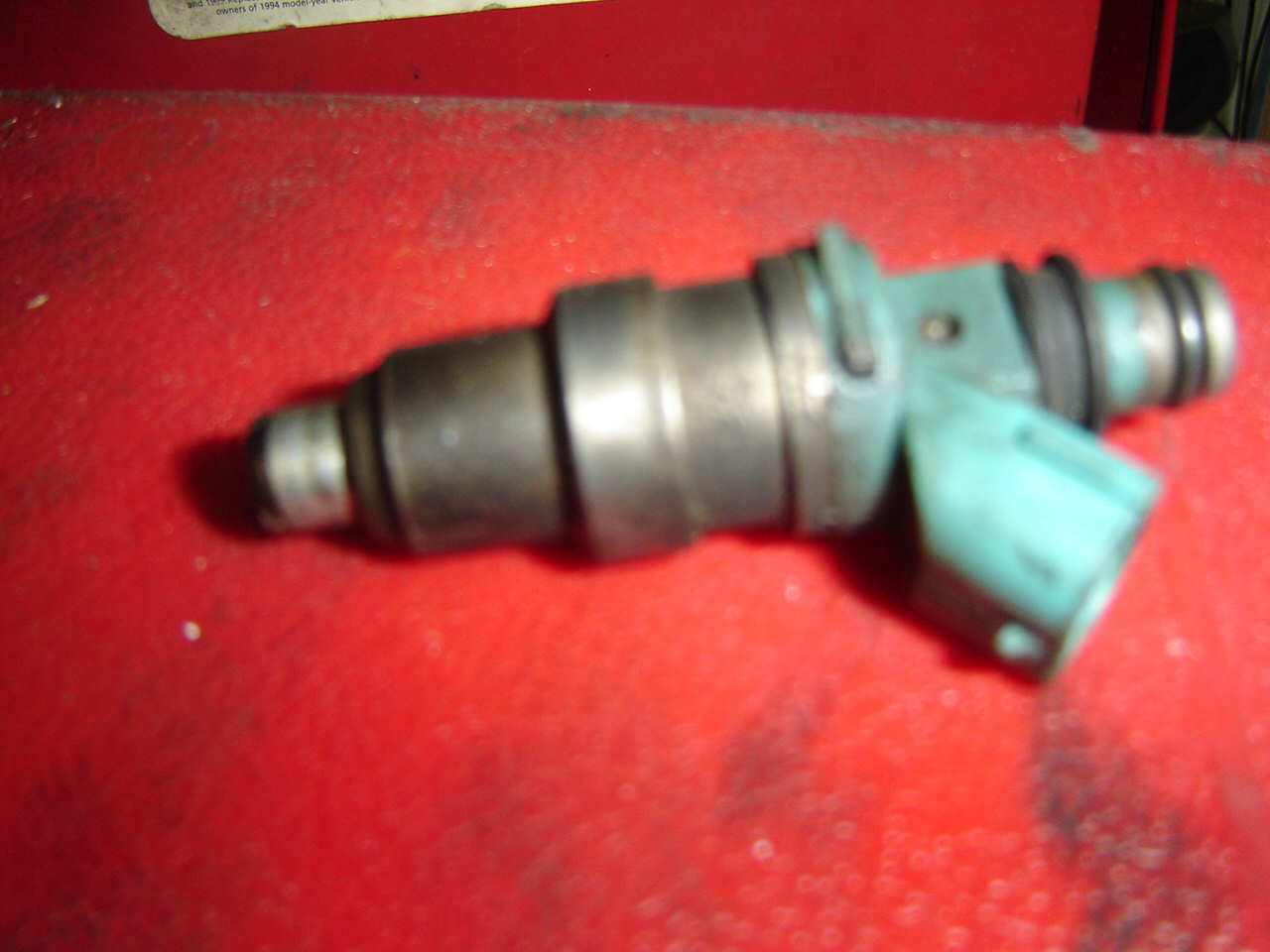

2E-TE injectors.

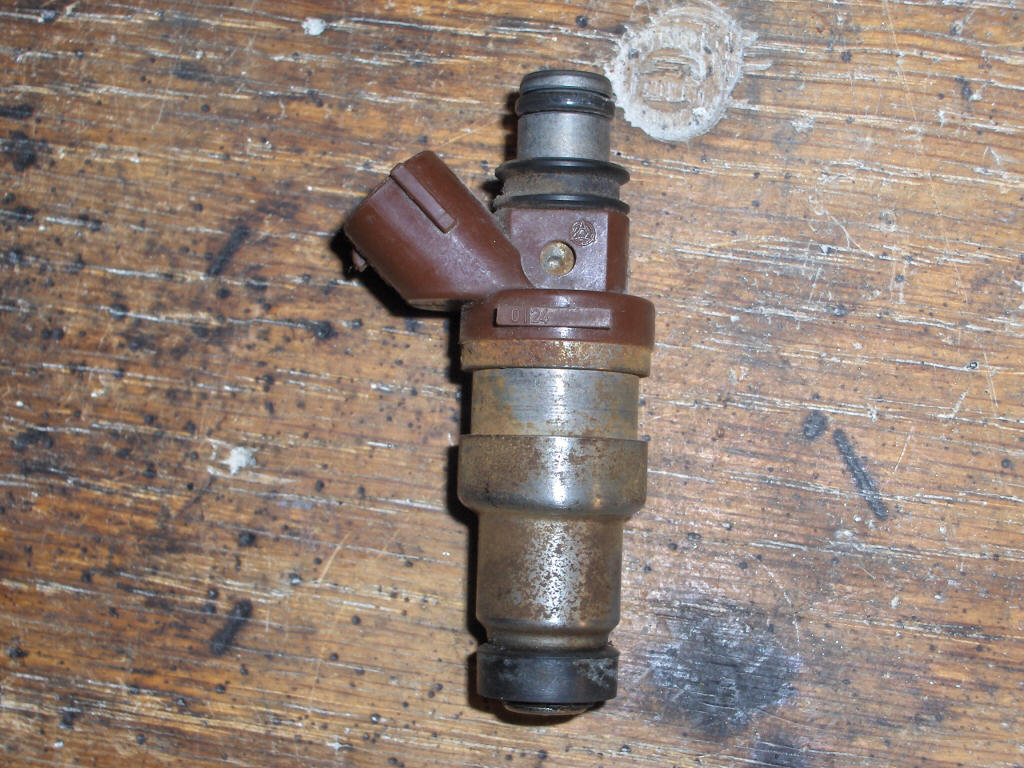

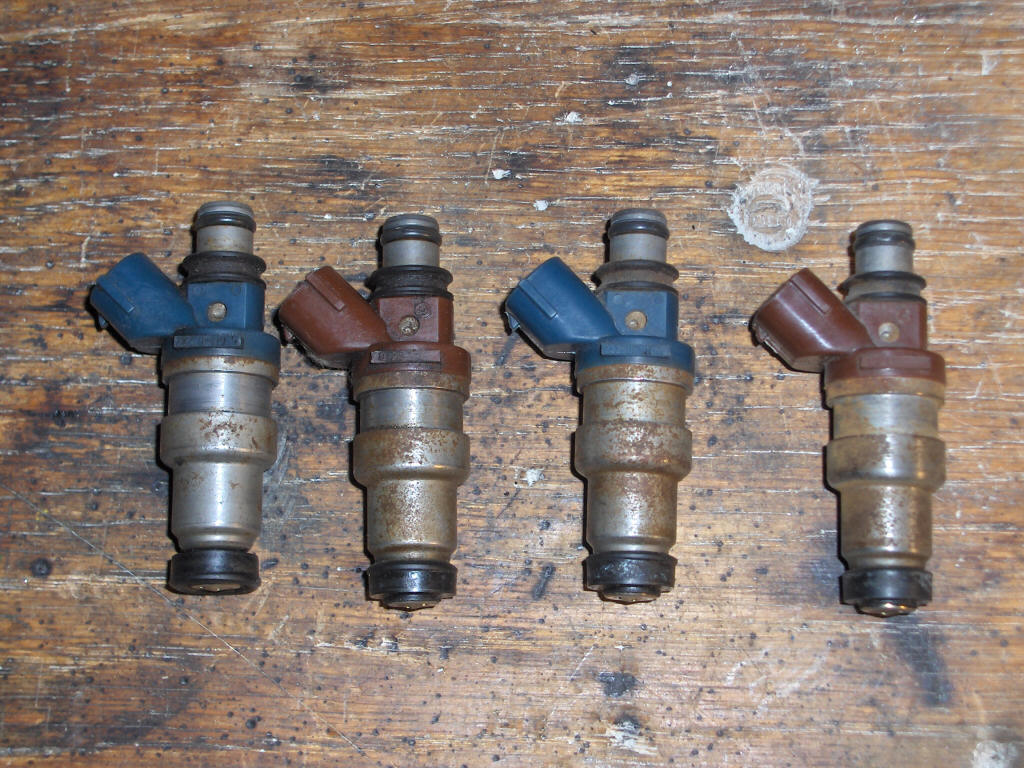

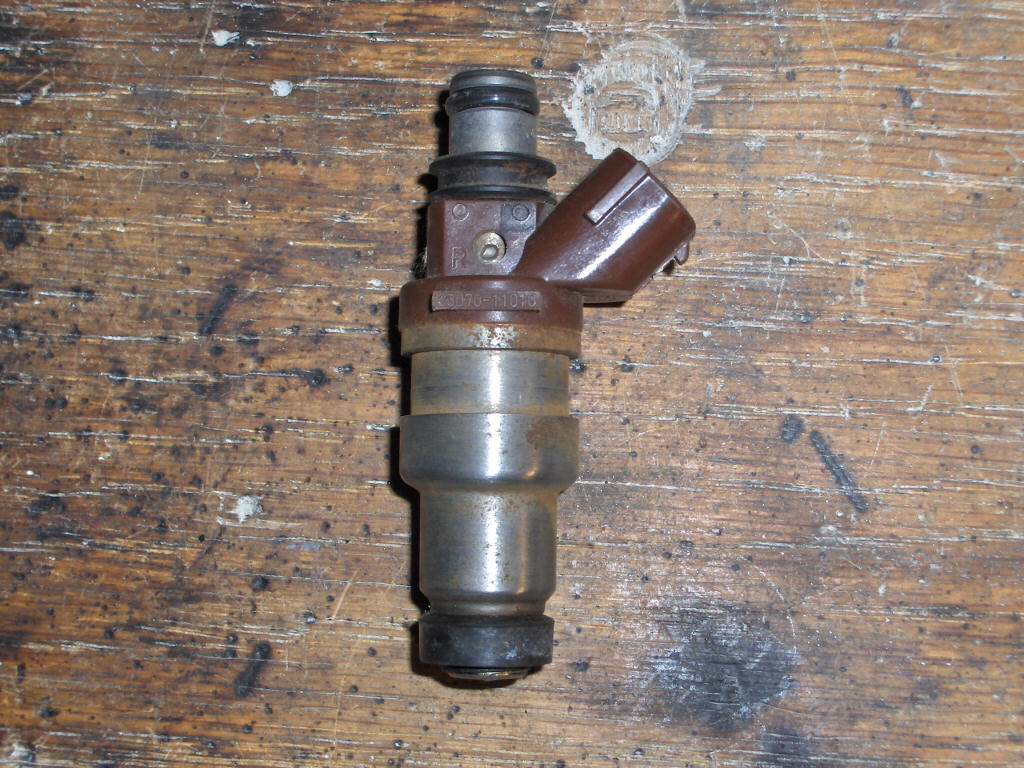

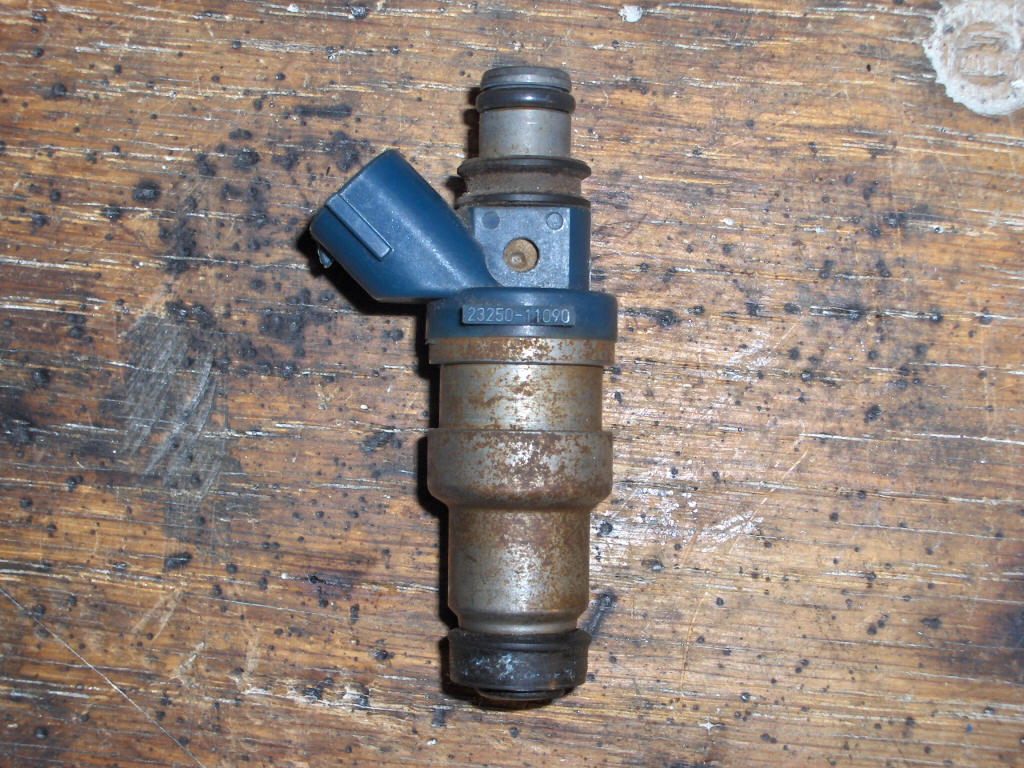

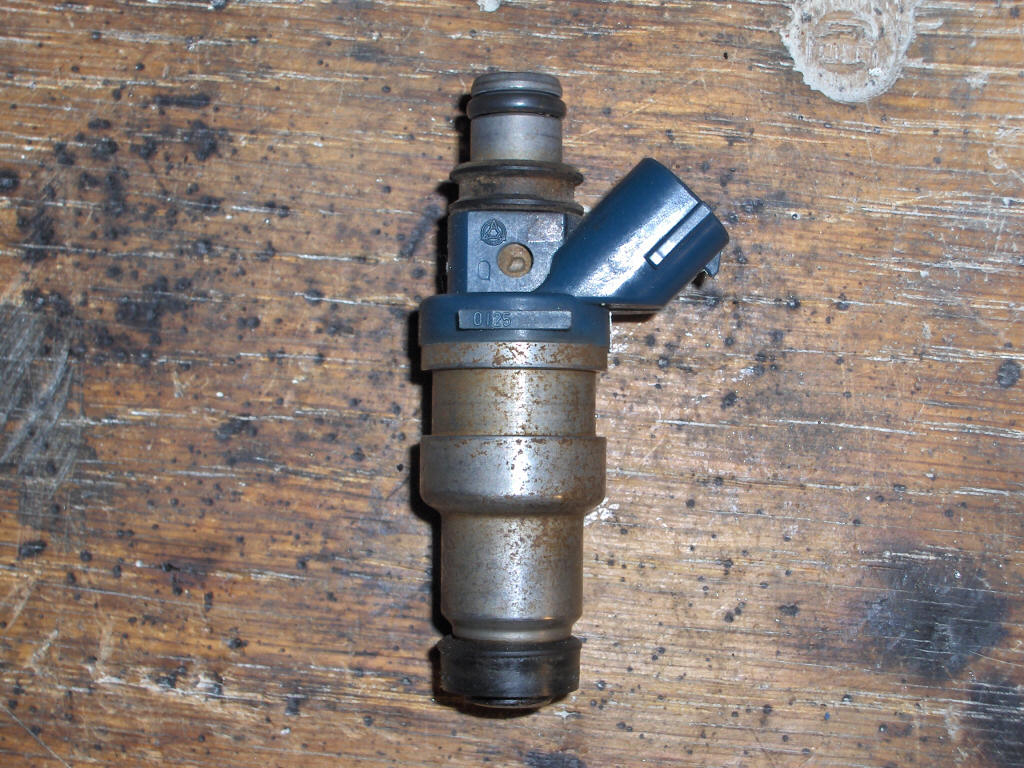

3E-E injectors.

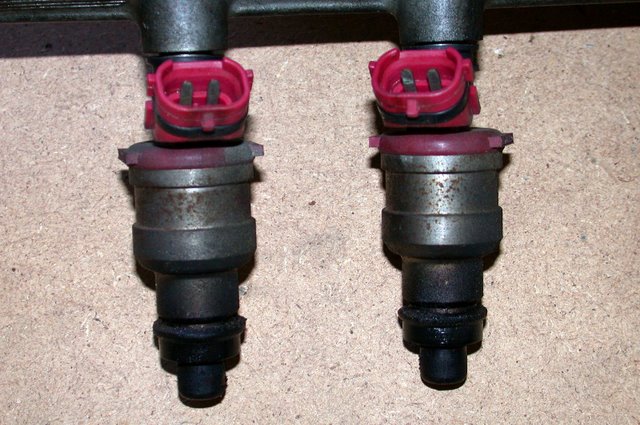

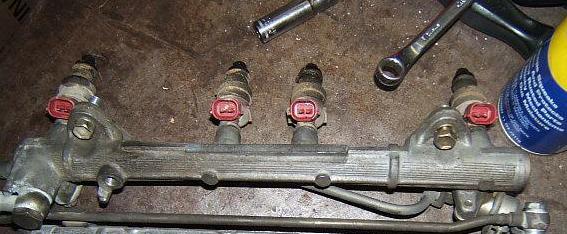

3E-TE injectors.

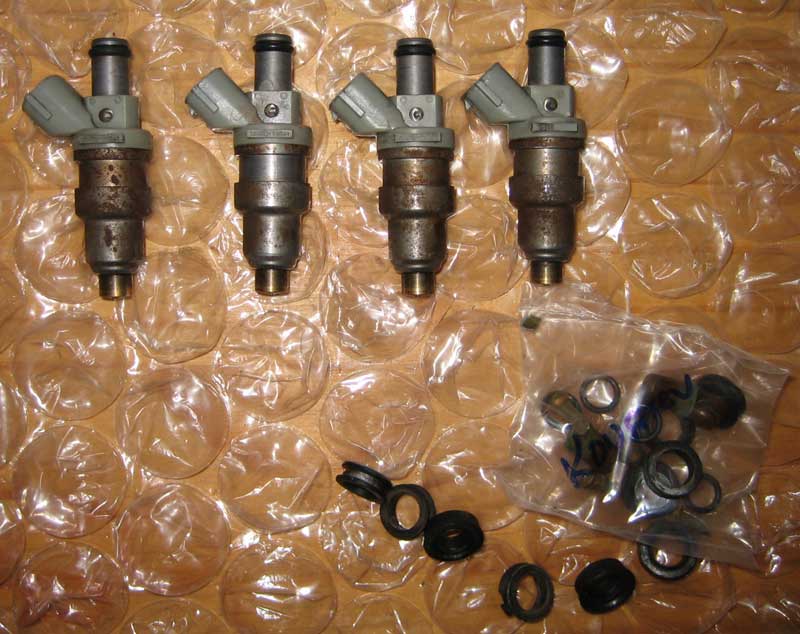

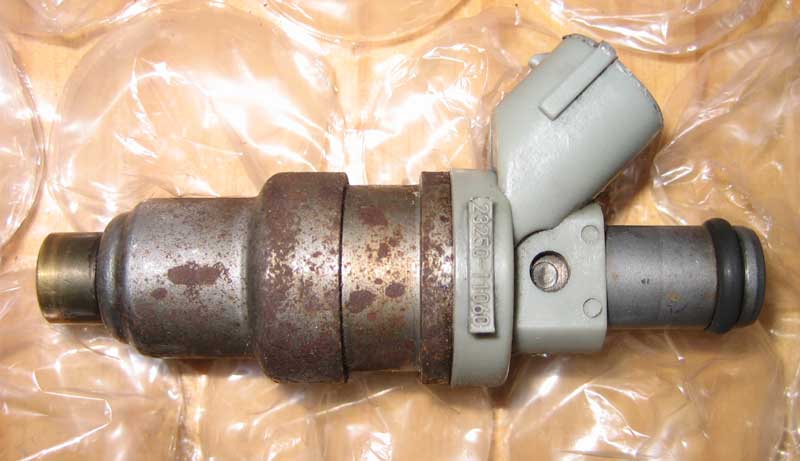

4E-FTE injectors.

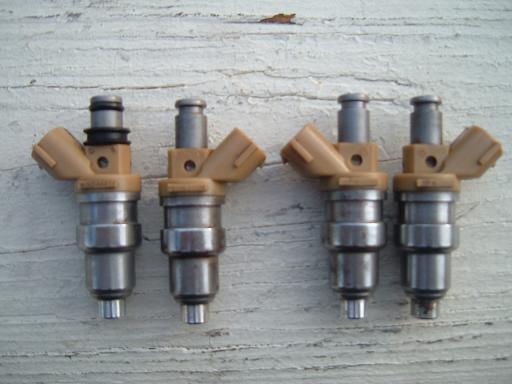

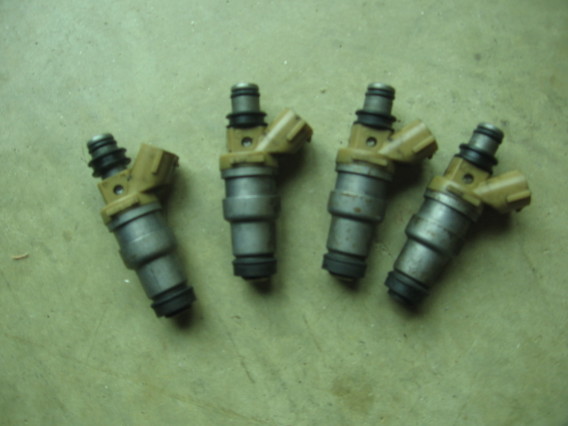

5E-FE injectors.





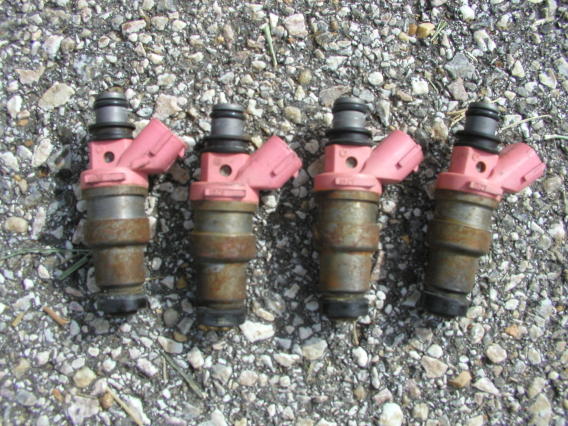

5E-FE JDM "pink" injectors.





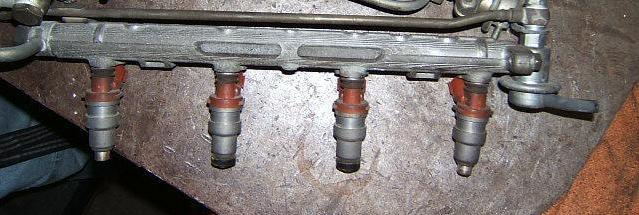

5E-FHE injectors.

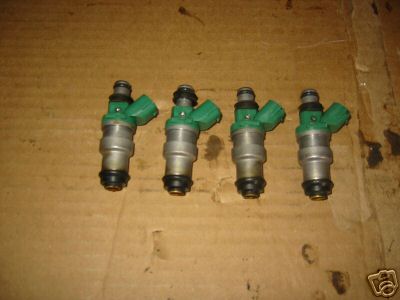

2nd gen 5E-FE injectors.








Valve Covers
Top

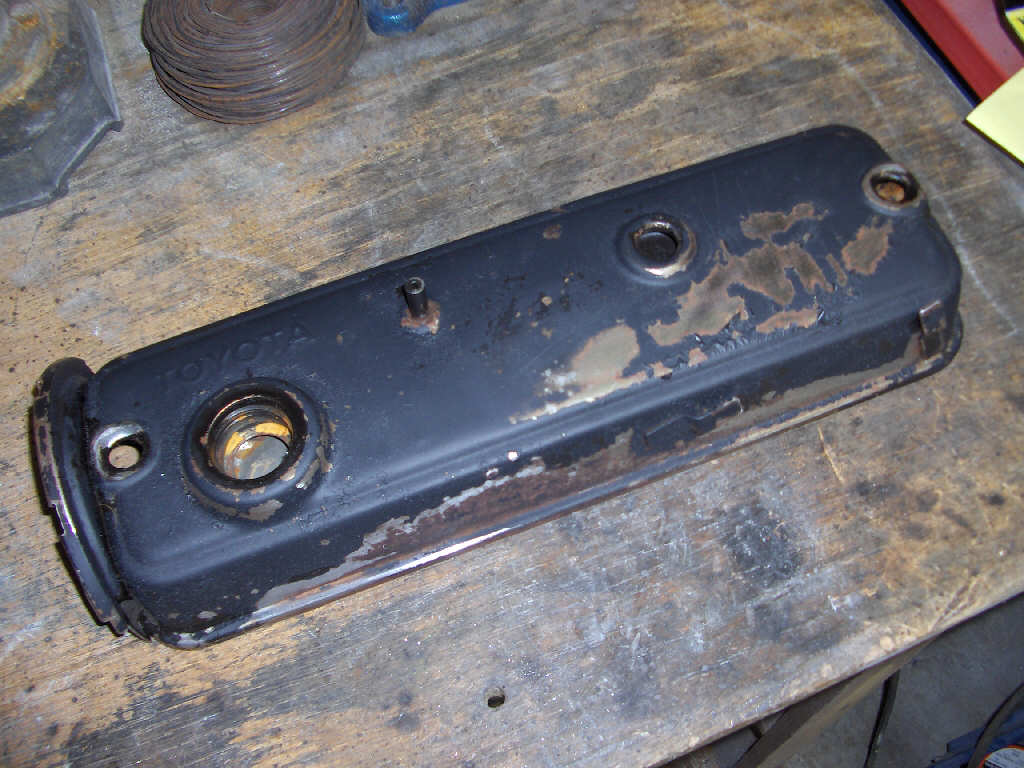

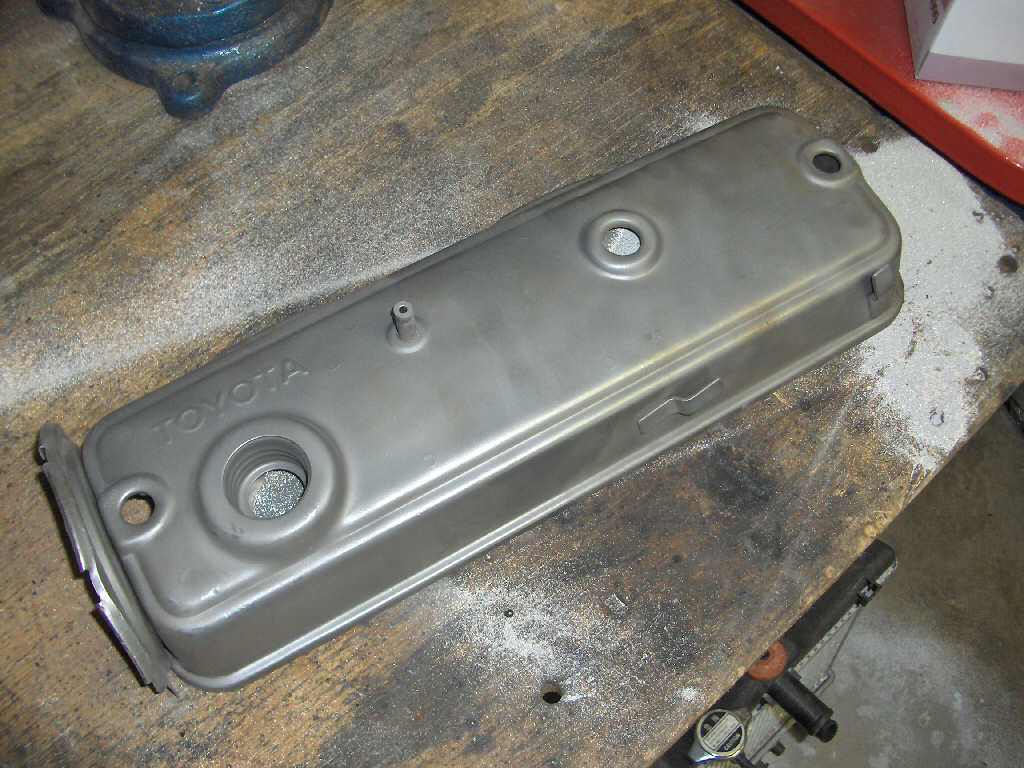

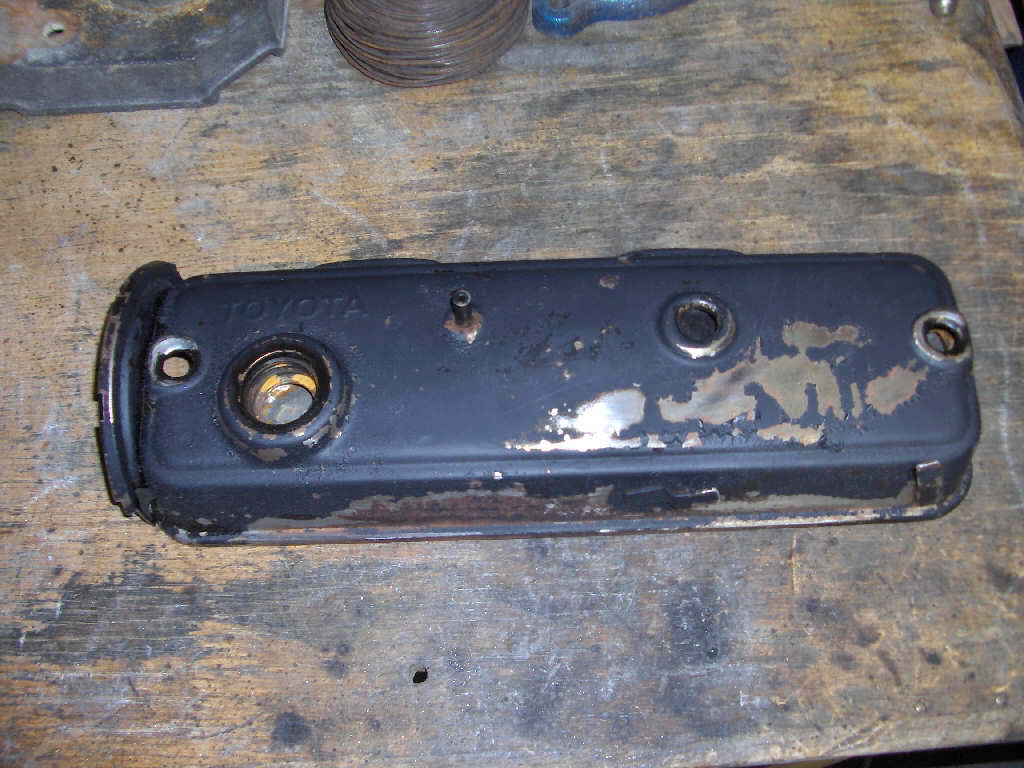

3E-E valve cover. The last picture is a sand blasted cover.

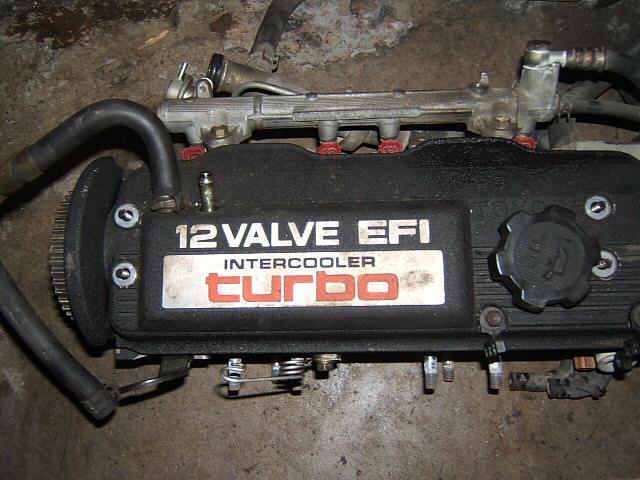

3E-TE valve cover.

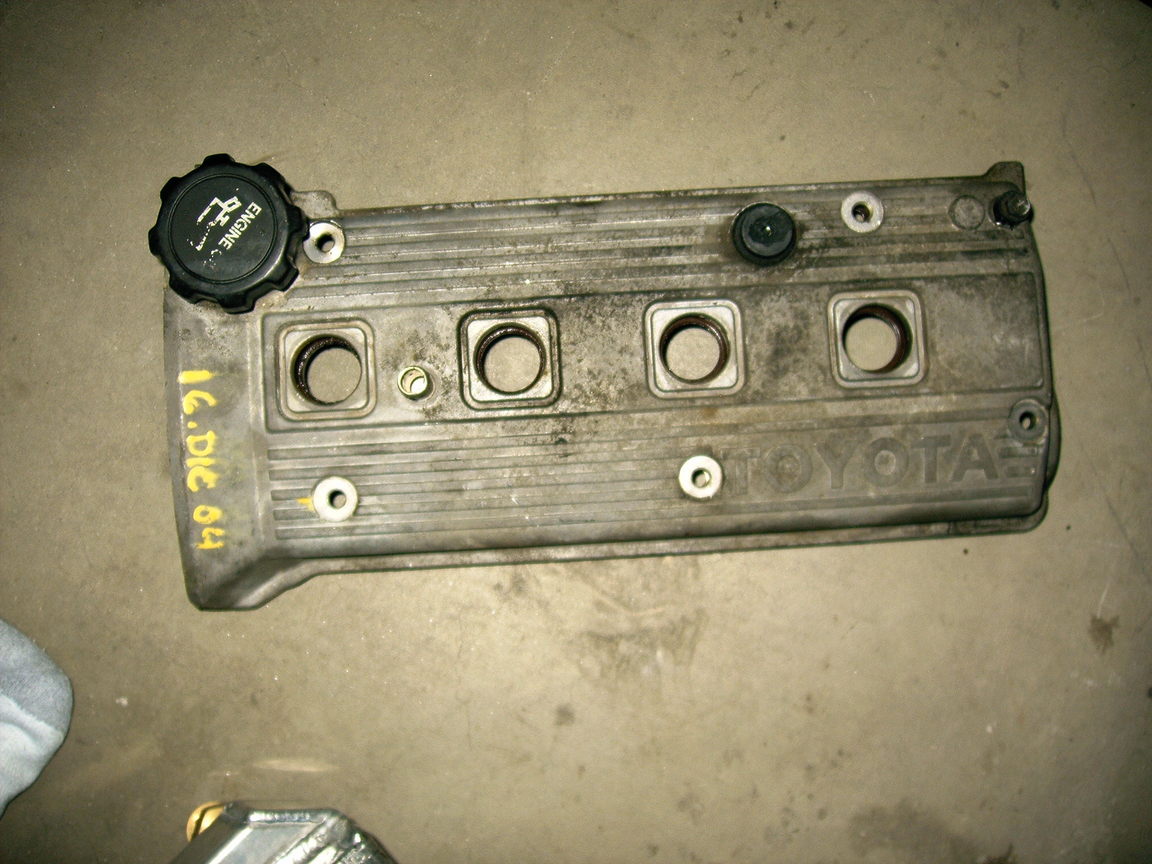

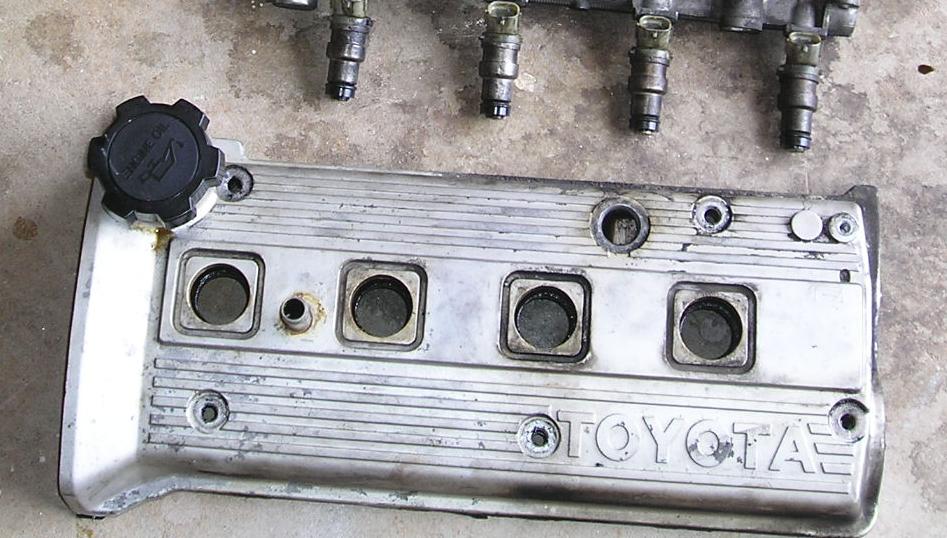

4E-FTE valve cover. Note breather between 1st and 2nd cylinder spark plug holes.

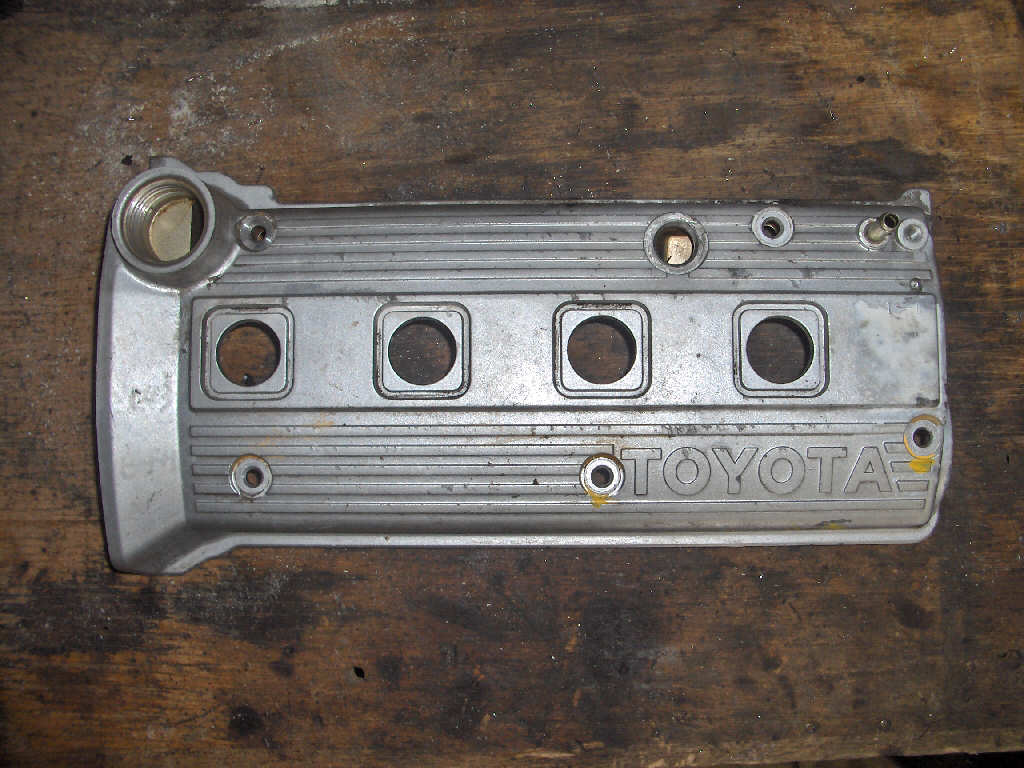

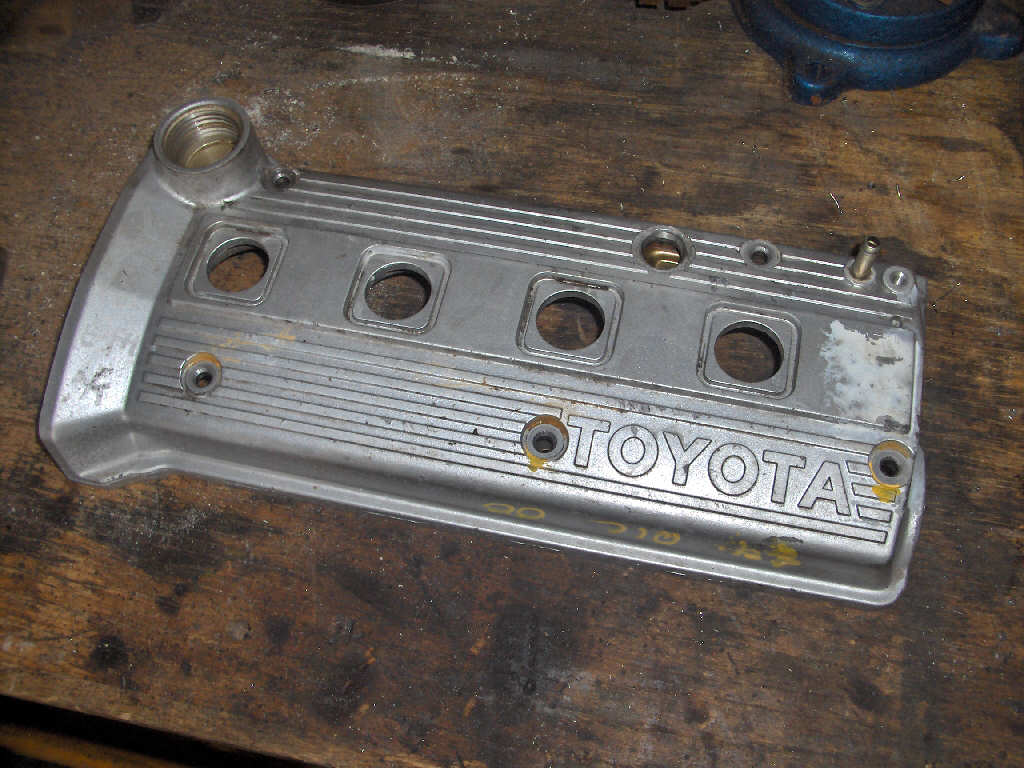

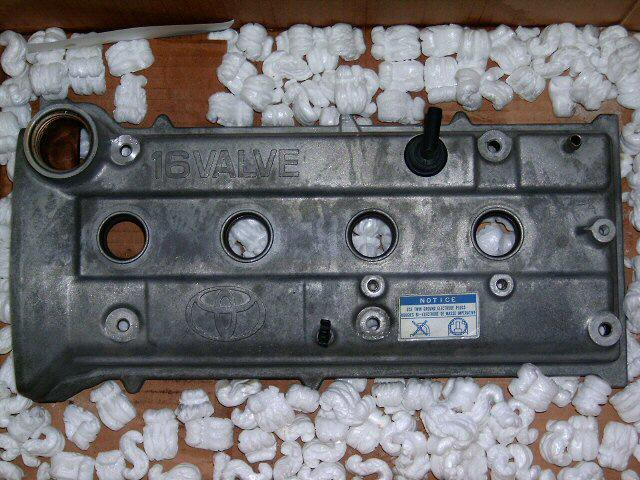

1st gen 5E-FE valve cover. Note breather in upper right corner.

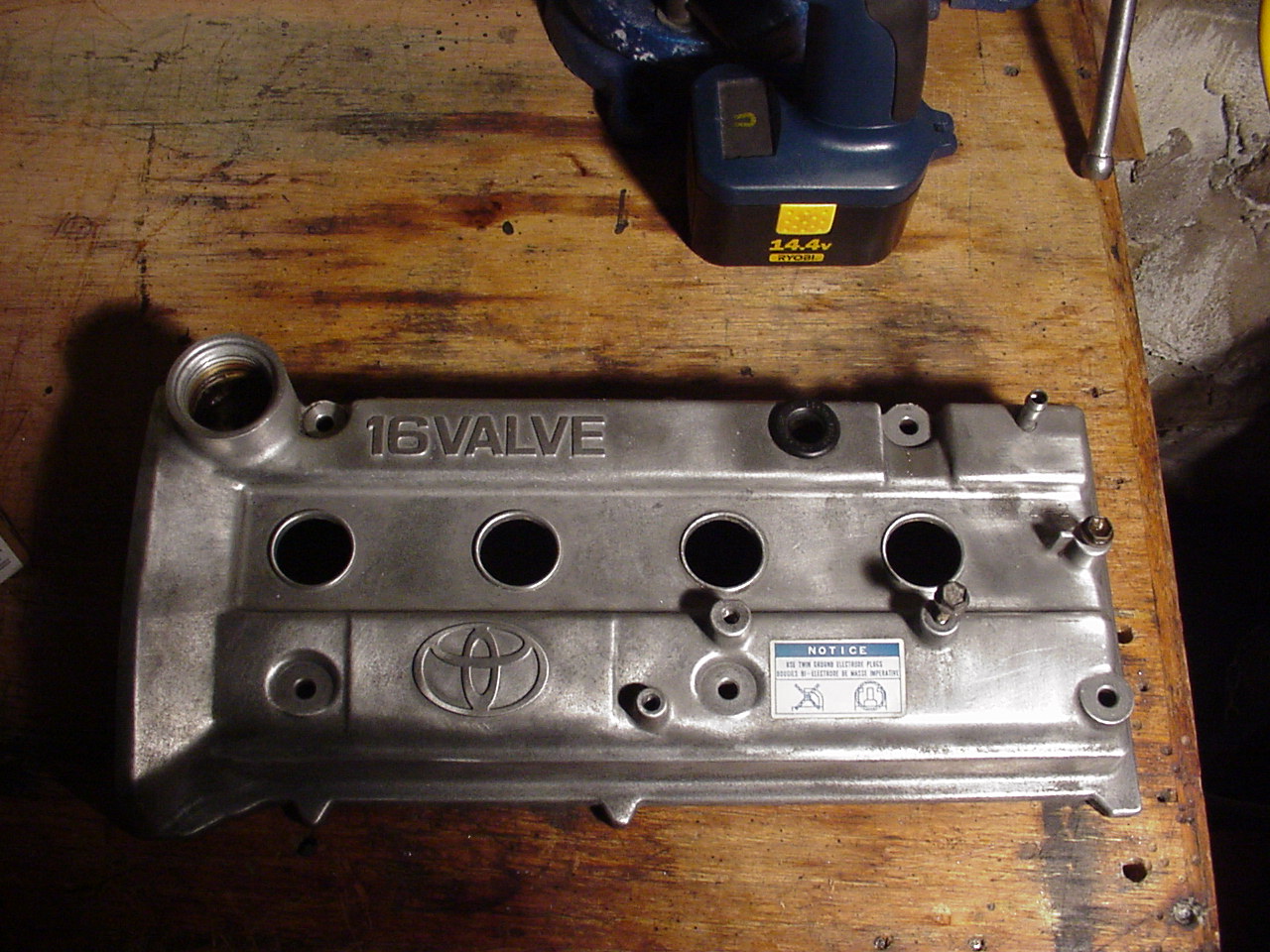

2nd gen 5E-FE valve cover.











Camshafts
Top

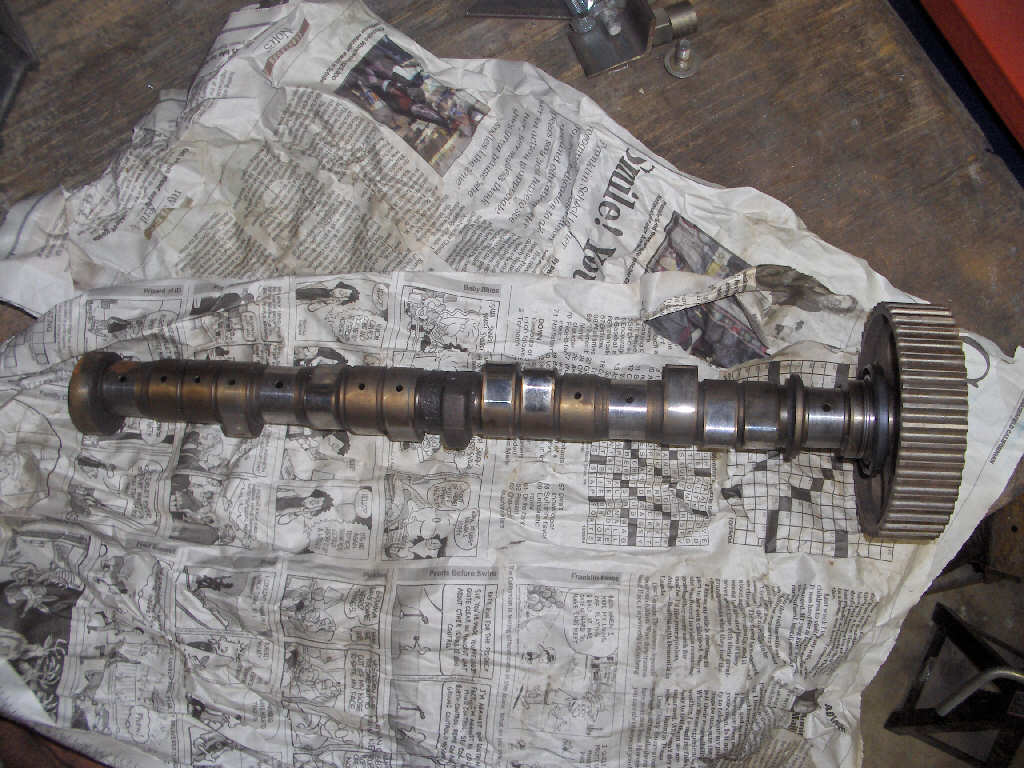

3E-E Camshaft.

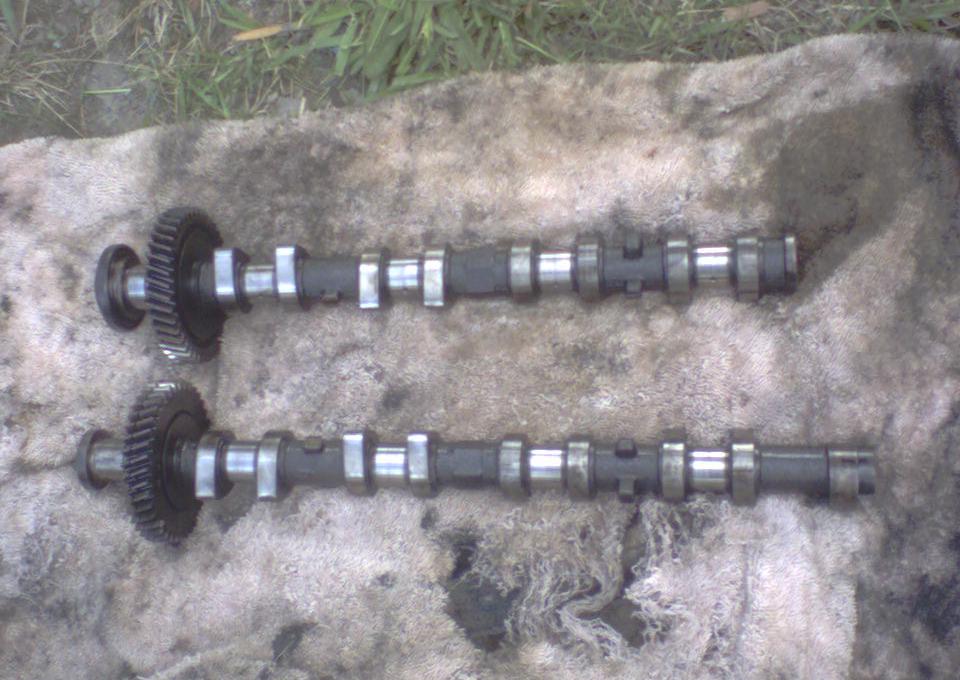

4E-FTE camshafts.

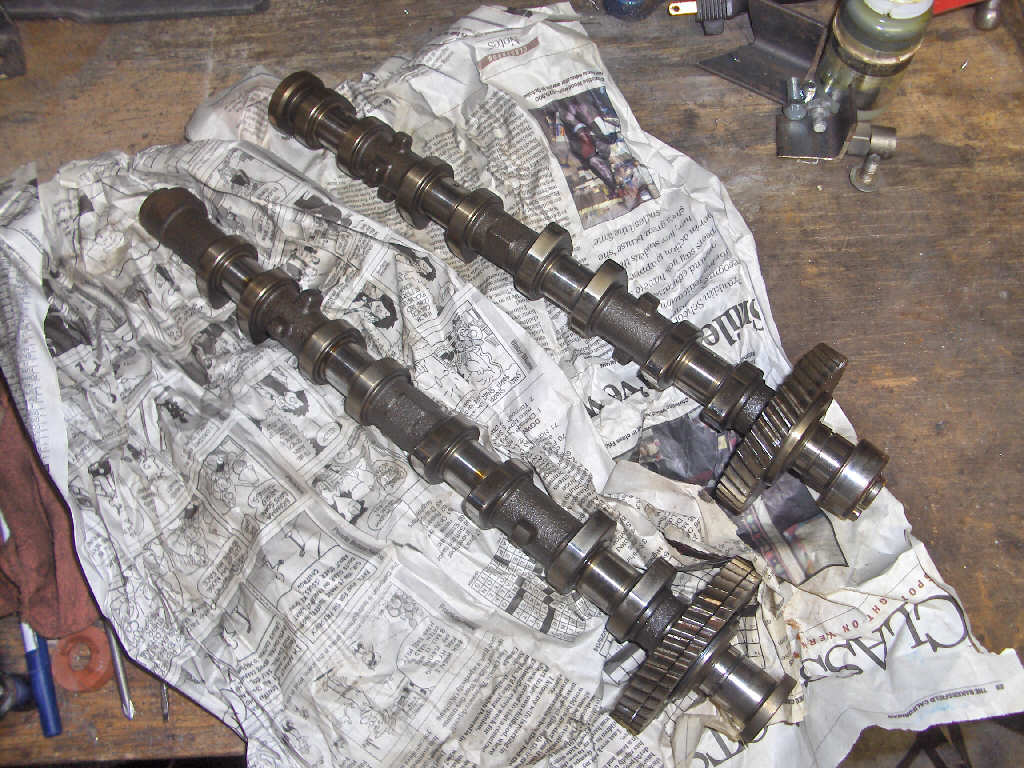

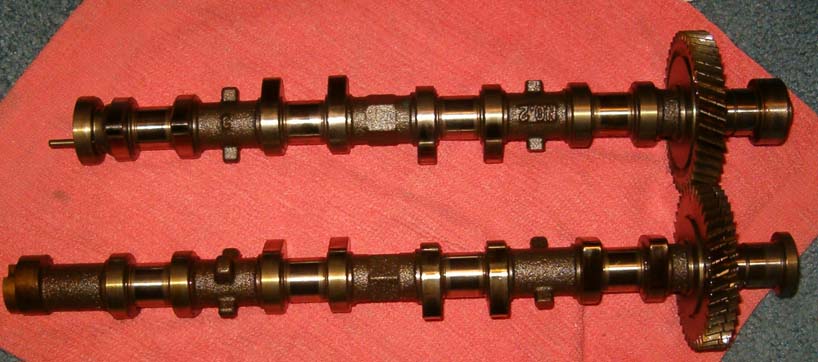

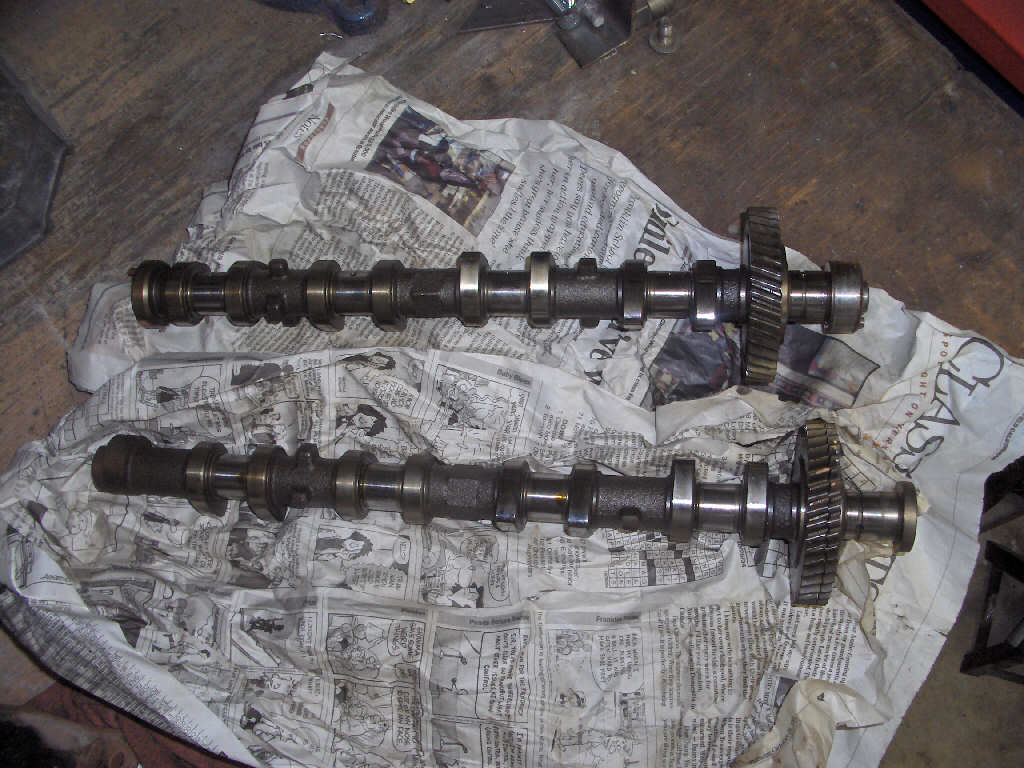

2nd gen 5E-FE camshafts.








Heads
Top

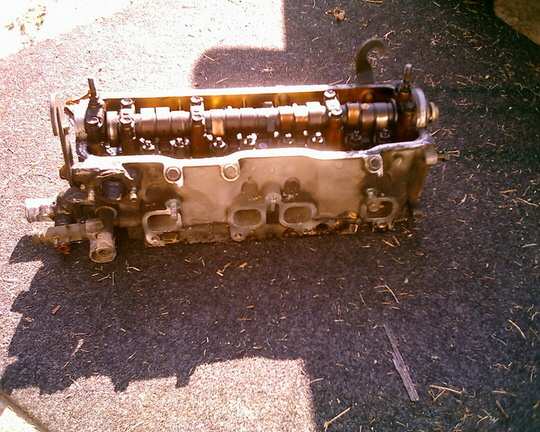

3E head.

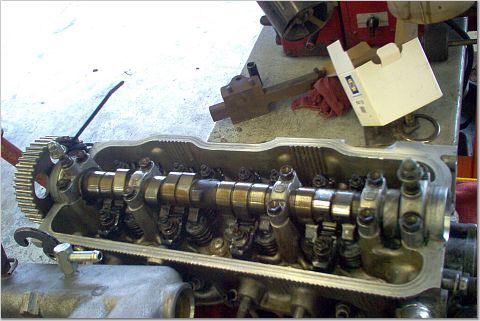

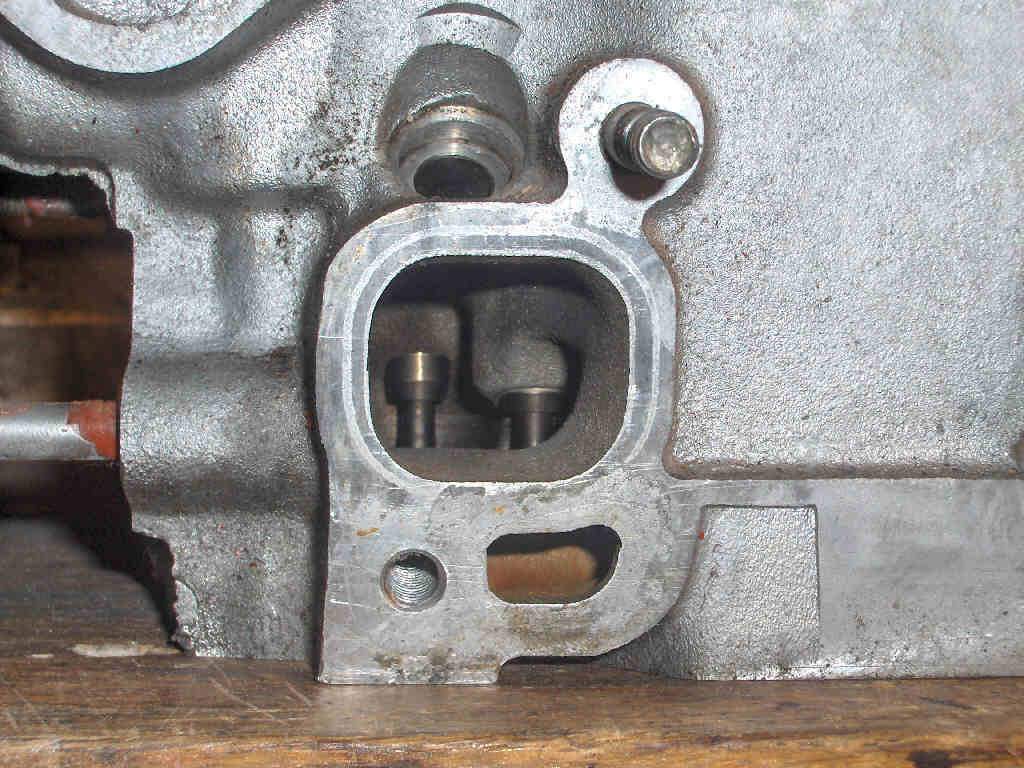

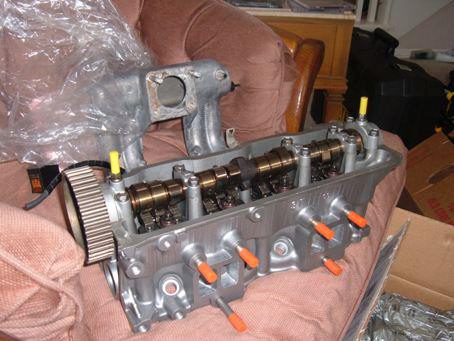

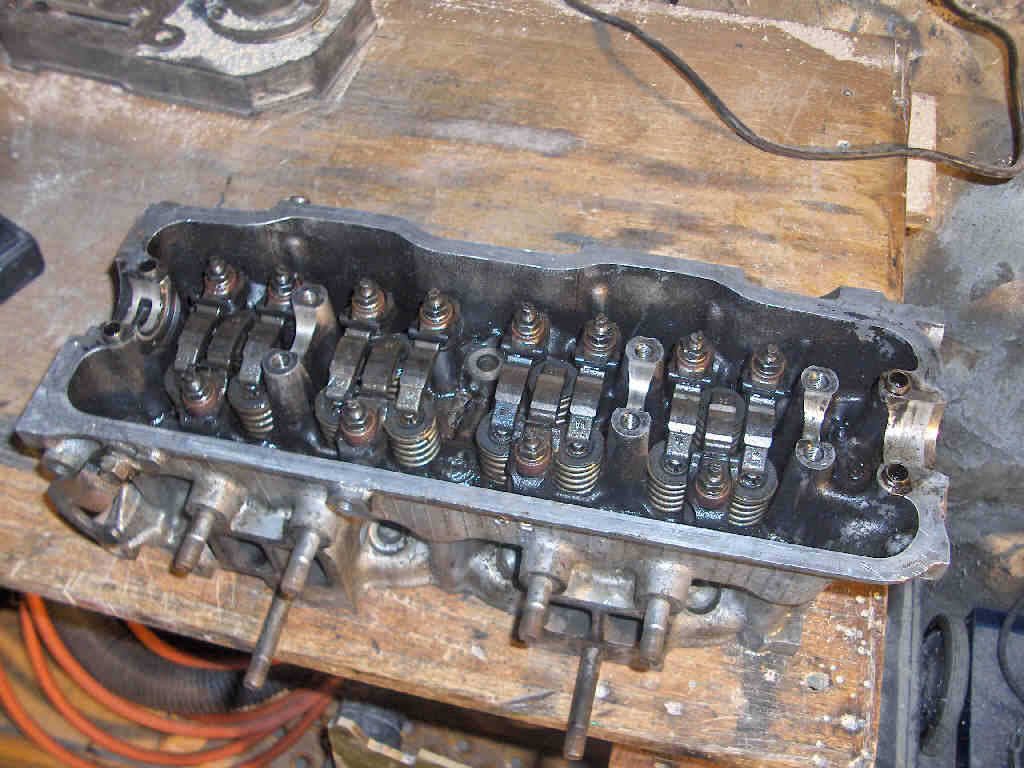

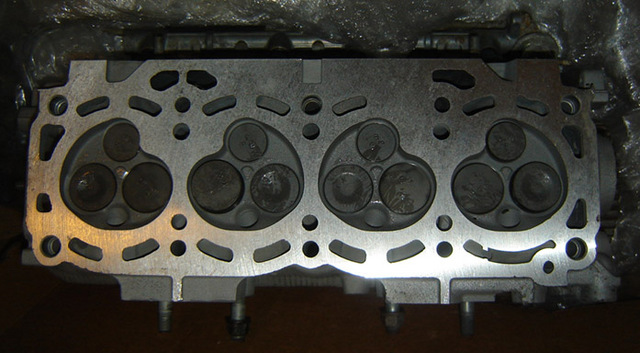

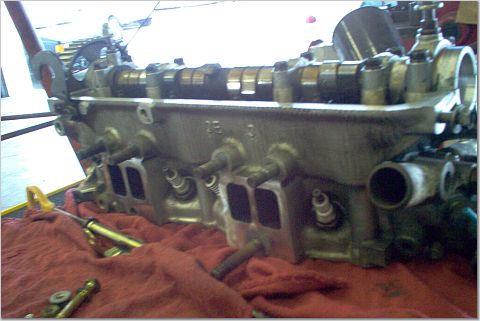

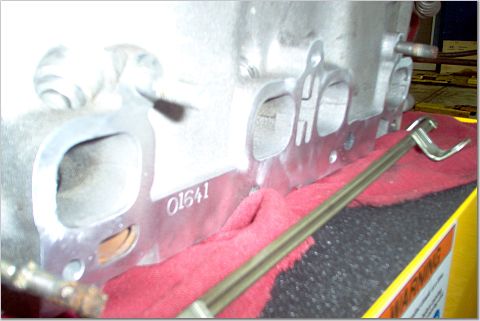

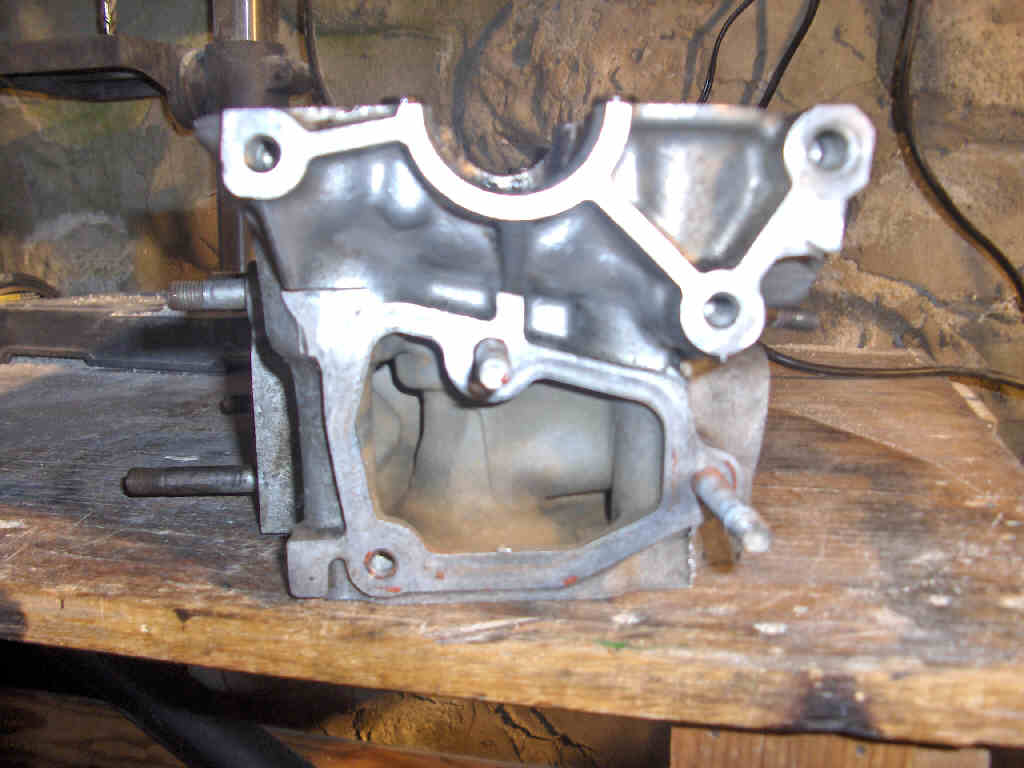

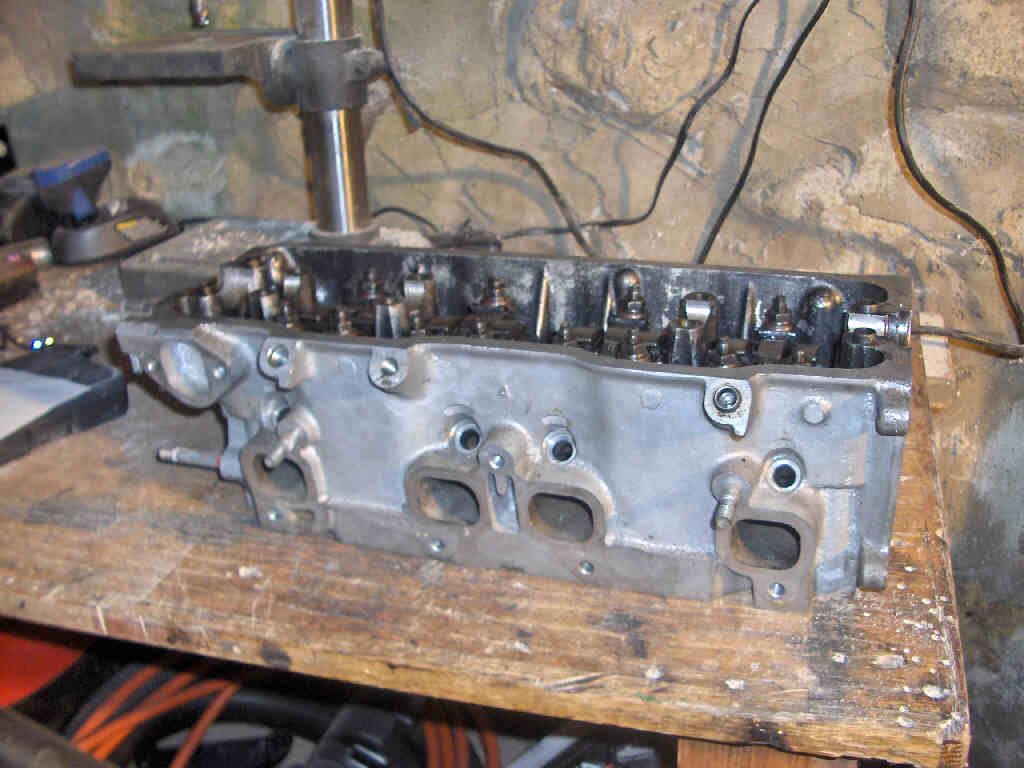

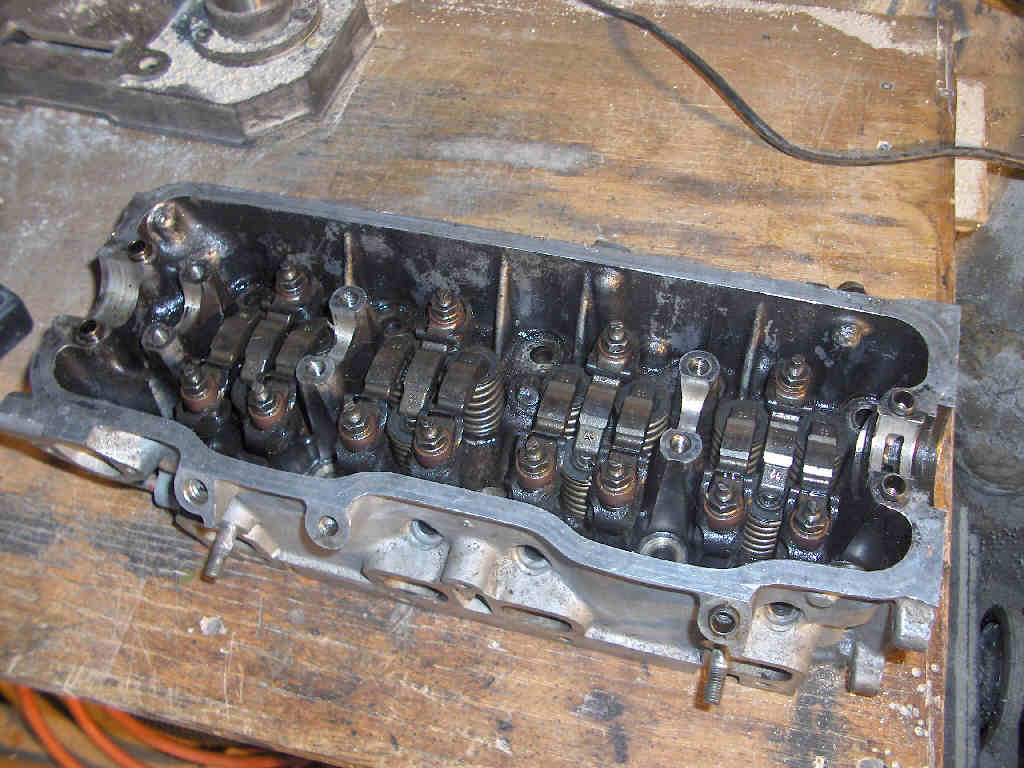

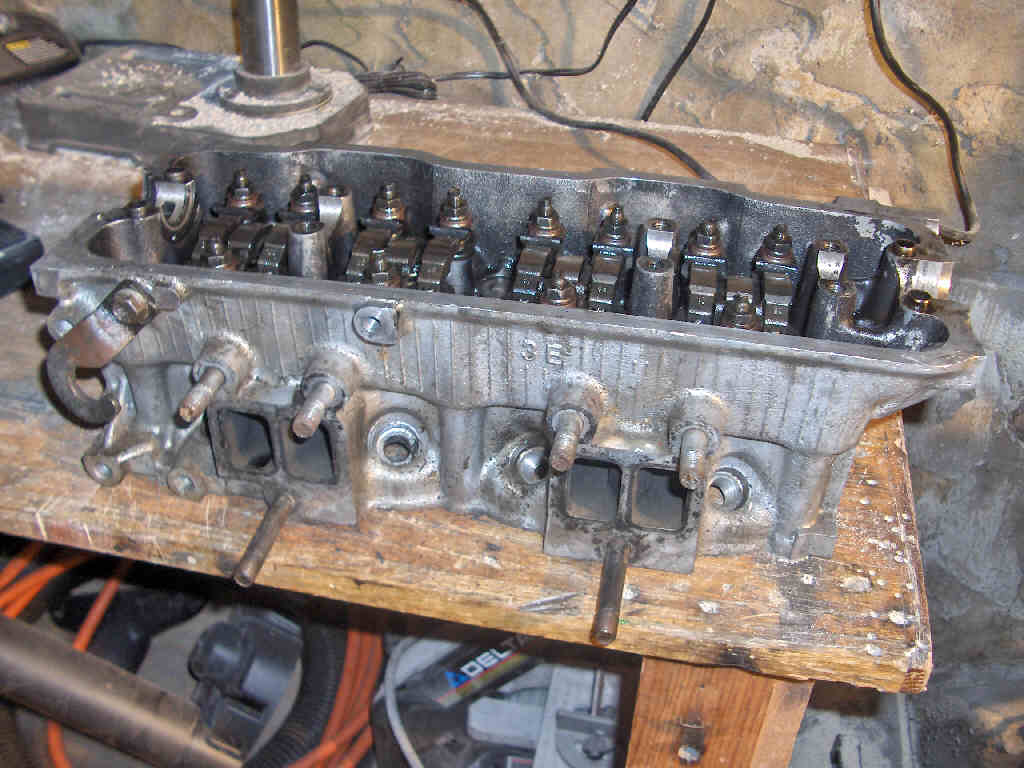

3E-E head.

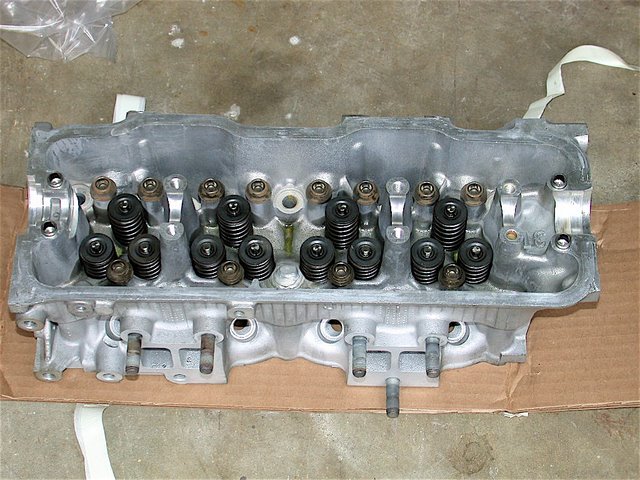

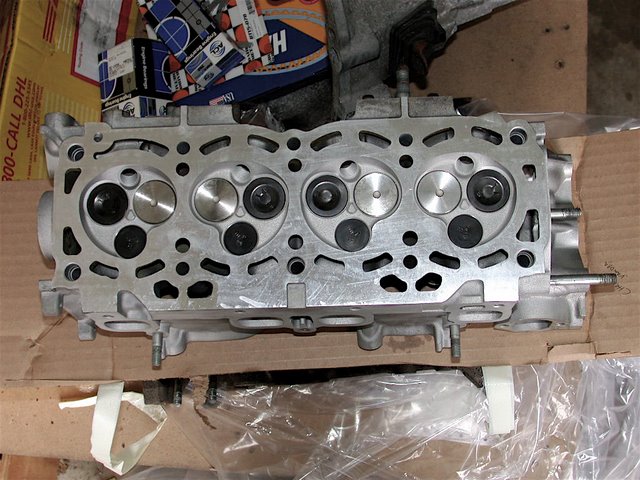

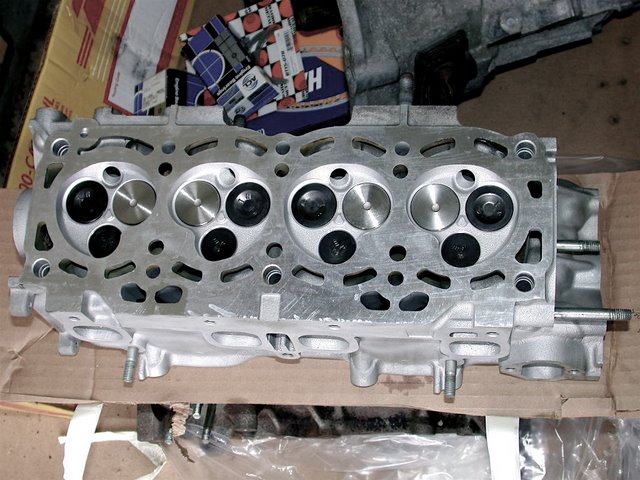

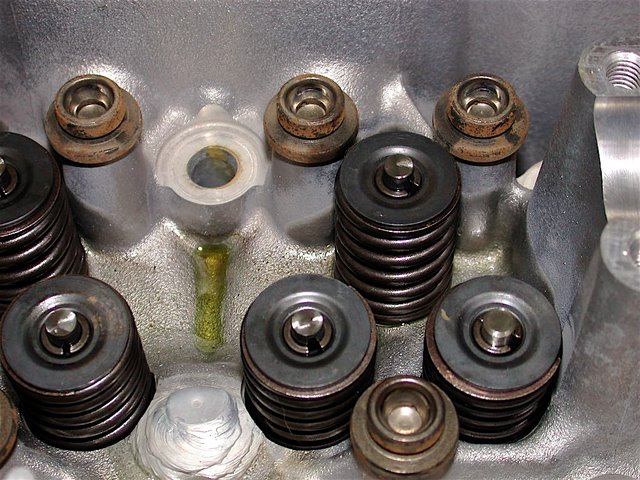

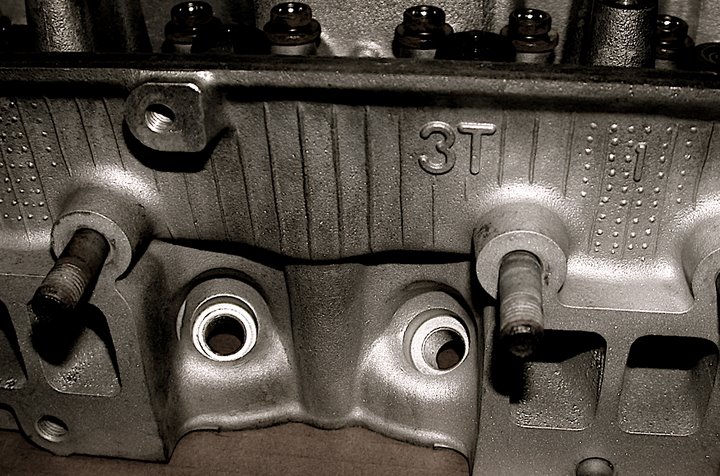

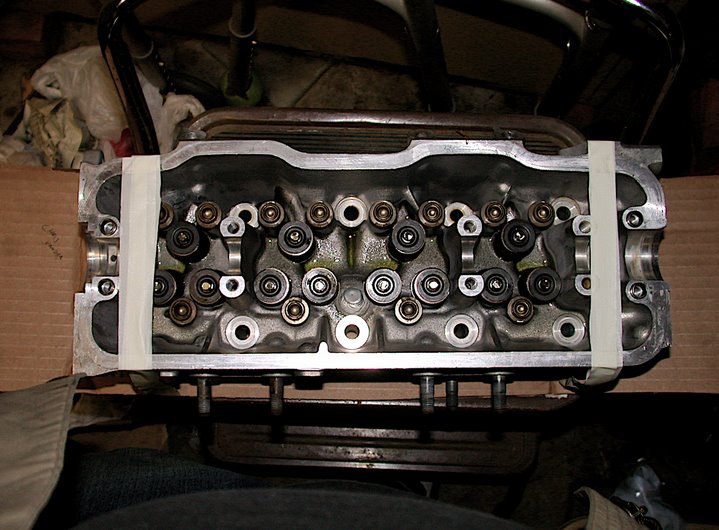

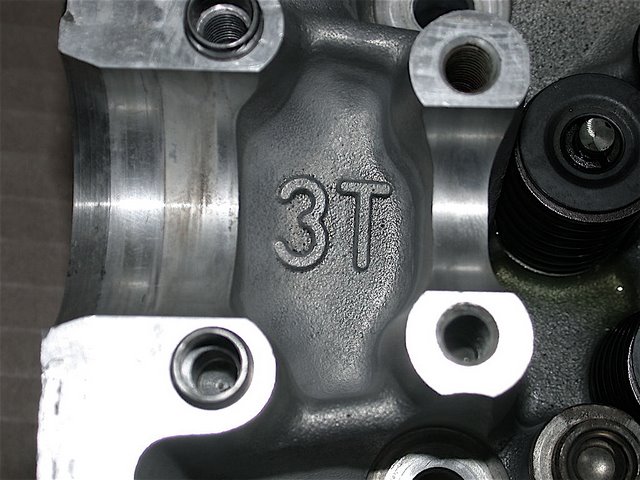

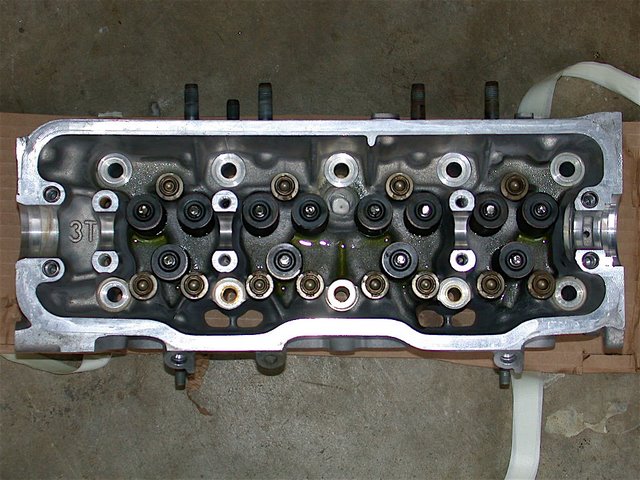

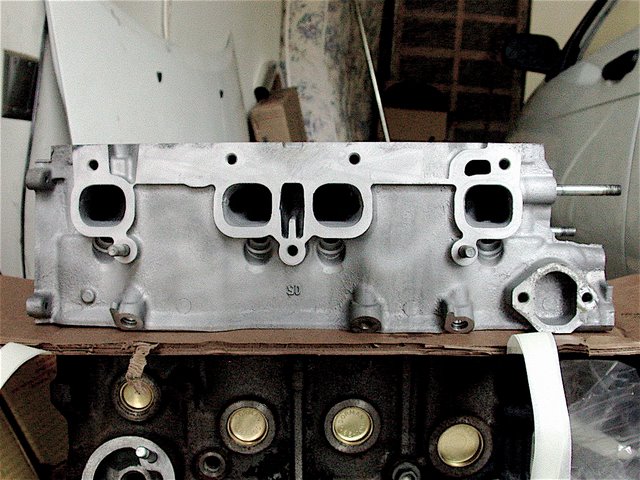

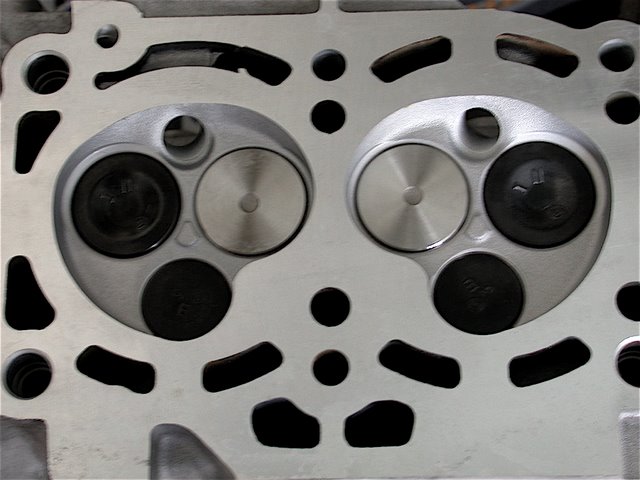

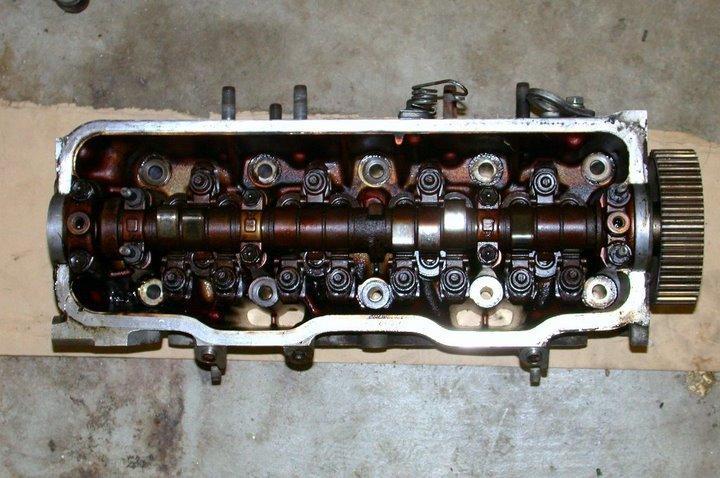

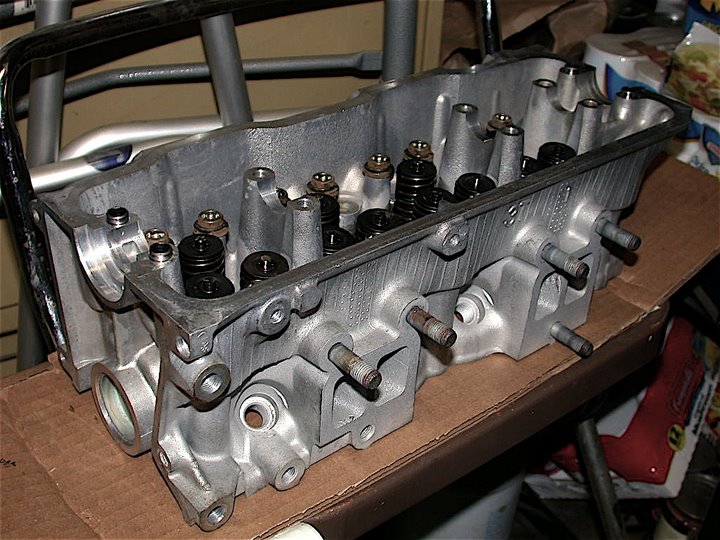

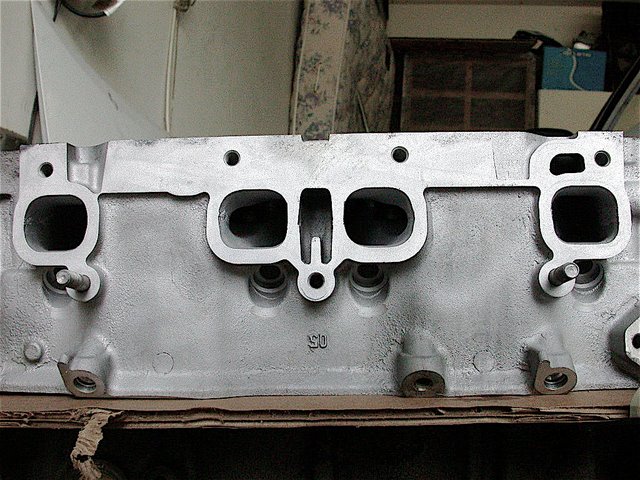

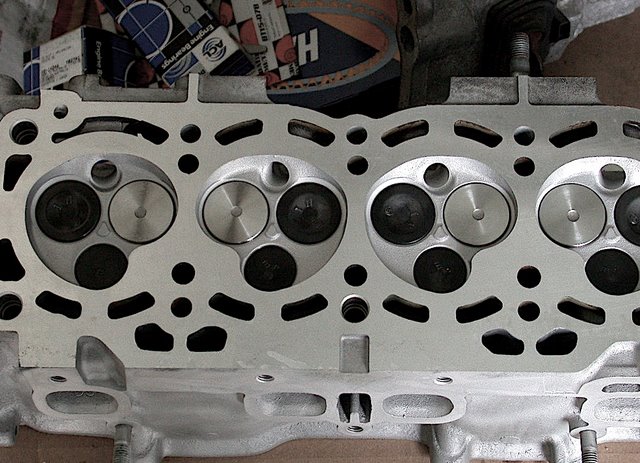

3E-TE head.

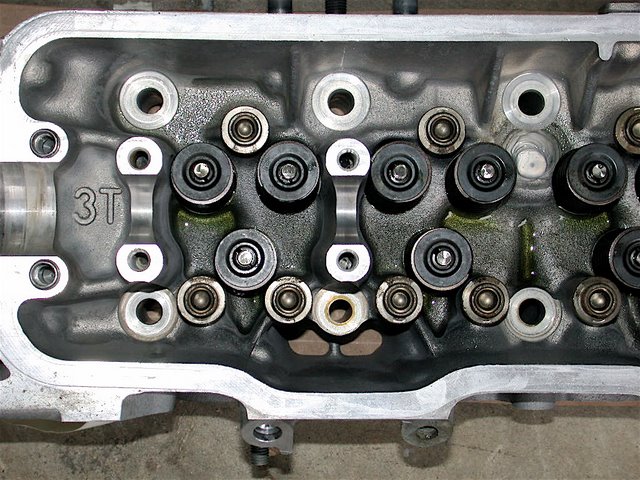

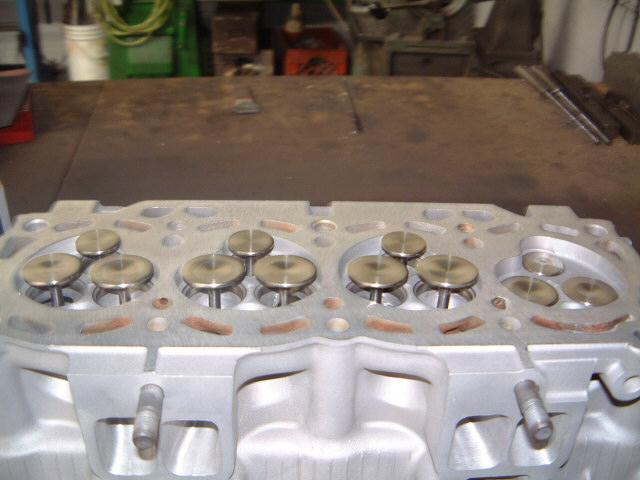

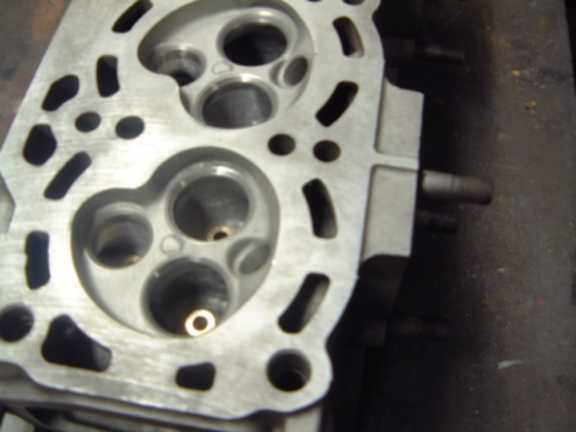

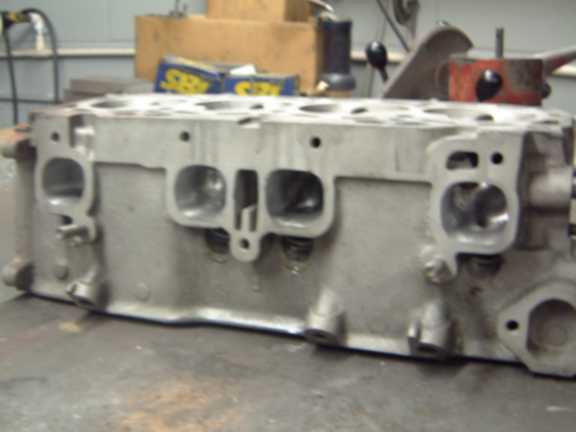

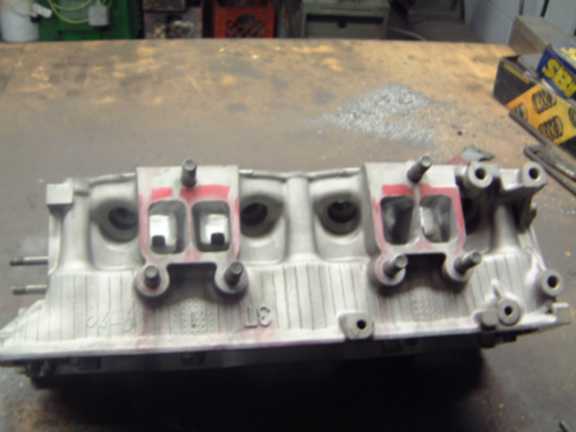

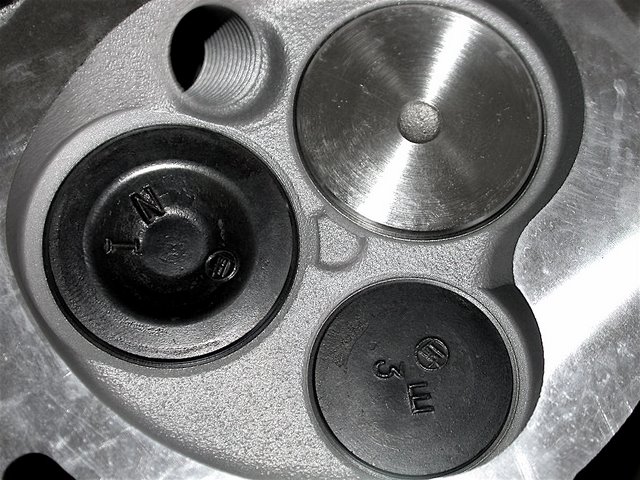

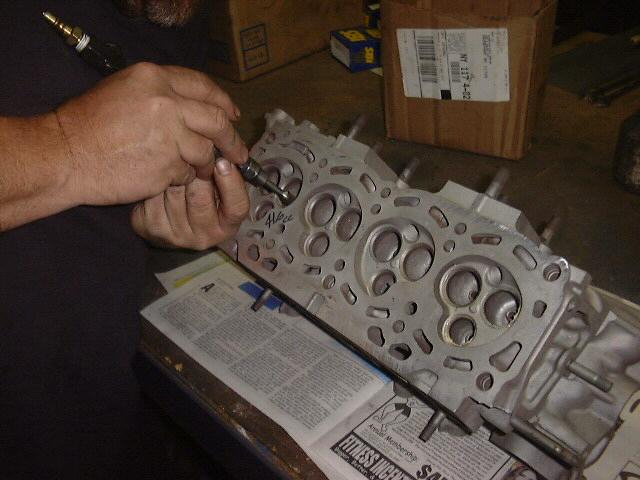

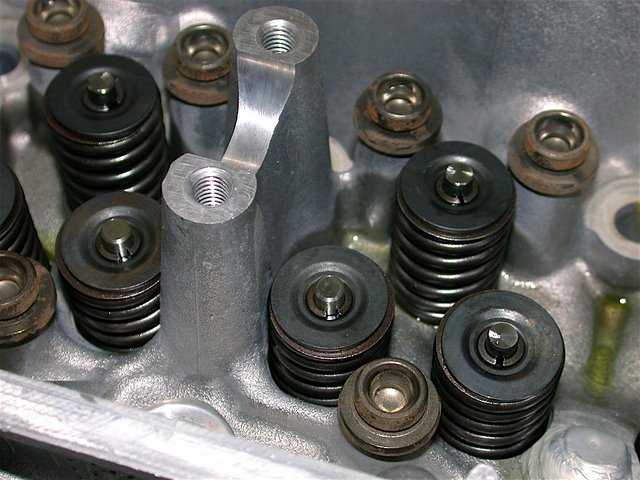

3E-TE ported head.

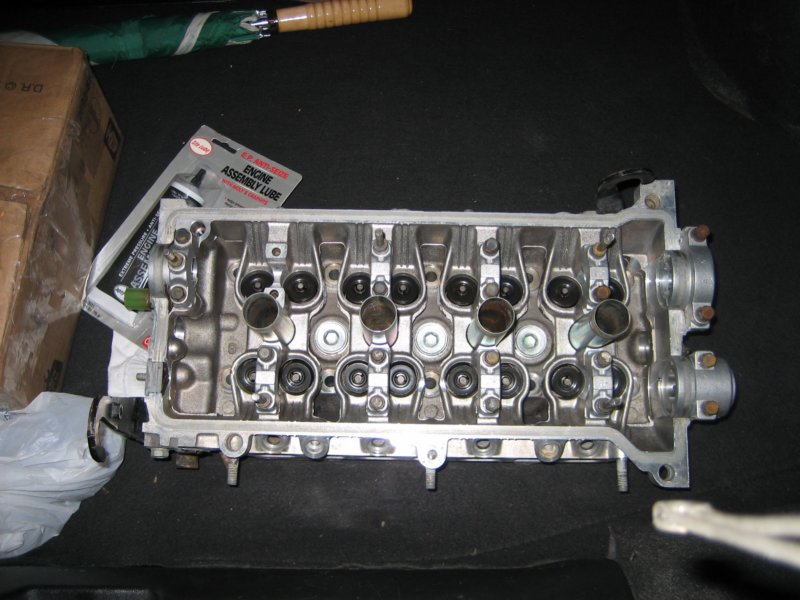

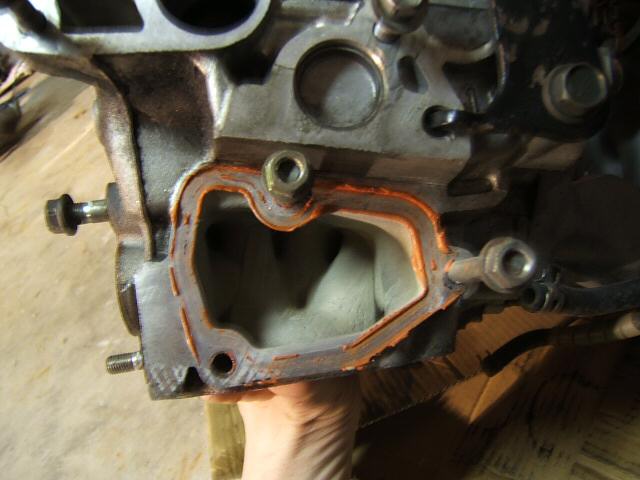

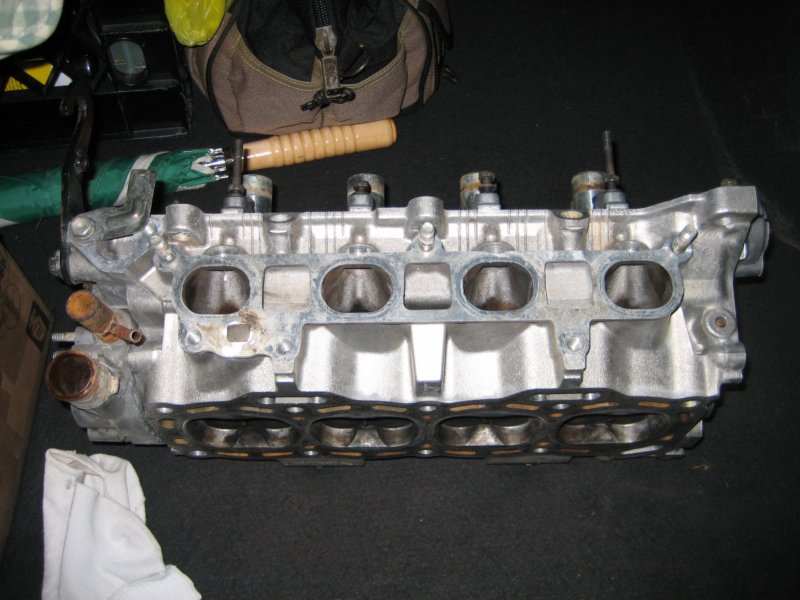

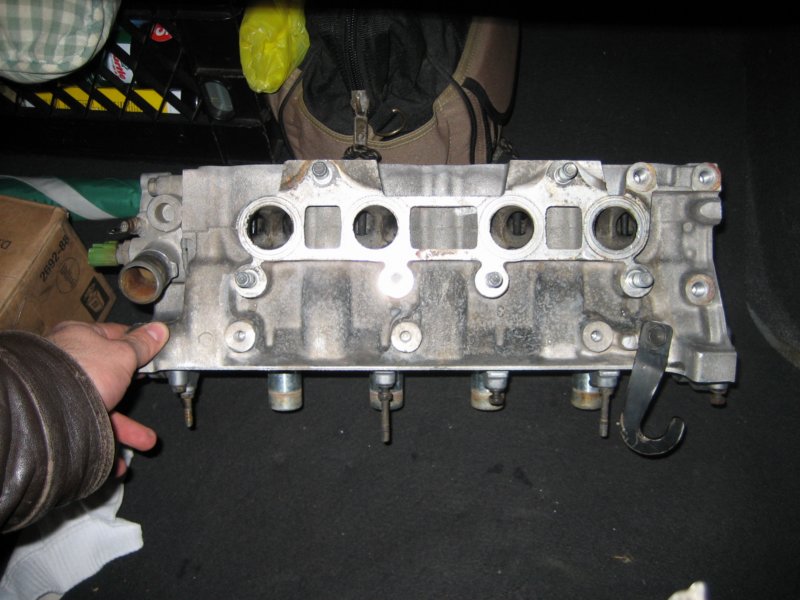

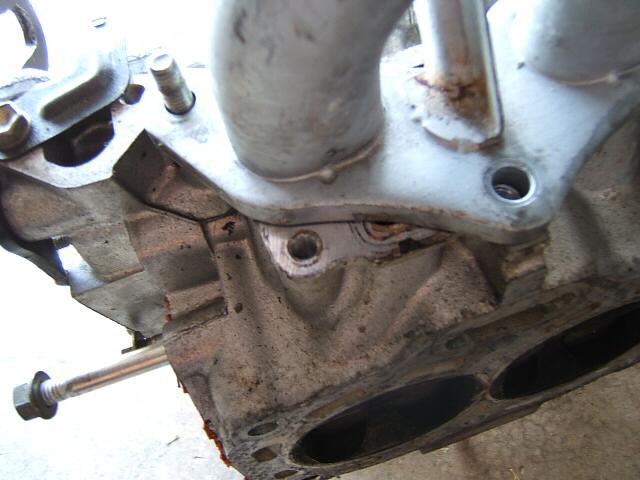

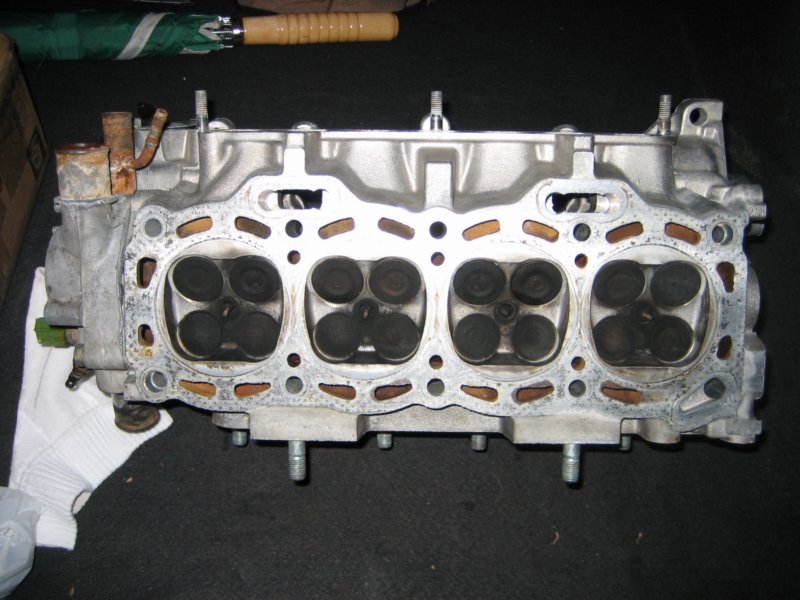

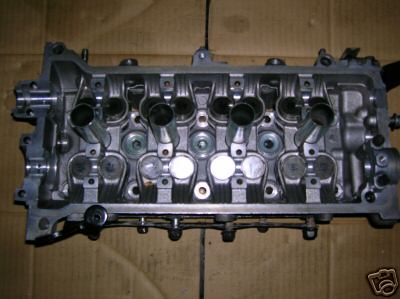

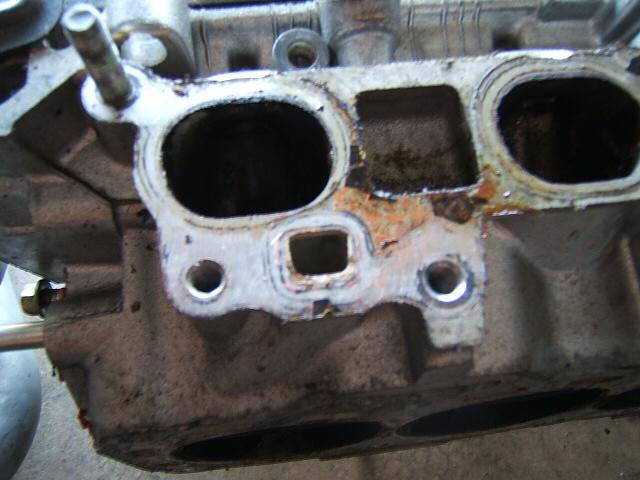

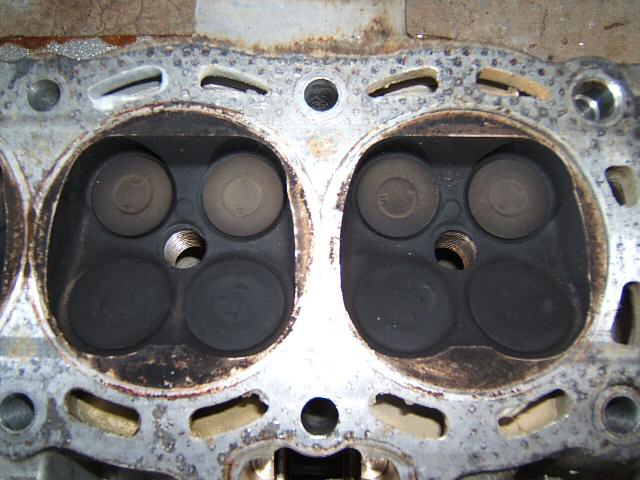

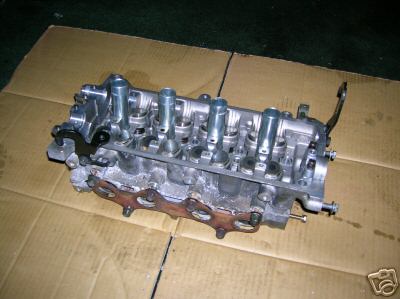

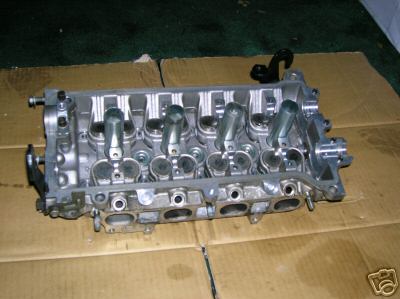

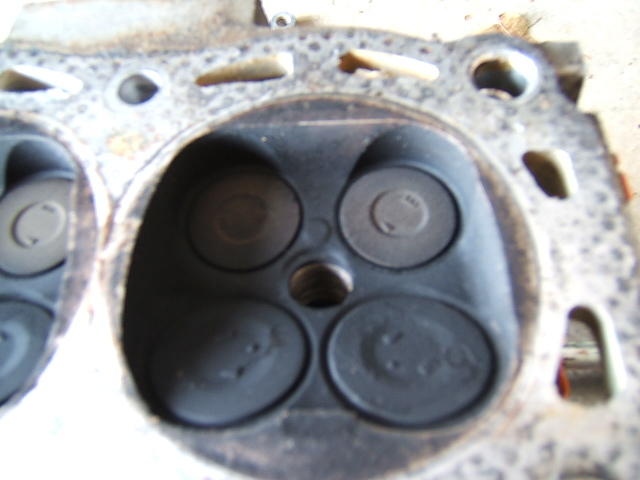

4E-FTE, 1st gen 5E-FE, and 5E-FHE head. Note the waterjacket hole that must be plugged when using the 4E-FE "header style" intake manifold.

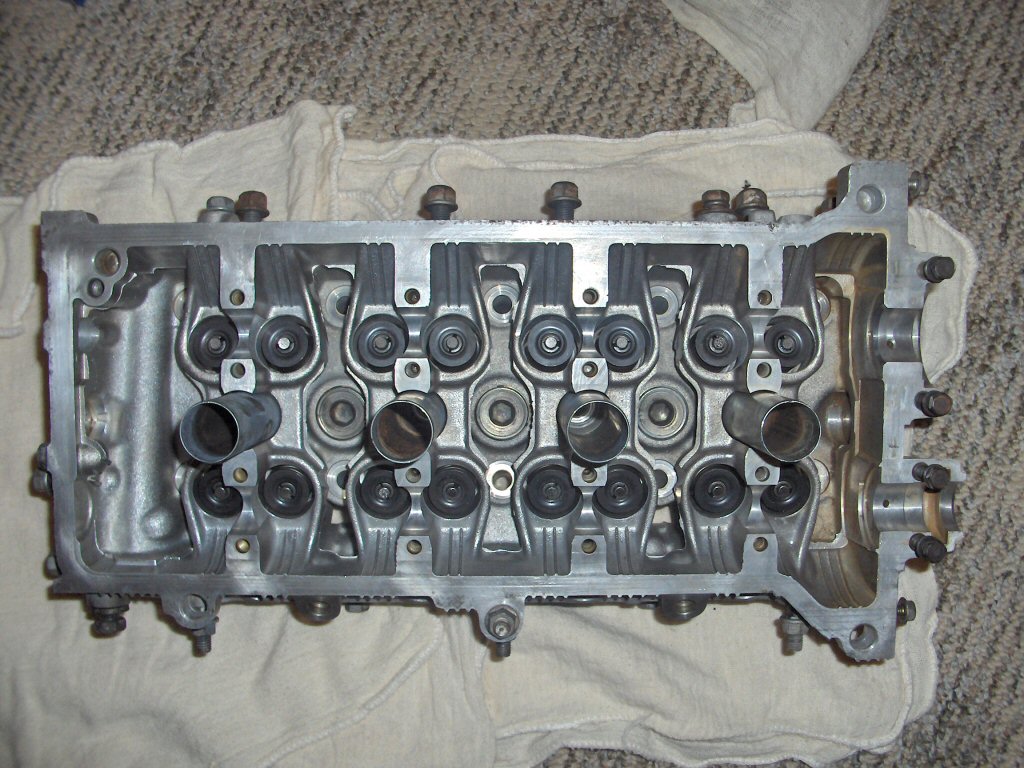

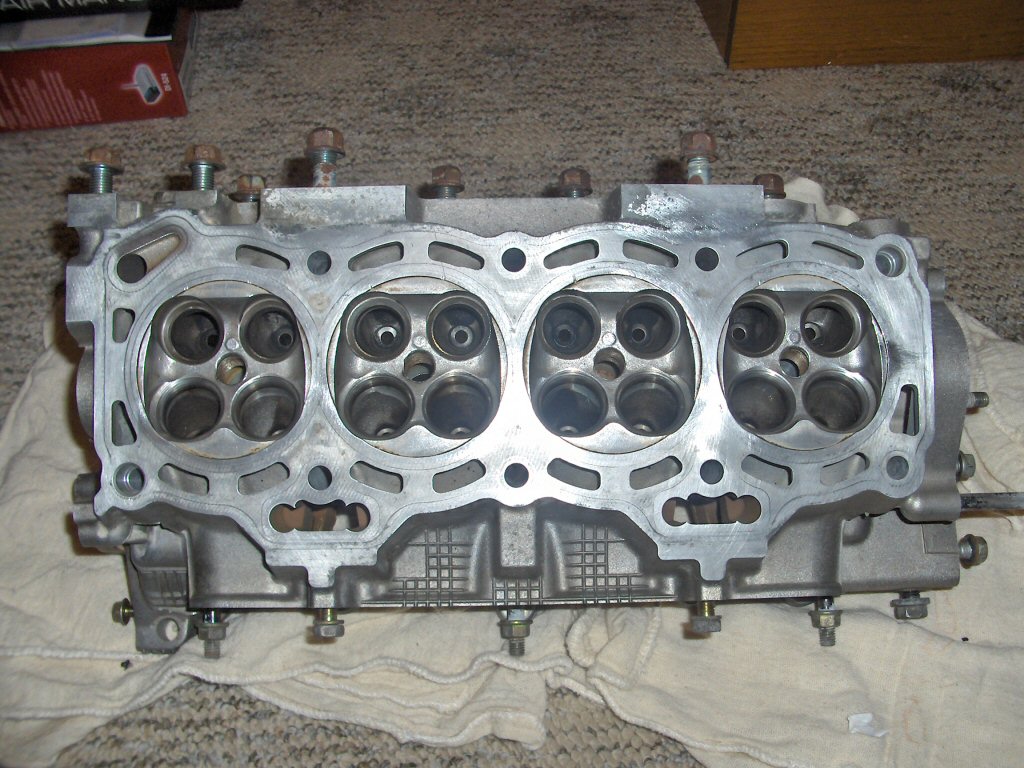

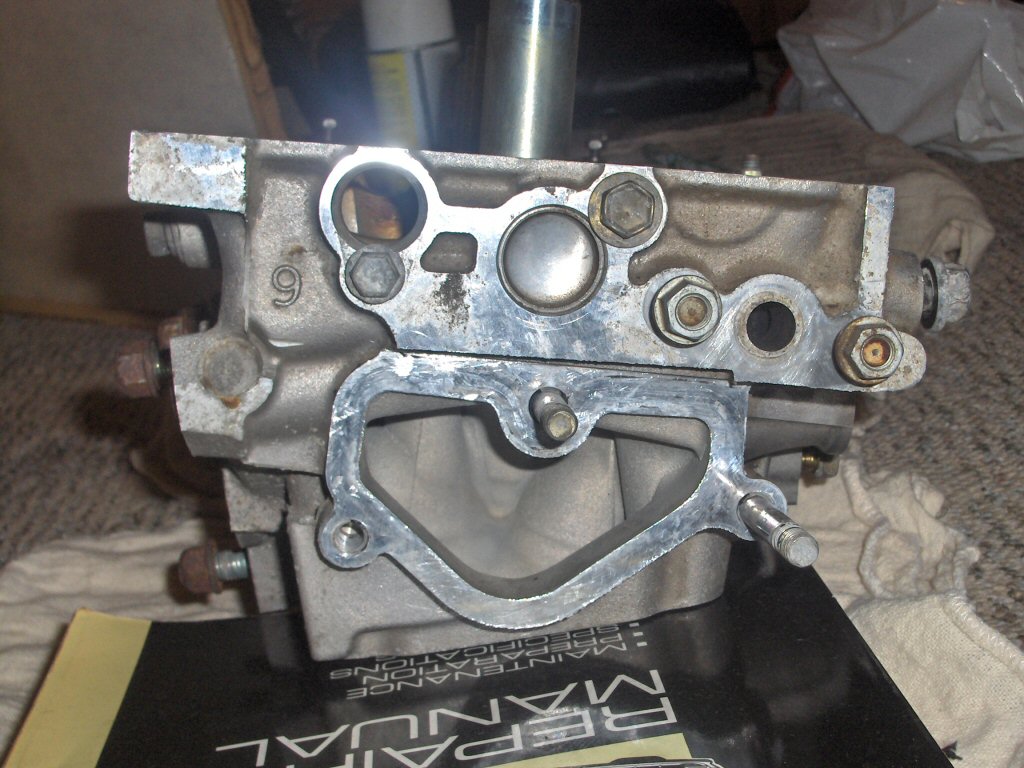

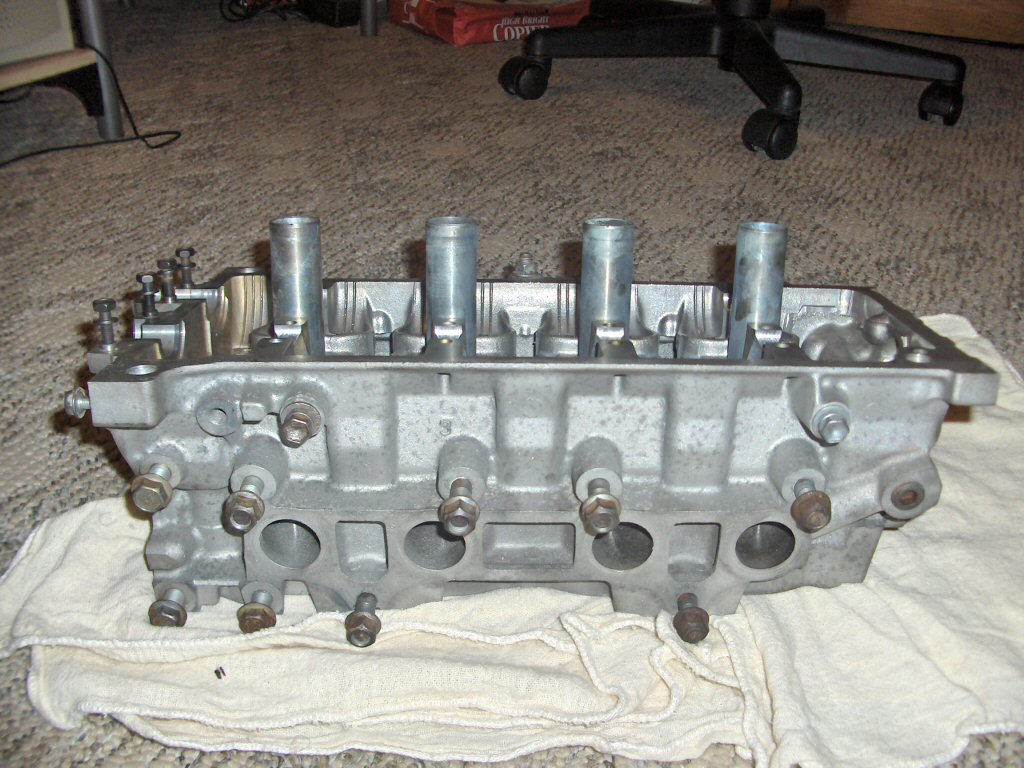

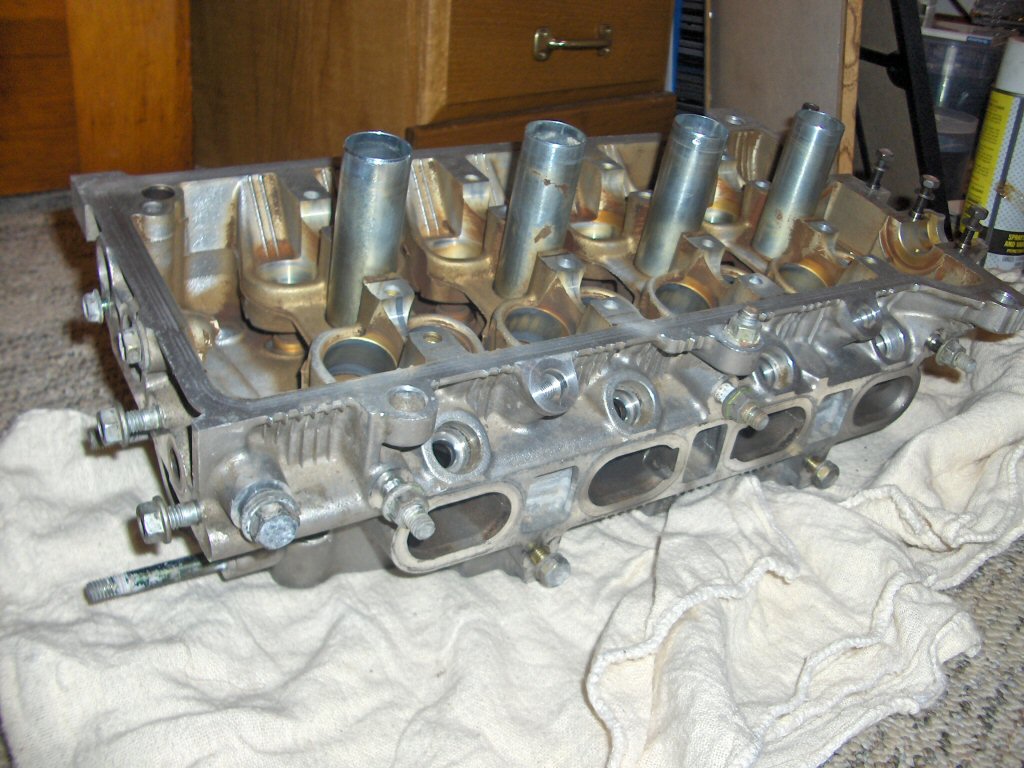

2nd Gen 5E-FE head.
Intake Port Dia. 24.4 mm
Exhaust Port Dia. 21 mm











Head Gaskets
Top

Head gaskets are a common way to increase or decrease compression between engines. Many of the gaskets are interchangable. Here is a chart of the compressed gasket thicknesses:

Engine Gasket Thickness
3E 1mm
3E-E 1mm
4E-FE 1mm (TRD made .5mm and .6mm gaskets)
4E-FTE 1.2mm
1st gen 5E-FE 1mm
2nd gen 5E-FE    .5mm
5E-FHE 1mm???

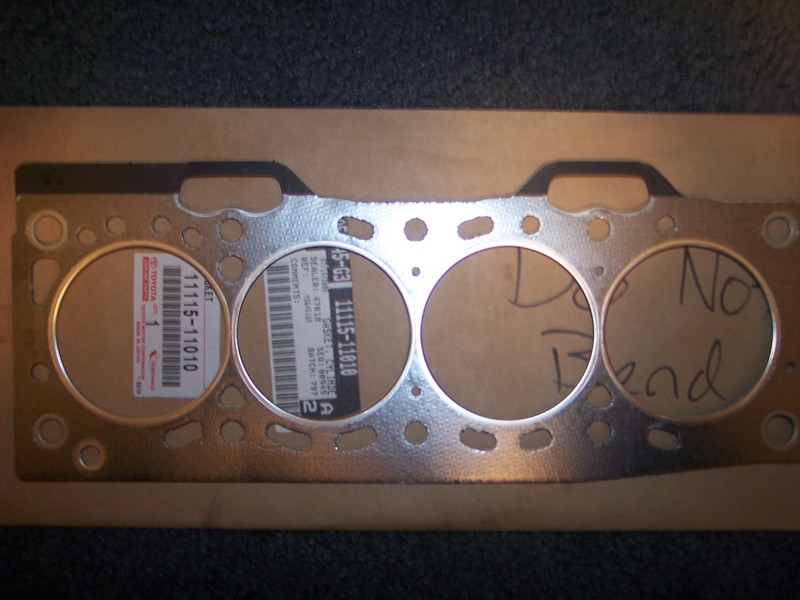

3E-E head gasket.

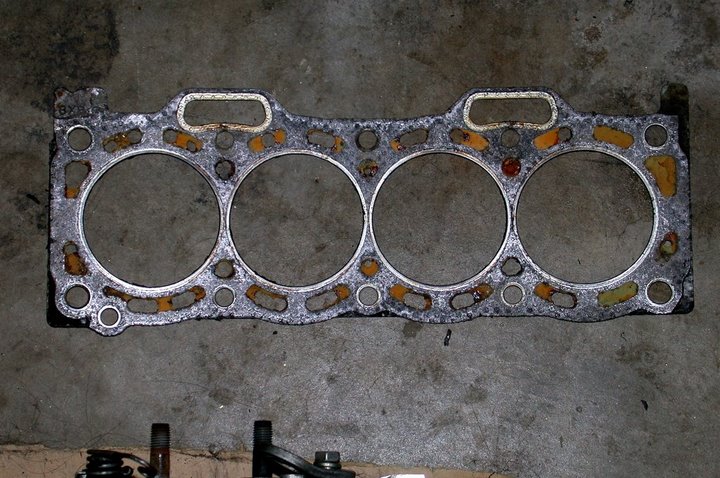

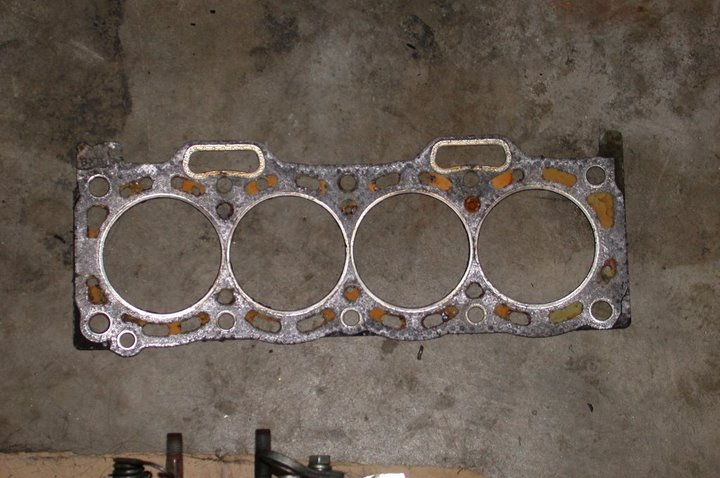

3E-TE head gasket.

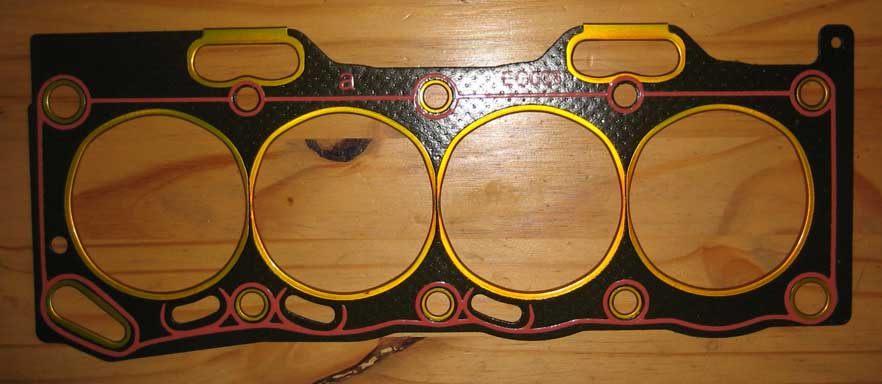

4E-FE head gasket.

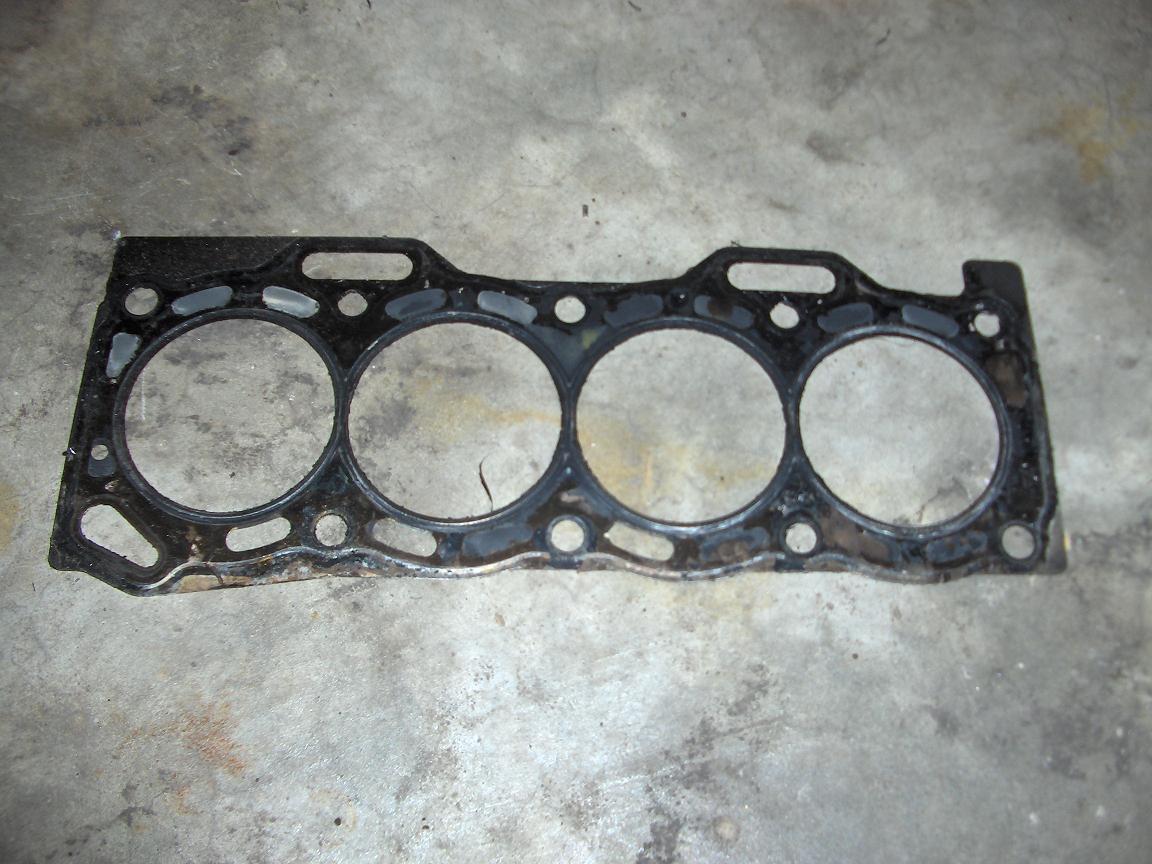

2nd Gen 5E-FE head gasket.










Blocks
Top

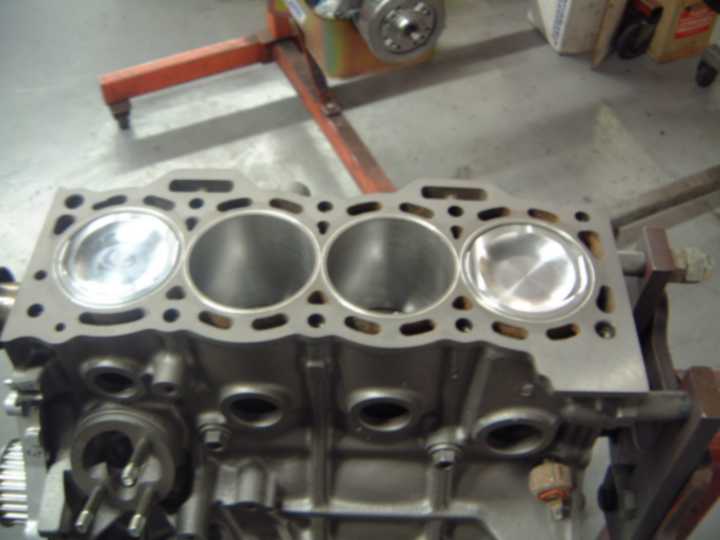

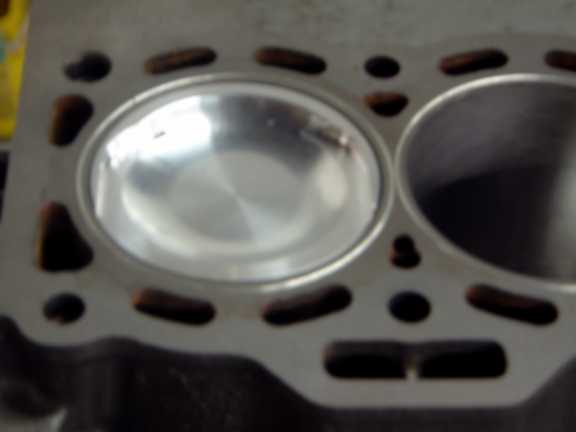

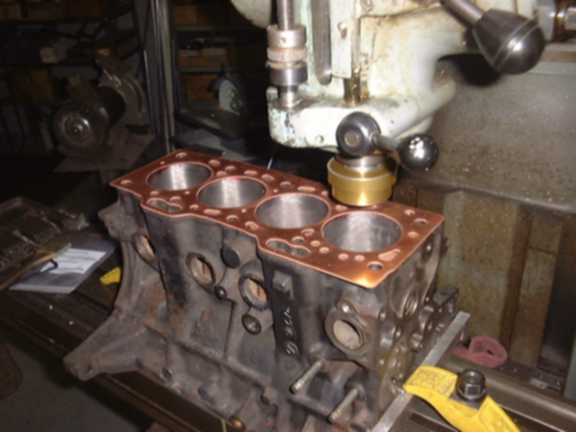

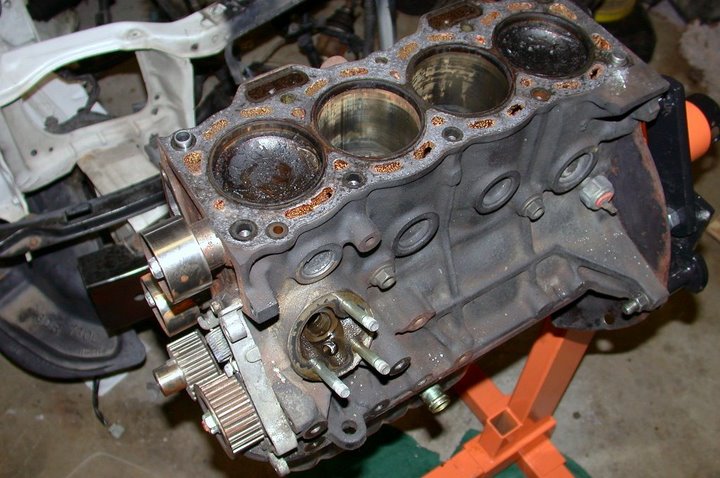

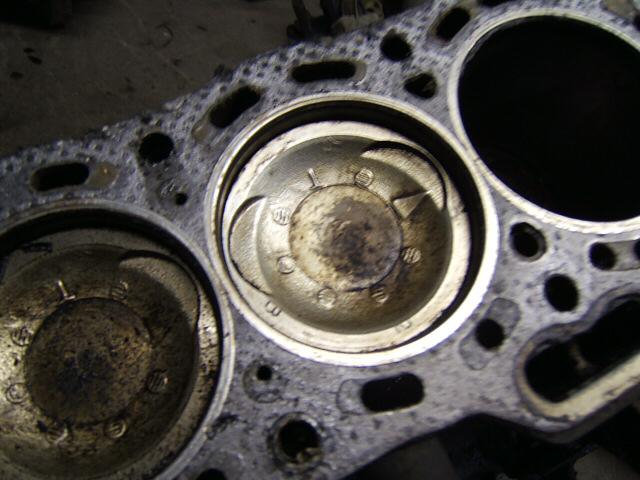

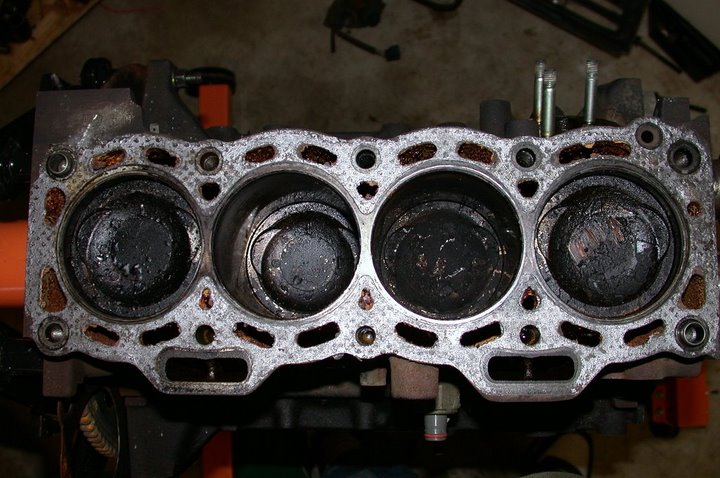

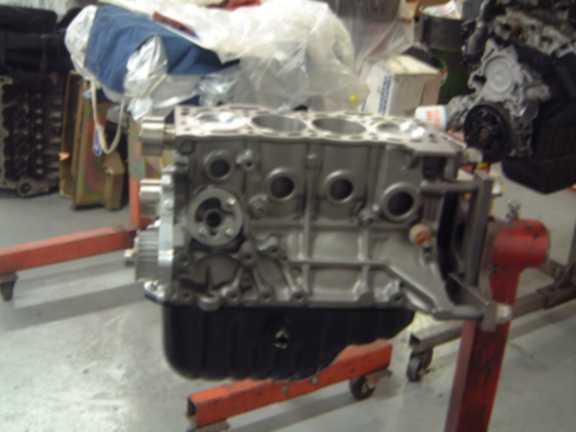

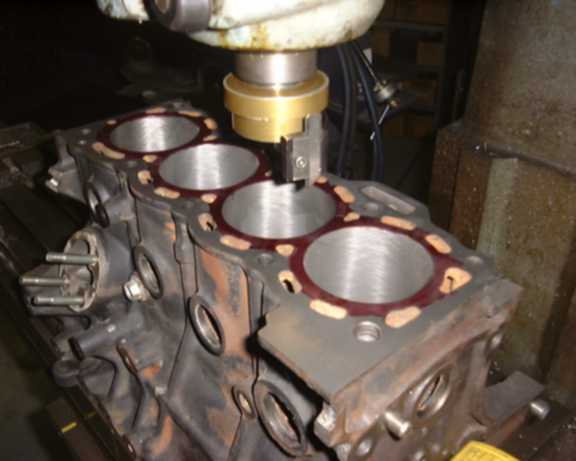

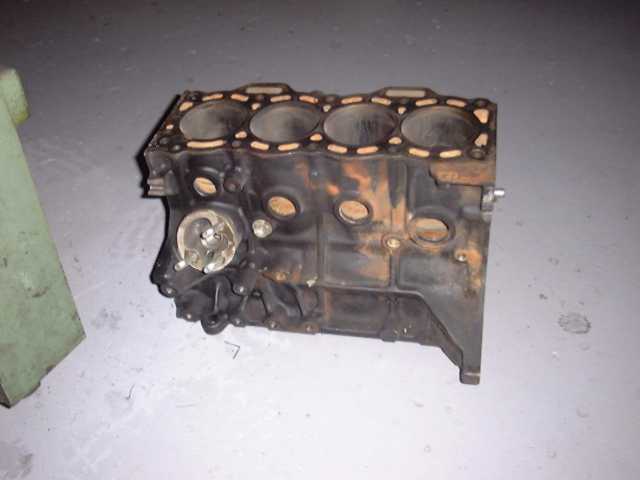

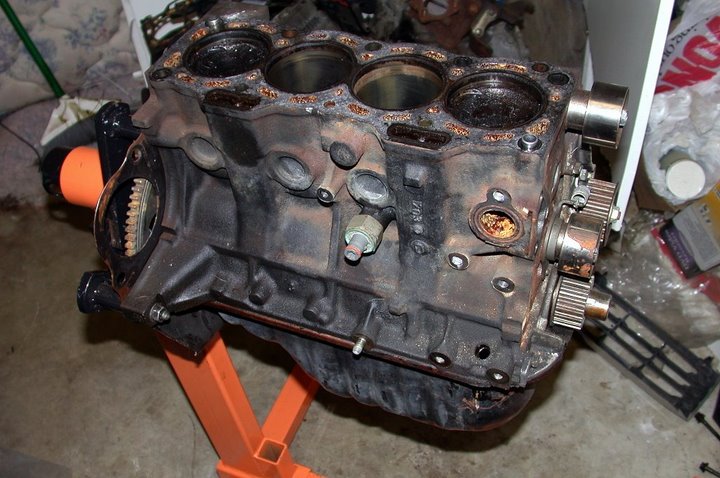

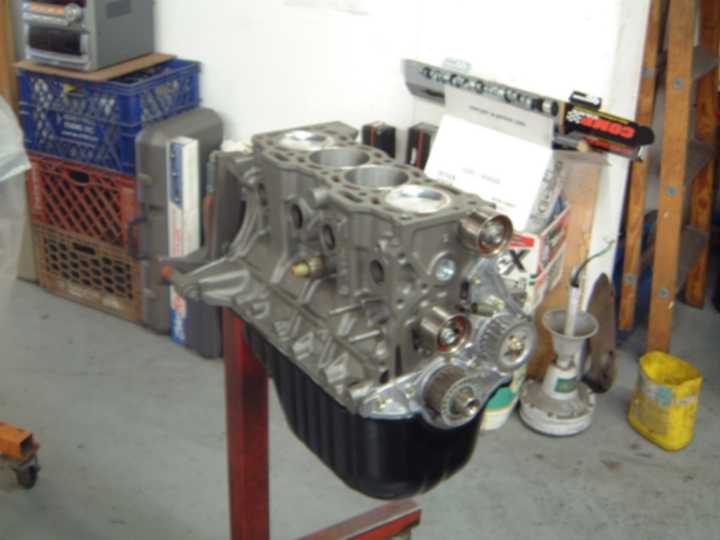

3E-TE block. Aftermarket pistons are the shiny ones. Stock pistons are the dirty/yellowish ones.

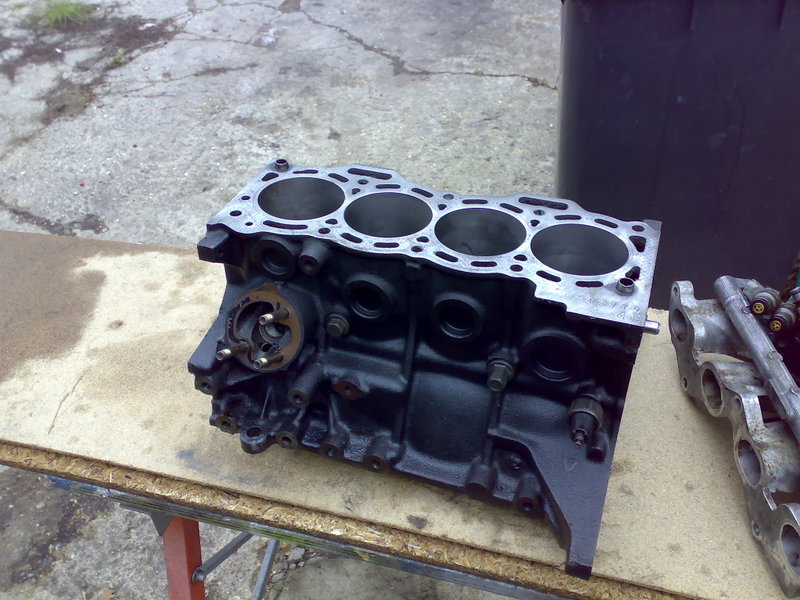

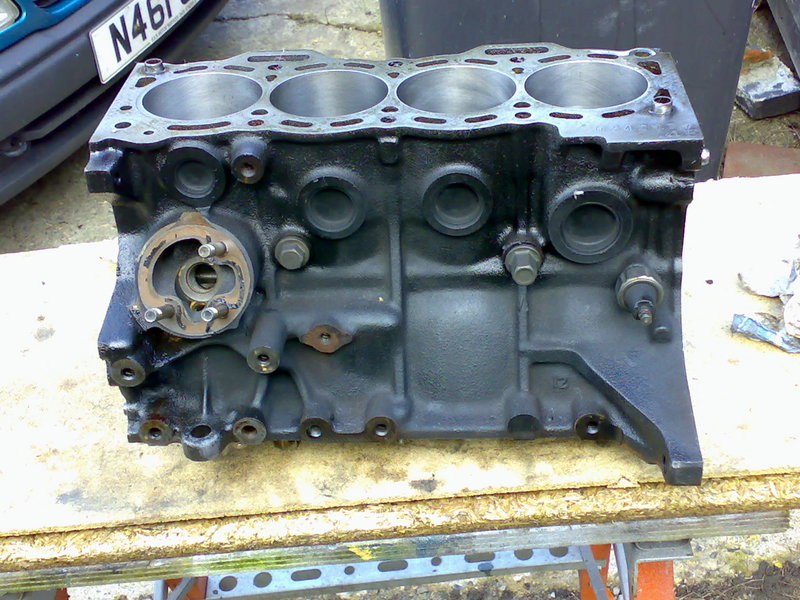

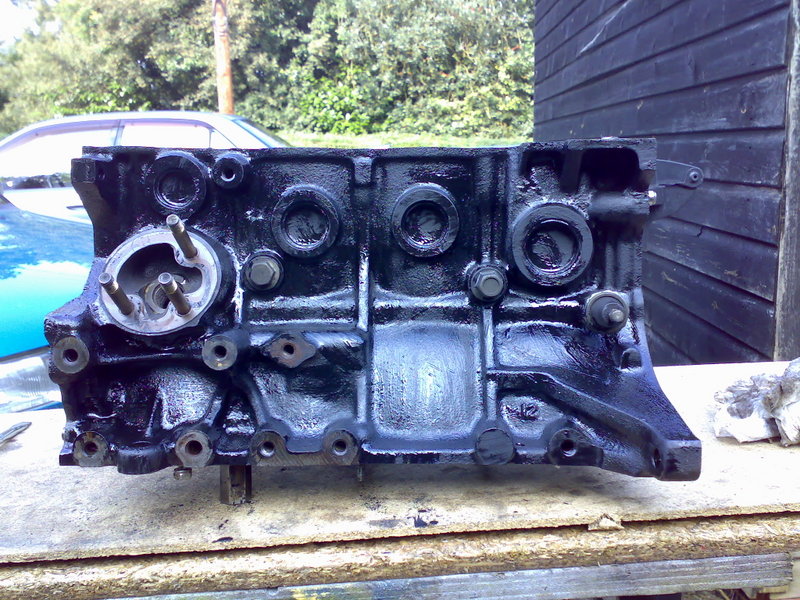

4E-FTE block.

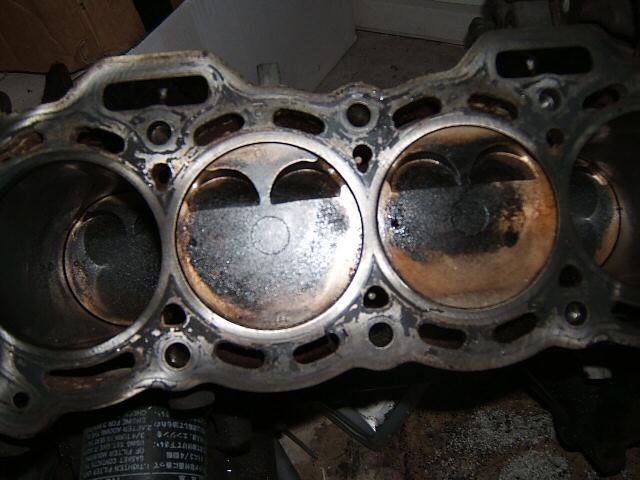

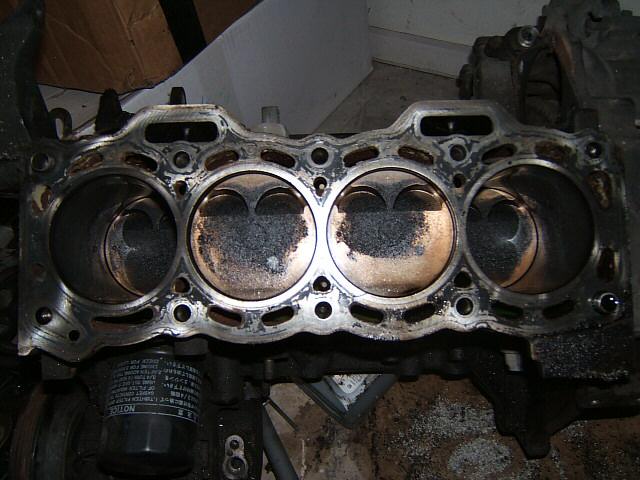

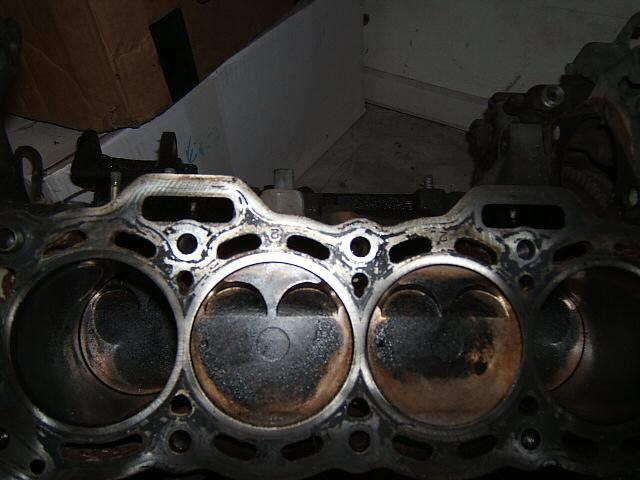

2nd gen 5E-FE block.

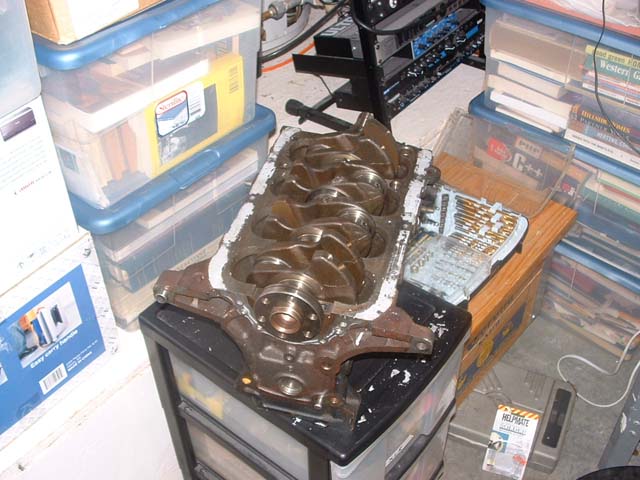

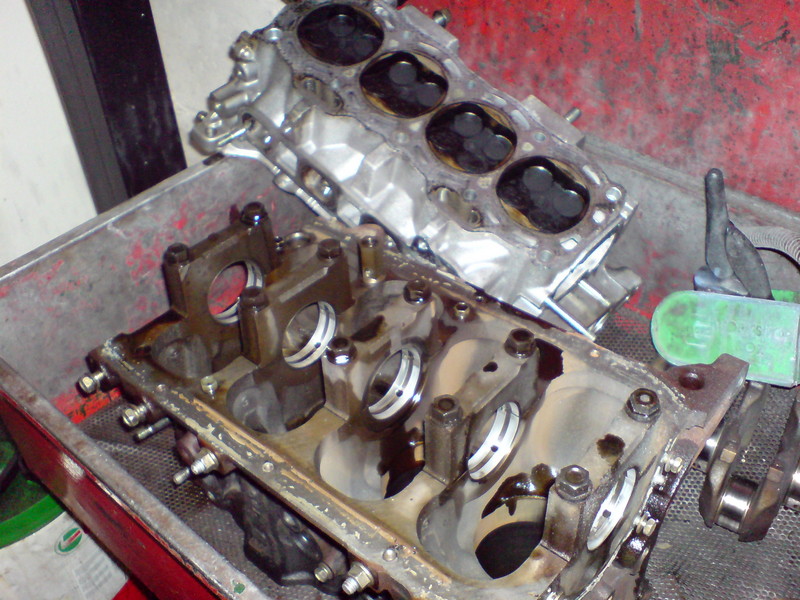

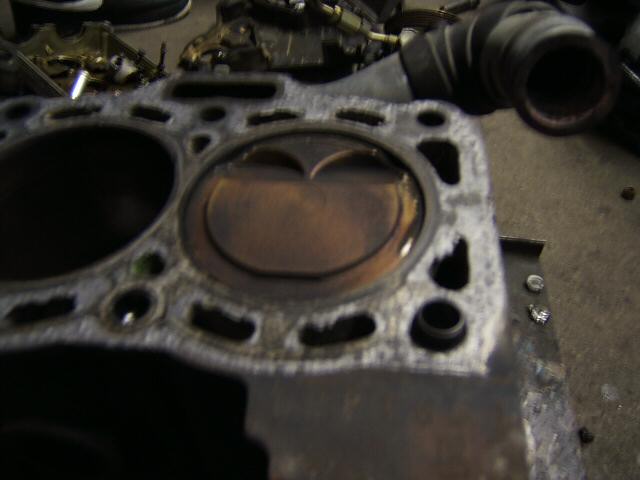

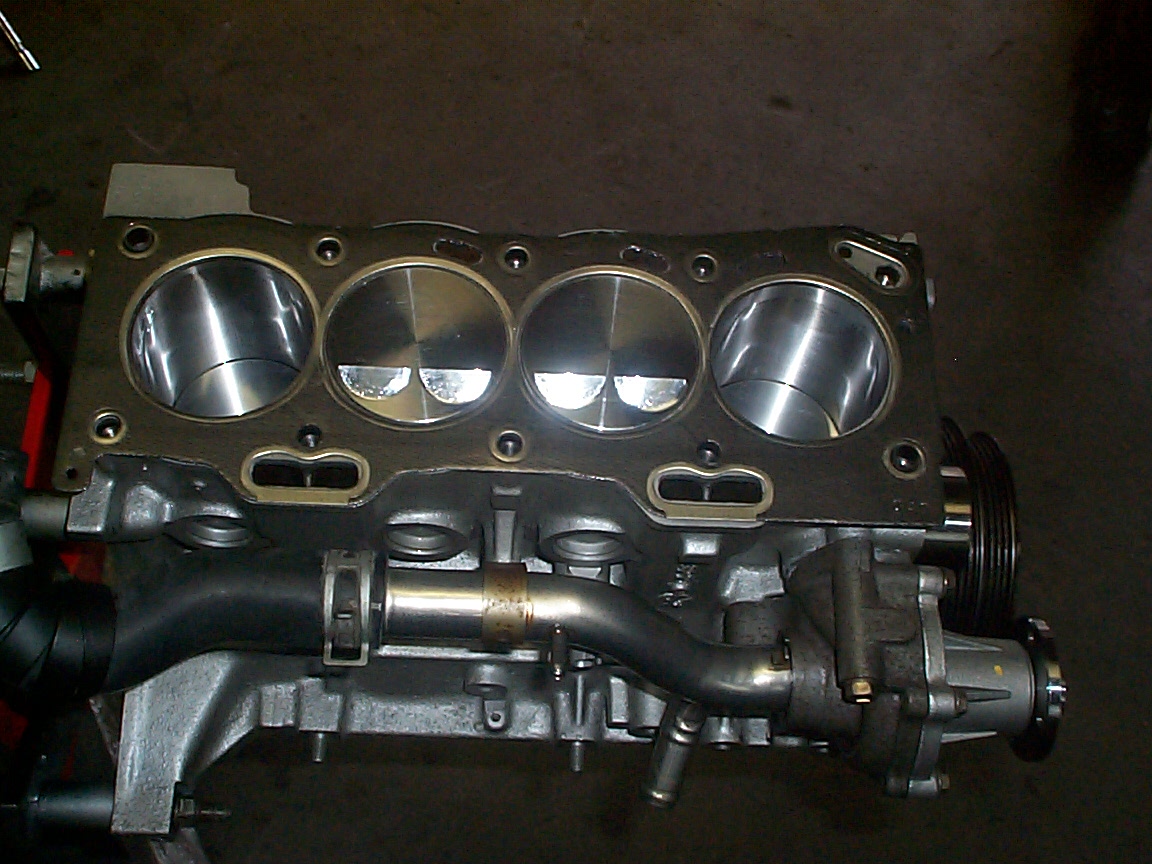

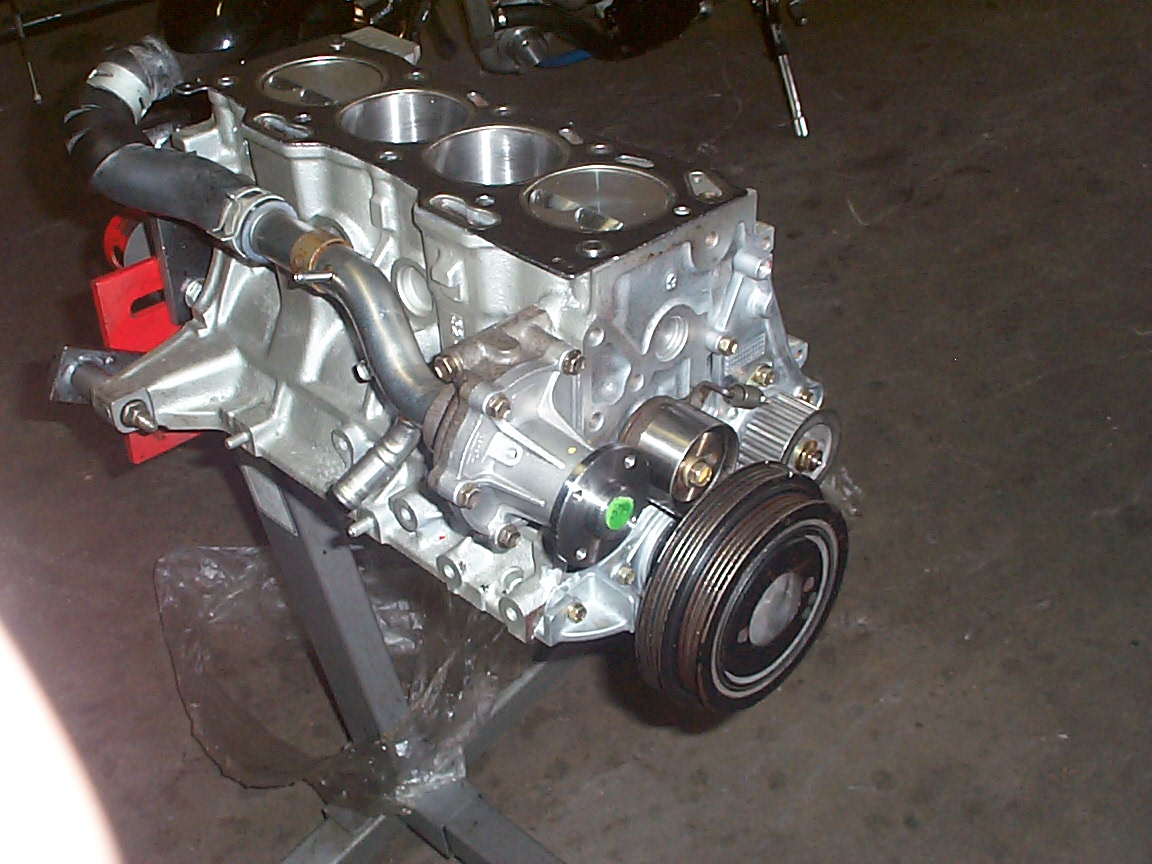

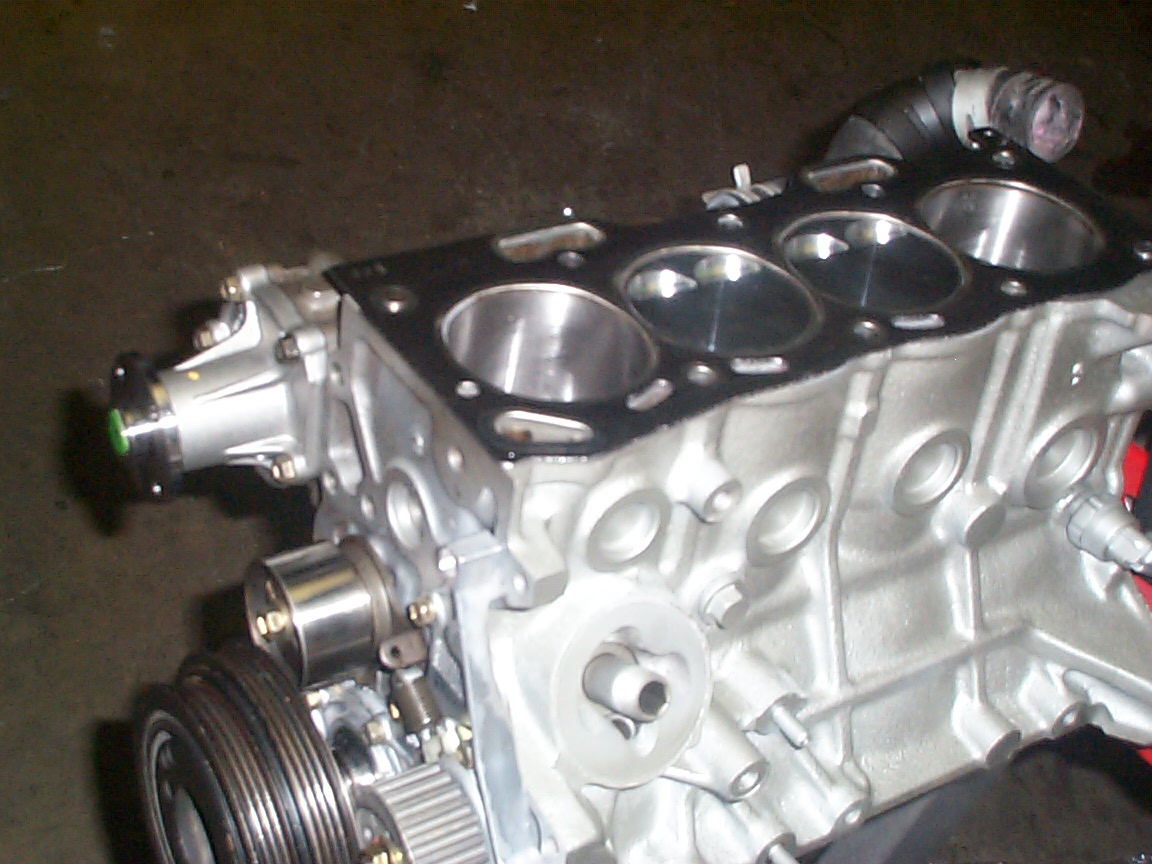

5E-FHE block.








Pistons
Top

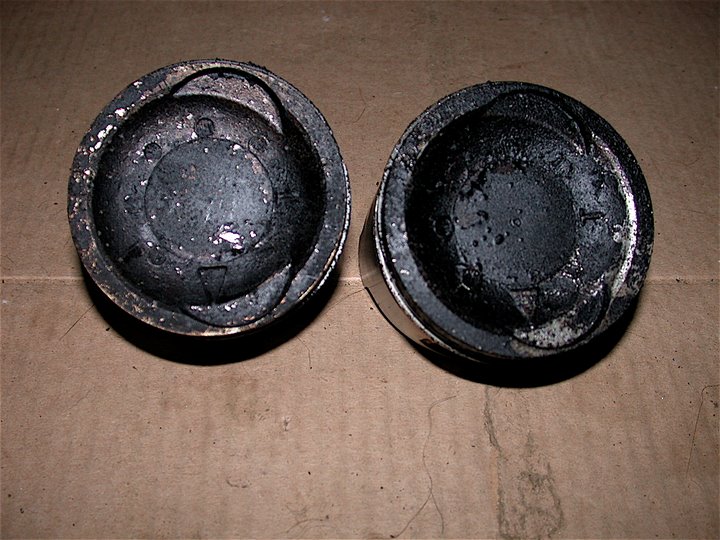

3E-TE piston.

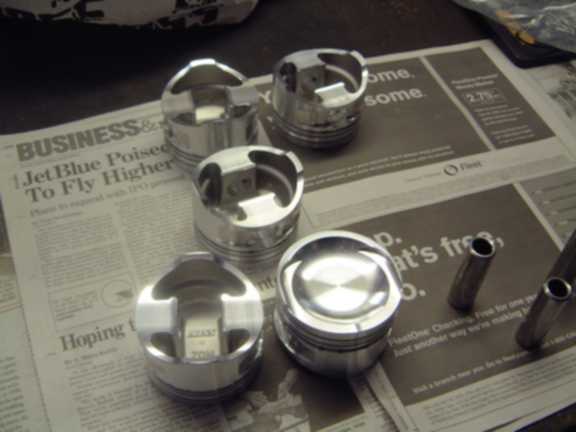

3E-TE Ross pistons.





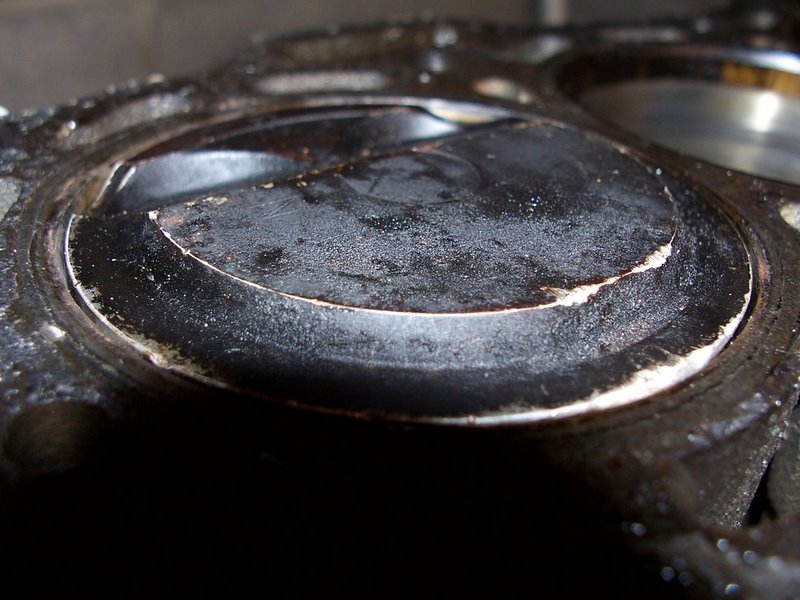

4E-FE piston.

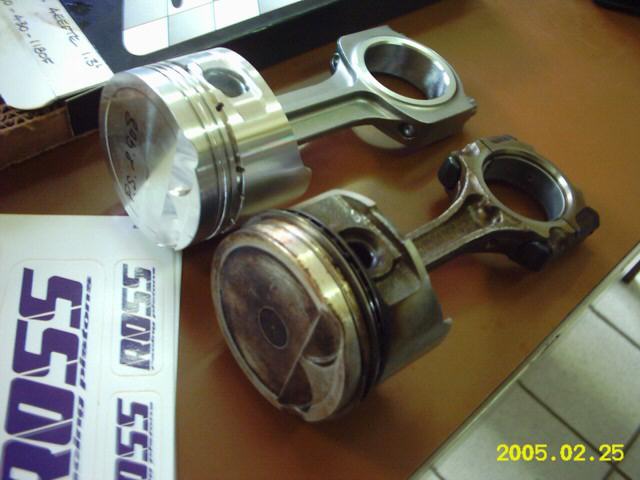

4E-FTE stock and Ross piston (stock and Pauter rod).

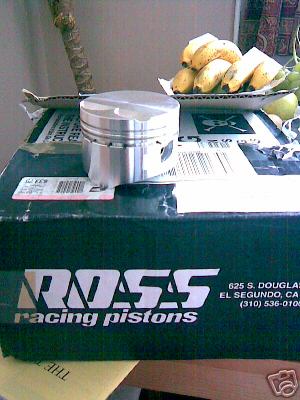

4E-FTE Ross 75mm piston.





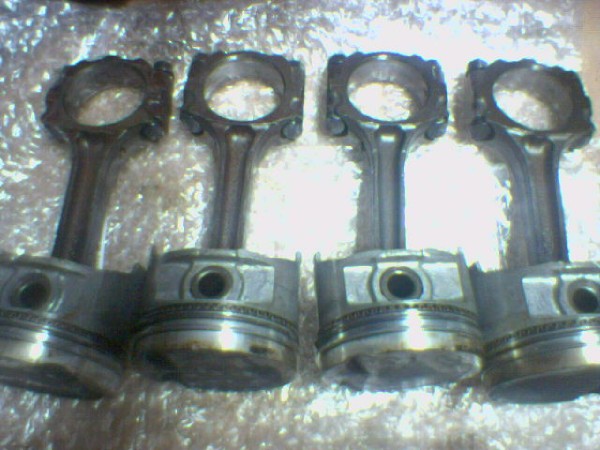

4E-FTE piston connected to 5E-FHE rods.





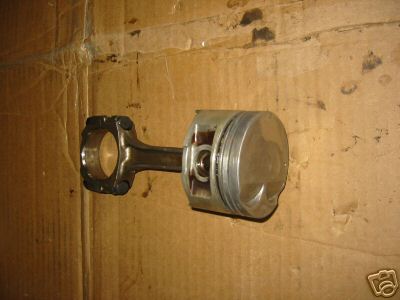

2nd gen 5E-FE piston.





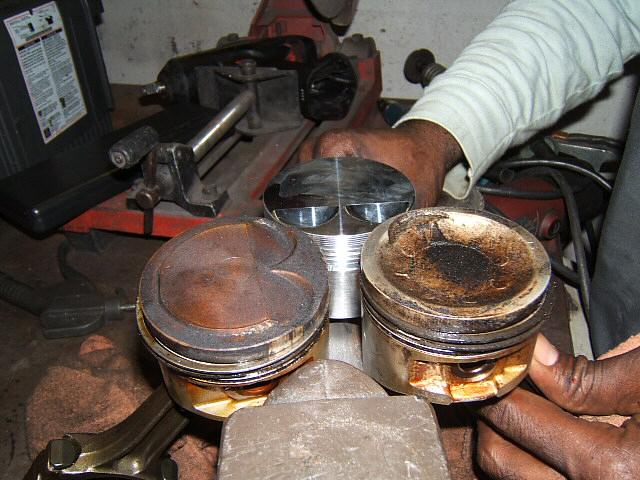

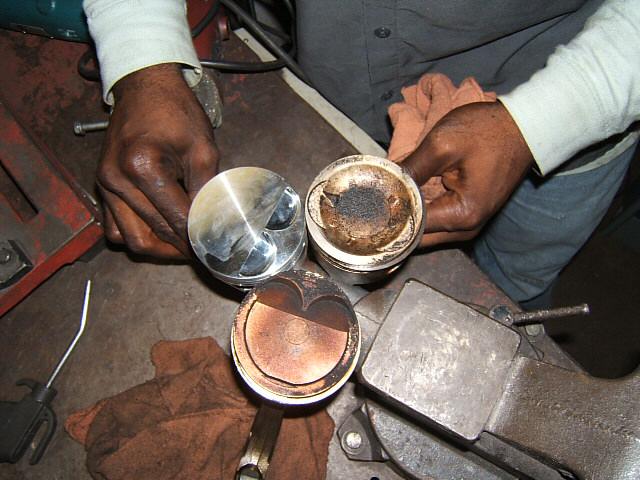

CP 5E-FE, 5E-FHE, and 3E-TE piston comparison.





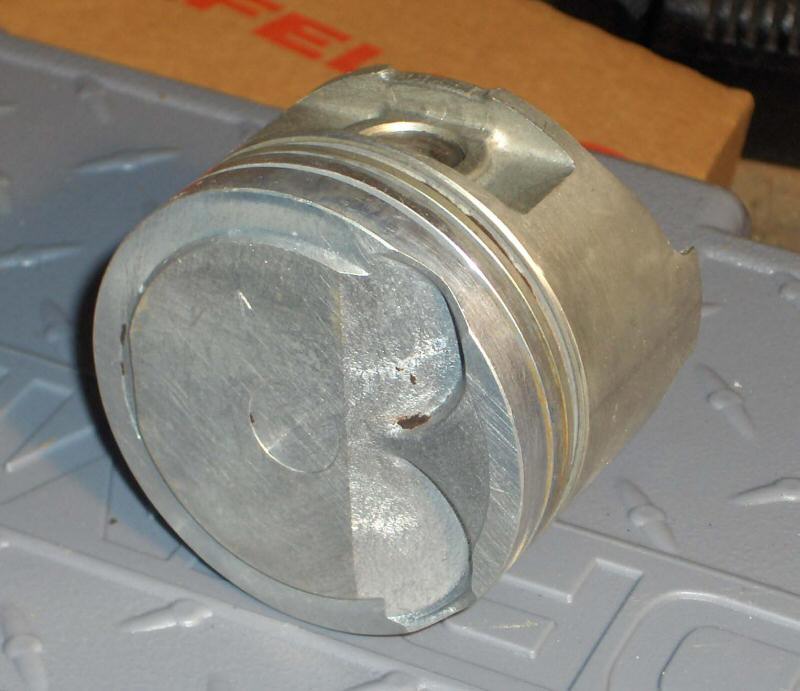

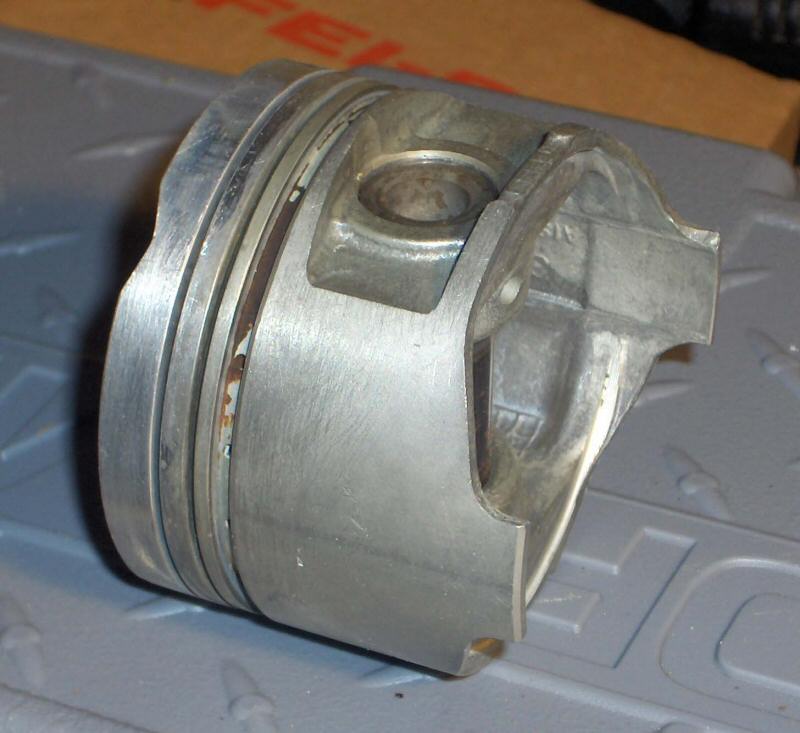

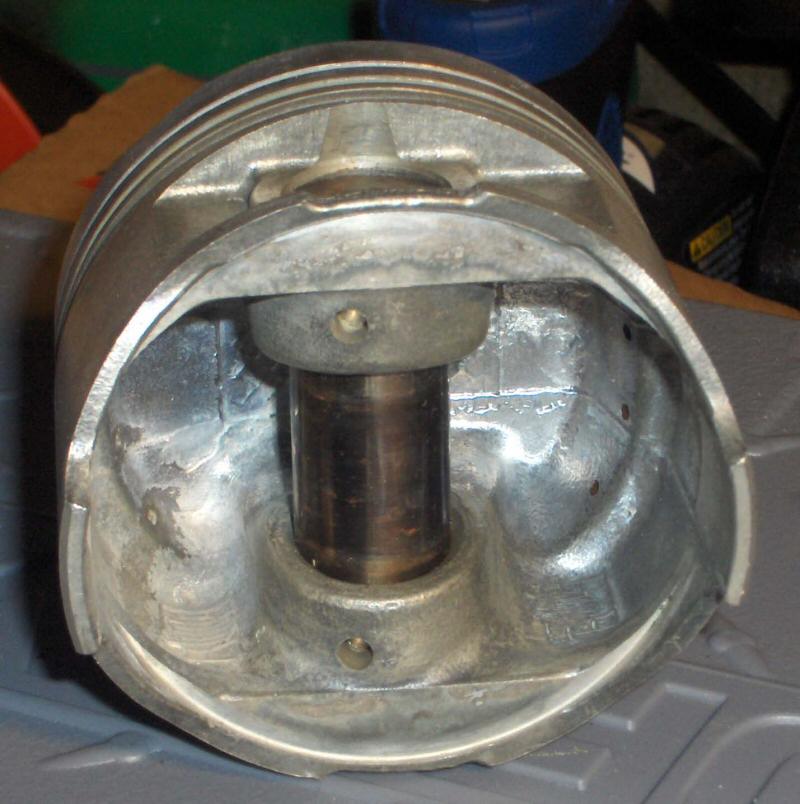

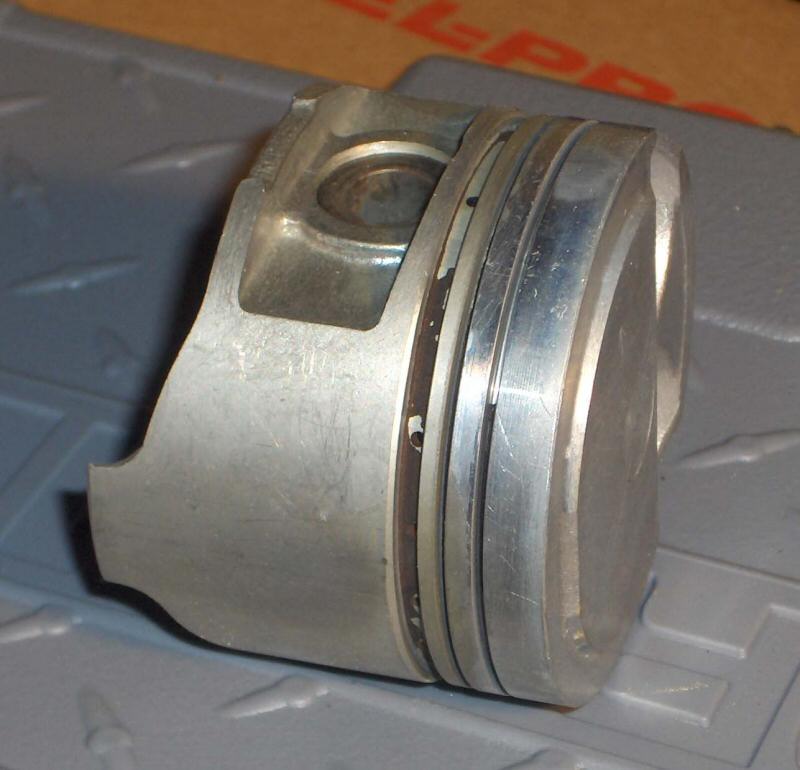

5E-FHE piston. Note: piston crown.

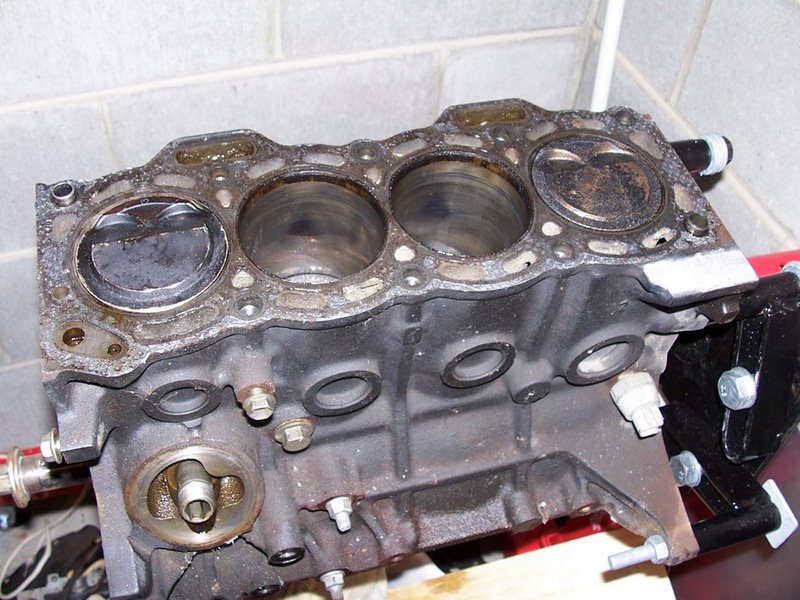

4E-FE (left) and 5E-FHE piston (right) comparison.








Connecting Rods
Top

The E series rods are mostly identical. Except for a few JDM engines and the later (96+) 2nd gen 5E-FEs, they all share the same connecting rods. Here is a quick reference:

Part #    Application
CRT026    3E, 3E-E, 1st gen 5E-FE, 2nd gen 5E-FE (up to 1995)
??? 3E-TE
??? 4E-FE
??? 4E-FTE
CRT032 2nd gen 5E-FE (1996+)
??? 5E-FHE

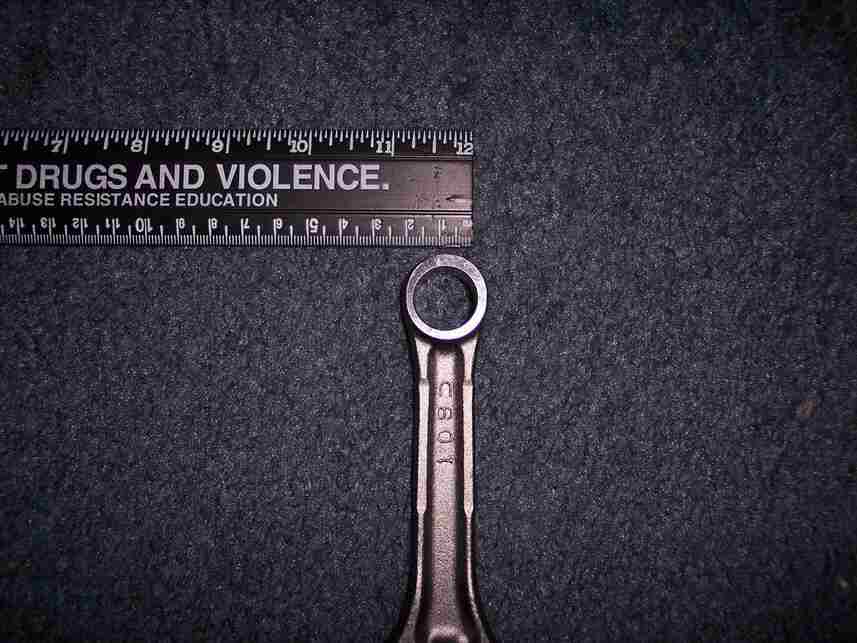

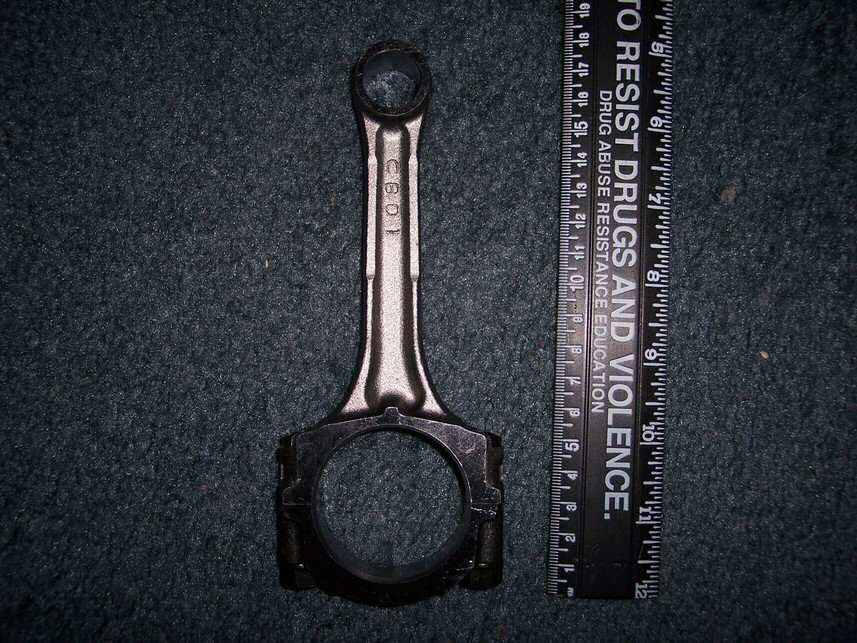

3E, 3E-E, 1st gen 5E-FE, and 2nd gen 5E-FE (up to 1996) connecting rods.

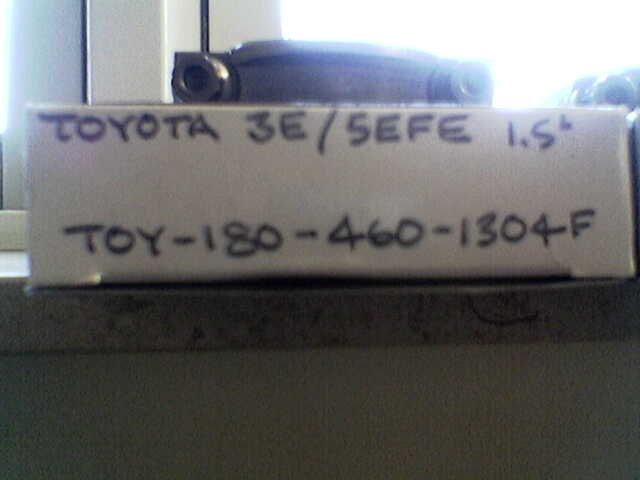

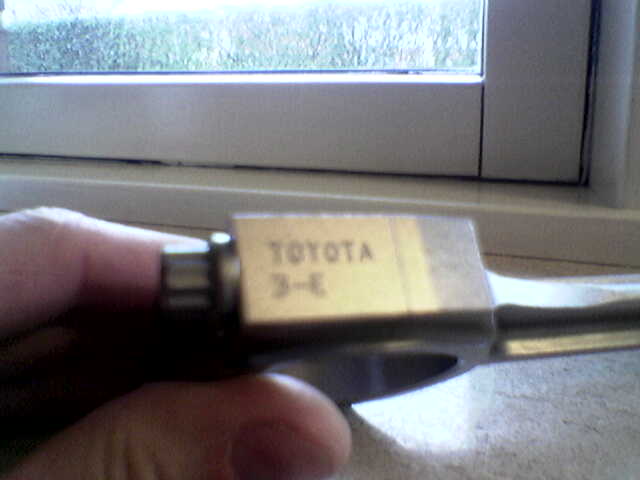

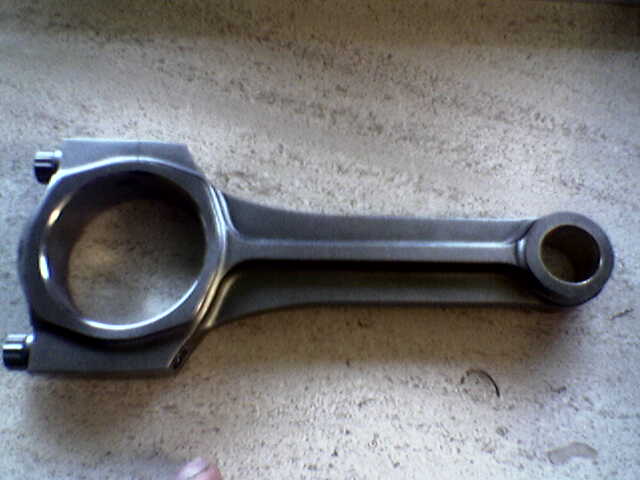

3E, 3E-E, 1st gen 5E-FE, and 2nd gen 5E-FE Pauter rod and spec sheet.

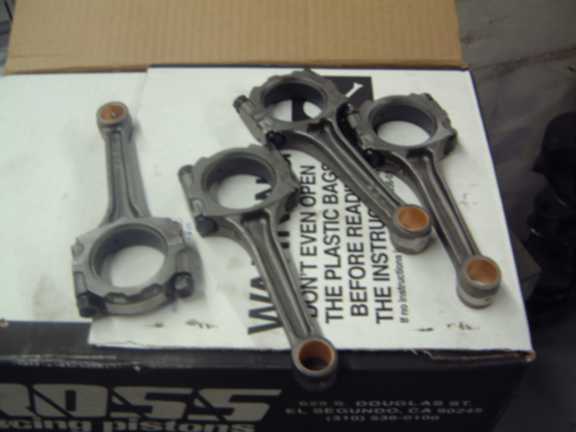

3E-TE rods.

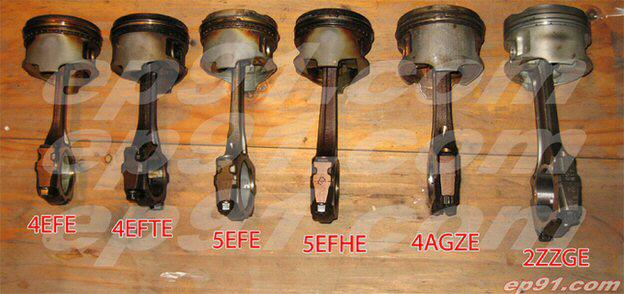

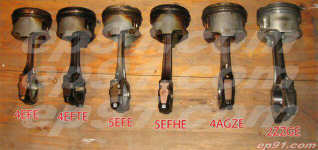

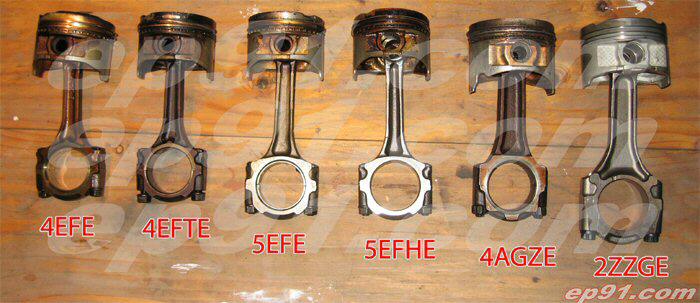

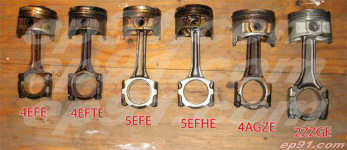

A large connecting rod comparison.

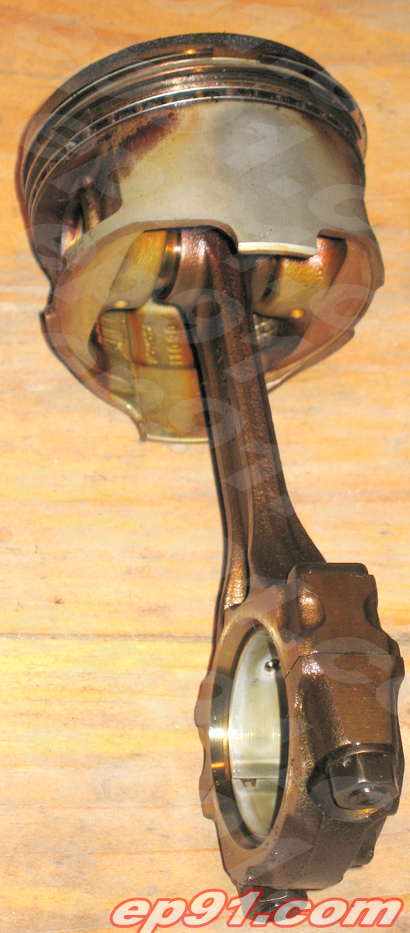

4E-FE stock rod and piston.





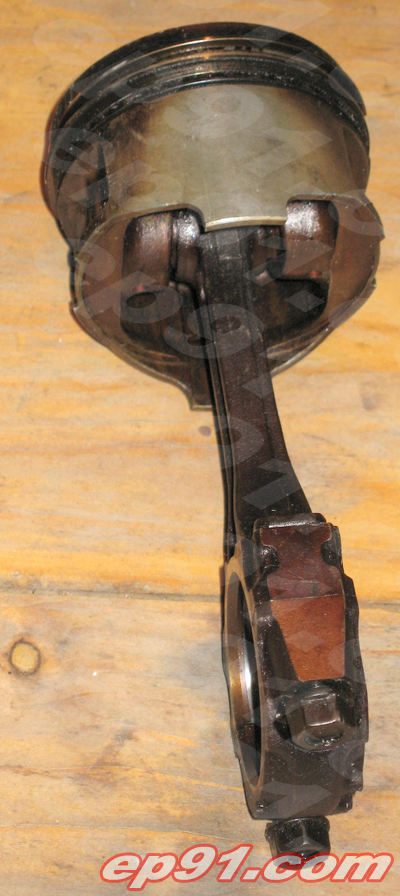

4E-FTE stock rod and piston.

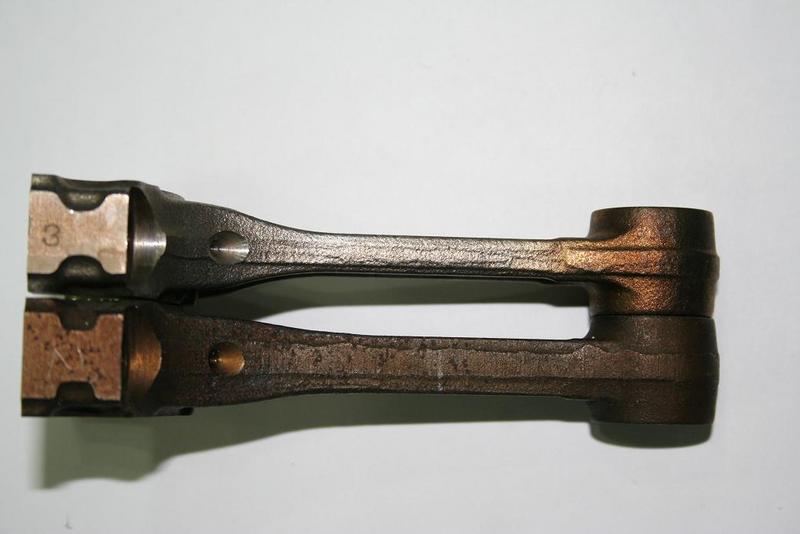

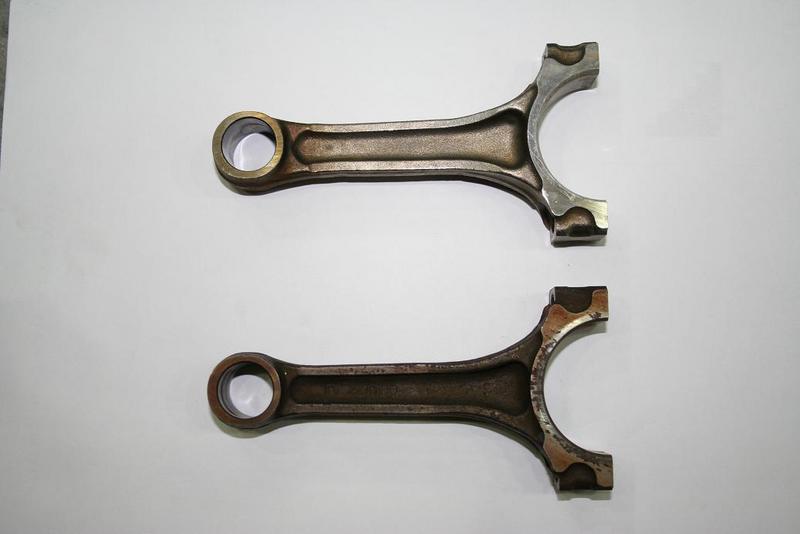

4E-FE and 4E-FTE rod comparison.





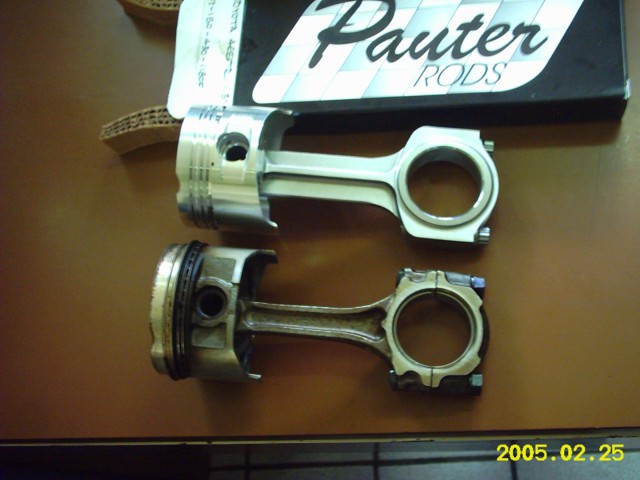

4E-FTE stock and Pauter rod (Ross piston).





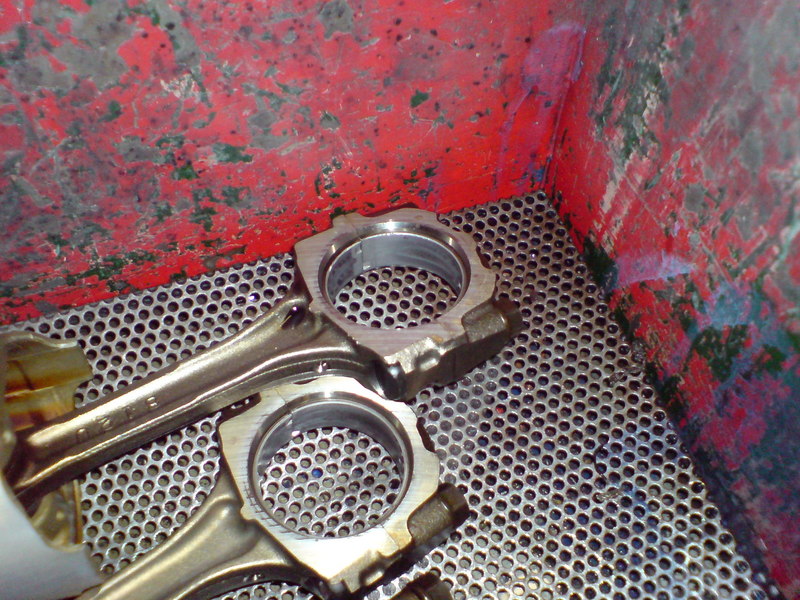

5E-FHE rods.

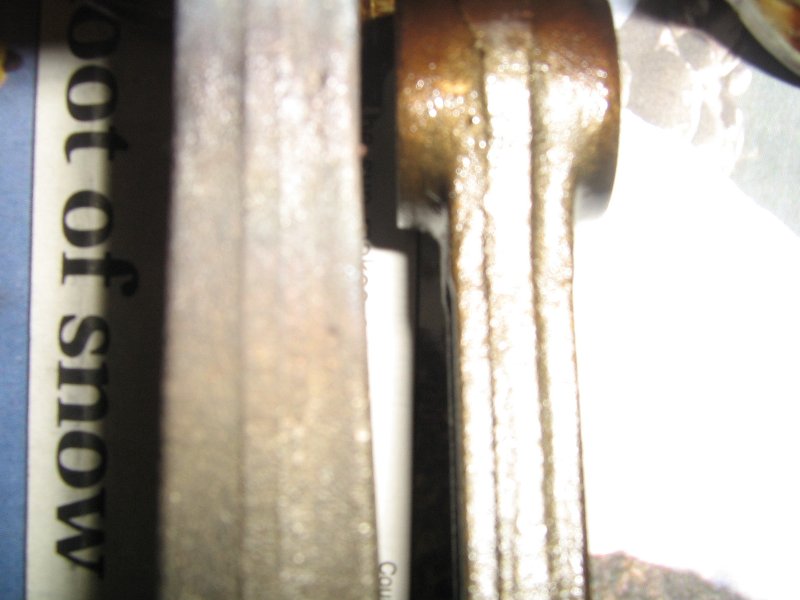

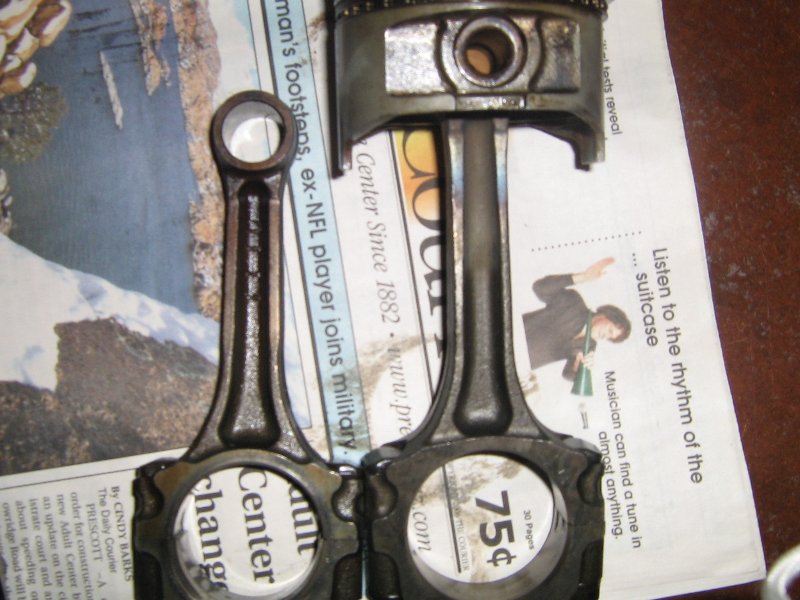

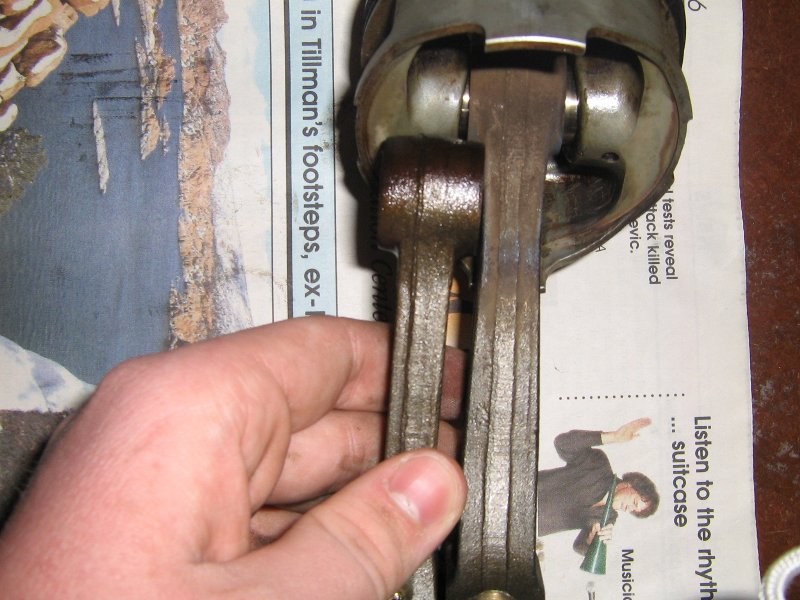

4E-FTE and 5E-FHE Rods.

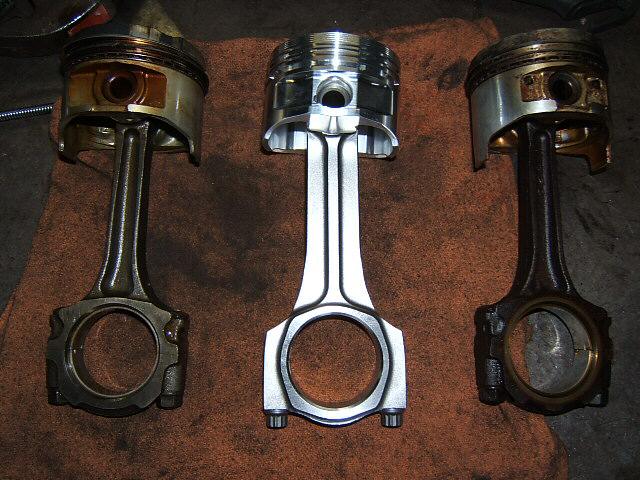

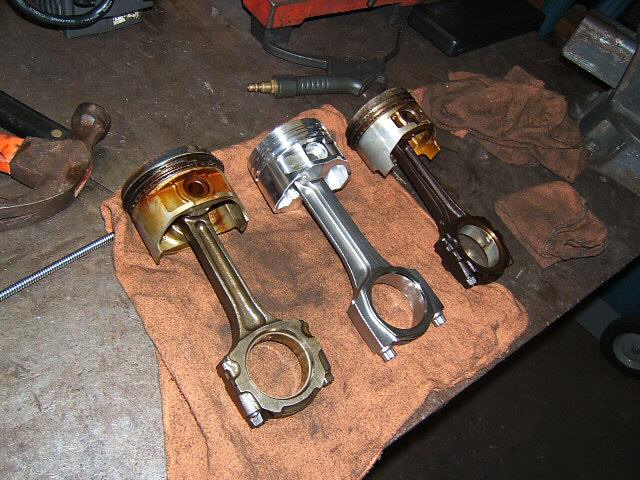

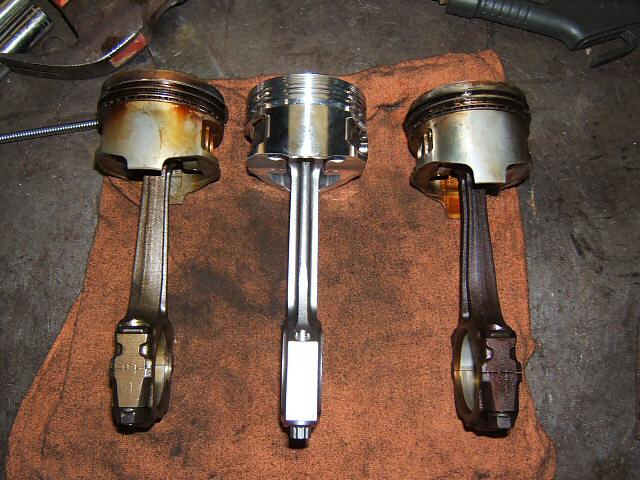

5E-FHE (left), Pauter rod / CP piston (middle), and 3E-TE (right) comparison.

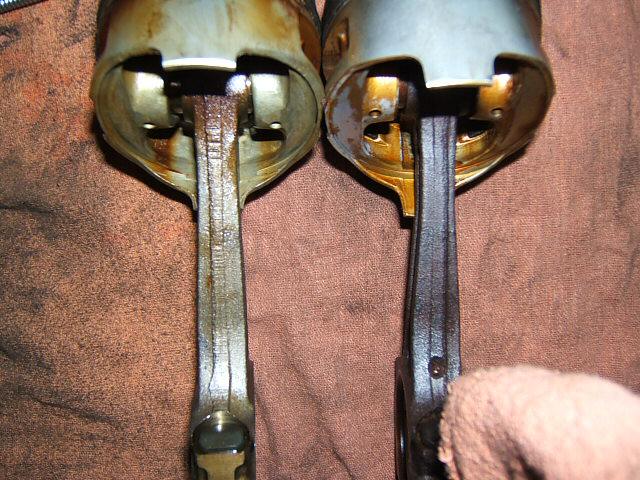

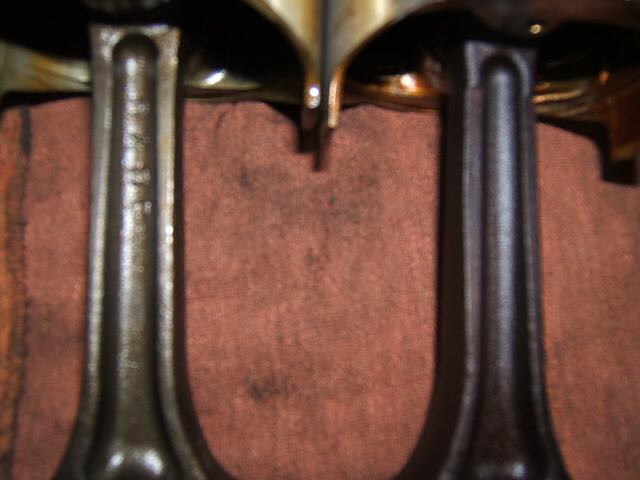

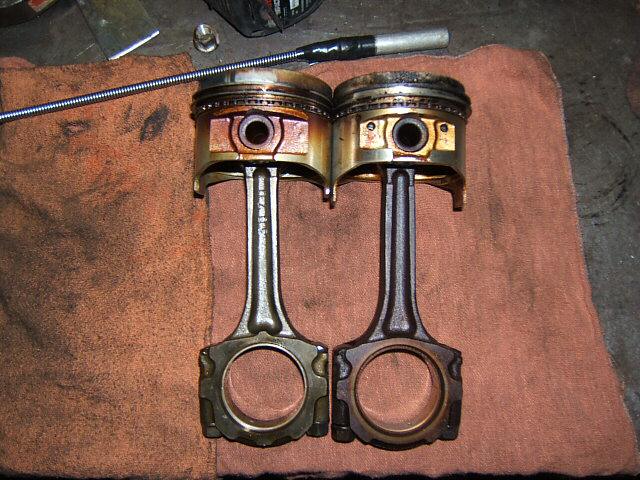

5E-FHE (left) and 3E-TE (right) rod comparison.








Crankshafts
Top

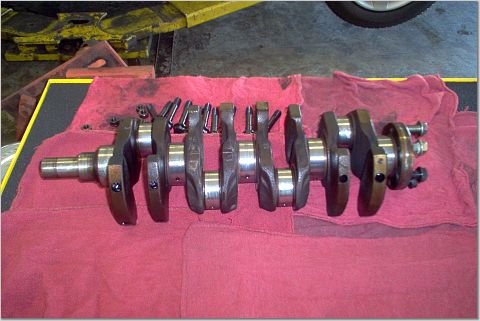

3E-E, 1st gen 5E-FE crankshaft.

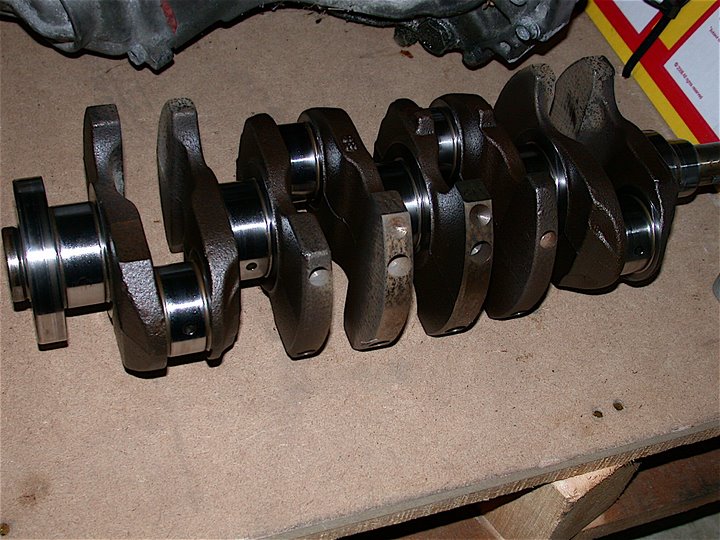

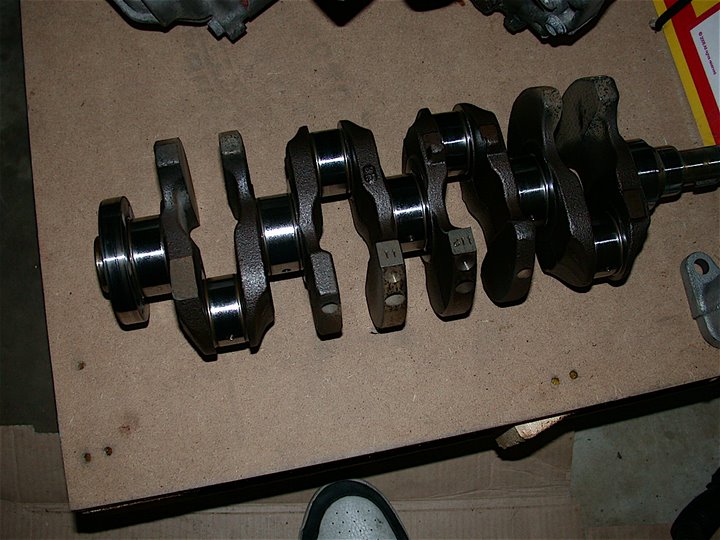

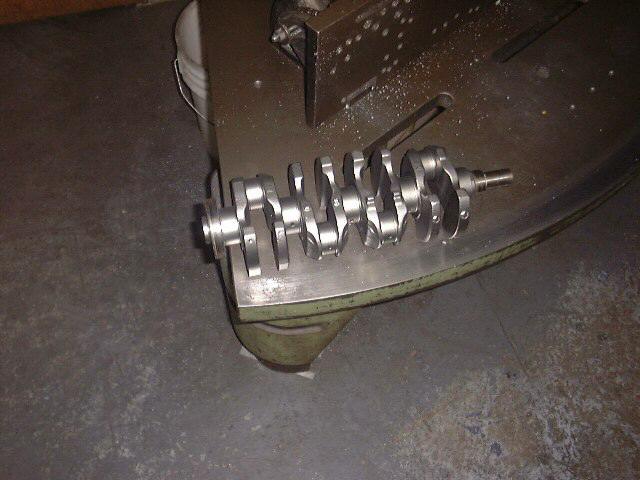

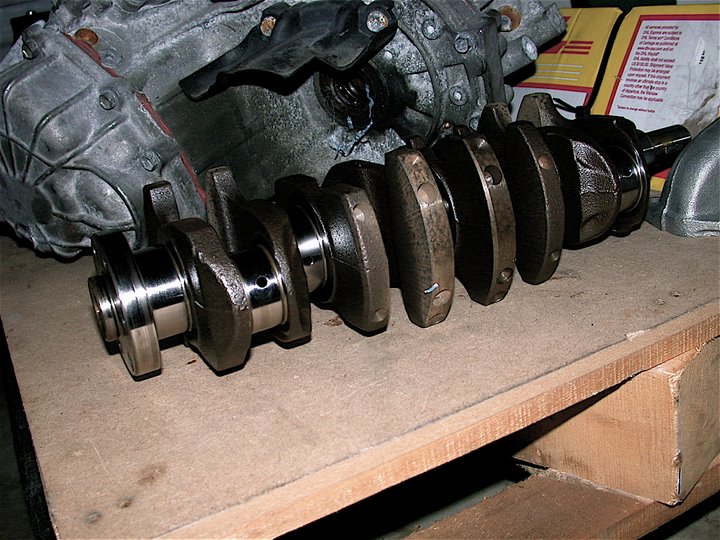

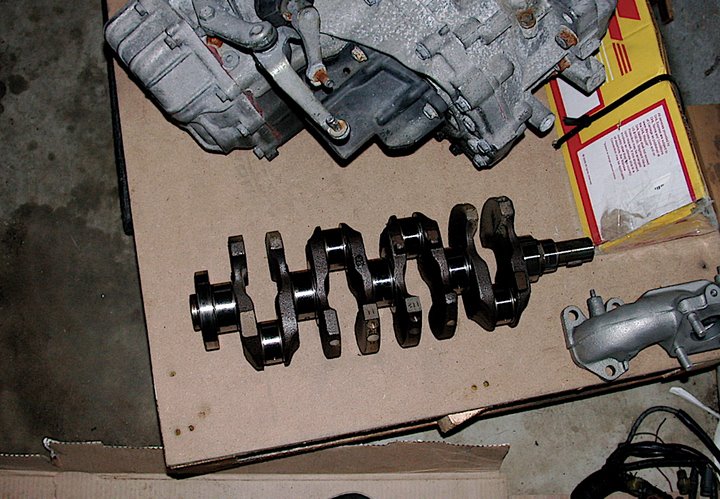

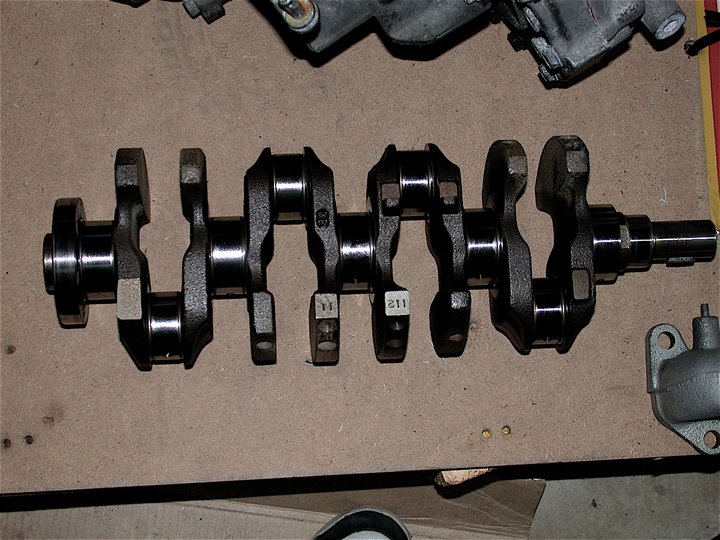

3E-TE crankshaft.





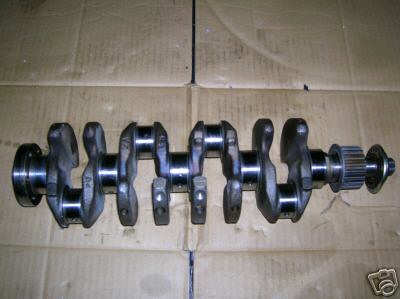

4E-FTE crankshaft.





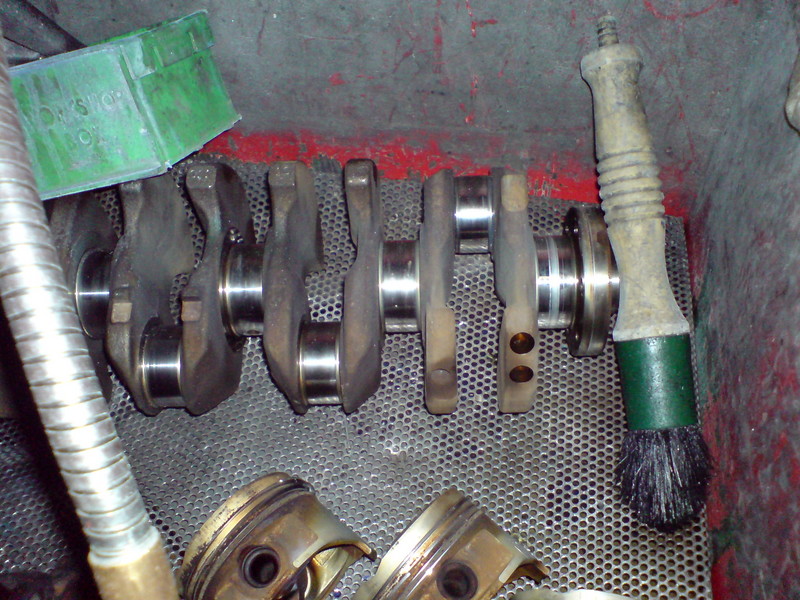

5E-FHE crankshaft.







Crankshaft Pulleys
Top

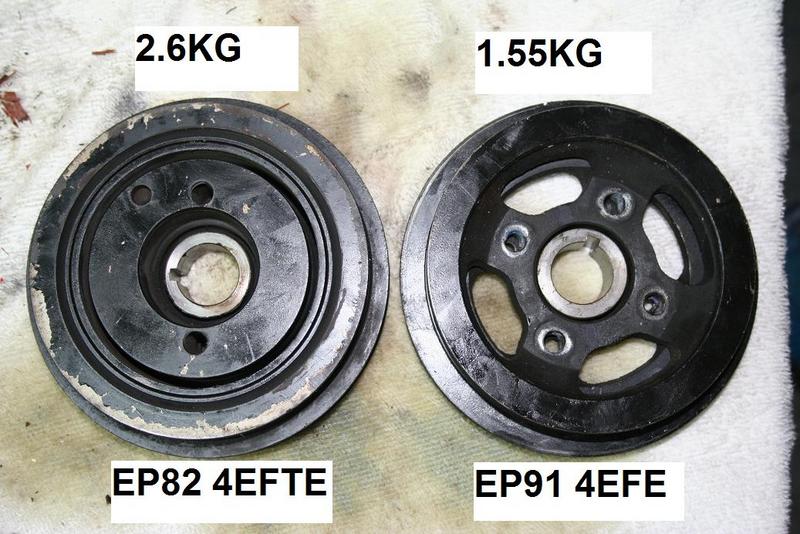

4E-FTE harmonic damper and 4E-FE crankshaft pulley comparison.





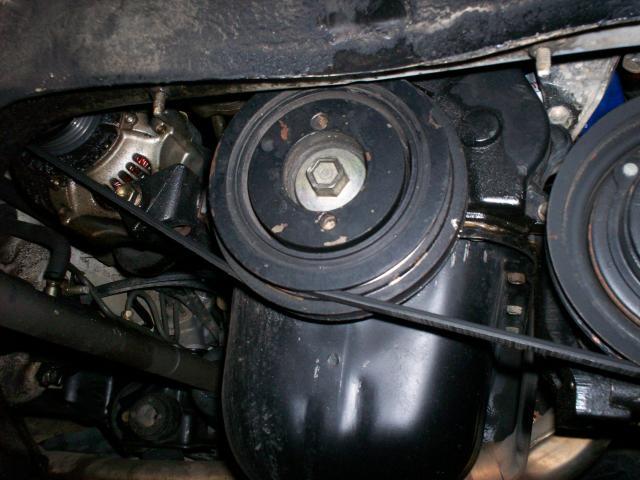

5E-FHE harmonic dampener.

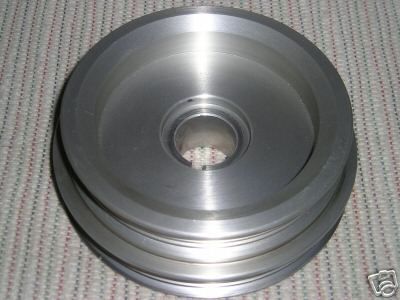

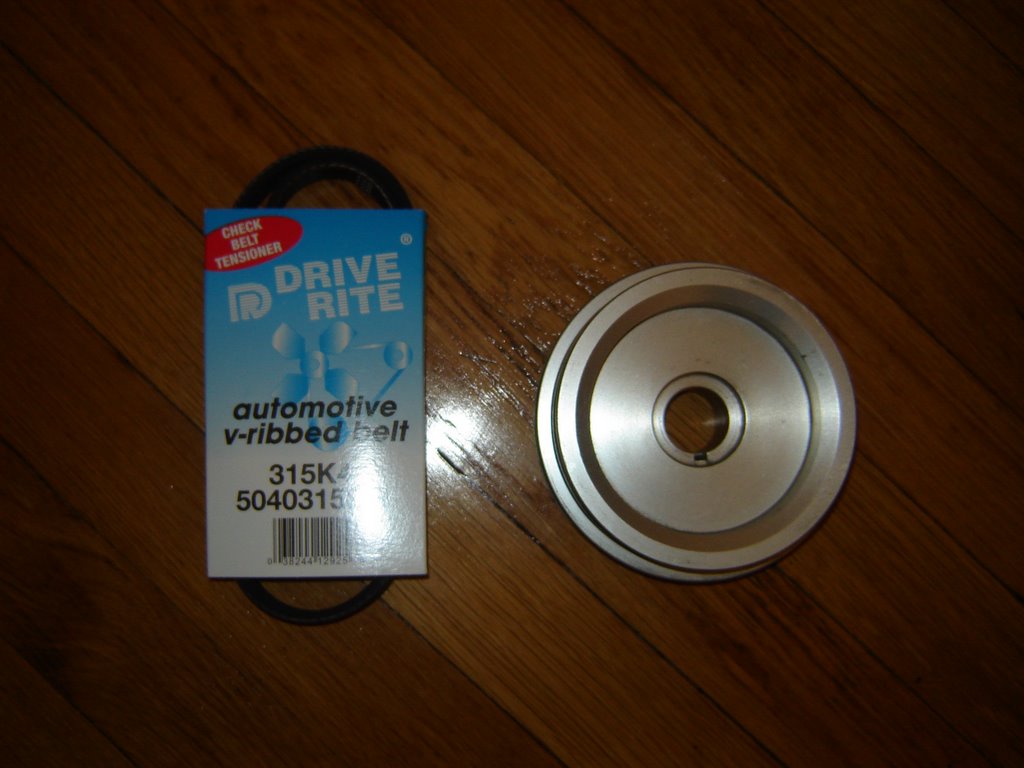

NST underdrive crankshaft pulley.











Oil Pans
Top

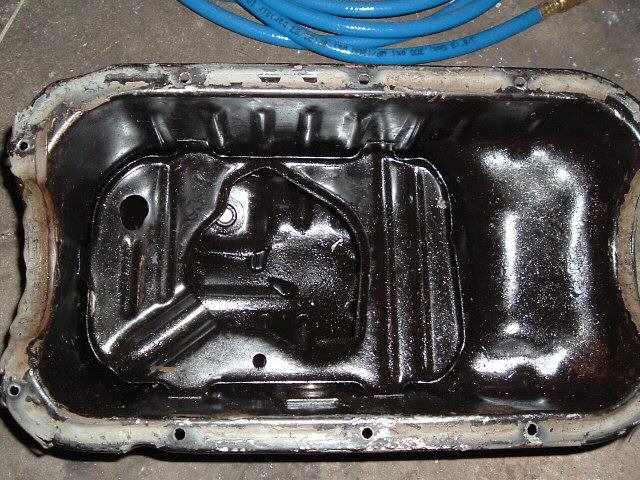

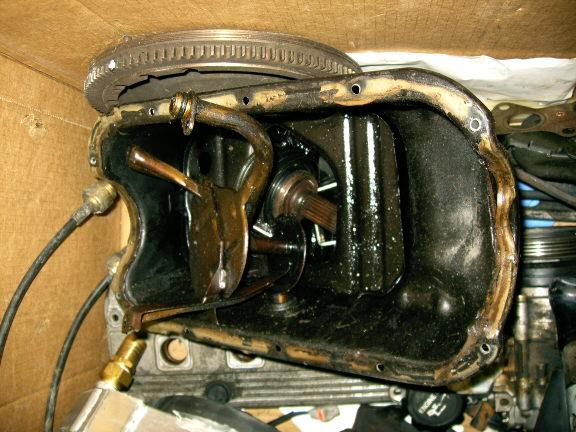

4E-FTE oil pan.





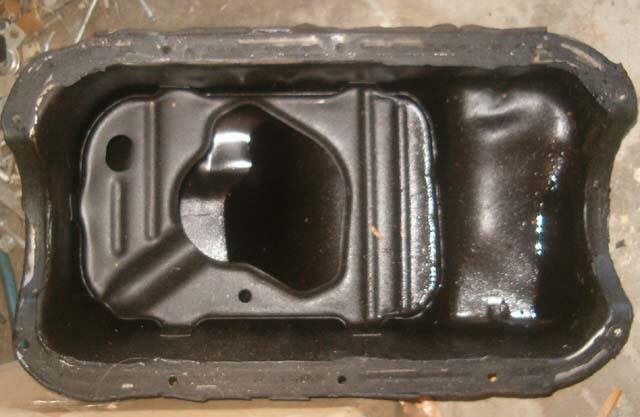

5E-FHE oil pan.








Exhaust Manifolds
Top

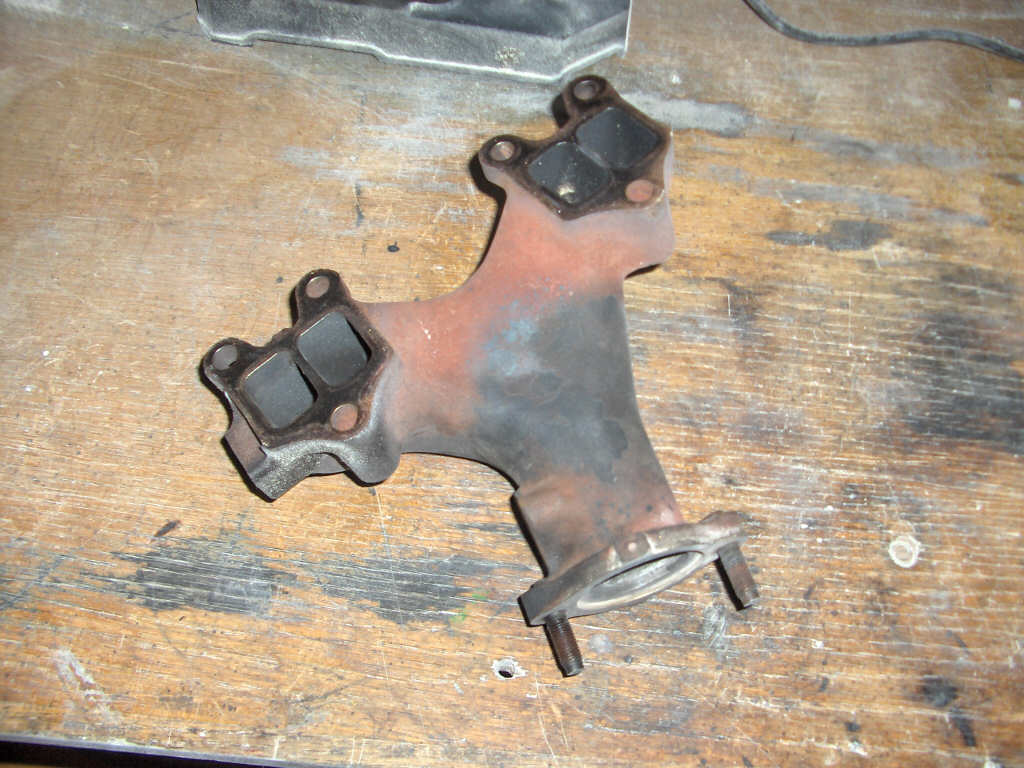

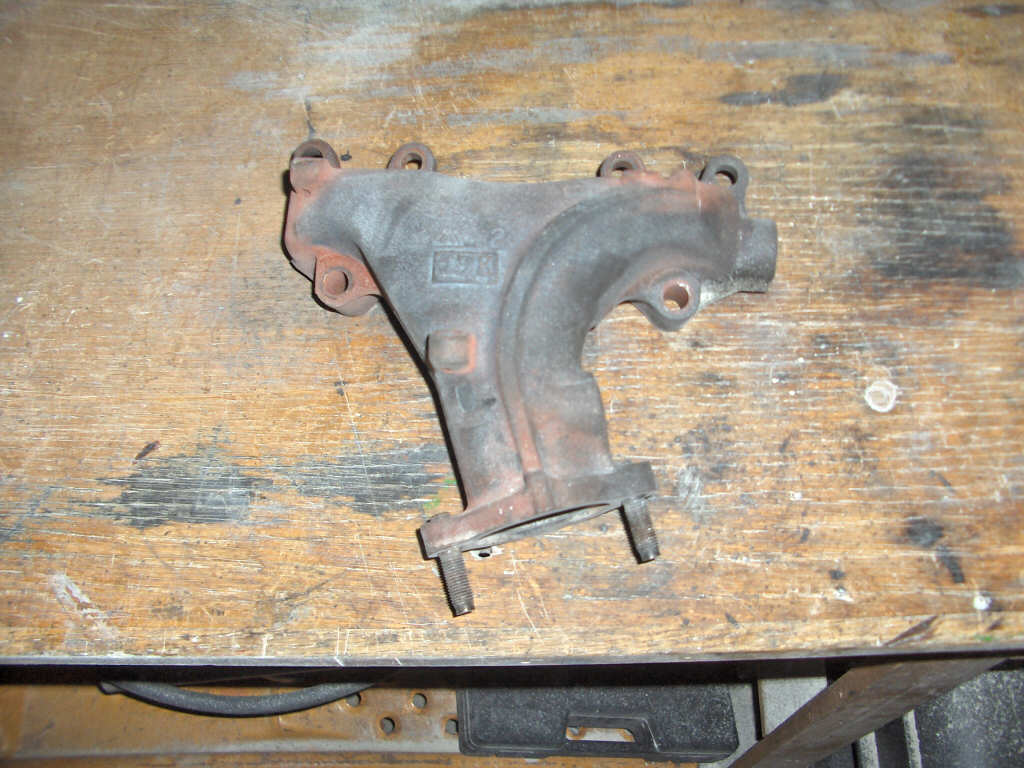

3E-E exhaust manifold.

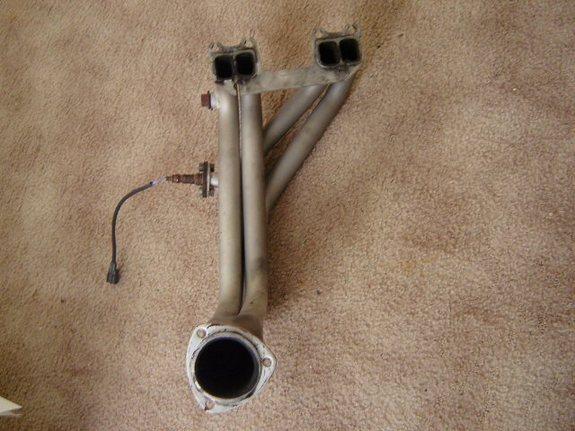

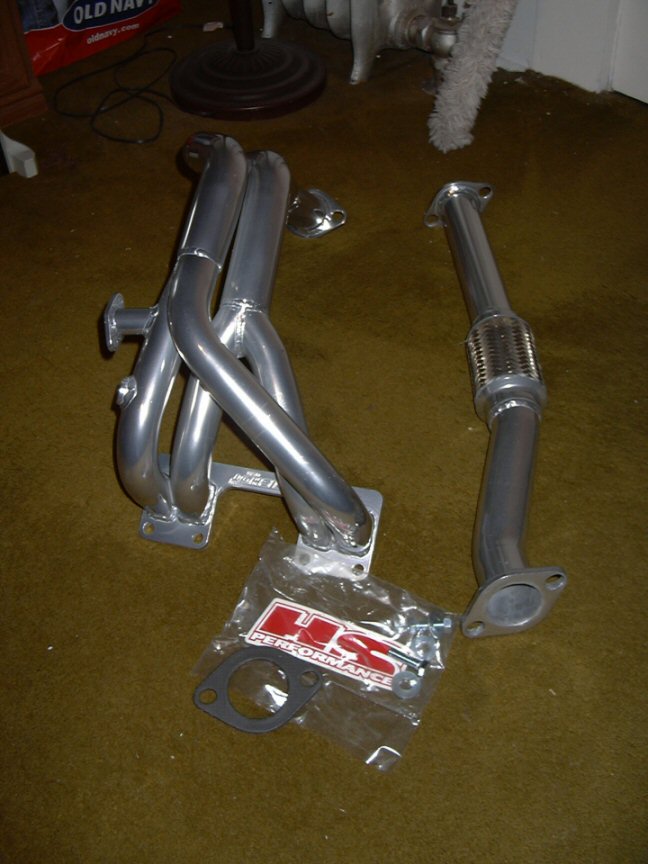

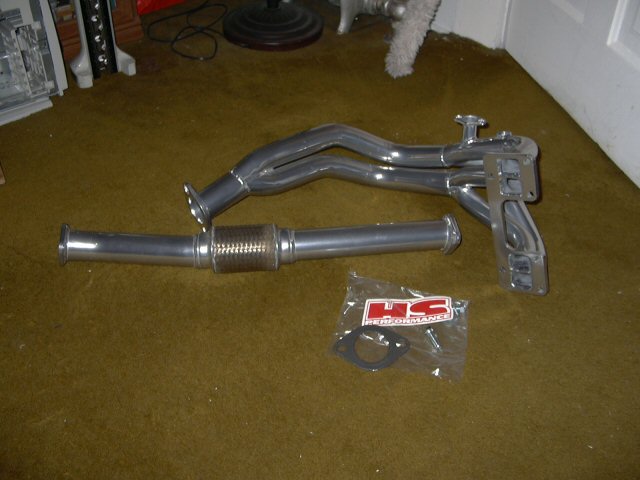

3E & 3E-E Hotshot header. The earlier 4-1 design is on the left, the later 4-2-1 design is on the right.

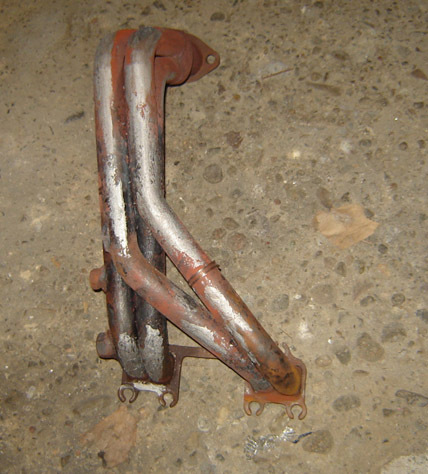

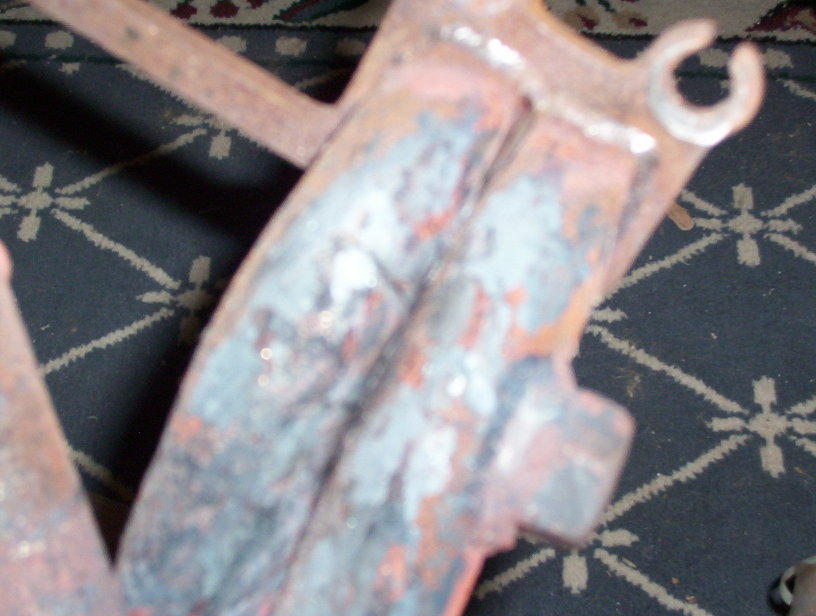

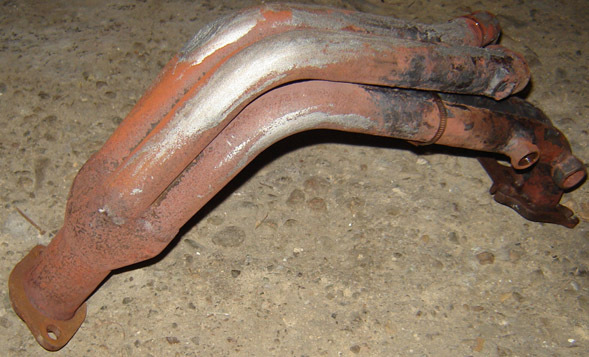

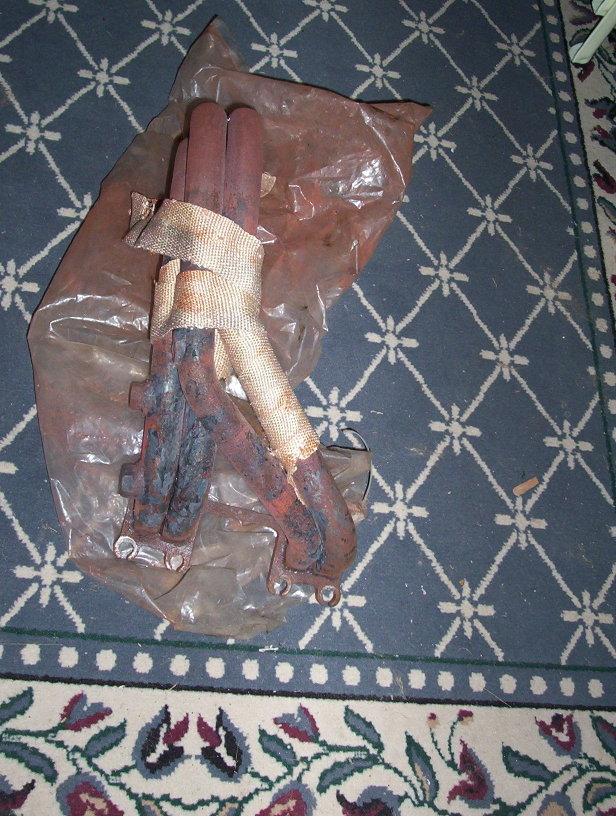

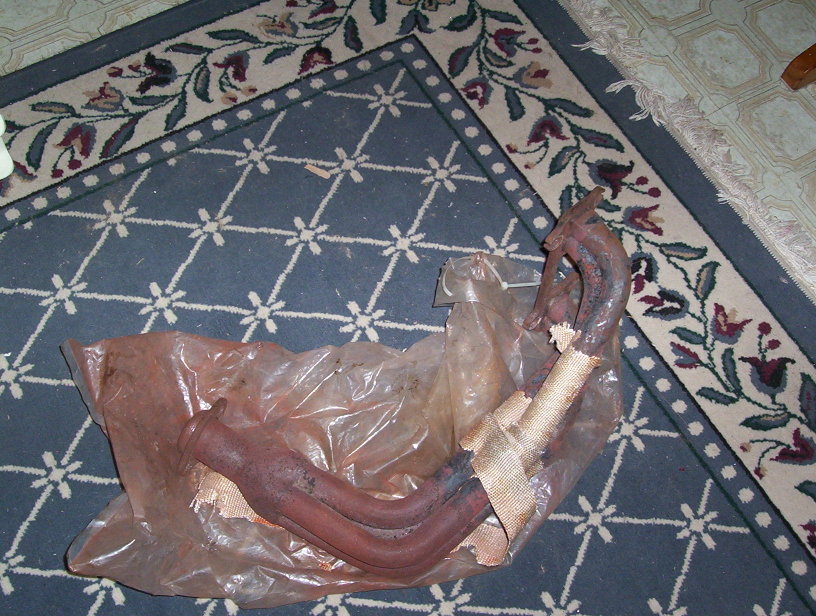

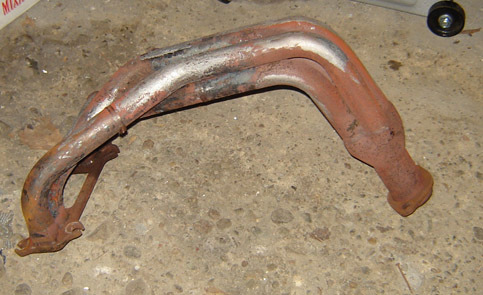

3E & 3E-E Pacesetter header.

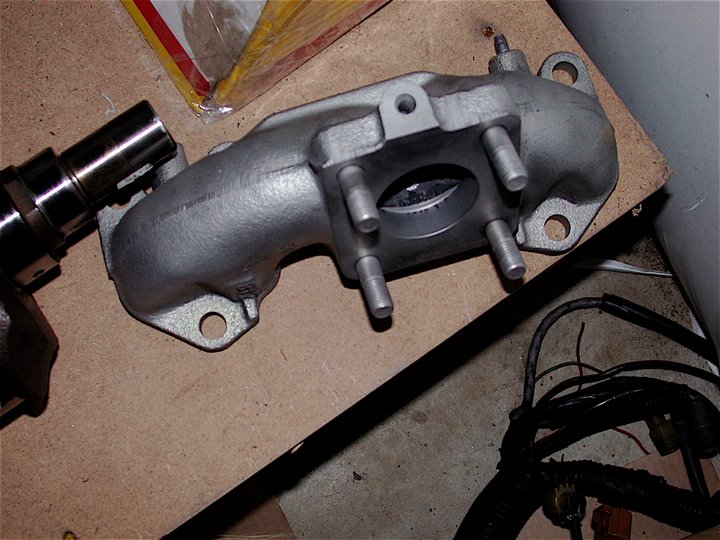

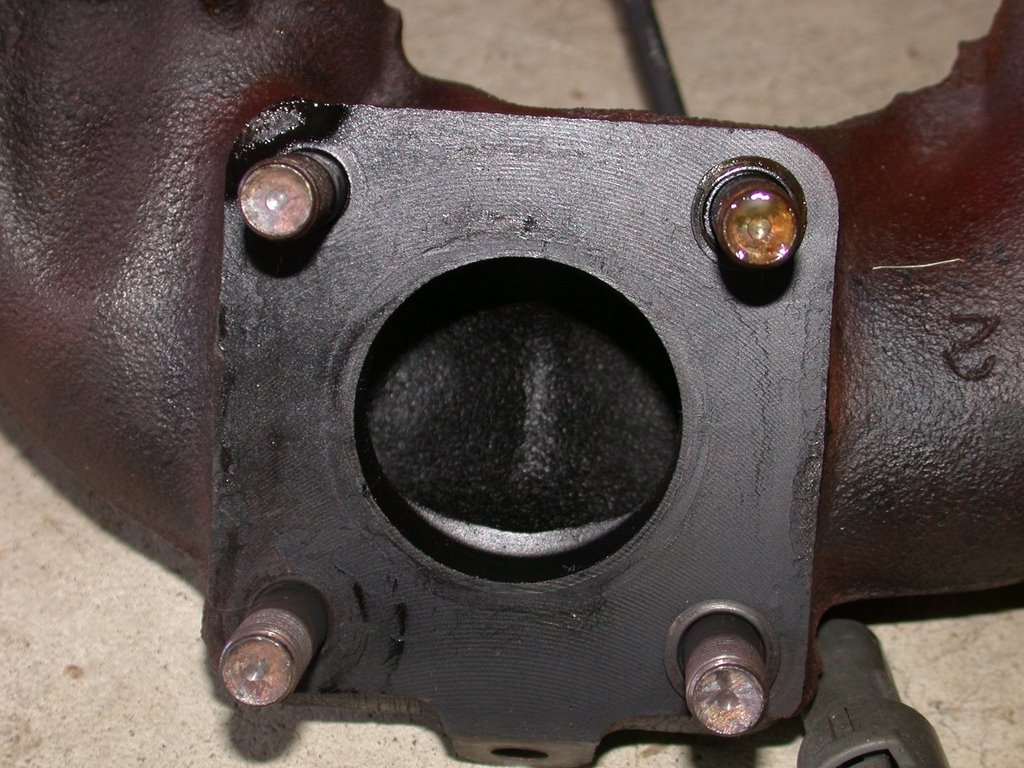

3E-TE exhaust manifold.

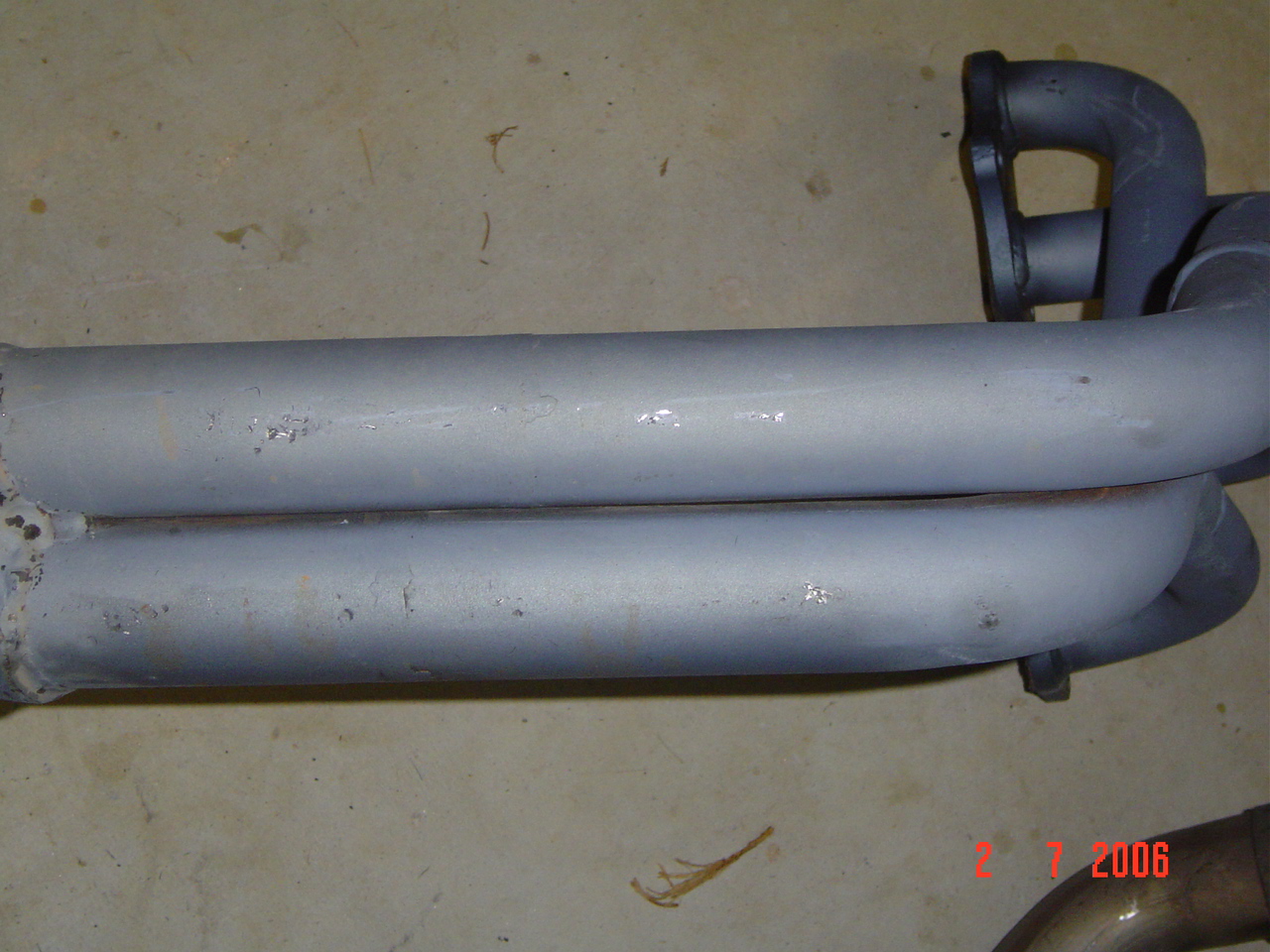

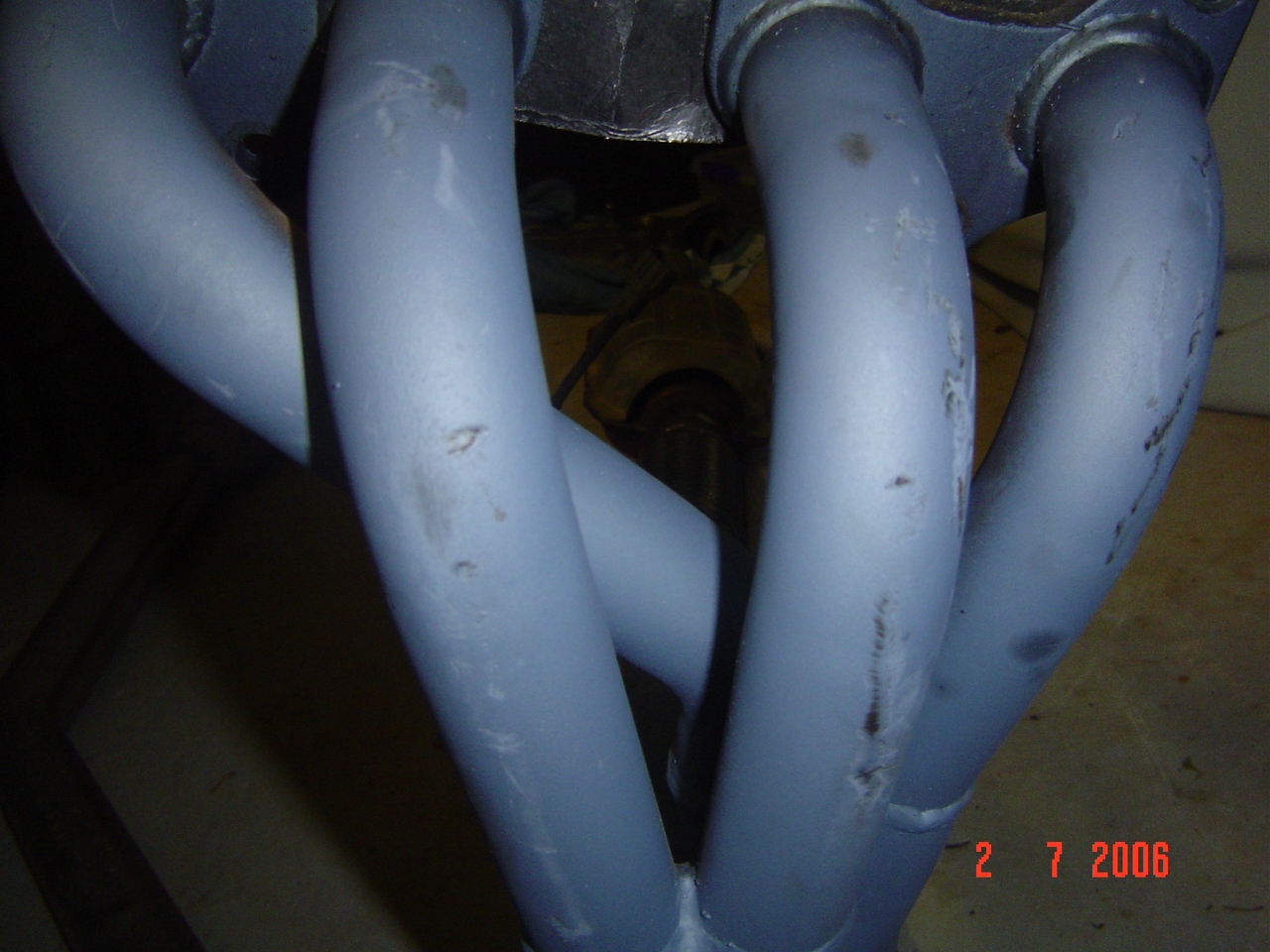

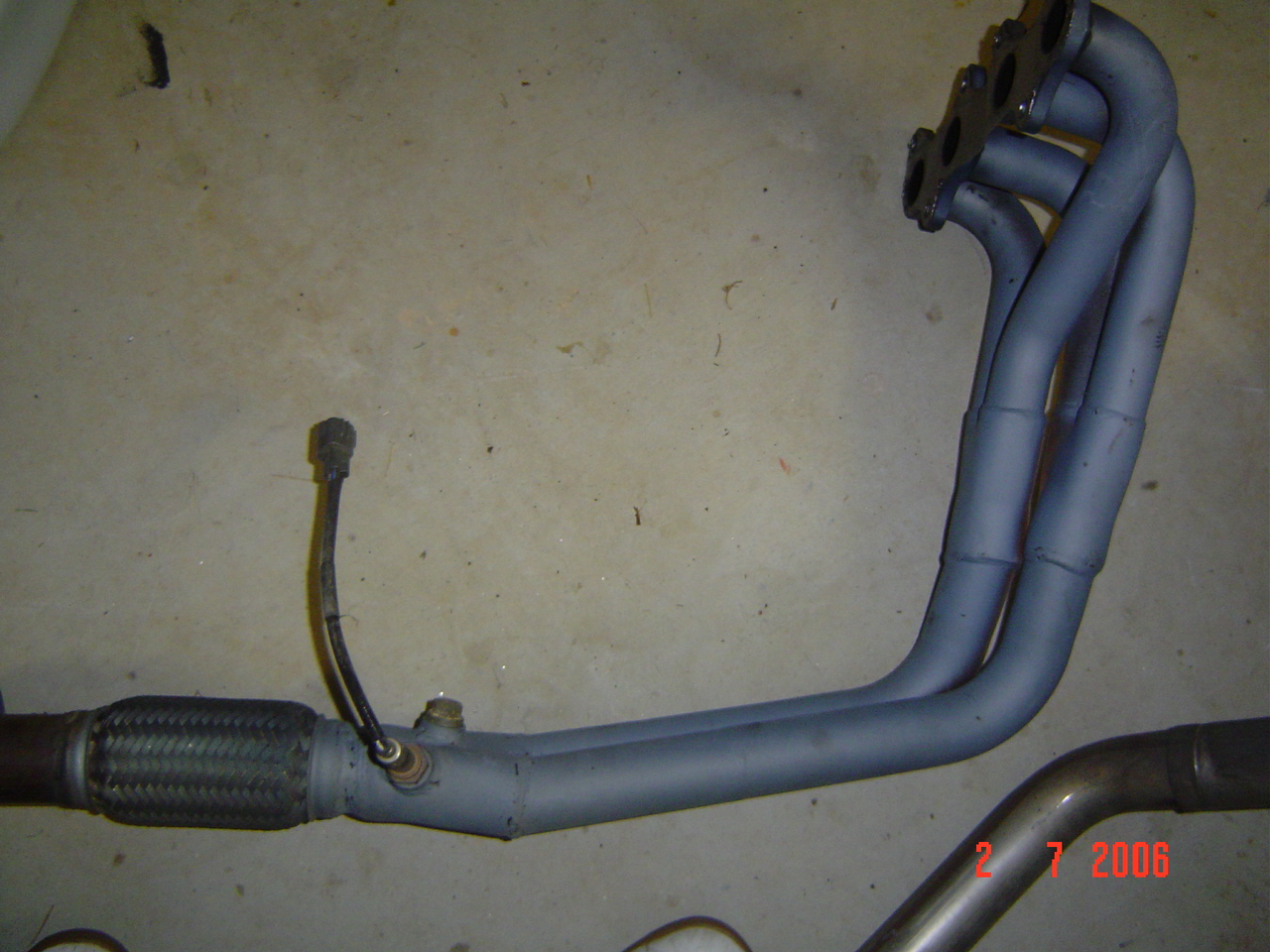

4E-FE Hurricane header.

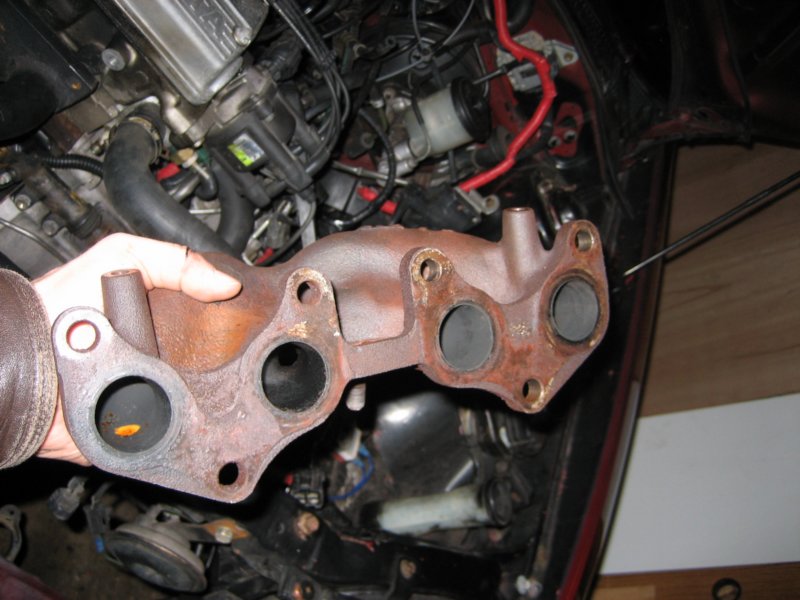

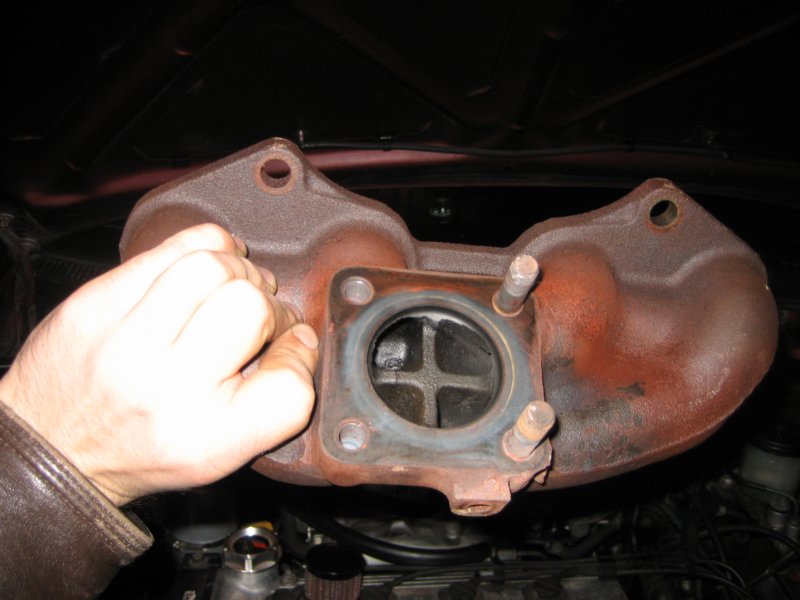

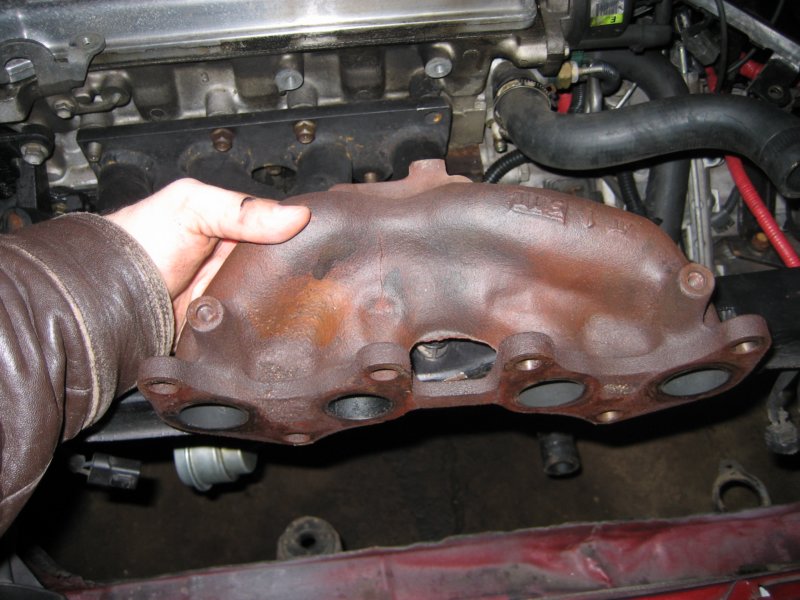

4E-FTE stock exhaust manifold.

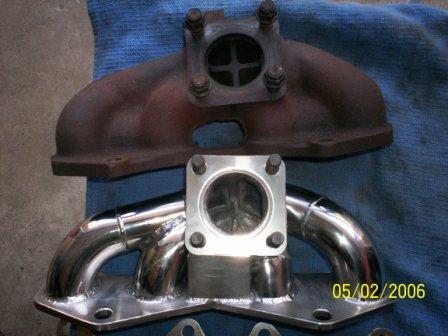

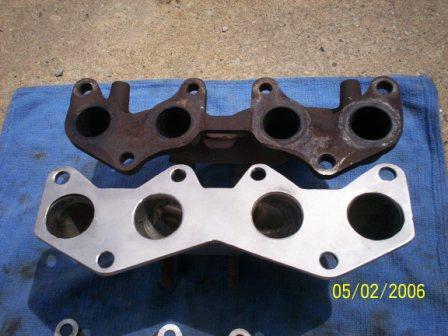

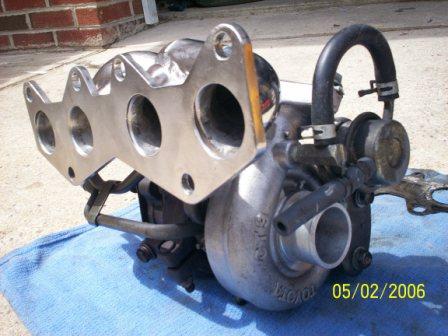

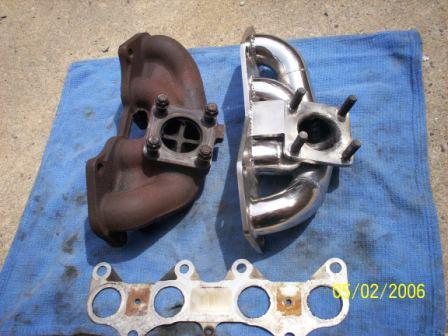

4E-FTE stock manifold and WEPR aftermarket manifold.

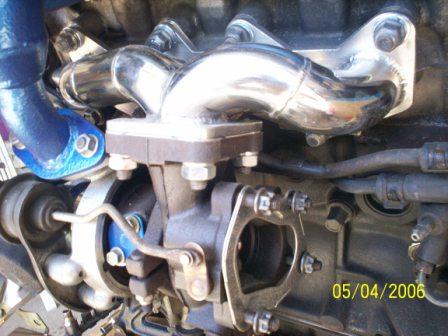

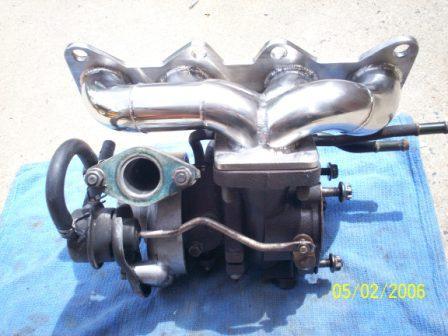

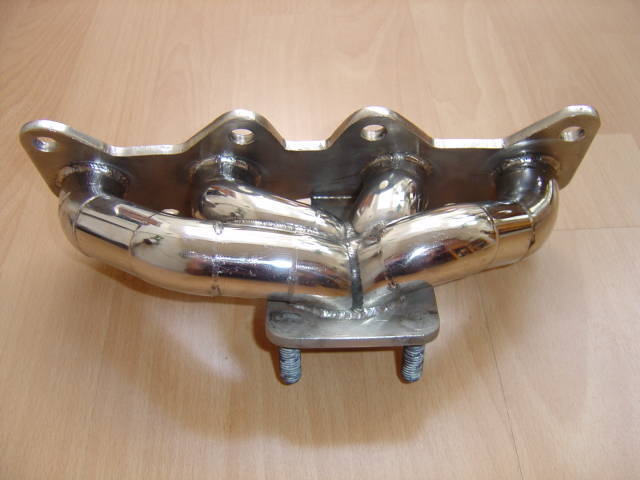

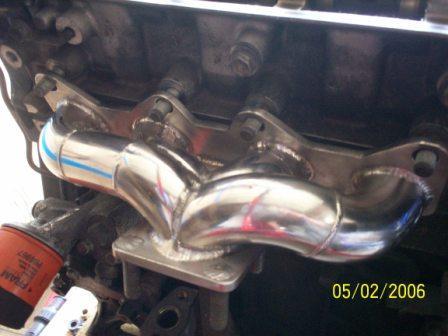

4E-FTE WEPR aftermarket manifold.

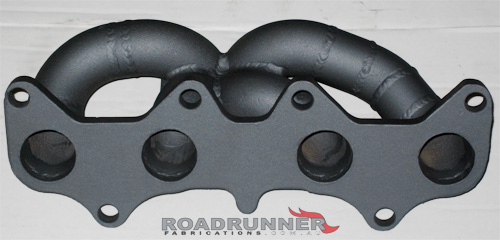

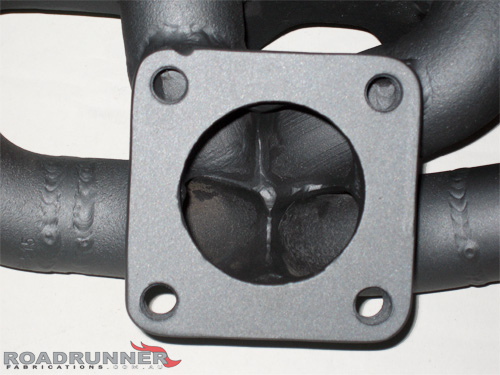

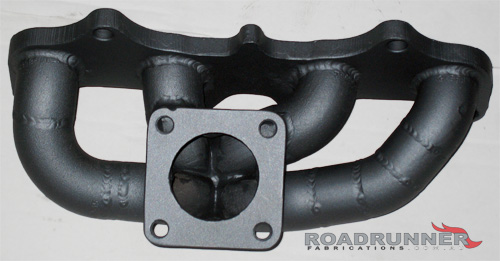

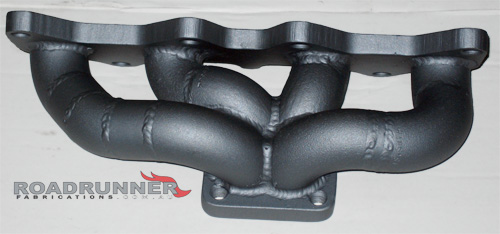

4E-FTE Roadrunner aftermarket manifold.





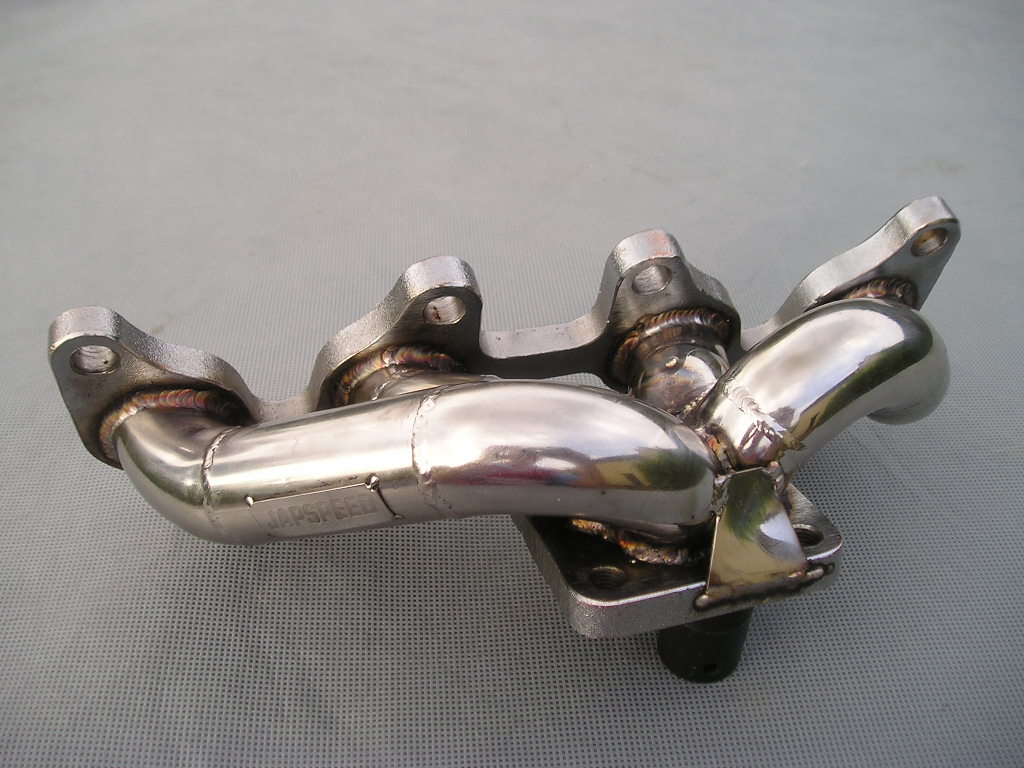

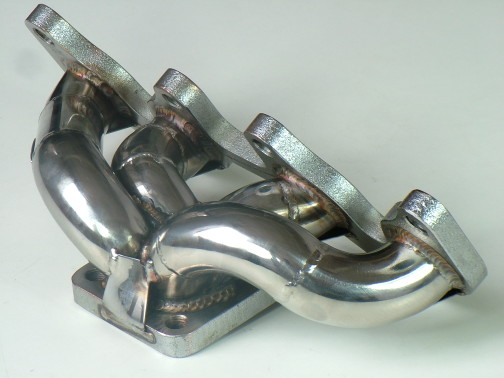

4E-FTE StarletGt.co.uk exhaust manifold.





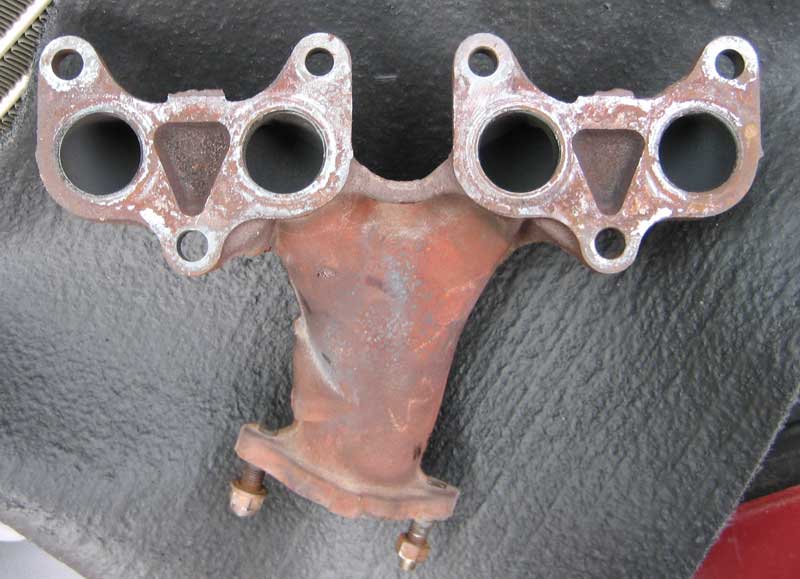

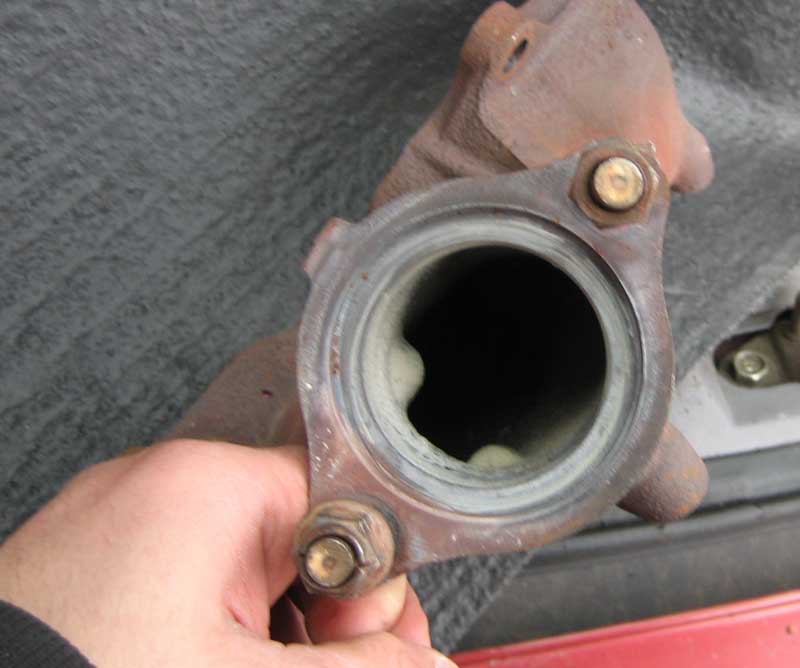

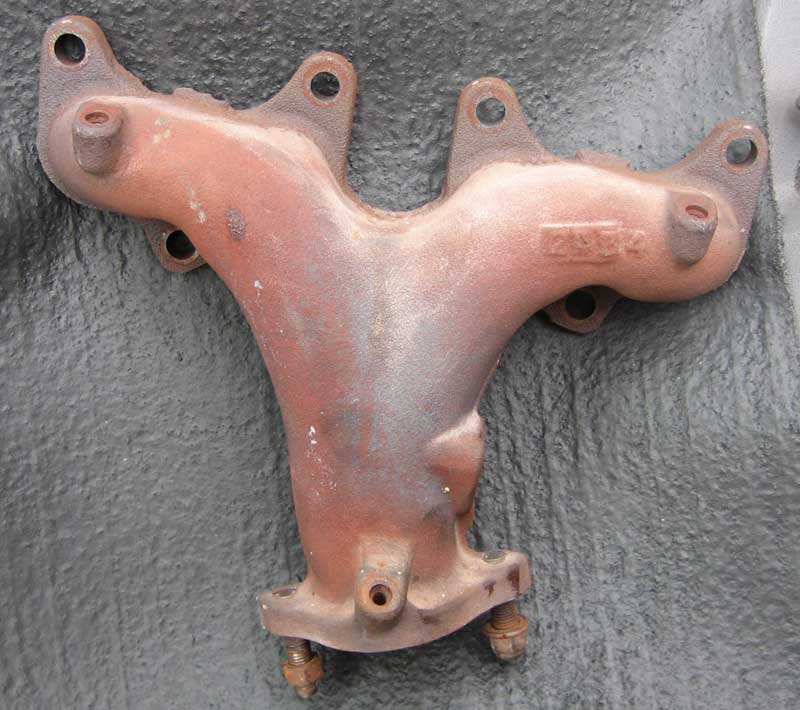

1st gen 5E-FE exhaust manifold.

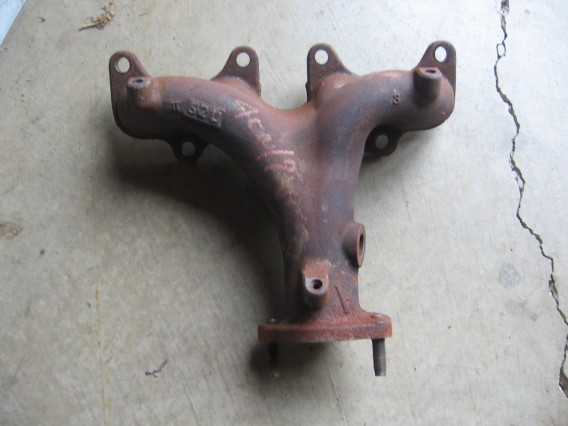

2nd gen 5E-FE exhaust manifold. 1995-1996 on the left, 1997+ on the right.

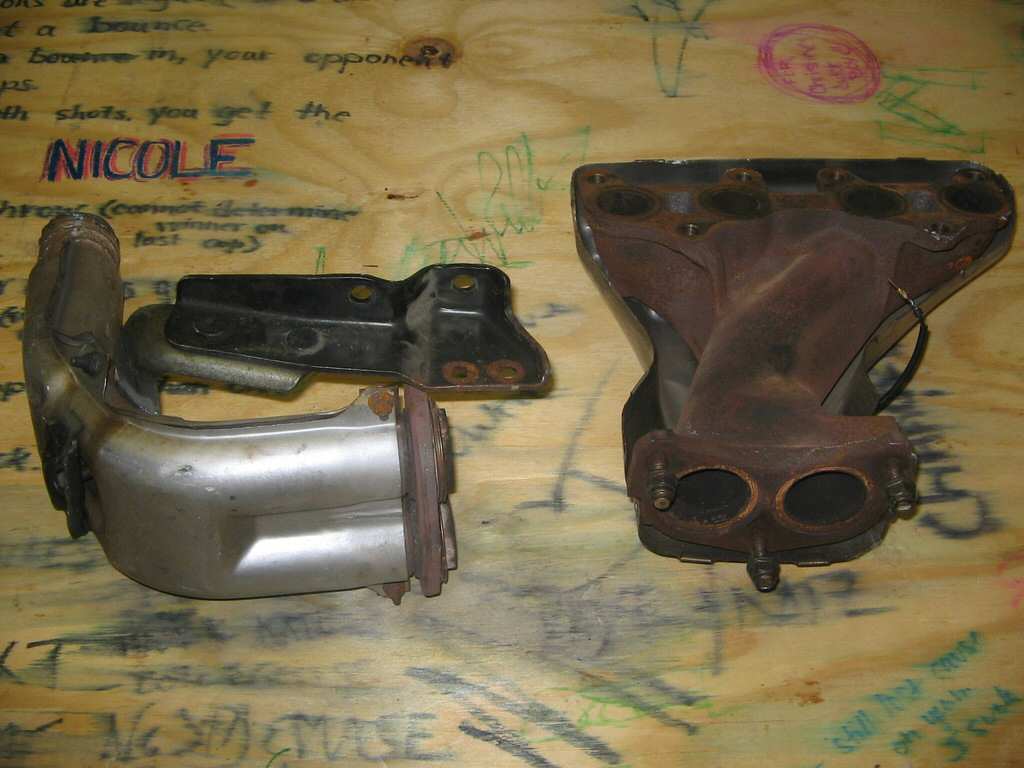

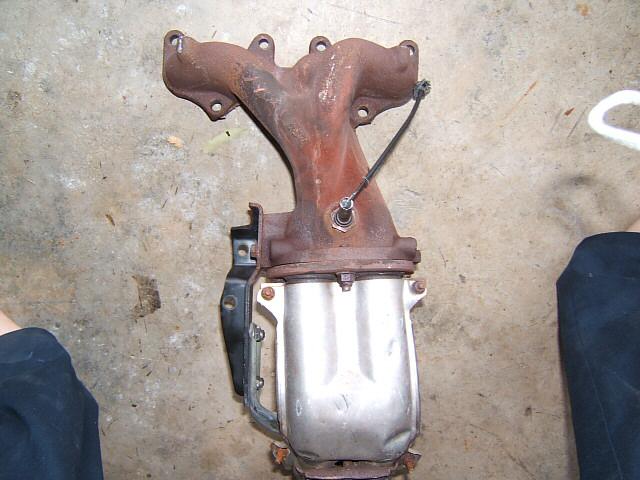

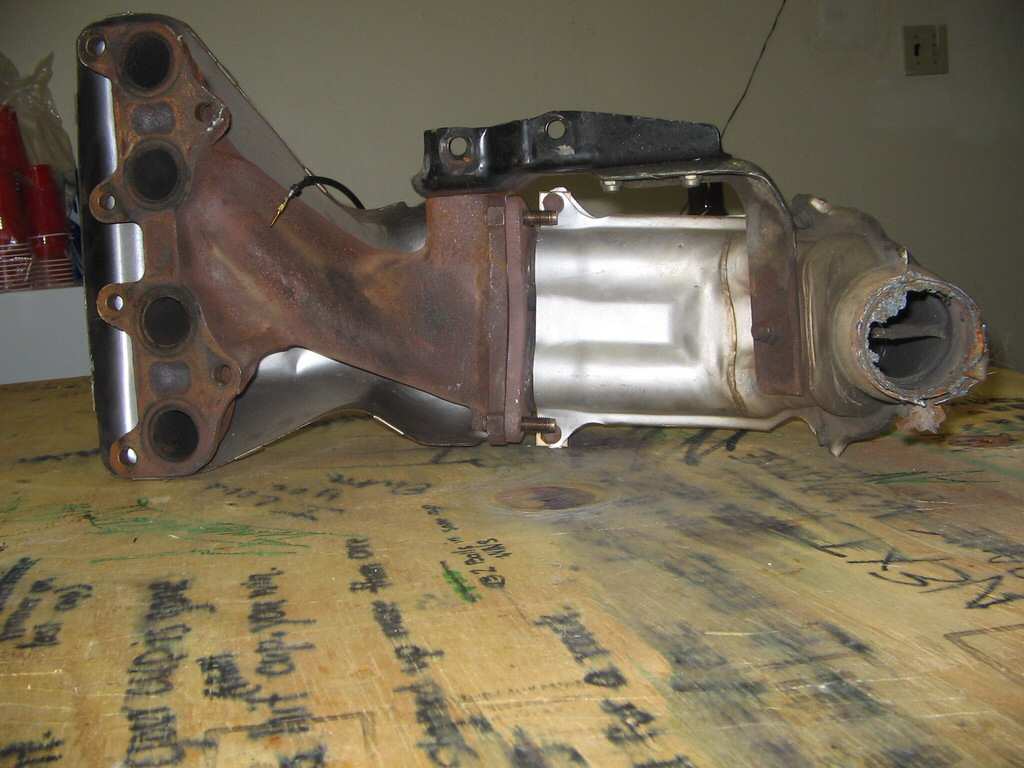

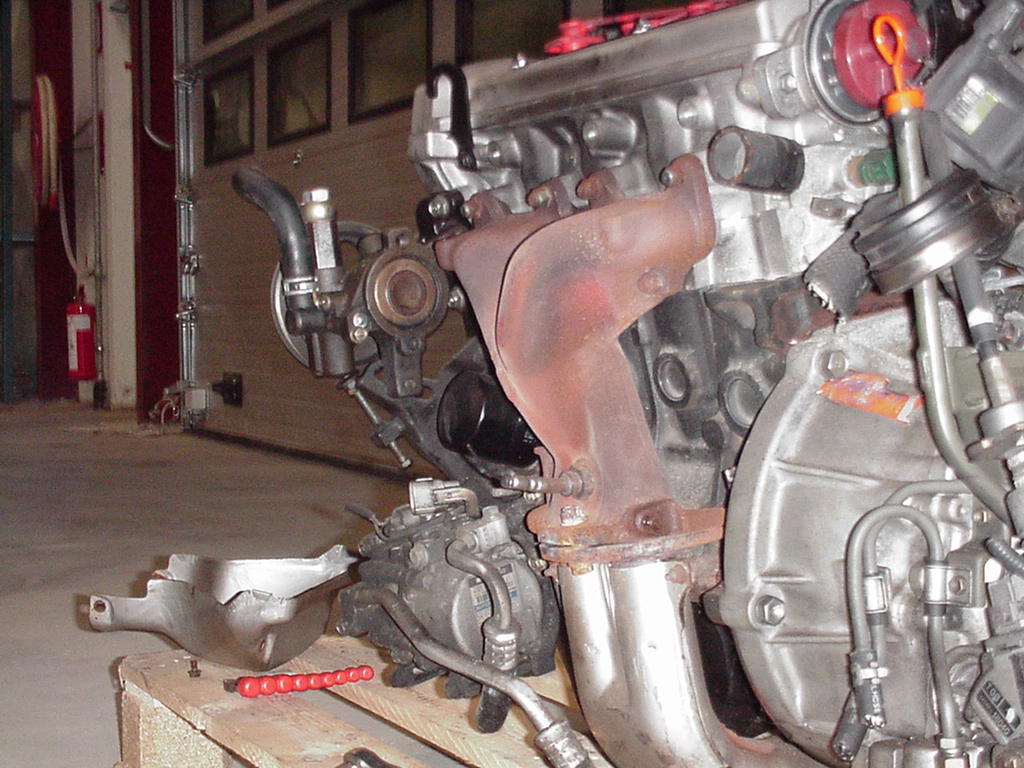

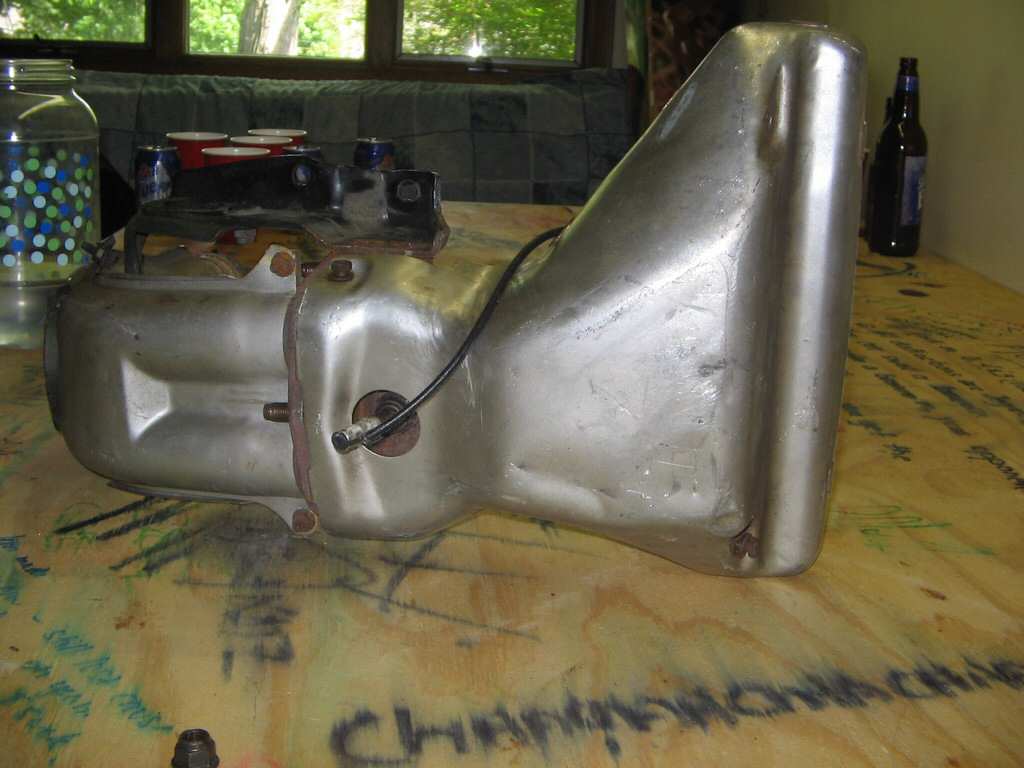

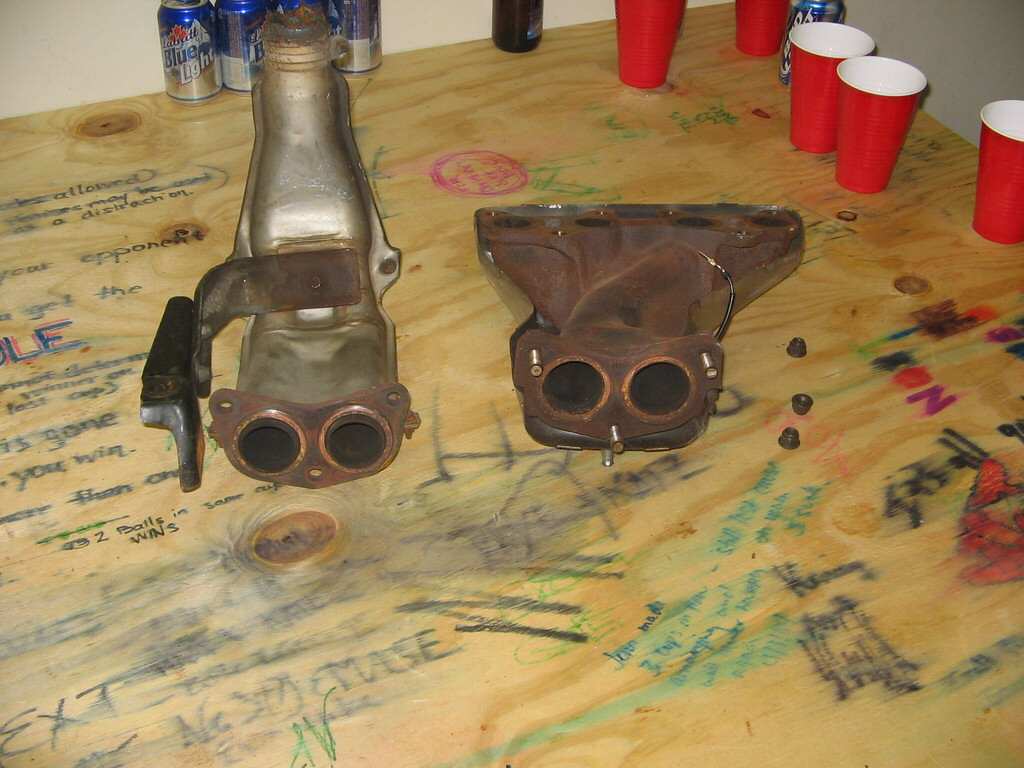

5E-FHE 4-2-1 exhaust manifold.








Engine Mounts
Top

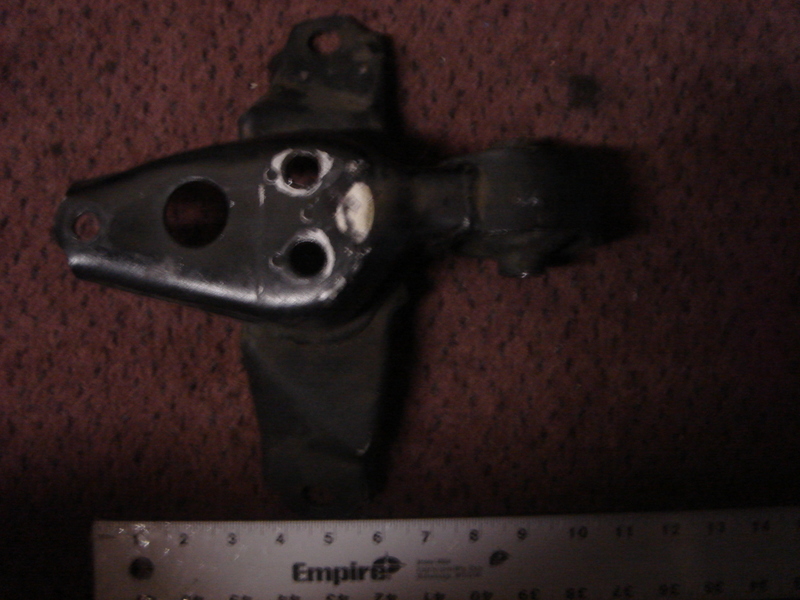

1993 Tercel rear engine mount.

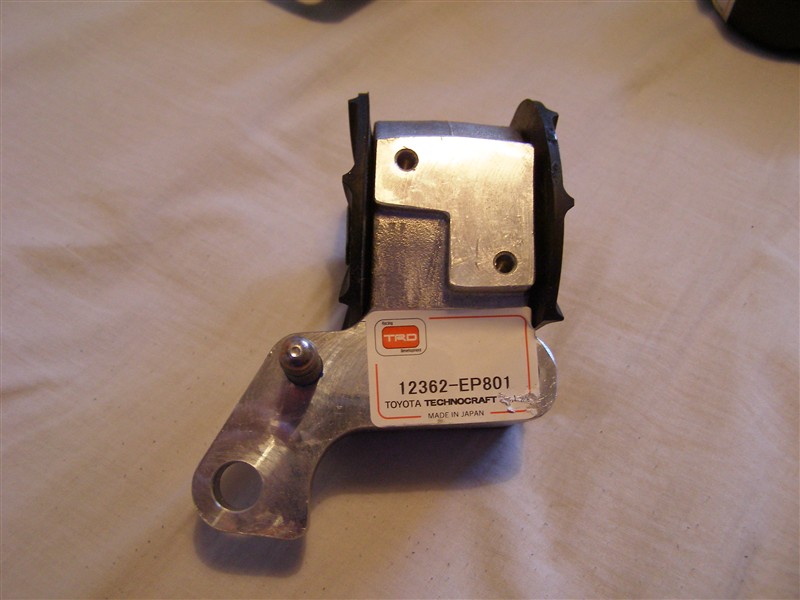

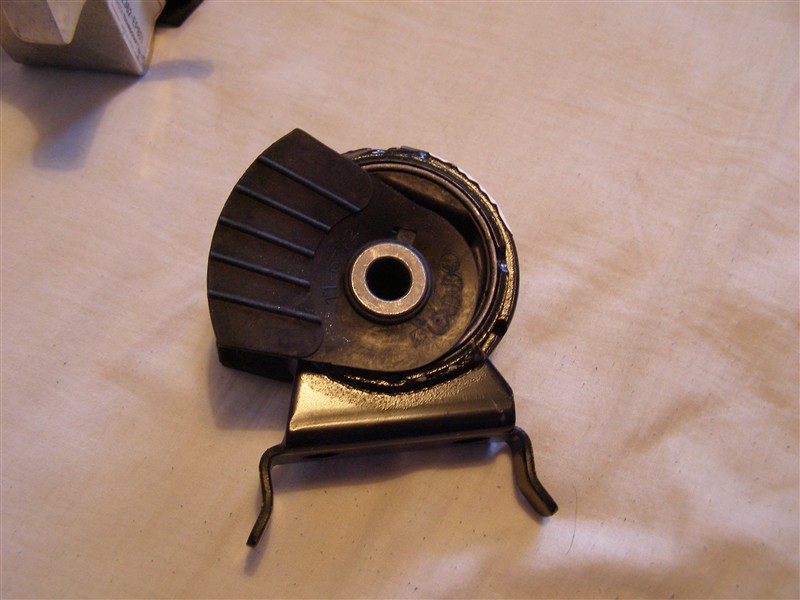

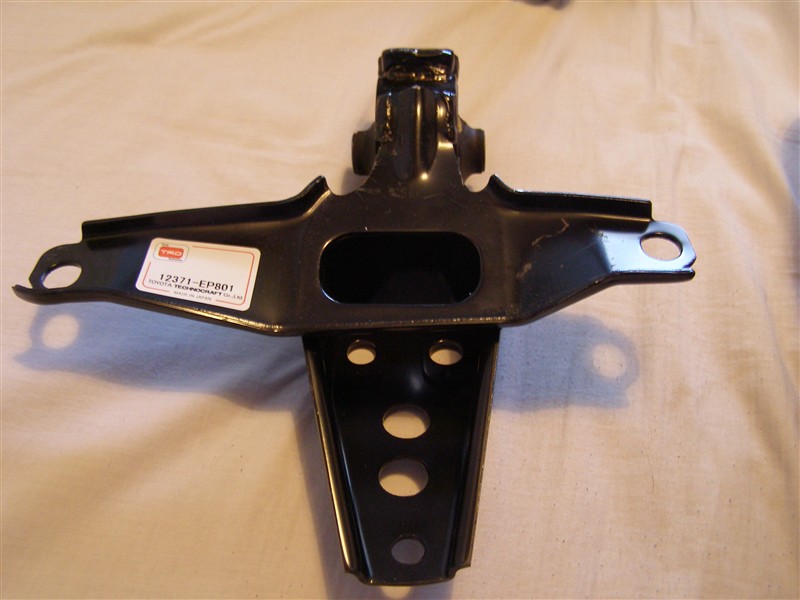

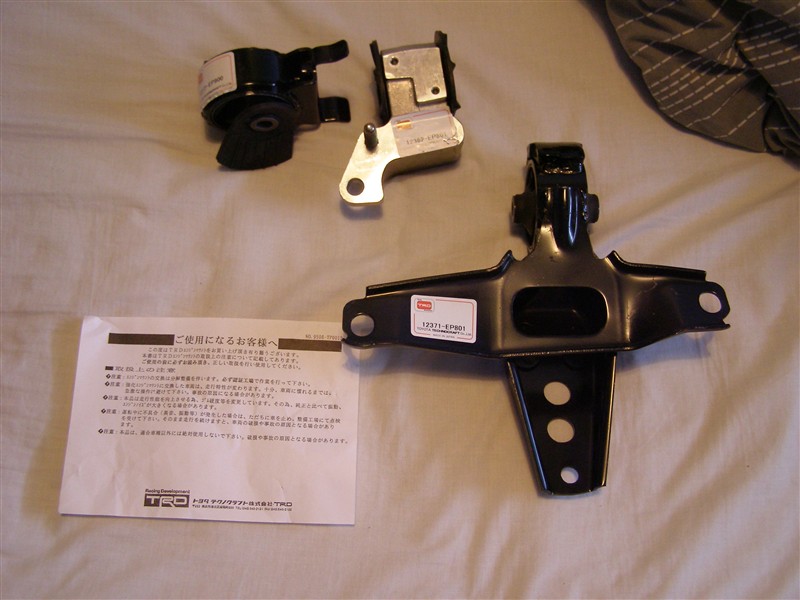

TRD engine mounts.

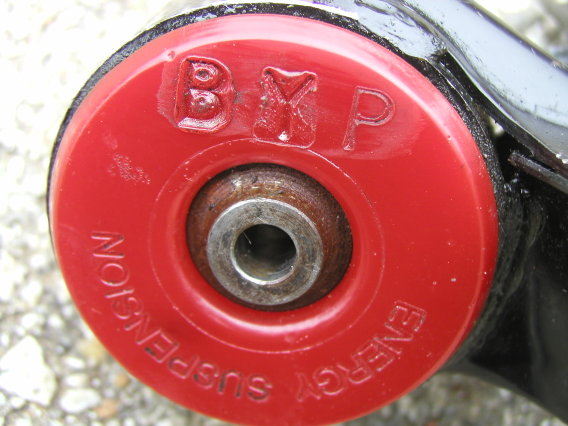

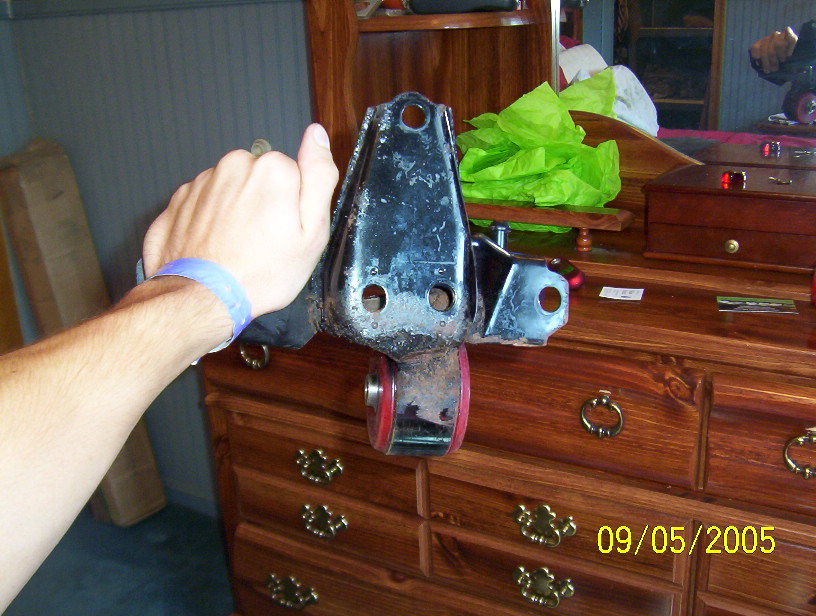

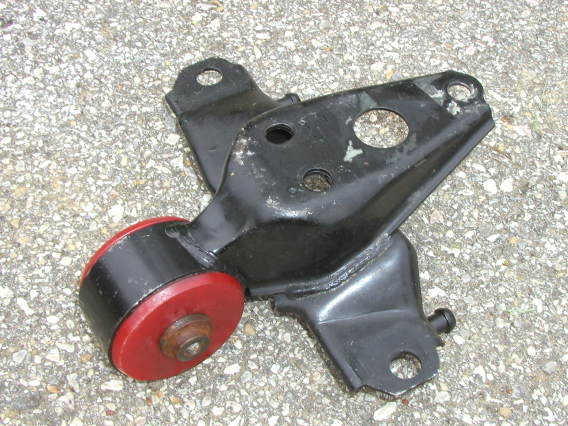

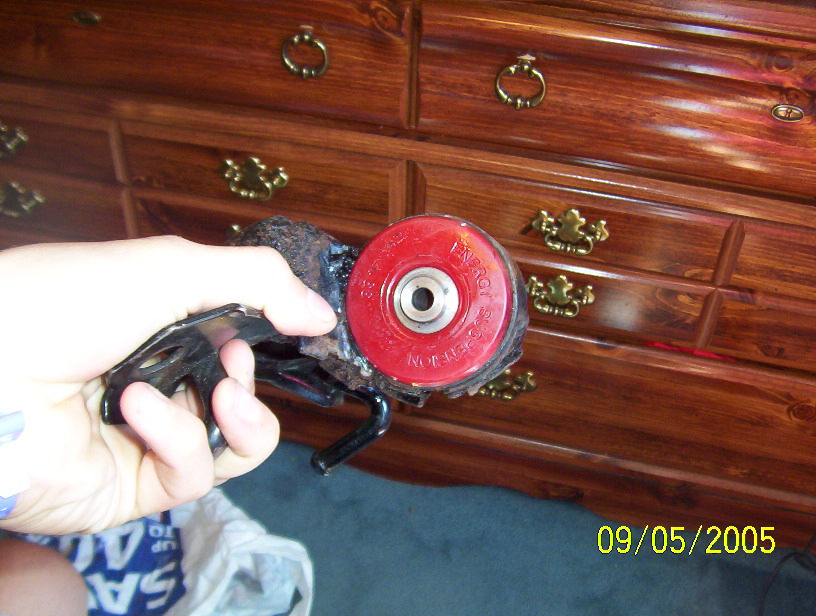

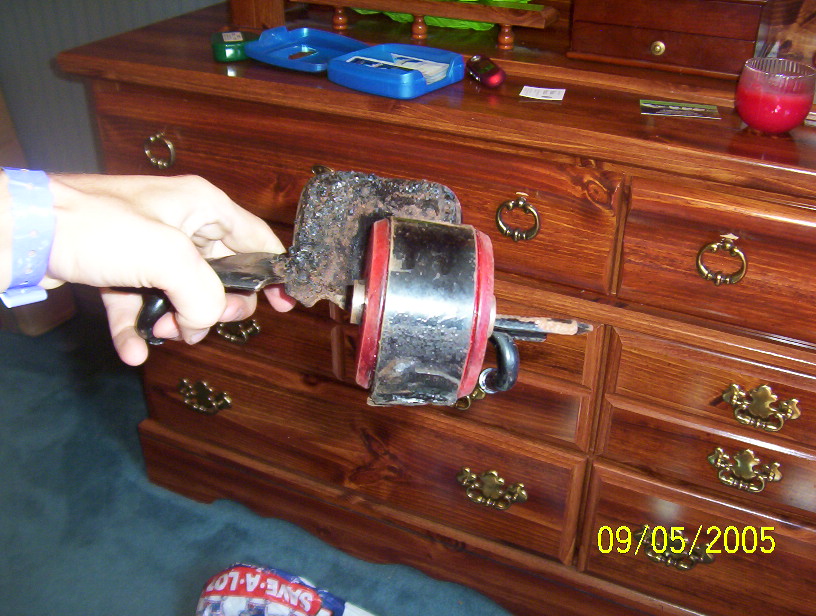

Rear engine mount made by Back Yard Productions.








Turbos
Top

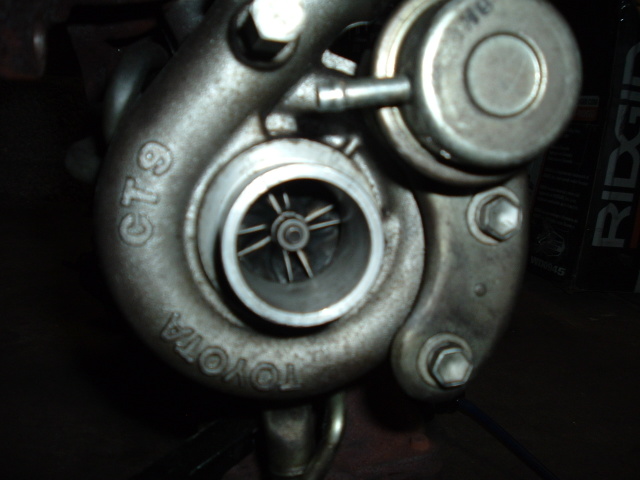

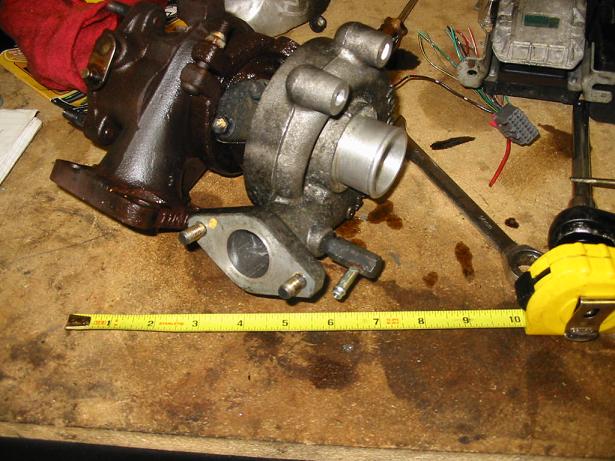

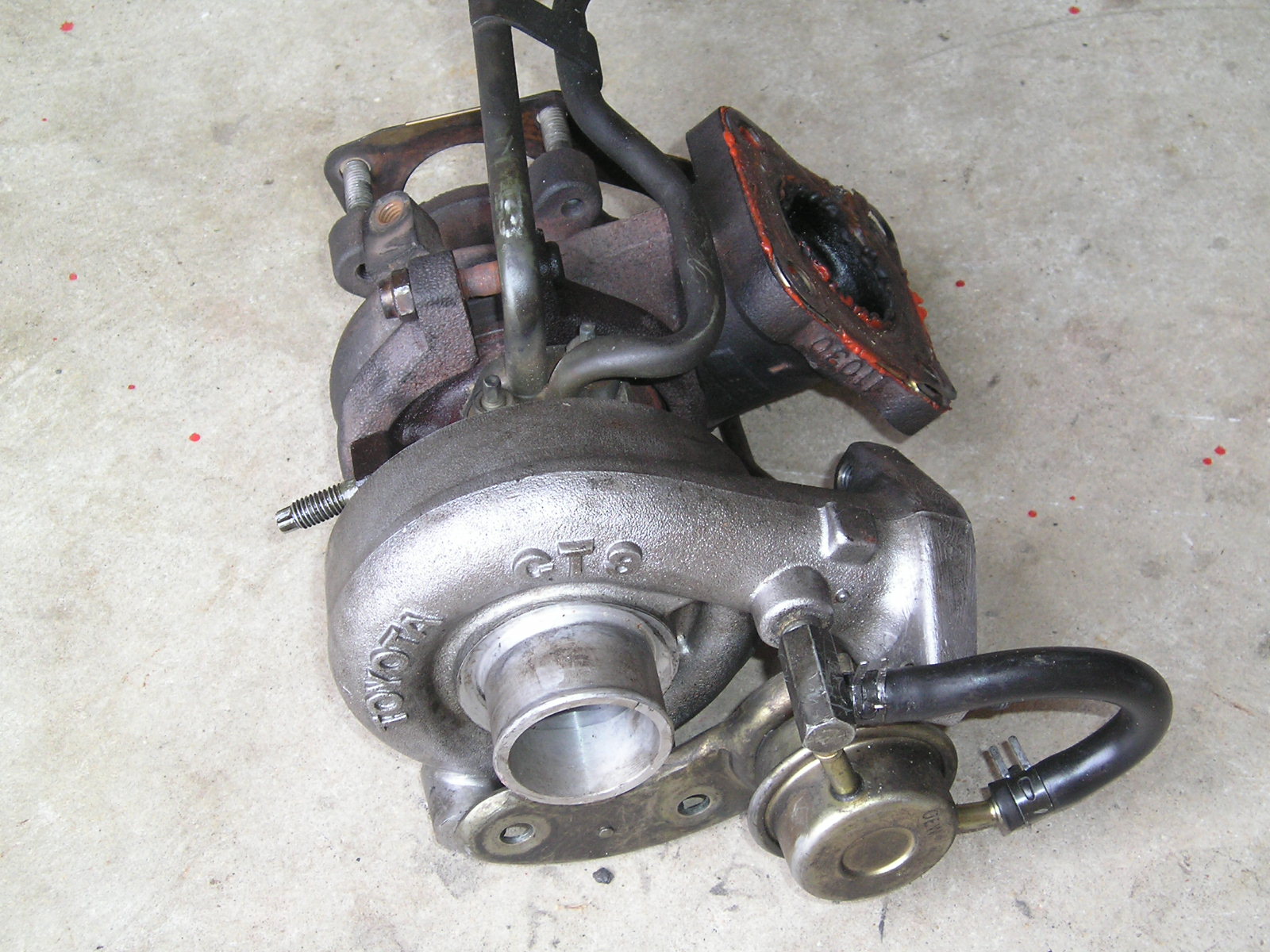

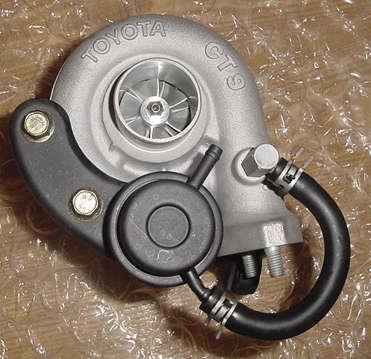

CT-9 turbo.

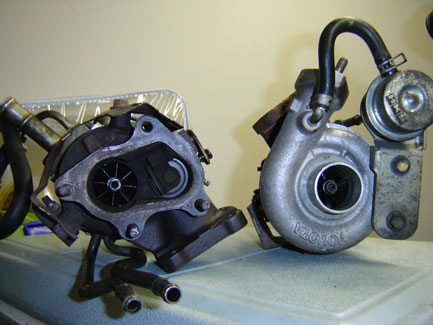

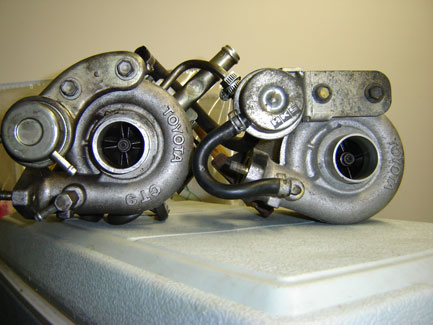

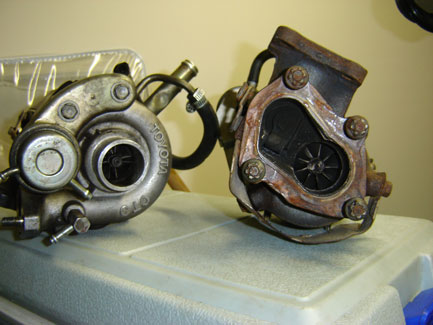

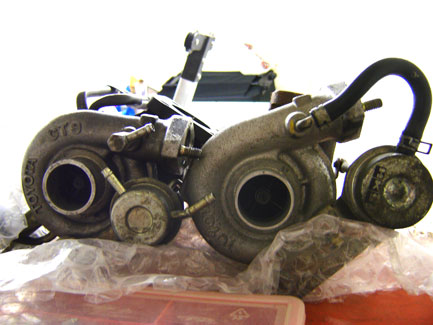

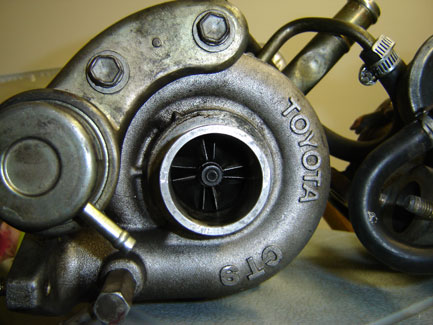

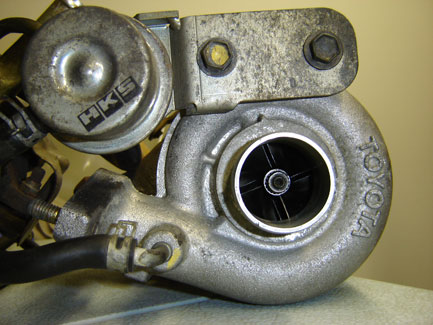

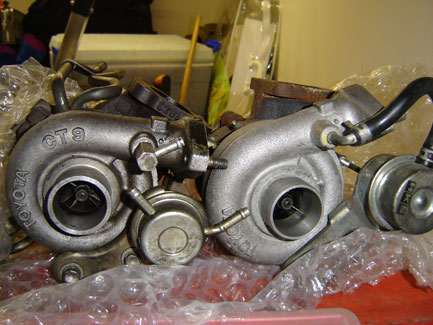

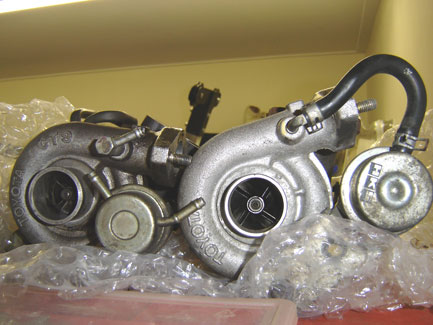

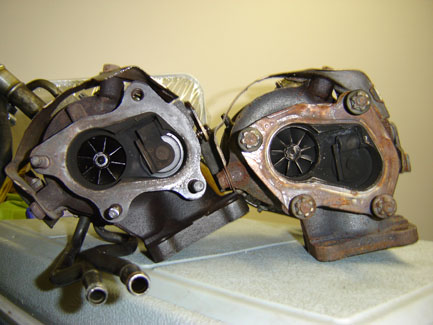

CT-9 (left) vs CT-9A (right).





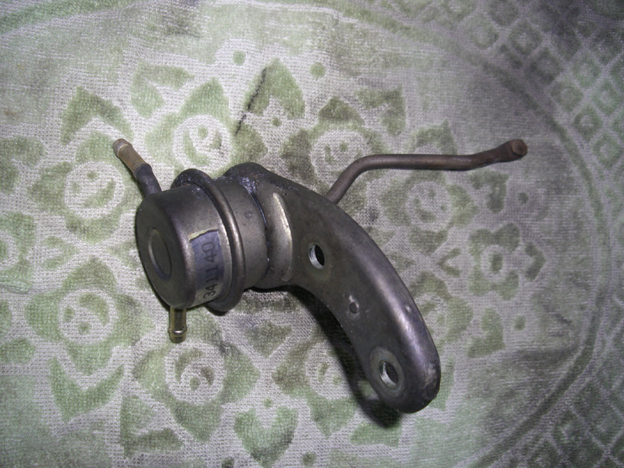

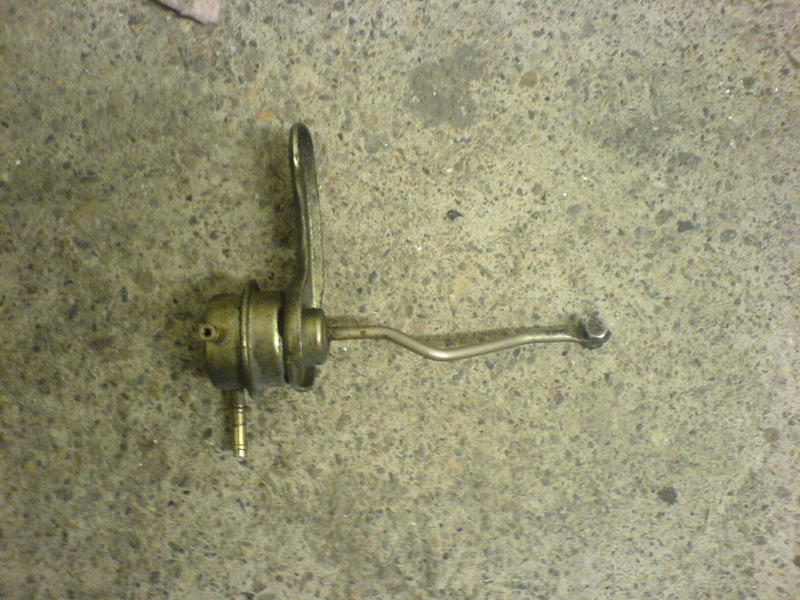

CT-9 actuator.





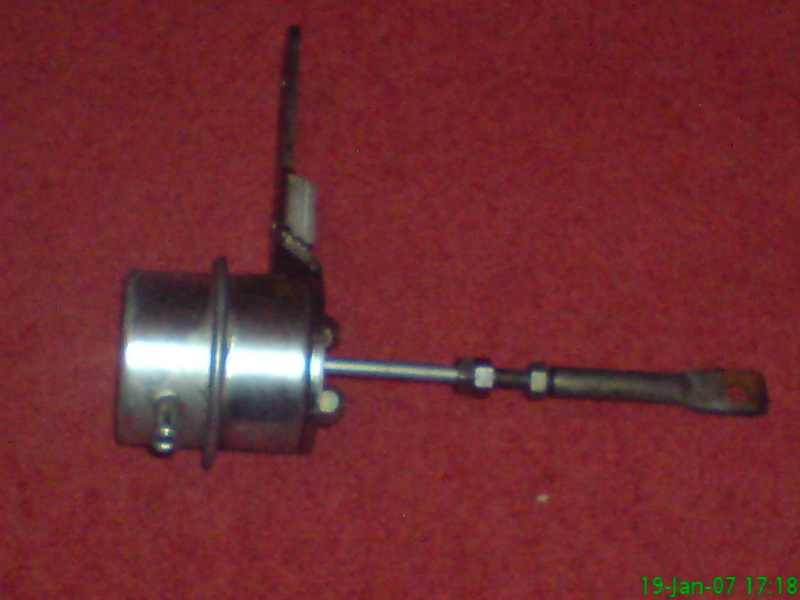

CT-9 HKS actuator.

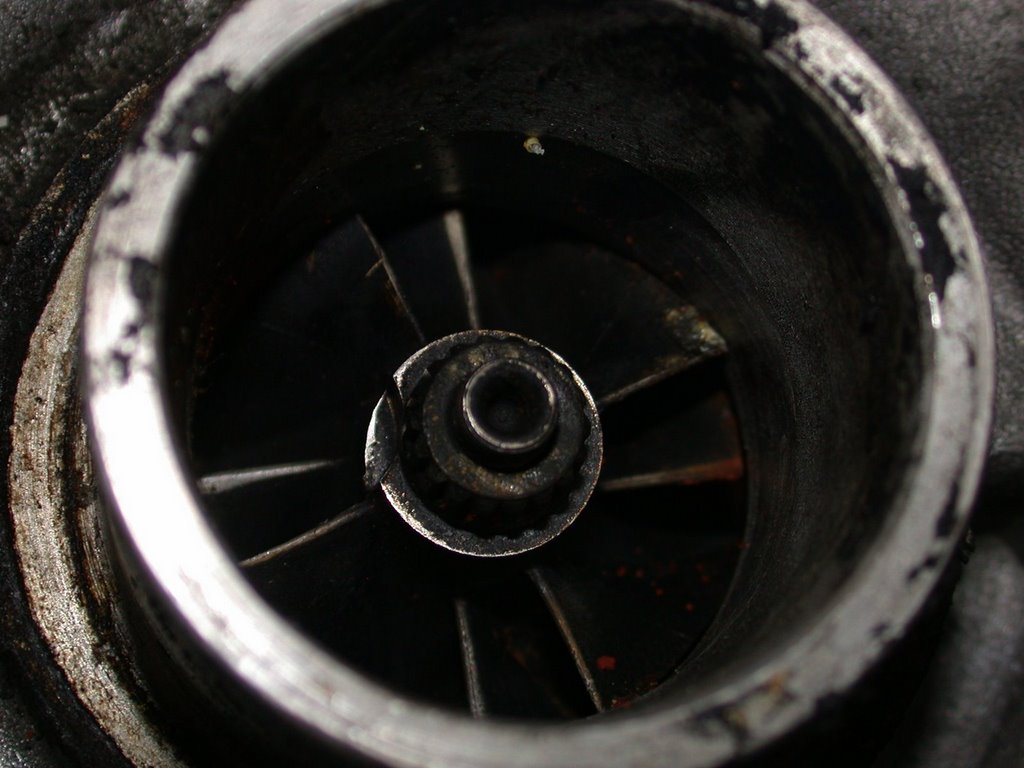

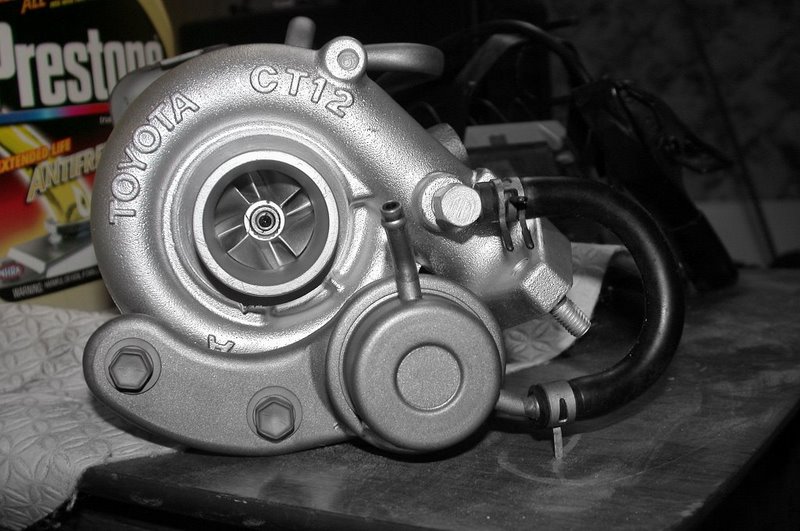

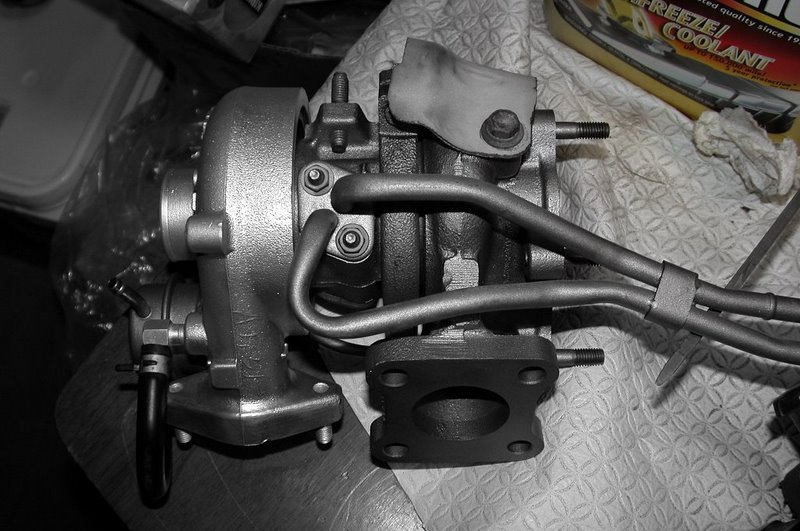

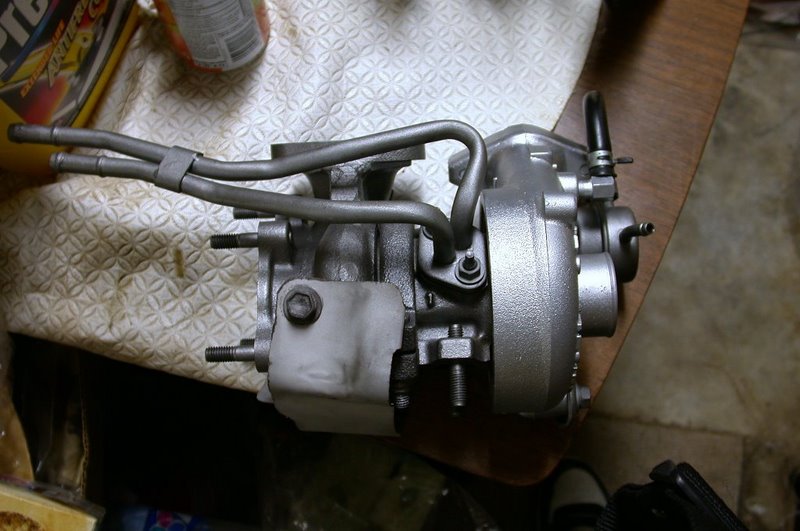

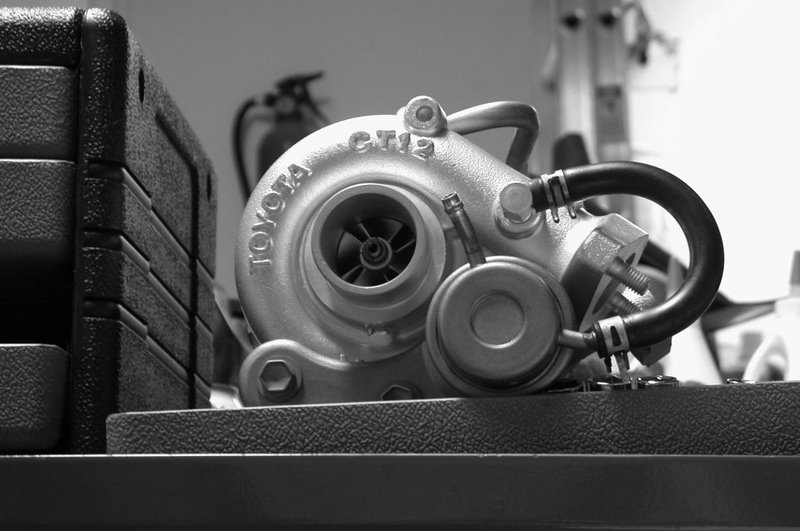

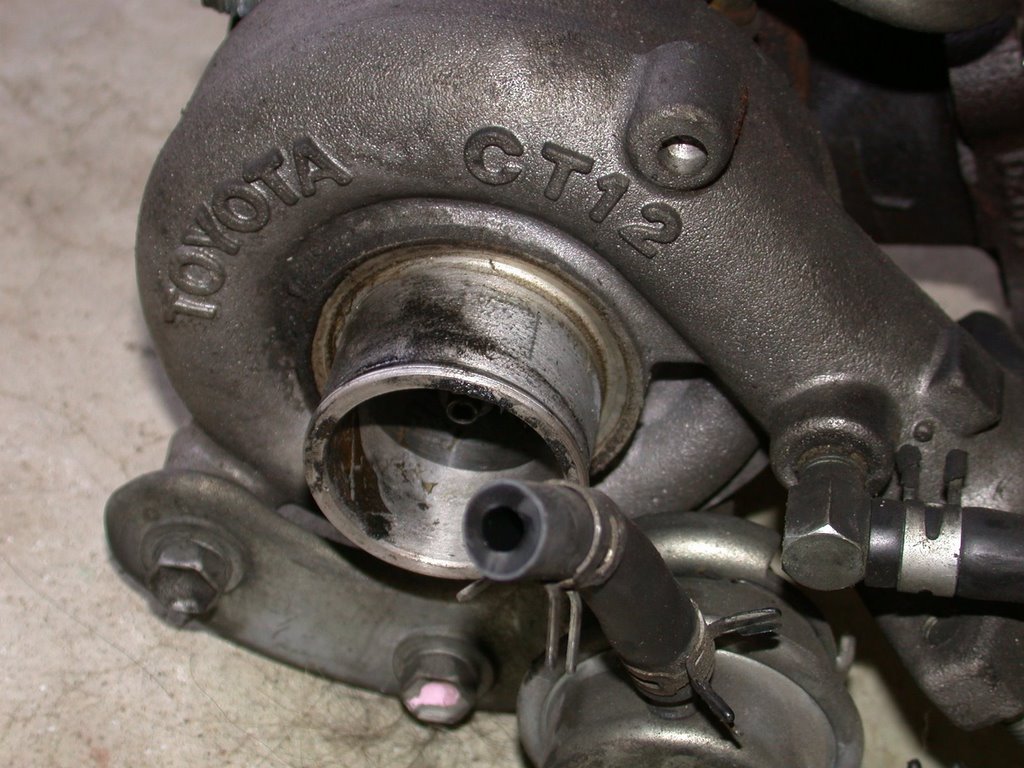

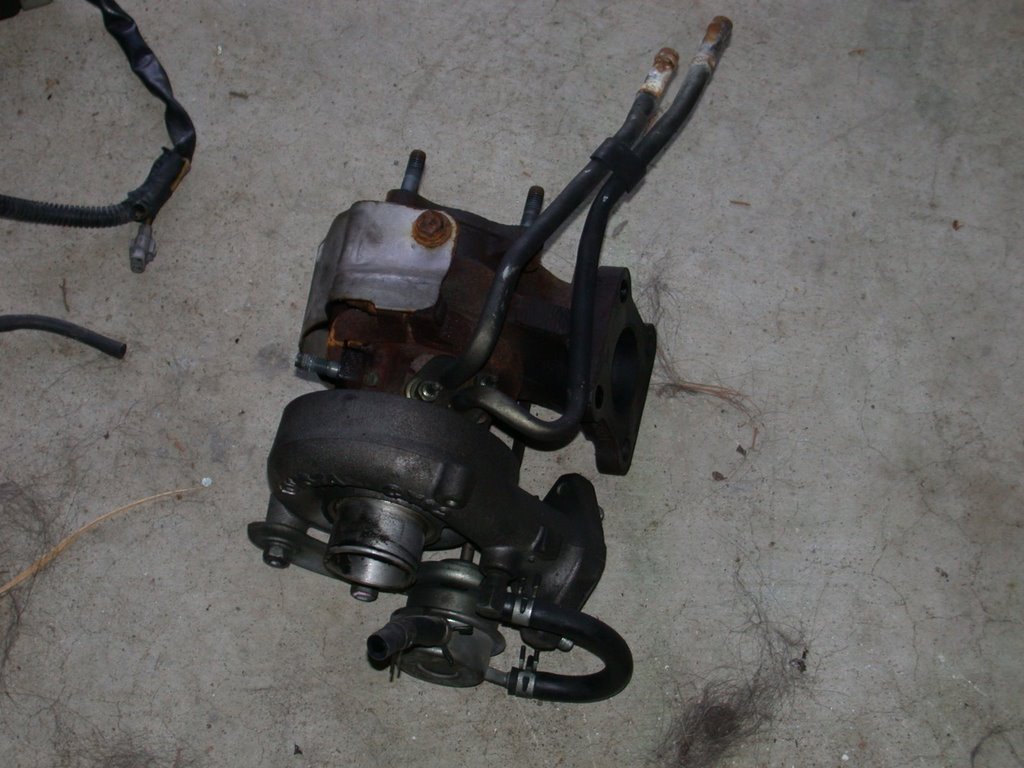

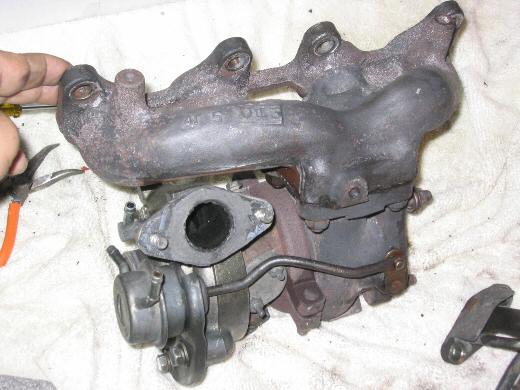

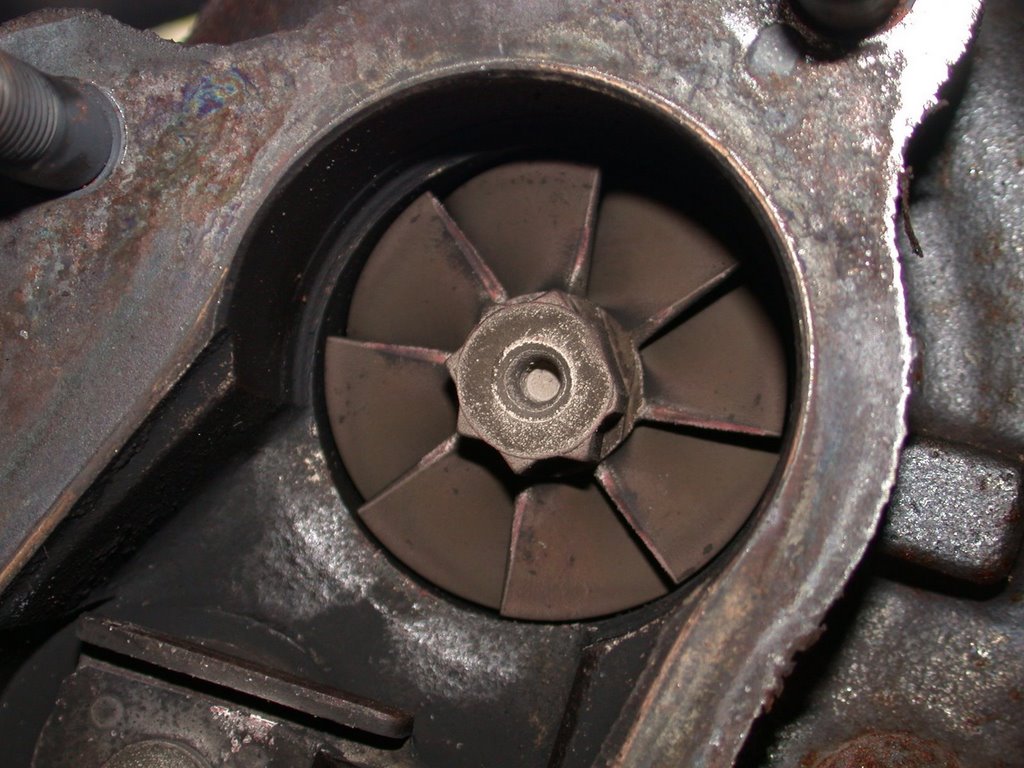

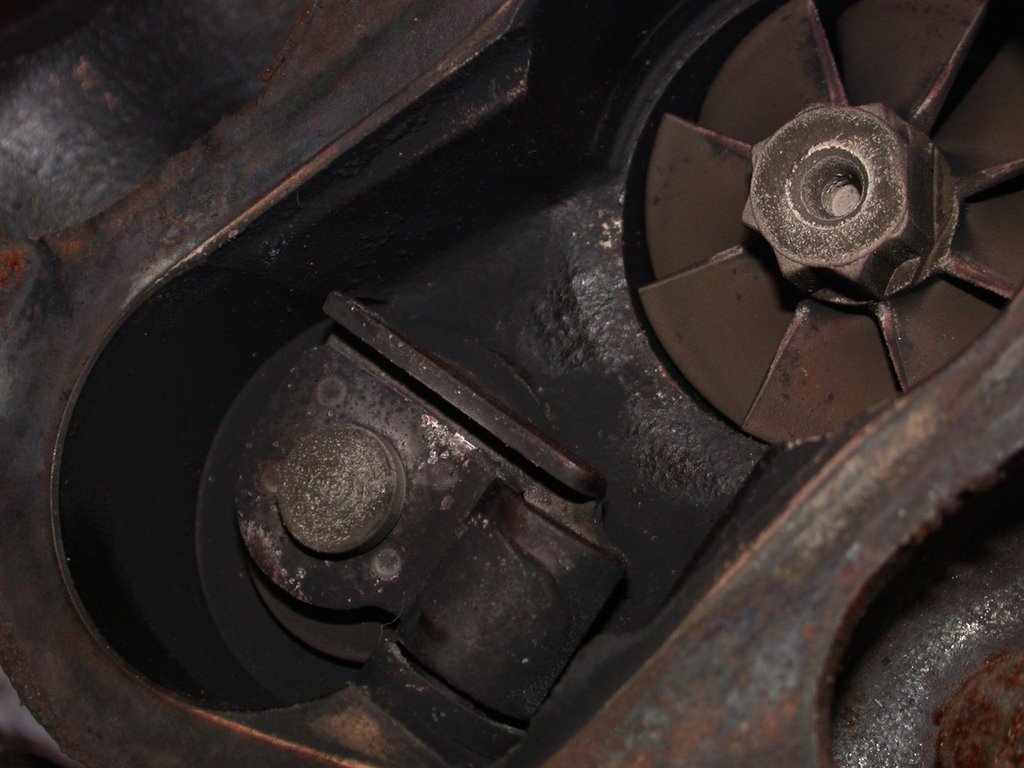

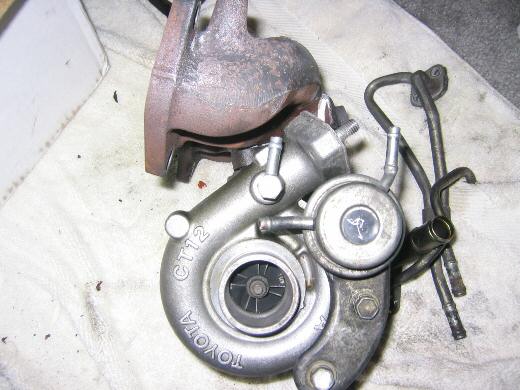

CT-12 turbo.








Exhaust Systems
Top

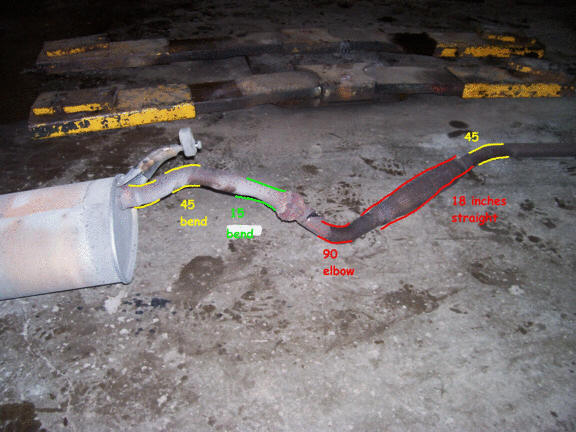

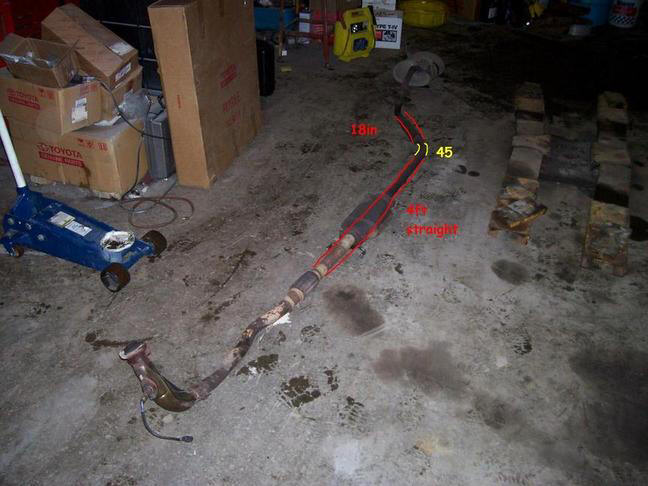

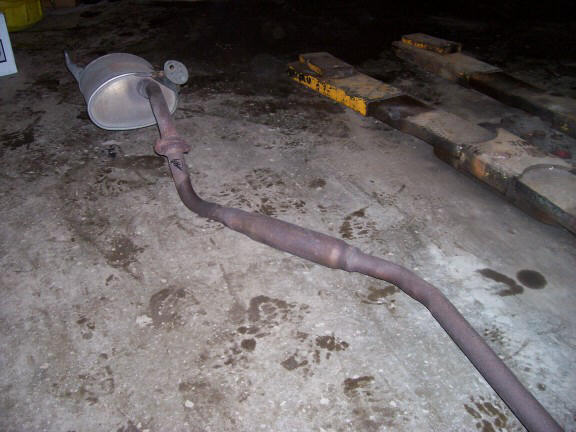

3E-E stock exhaust system with bends labeled.








Electronics
Top

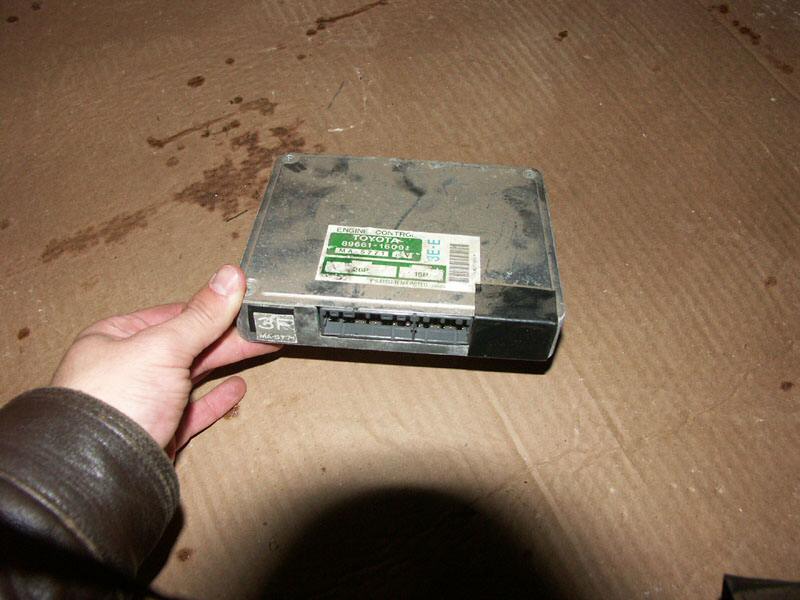

3E-E ECU.

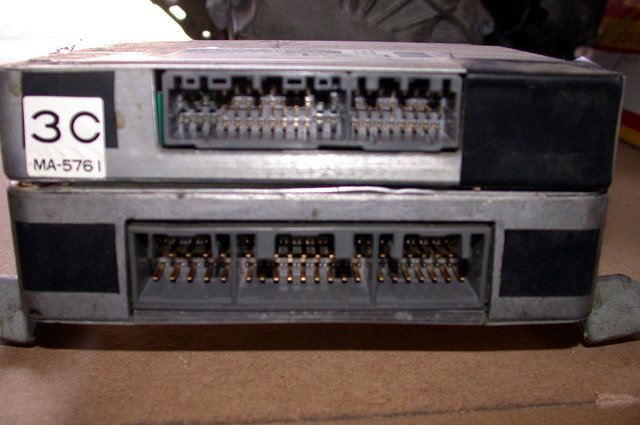

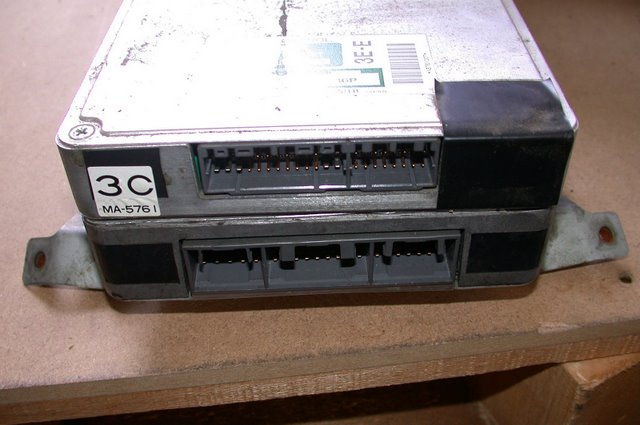

3E-E (top) and 3E-TE (bottom) ECUs.





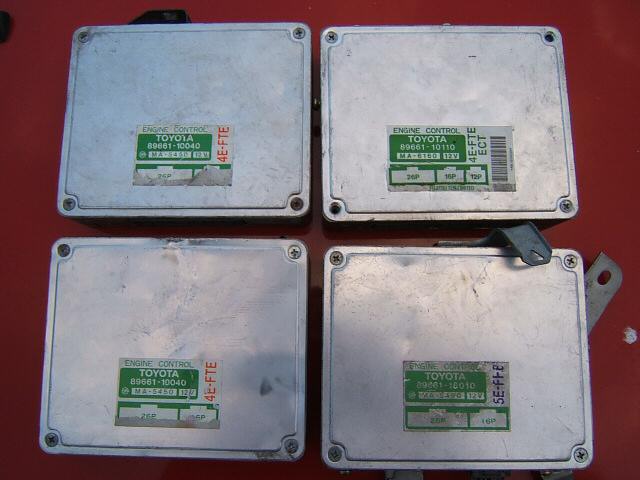

ECU comparison.





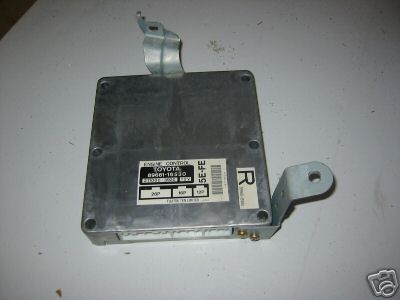

1997+ 2nd gen 5E-FE ECU.





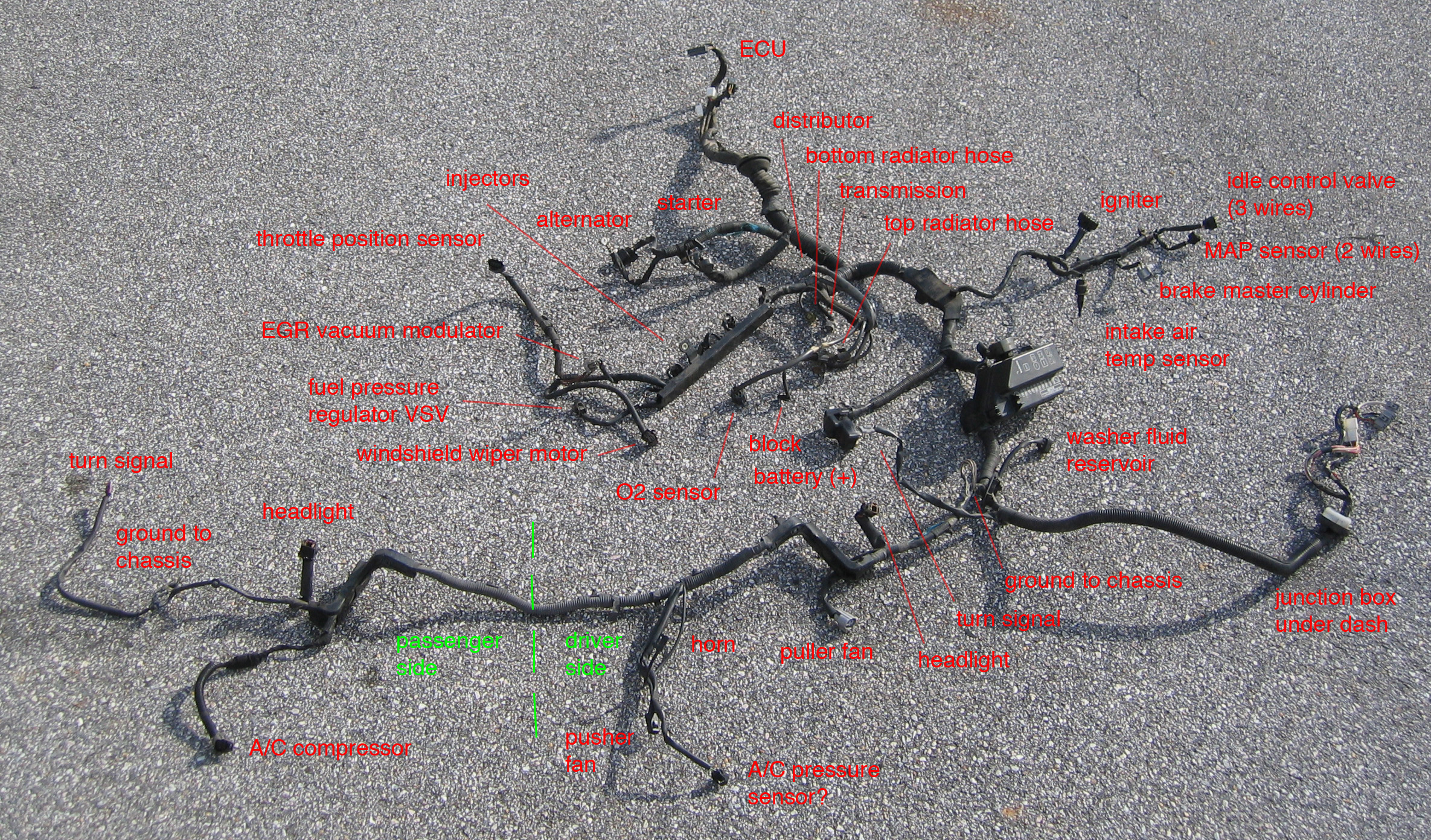

5E-FE wire harness.








Cooling System
Top

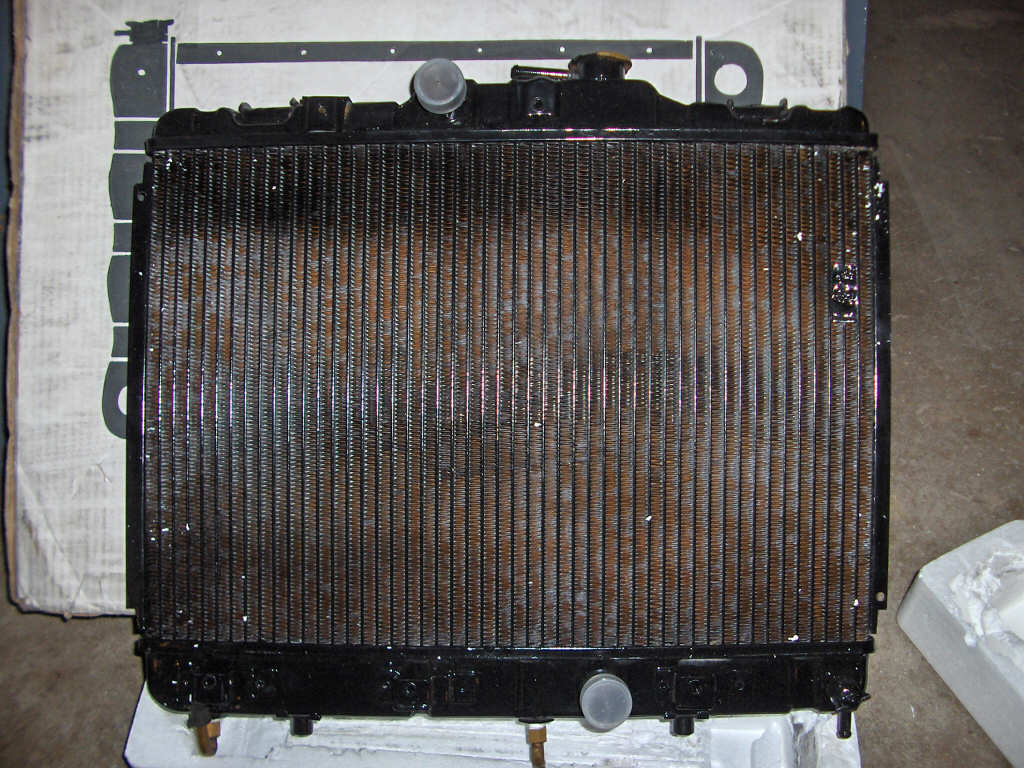

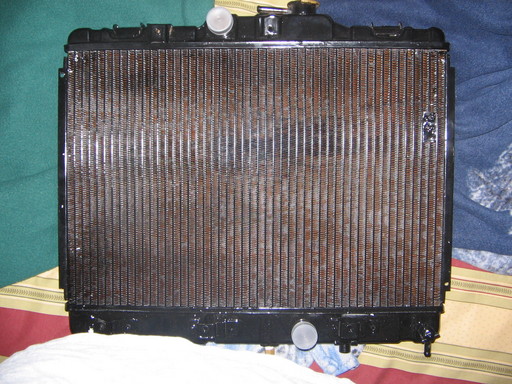

1987 Tercel automatic radiator. A common upgrade because of its size. 19 3/8 L x 12.75 T x 1 1/4 D.

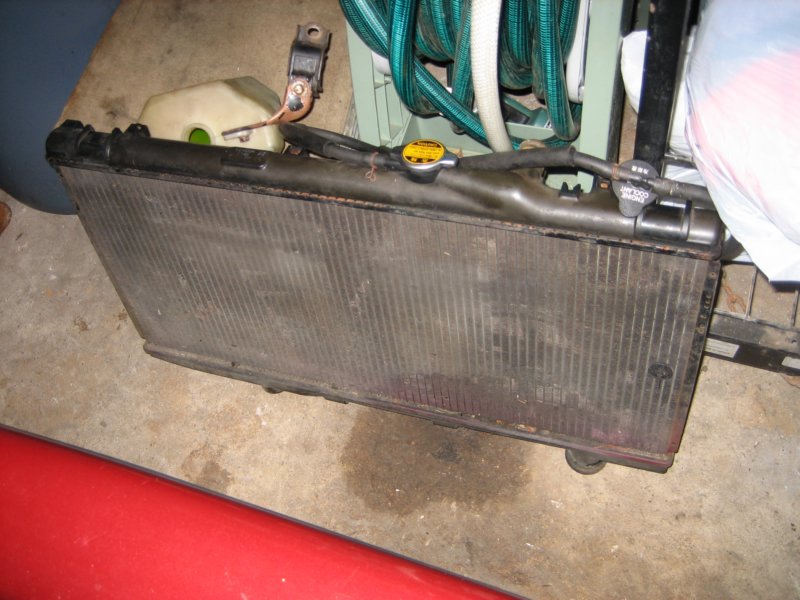

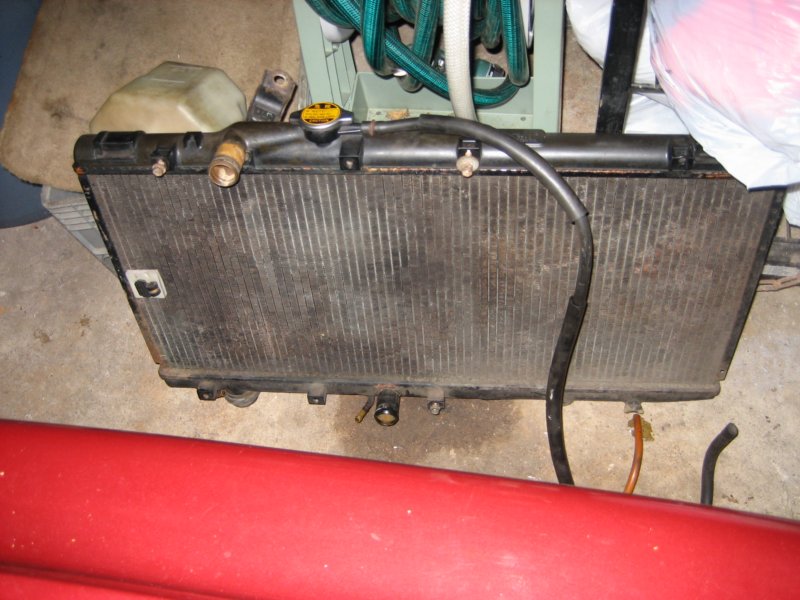

1991 - 1994 Tercel automatic radiator.





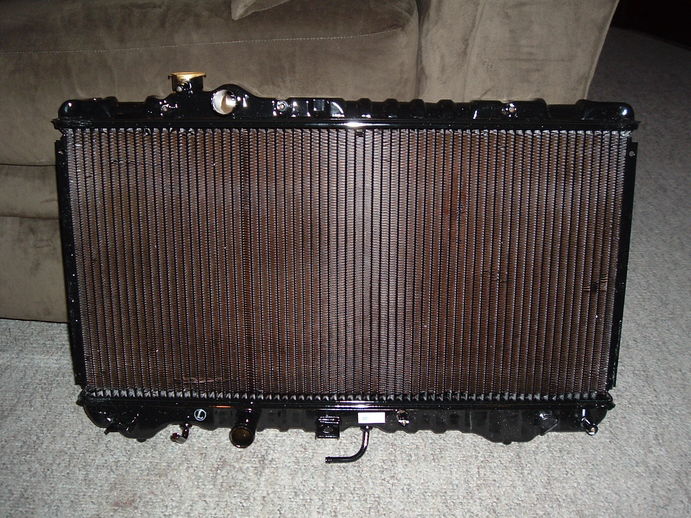

1995+ Radiator Barn all metal 2 row radiator.





Radiator comparison from back to front: 1993 Tercel manual, 1988 Tercel automatic, 90s Honda Civic automatic.
